Isuzu WW
▶
TRUCKS
▶
CXH
▶
10882 - CXH RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20C - MANUAL TRANSMISSION ASM AND CASE
▶
2-20C — MANUAL TRANSMISSION ASM AND CASE
(#27588) — 64 parça
Tümü
A - TRANSMISSION-FULLER RTLO149 13
B - TRANSMISSION-FULLER RTLO169 13
C - TRANSMISSION-FULLER RTLO169 18
D - TRANSMISSION-FULLER RTLO149 18
◀
[220C] BRACKET NO.2 (1 parça)
[220C] HOSE (20 parça)
[220C] BRACKET NO.1 AND CLIP (22 parça)
[220C] HOUSING (21 parça)
▶

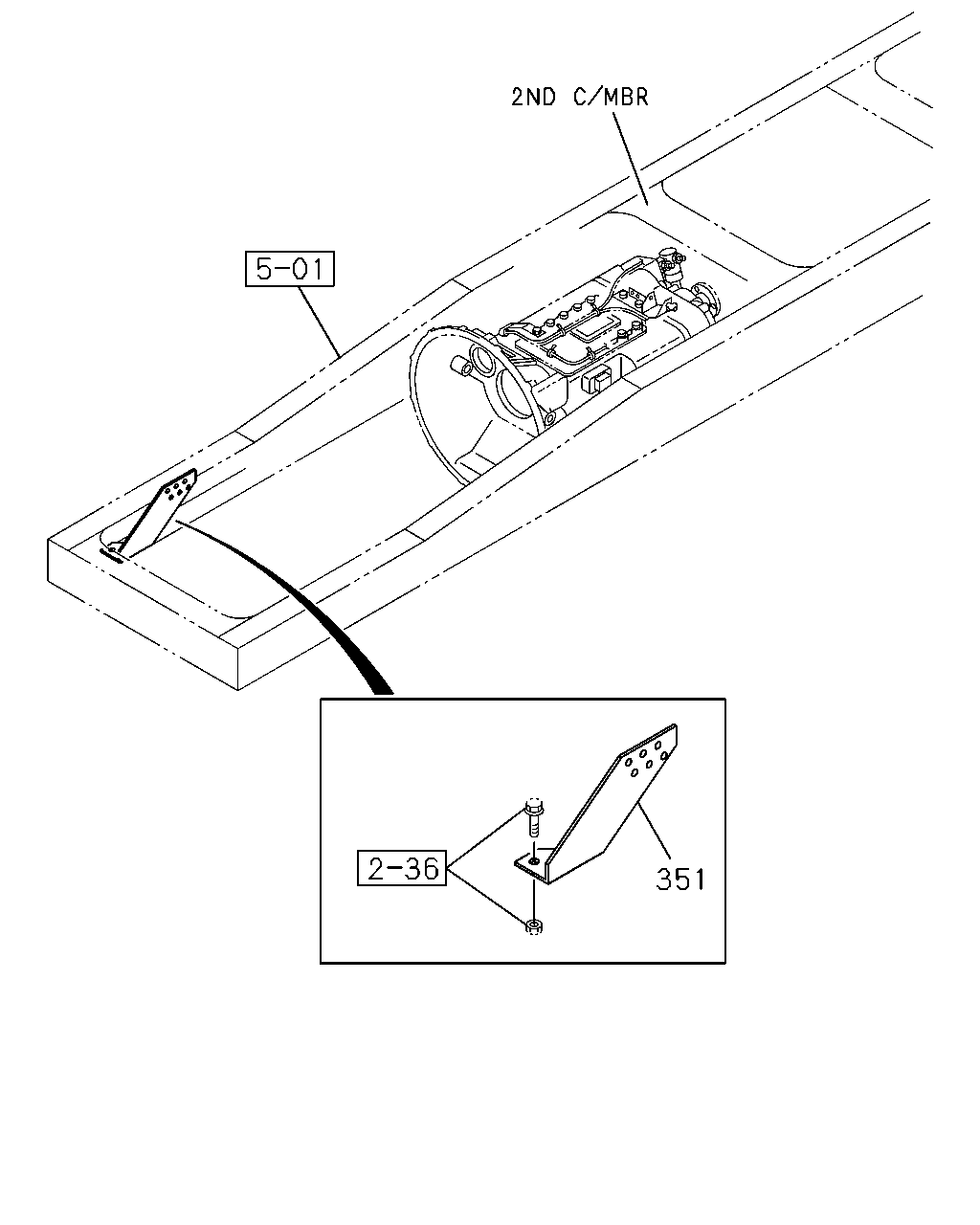

351
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
351
BRACKET; UNION,FLEX HOSE
1-47478-747-0
01
1
0105-
●
●
●
●

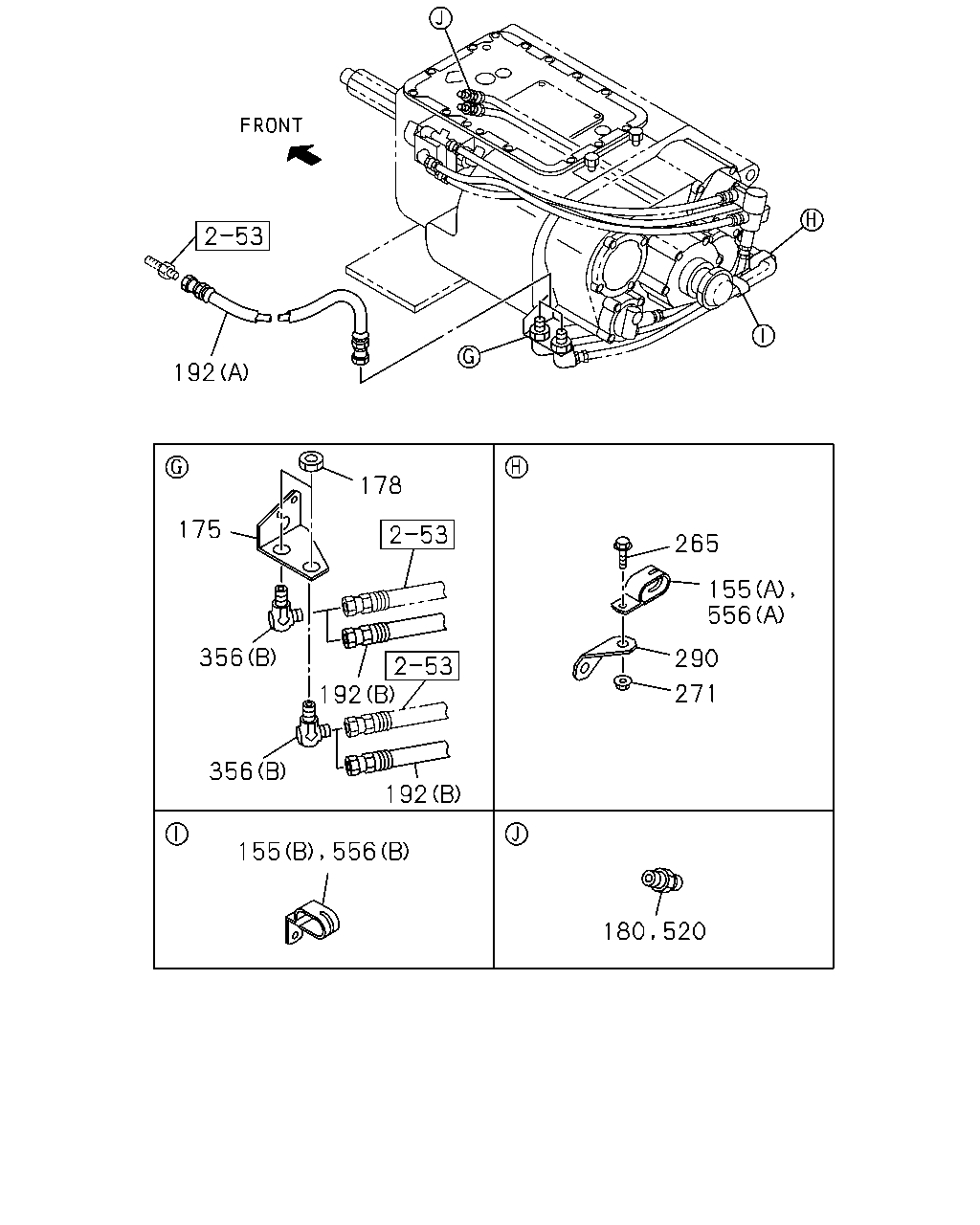

192
178
175
356
192
192
356
265
155
556
290
271
520
180
556
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
155
CLIP; HOSE
(A) ID=24X2 L=35
1-09701-121-0
01
1
0105-0309
●
●
●
●
155
CLIP; HOSE
(B)
8-97019-083-0
01
1
0105-0309
●
●
●
●
175
BRACKET; UNION
1-47478-084-0
01
1
0105-
●
●
●
●
178
NUT; UNION
M22
9-09111-522-0
02
1
0105-0512
●
●
●
●
178
NUT; UNION
M22
0-91111-522-0
02
1
0601-
●
●
●
●
180
CONNECTOR; NYLON TUBE
1-09661-055-0
02
1
0310-
●
●
●
●
192
HOSE; FLEX,TRANS
(B) L=1120
1-09365-010-0
02
1
0310-
●
●
●
●
192
HOSE; FLEX,TRANS
(A) L=460
1-09365-008-0
01
1
0105-
●
●
●
●
192
HOSE; FLEX,TRANS
(A) L=520
1-09365-009-0
01
1
0105-
●
●
●
●
265
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0105-0106
●
●
●
●
265
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
●
●
●
●
265
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
●
●
271
NUT; CLIP
M8 FLANGE
0-91150-208-0
01
1
0105-0602
●
●
●
●
271
NUT; CLIP
M8 FLANGE
0-91180-208-0
01
1
0603-
●
●
●
●
290
BRACKET; CLIP
1-38329-074-0
01
1
0105-
●
●
●
●
356
UNION
(A) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0105-
●
●
●
●
356
UNION
(B)
1-09664-020-1
02
1
0105-
●
●
●
●
520
CONNECTOR
1-09661-055-0
02
1
0105-0309
●
●
●
●
556
CLIP; OIL HOSE
(A) ID=24X2 L=35
1-09701-121-0
01
1
0310-
●
●
●
●
556
CLIP; OIL HOSE
(B)
8-97019-083-0
01
1
0310-
●
●
●
●
189
188
190
436
382
164
303
356
367
272
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
164
CONNECTOR; ELBOW
DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0105-0105
●
●
●
●
164
CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0106-
●
●
●
●
188
CLIP; PIPE,BRKT
ID=16 L=28
9-09525-556-0
01
1
0105-0606
●
●
●
●
188
CLIP; PIPE,BRKT
ID=16 L=28
0-95235-556-0
01
1
0607-
●
●
●
●
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0105-0512
●
●
●
●
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
●
●
190
CLIP; BAND,CONT TUBE
L=250
1-09707-126-0
05
1
0105-
●
●
●
●
199
CLIP; NYLON TUBE
L=250
1-09707-126-0
01
1
0105-
●
●
●
●
272
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0105-0512
●
●
●
●
272
BOLT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
●
●
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0105-0105
●
●
●
●
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0106-0106
●
●
●
●
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0107-0201
●
●
●
●
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0202-0212
●
●
●
●
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0301-
●
●
●
●
356
UNION
(A) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0105-
●
●
●
●
356
UNION
(B)
1-09664-020-1
02
1
0105-
●
●
●
●
367
WASHER; PL,BRKT
1-53459-587-0
01
1
0105-0111
●
●
●
●
382
GASKET; ADAPTER
ID=11 OD=18
9-09572-510-0
01
1
0105-
●
●
●
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
0105-0309
●
●
●
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
0310-
●
●
●
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
0310-
●

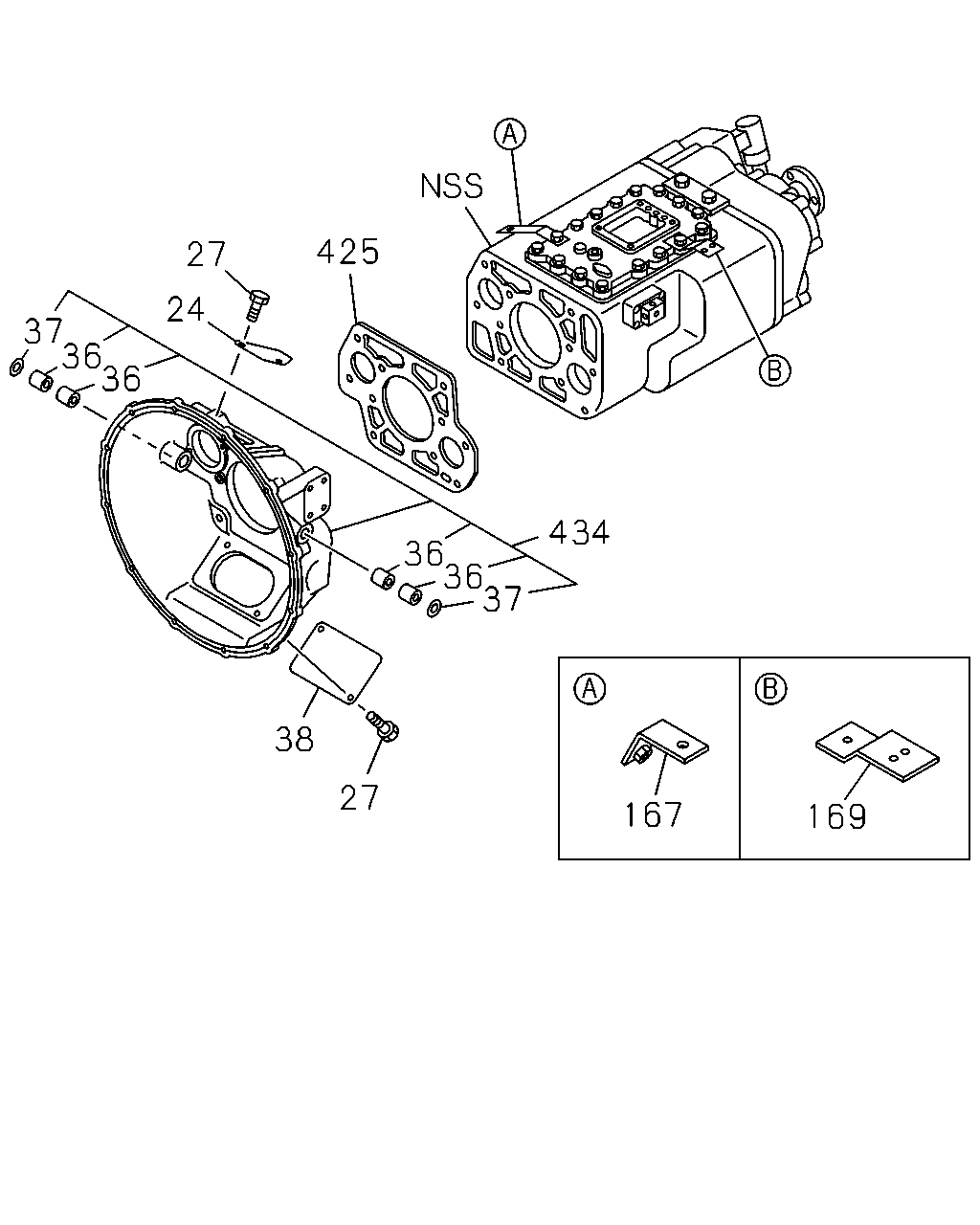

169
167
27
38
37
36
36
434
425
27
24
36
36
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
0105-
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
04
1
0105-0106
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
04
1
0107-0512
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
04
1
0601-
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
0105-0105
●
●
●
●
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
0105-
●
●
●
●
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-215-0
02
1
0105-
●
●
●
●
38
COVER; CHECK HOLE,LWR
1-31131-014-0
01
1
0105-0105
●
●
●
●
38
COVER; CHECK HOLE,LWR
1-31131-044-1
01
1
0106-
●
●
●
●
167
BRACKET; CLIP,AIR TUBE
1-82699-123-1
01
1
0105-
●
●
●
●
169
BRACKET; CLIP,PIPE HOSE
1-47475-633-0
01
1
0105-
●
●
●
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-011-0
01
1
0501-0502
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-011-0
01
1
0503-
●
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
0105-0412
●
●
●
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
0501-0502
●
●
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
0503-
●
●
434
HOUSING; CLU
1-31110-209-0
01
1
0310-0412
●
●
434
HOUSING; CLU
1-31110-103-0
01
1
0105-0110
●
●
●
●
434
HOUSING; CLU
1-31110-208-1
01
1
0111-0309
●
●
●
●
434
HOUSING; CLU
1-31110-208-1
01
1
0310-0412
●
●
434
HOUSING; CLU
1-31110-220-0
01
1
0501-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
