◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#27587) — 645 parça

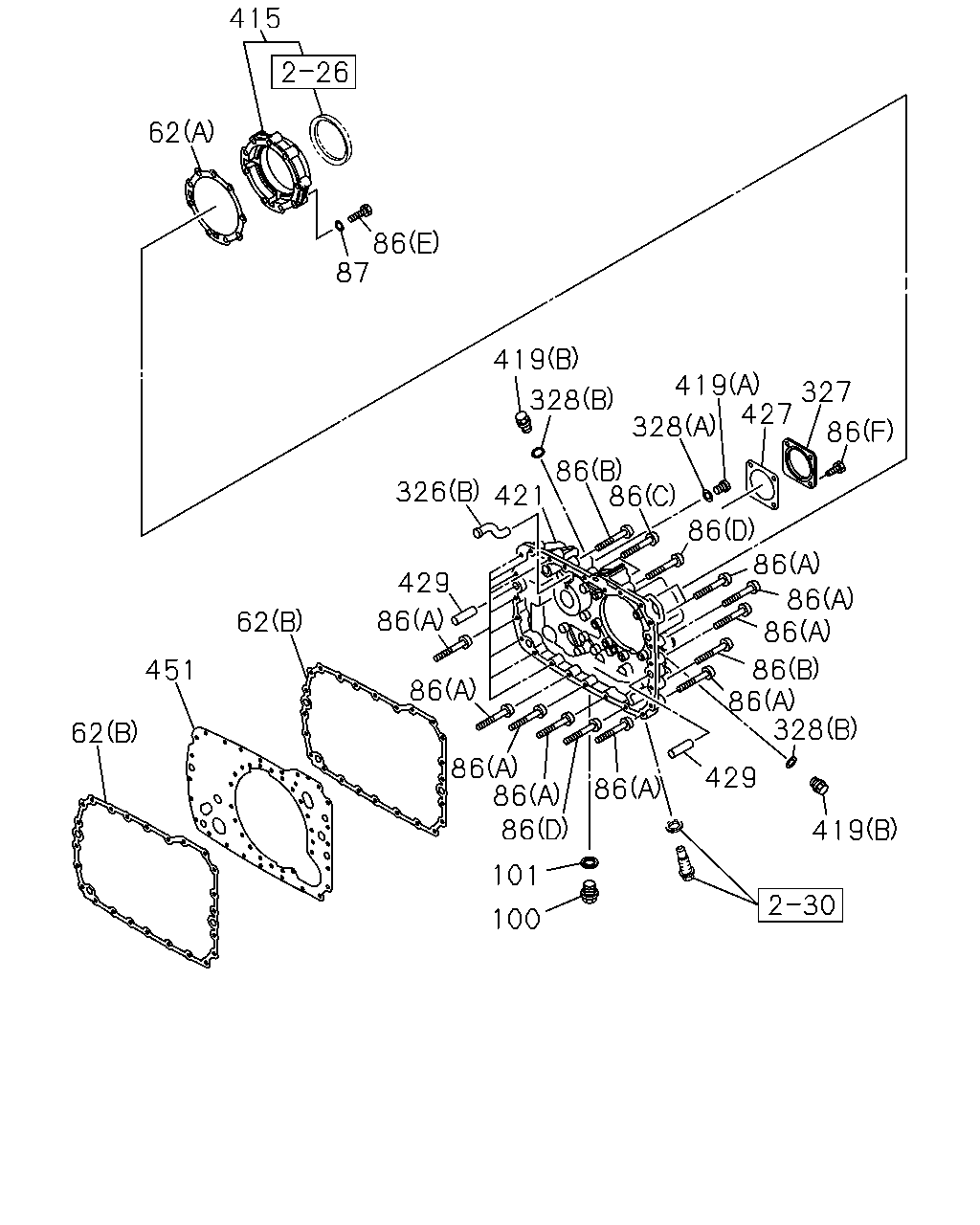

çizim 22684
415 62 86 87 419 328 419 327 427 86 328 86 421 86 326 86 86 86 86 86 86 328 419 429 86 100 101 86 86 86 86 86 429 62 451 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0105-0106 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0107- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0105-0106 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0107- ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0105-0106 ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0107- ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0105-0106 ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0107- ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0105-0106 ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0107- ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 0105-0106 ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 0107- ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 0105-0106 ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 0107- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM),ENGINE REAR PTO(SV1) (F) M12X25 		1-33119-400-0 04 1 0105-0105 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 0106-0106 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 0107- ● ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0105-0106 ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0107- ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0105-0106 ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0107- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105-0106 ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0107- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105-0106 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0107- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0107- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM),ENGINE REAR PTO(SV1) 		1-33131-165-0 01 1 0105-0105 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0106-0106 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0107- ● ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105-0106 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0107- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105-0106 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0107- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105-0106 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0107- ● ●
415 COVER; BRG 1-33159-039-0 01 1 0105-0106 ●
415 COVER; BRG 1-33159-039-0 01 1 0107- ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0105-0106 ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0107- ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0105-0106 ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0107- ● ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 0105-0106 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 0107- ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM),ENGINE REAR PTO(SV1) 		1-33132-054-0 01 1 0105-0105 ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0106-0106 ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0107- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105-0106 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0107- ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 0105-0106 ●
451 PLATE; RR COVER 1-33139-055-0 01 1 0107- ● ●

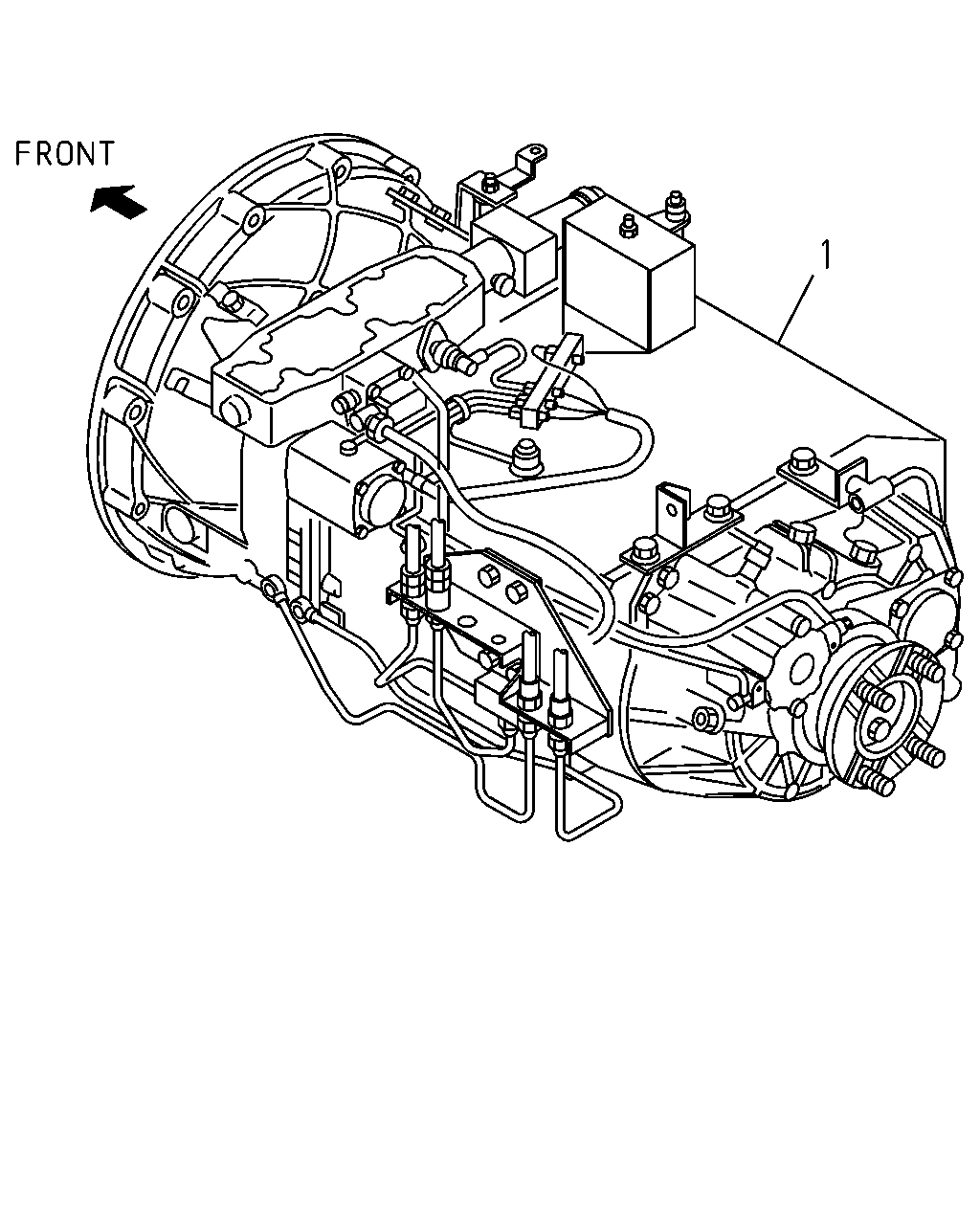

çizim 23538
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),ENGINE REAR PTO(SV1) 		1-33042-012-0 01 1 0105-0105 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-033-0 01 1 0107-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 0107-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-380-0 01 1 0110- ●

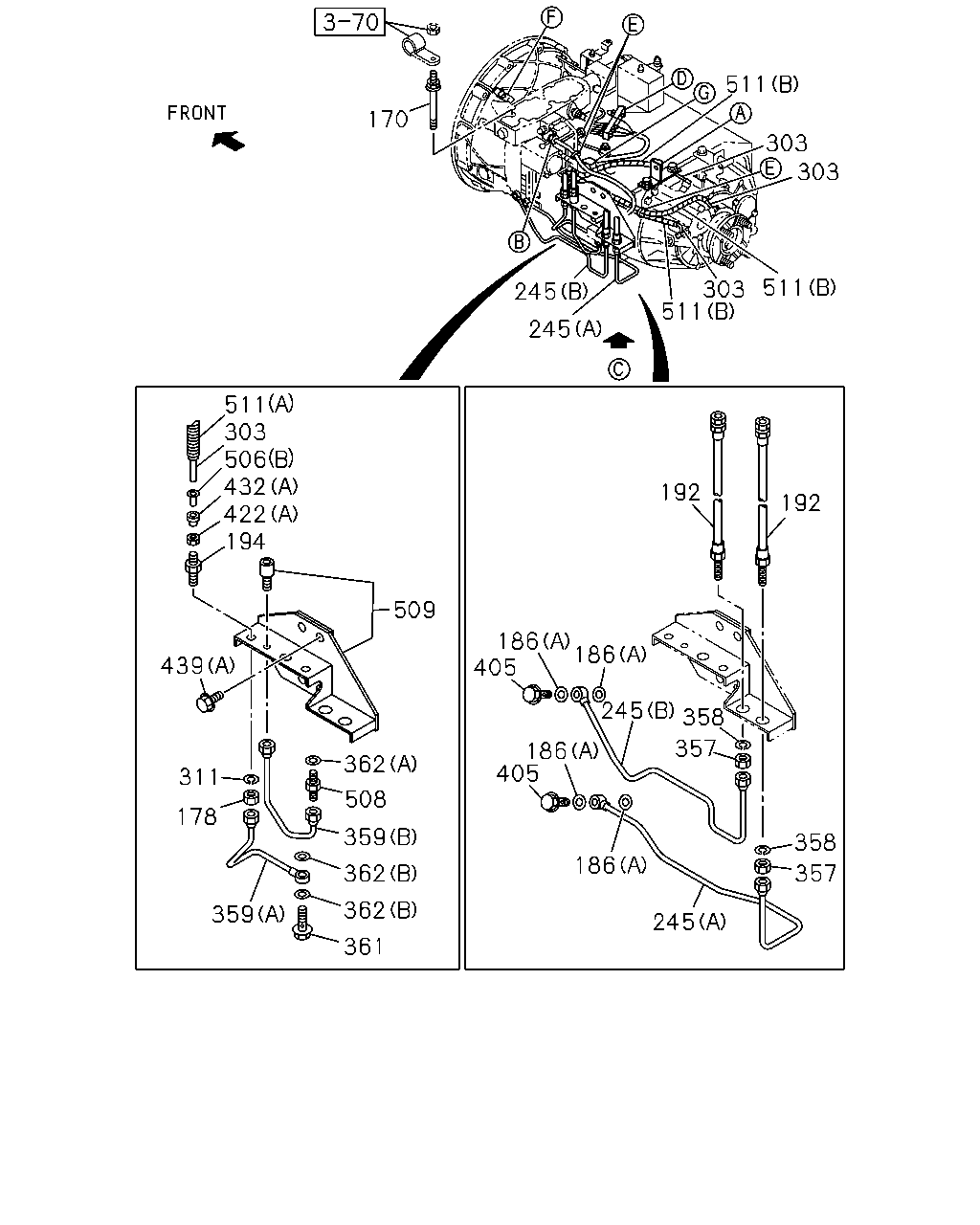

çizim 24268
170 511 303 303 303 511 511 245 245 192 192 186 186 405 245 358 357 186 405 186 245 358 357 359 361 362 362 359 508 362 178 311 439 509 194 422 432 506 303 511
BalonParca AdiParca NoAdetTipApplied Date A B
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ● ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 0105-0106 ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 0107-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0105-0106 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0107- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0105-0106 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0107- ● ●
192 HOSE; FLEX,TRANS
L=311 		1-09364-921-0 01 1 0107- ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0105-0106 ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0107- ● ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0105-0106 ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0107- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0107- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0107- ●
303 TUBE; NYLON
EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0107- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0105-0106 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0107-0603 ● ●
311 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0105-0106 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0107-0512 ● ●
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0601- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0106 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-0603 ● ●
358 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-0106 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0105-0106 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0107- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-0106 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0105-0106 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0107- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105-0106 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0107- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106-0106 ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0107- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0107- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-0106 ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0107- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0106 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0107-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0107-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-0106 ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0107- ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105-0106 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0107- ● ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105-0106 ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0107- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0105-0106 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0107- ● ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0105- ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0107- ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0107- ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-0106 ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0107- ● ●
çizim 24501
511 368 365 366 365 357 358 357 358 439 361 362 359 362 359 362 508 181 182 422 432 303 511 506 180 192 192 509 178 311 439 194 422 432 506 303 185 185 405 186 186 186 186 183 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0105-0106 ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 0107-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0105-0106 ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0107- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0105-0106 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0107- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0105-0106 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0107- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0105-0106 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0107- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0105-0106 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0107- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0105-0106 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0107- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0105-0106 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0107- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0105-0106 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0107- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0105-0106 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0107- ● ●
192 HOSE; FLEX,TRANS
L=311 		1-09364-921-0 01 1 0107- ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0105-0106 ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0107- ● ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0105-0106 ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0107- ● ●
303 TUBE; NYLON
EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0107- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0105-0106 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0107-0603 ● ●
311 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0105-0106 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0107-0512 ● ●
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0601- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0106 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-0603 ● ●
358 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-0106 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0105-0106 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0107- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-0106 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0105-0106 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0107- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0105-0106 ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0107- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0107- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28151-216-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0107-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 0105-0105 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106-0106 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0107- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105-0106 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0107- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106-0106 ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0107- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0107- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-0106 ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0107- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0106 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0107-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0107-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-0106 ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0107- ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105-0106 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0107- ● ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105-0106 ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0107- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0105-0106 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0107- ● ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0105- ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0107- ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0107- ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-0106 ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0107- ● ●

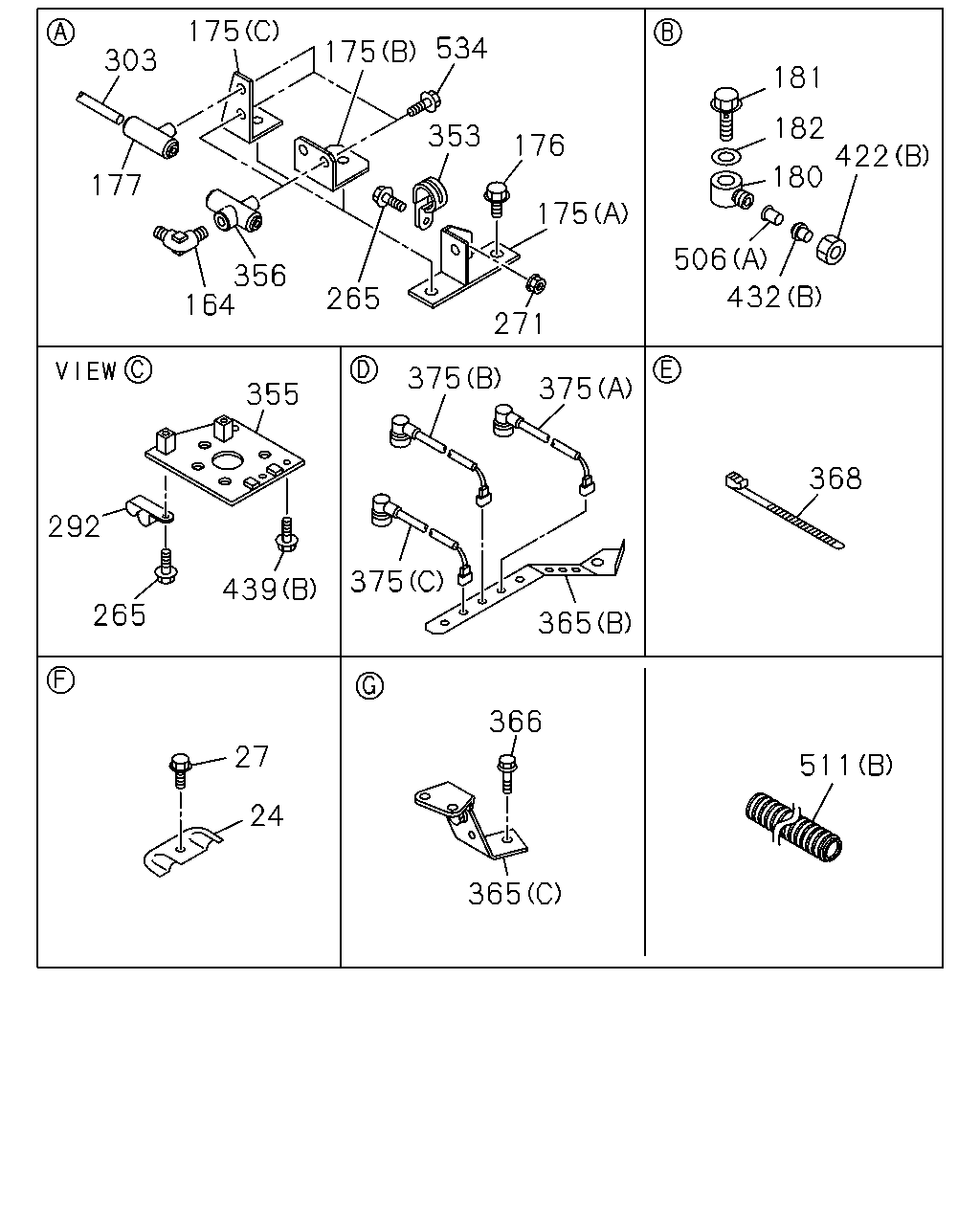

çizim 77213
511 365 366 24 27 365 375 368 375 375 439 265 292 355 164 265 356 271 175 176 353 534 175 175 303 177 432 506 180 422 182 181
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0105-0106 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0107- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0106 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0106 ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0107-0107 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0105-0106 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0106 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0105-0106 ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0107- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0105-0106 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0107- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0105-0106 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0107- ● ●
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0105-0106 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0107- ● ●
303 TUBE; NYLON
EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0107- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0105- ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0107- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-0106 ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0105-0106 ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0107- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0107- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28151-216-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0107-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 0105-0105 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106-0106 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0107- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0105-0106 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0107- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0105-0106 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0107- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0105-0106 ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0107- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106-0106 ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0107- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0107- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105-0106 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-0106 ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0107- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105-0106 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0107- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0106 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0107-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0107-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-0106 ●
506 INSERT
(A) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0107- ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105-0106 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0107- ● ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105-0106 ●
506 INSERT
(B) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0107- ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-0106 ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0107- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0107-0107 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●

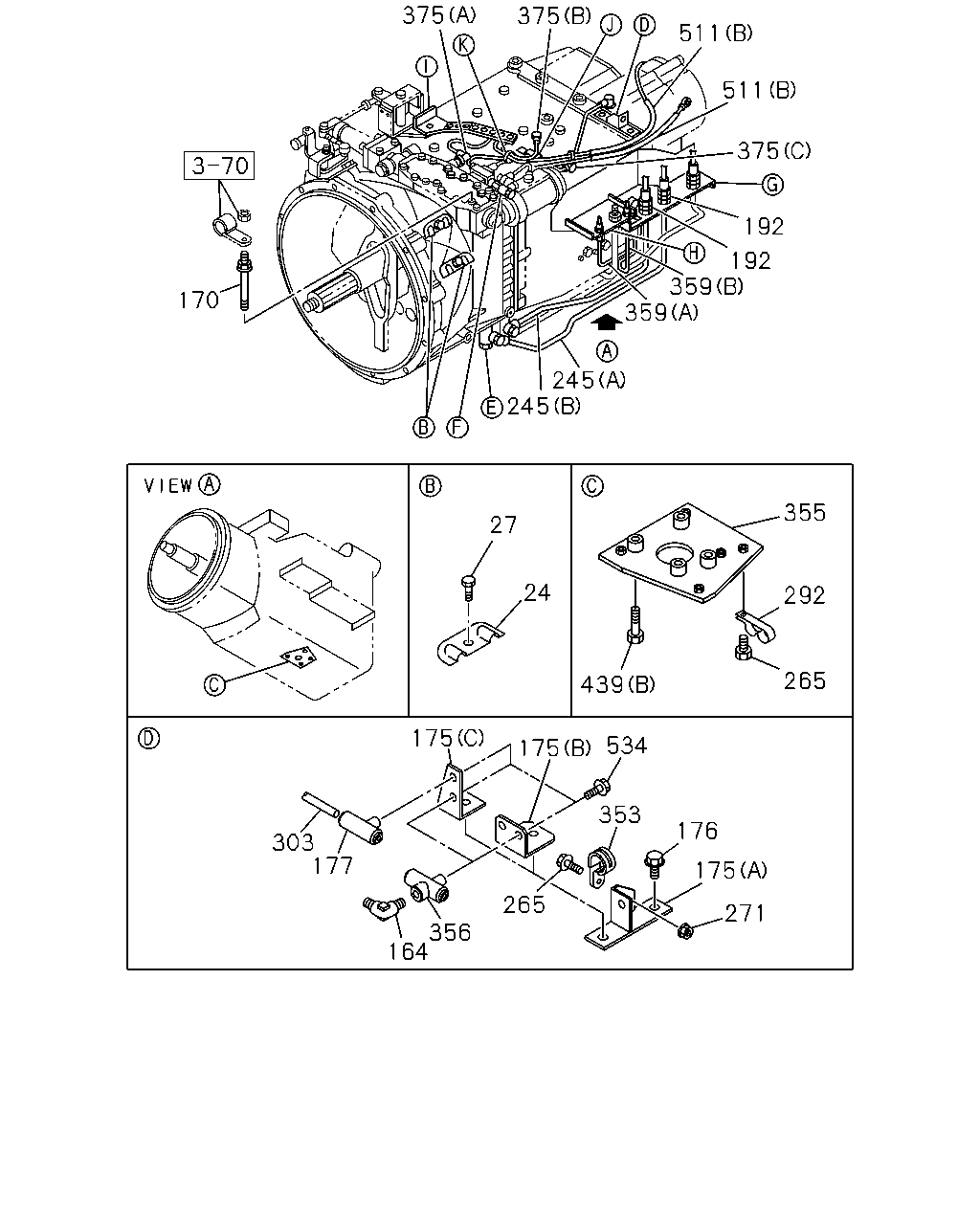

çizim 78169
164 356 265 177 303 271 175 176 353 534 175 175 439 265 292 355 24 27 245 245 359 359 192 192 375 511 511 375 375 170
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0105-0106 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0107- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0106 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0106 ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107- ● ●
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0107-0107 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0105-0106 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0106 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0107- ● ●
192 HOSE; FLEX,TRANS
L=311 		1-09364-921-0 01 1 0107- ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0105-0106 ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0107- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0107- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0107- ●
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0105-0106 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0107- ● ●
303 TUBE; NYLON
EXC. MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0107- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
MIXER TRUCK<RA2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0105- ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0107- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-0106 ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-0106 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0105-0106 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0107- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0105-0106 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0107- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0105-0106 ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0107- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0106 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0107-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0107-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0107-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
EXC. MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0107- ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0105 ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ● ●
511 TUBE; CORRUGATE
MIXER TRUCK<RA2> (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0107 ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-0106 ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0107- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0107-0107 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●

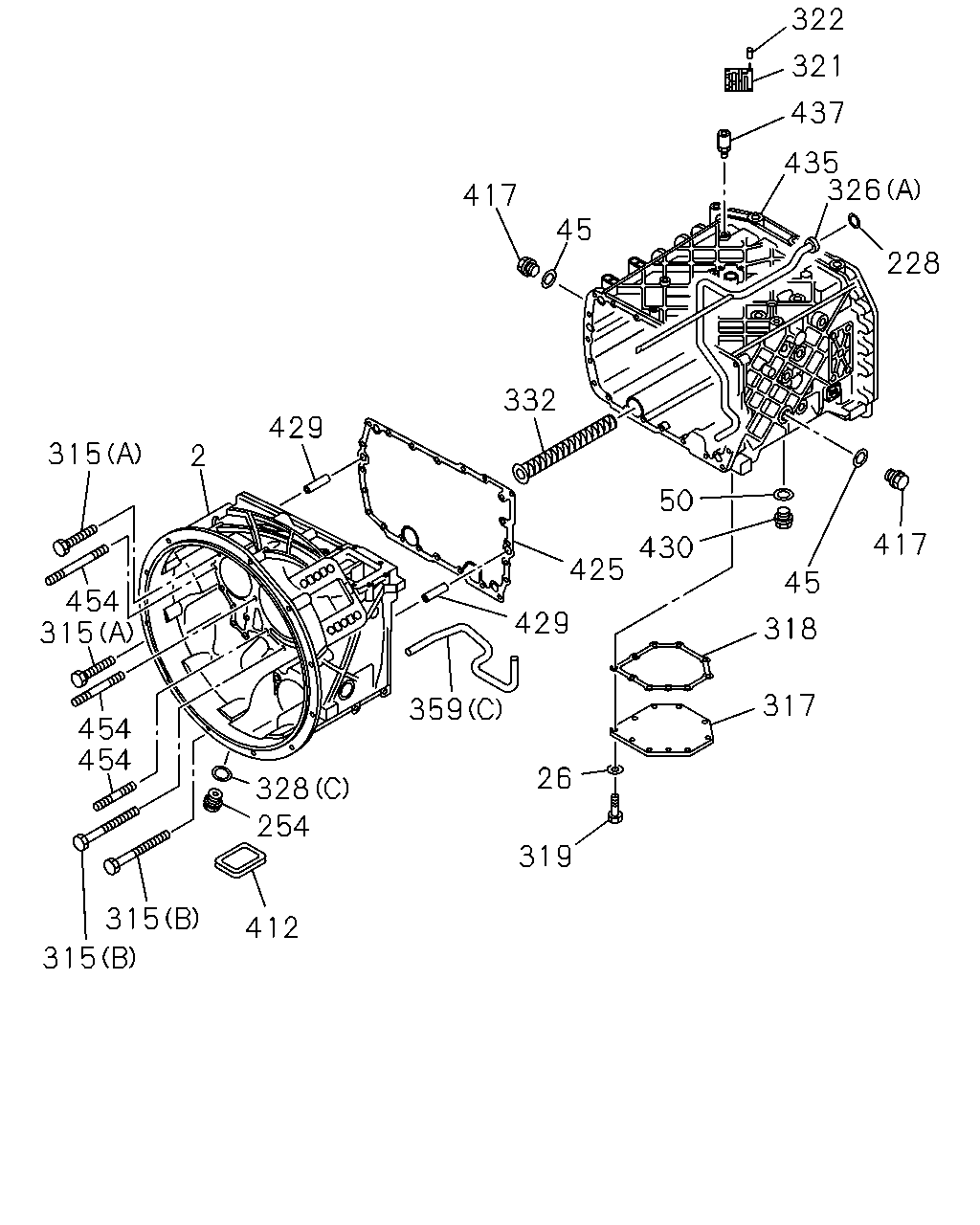

çizim 79699
315 315 412 254 328 454 454 315 454 315 2 429 332 359 319 26 429 317 318 425 430 50 45 417 228 45 417 326 435 437 321 322
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-194-0 01 1 0105-0106 ●
2 HOUSING; CLU 1-31111-194-0 01 1 0107- ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 0105-0106 ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 0107- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0105-0106 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0107- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105-0106 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0107- ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 0105-0106 ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 0107- ● ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0105-0106 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0107- ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0105-0106 ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0107- ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0105-0106 ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0107- ● ●
317 COVER; CASE 1-33119-274-0 01 1 0105-0106 ●
317 COVER; CASE 1-33119-274-0 01 1 0107- ● ●
318 GASKET; COVER 1-33119-409-0 01 1 0105-0106 ●
318 GASKET; COVER 1-33119-409-0 01 1 0107- ● ●
319 BOLT; COVER 1-33119-276-0 10 1 0105-0106 ●
319 BOLT; COVER 1-33119-276-0 10 1 0107- ● ●
321 PLATE; NAME 1-33119-277-0 01 1 0105-0106 ●
321 PLATE; NAME 1-33119-277-0 01 1 0107- ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0105-0106 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0107- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105-0106 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0107- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0107- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105-0106 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0107- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105-0106 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0107- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105-0106 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0107- ● ●
332 FILTER; OIL 1-33119-370-0 01 1 0105-0106 ●
332 FILTER; OIL 1-33119-370-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-0106 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0107- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0107-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 0105-0106 ●
412 CAP; CLU HSG 1-31119-022-0 01 1 0107- ● ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0105-0106 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0107- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0105-0106 ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0107- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105-0106 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0107- ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0105-0106 ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0107- ● ●
435 CASE; TRANS 1-33111-286-0 01 1 0105- ●
435 CASE; TRANS 1-33111-290-0 01 1 0107- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0105-0106 ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0107- ● ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0105-0106 ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0107- ● ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0105-0106 ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0107- ● ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0105-0106 ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0107- ● ●

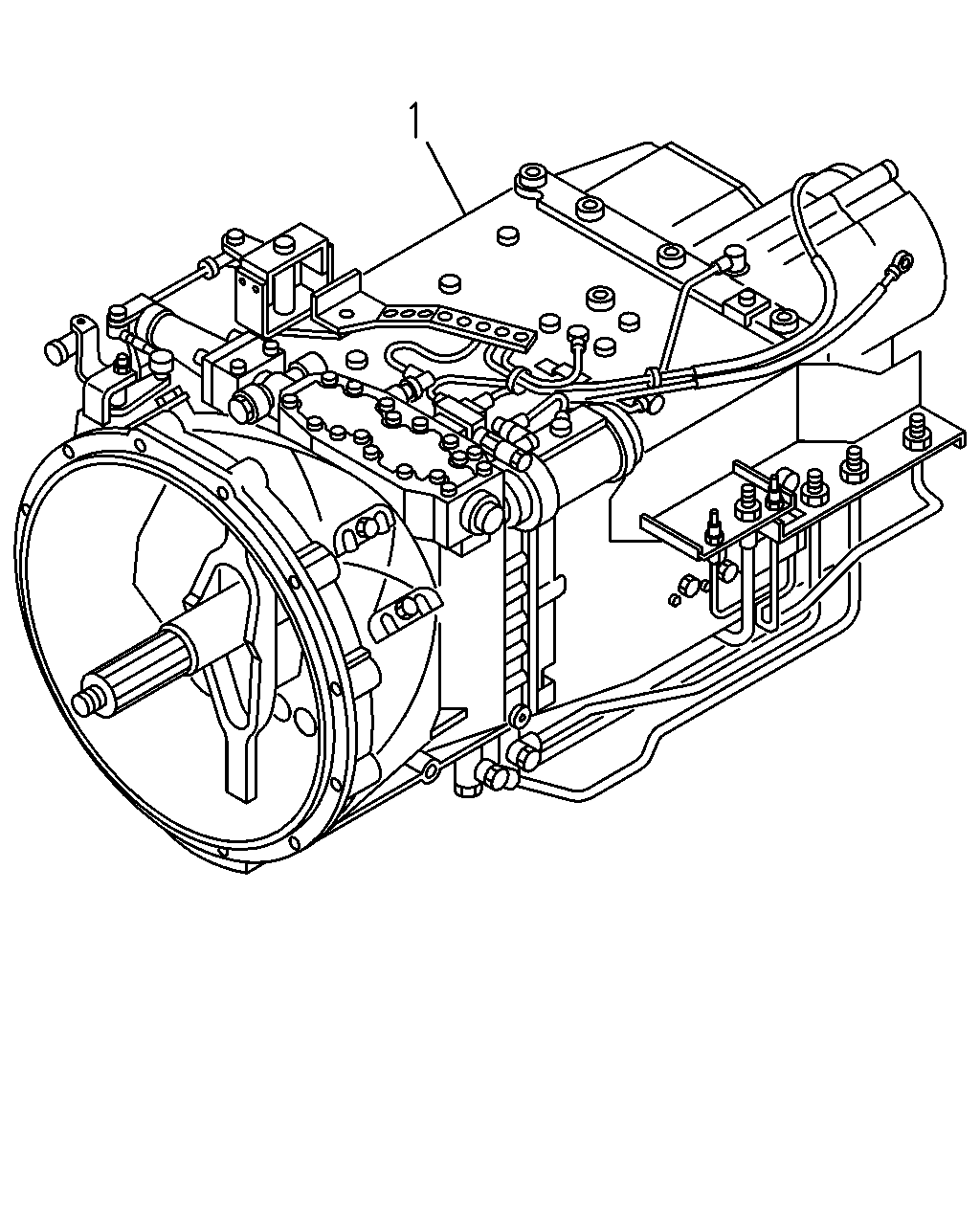

çizim 80286
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),ENGINE REAR PTO(SV1) 		1-33042-012-0 01 1 0105-0105 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-033-0 01 1 0107-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 0107-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-380-0 01 1 0110- ●

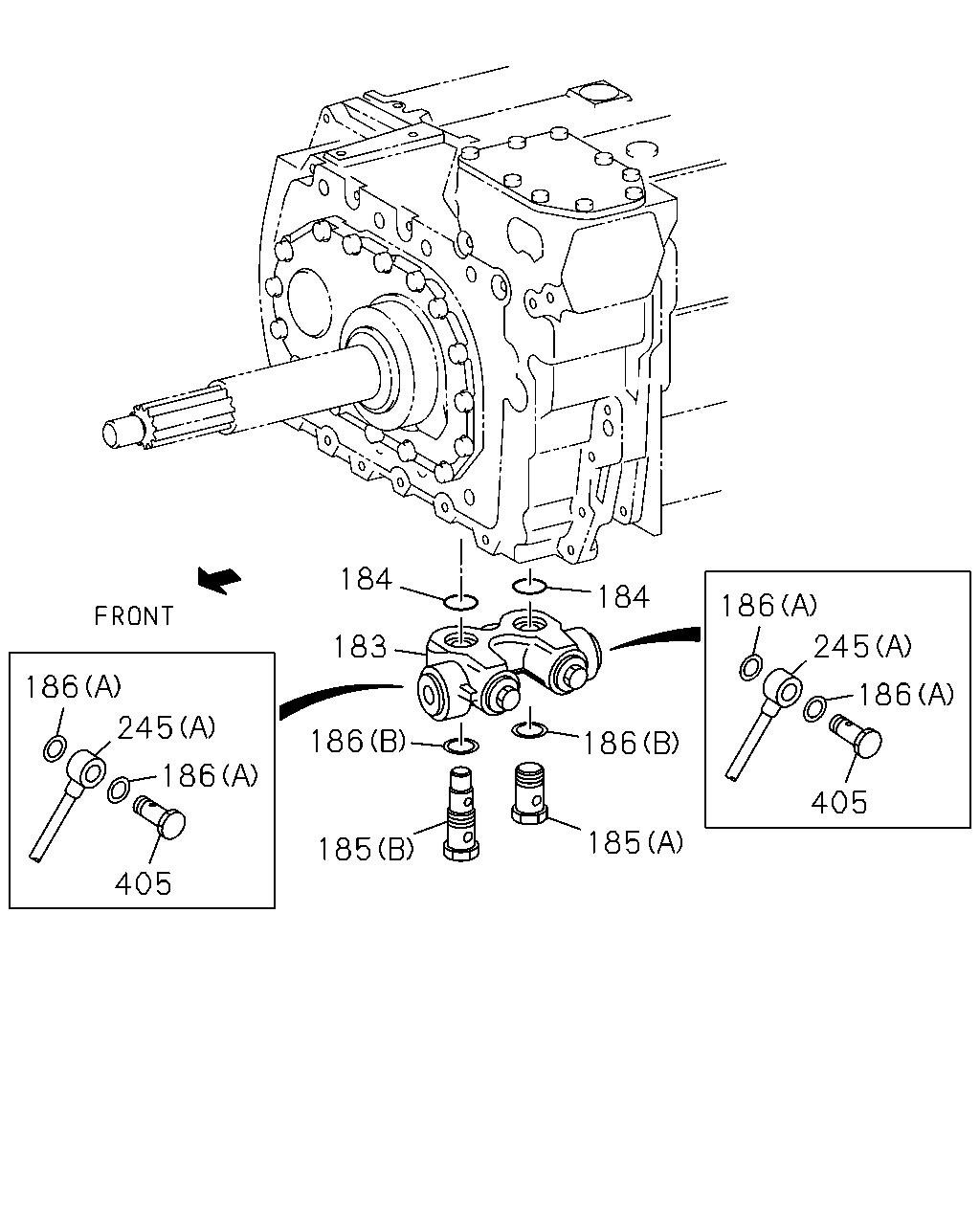

çizim 80627
405 186 245 186 185 186 184 185 186 183 184 405 186 245 186
BalonParca AdiParca NoAdetTipApplied Date A B
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0105-0106 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0107- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0105-0106 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0107- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0105-0106 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0107- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0105-0106 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0107- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0105-0106 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 0107- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0105-0106 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 0107- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0107- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0107- ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105-0106 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0107- ● ●

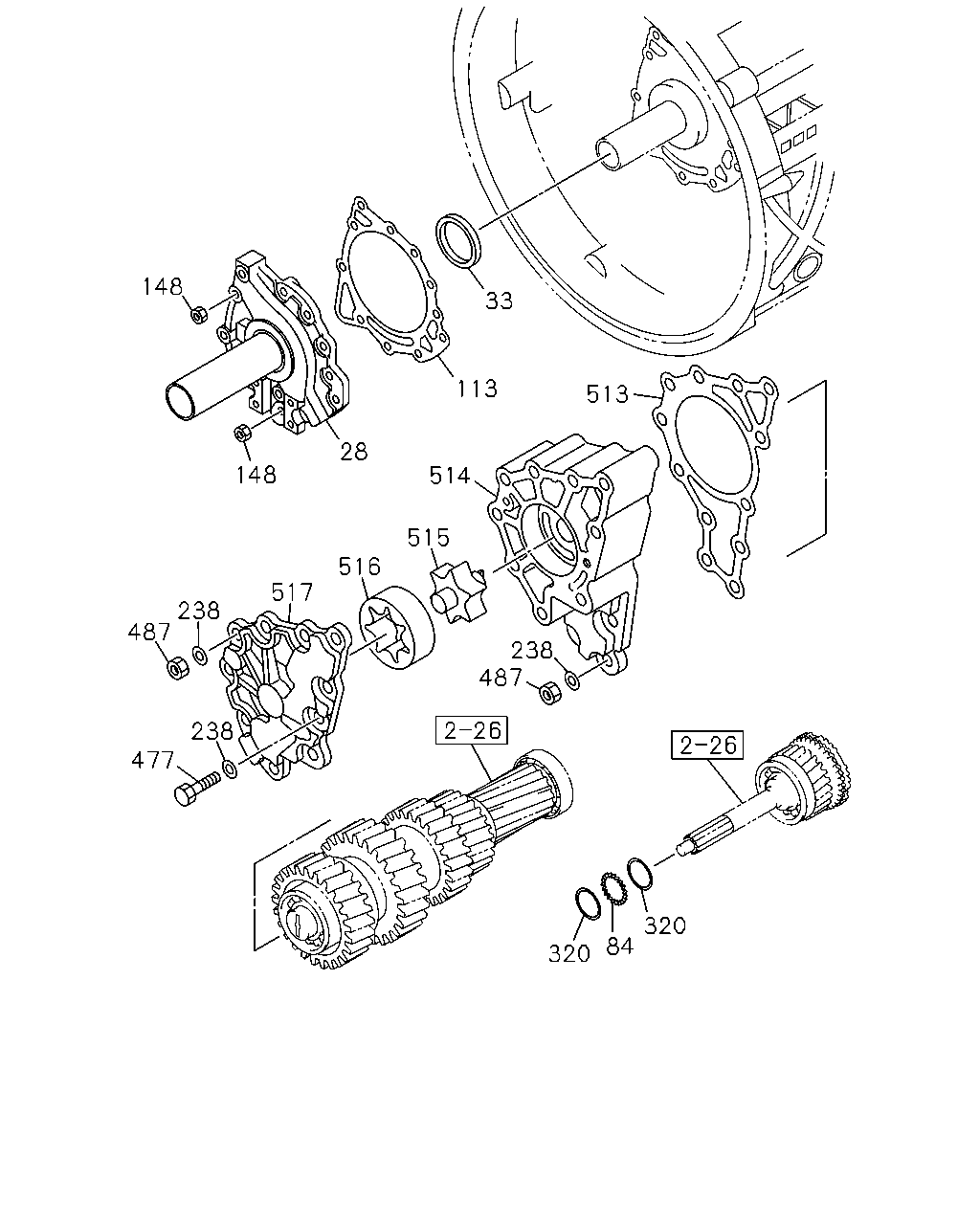

çizim 83672
513 33 113 148 28 514 148 515 516 517 238 487 238 477 238 487 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0105-0106 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0107- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0105-0106 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0107- ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0105-0106 ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0107- ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0105-0106 ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0107- ● ●
148 NUT 1-33529-056-0 11 1 0105-0106 ●
148 NUT 1-33529-056-0 11 1 0107- ● ●
238 WASHER; PL 1-09469-010-0 14 1 0105-0106 ●
238 WASHER; PL 1-09469-010-0 14 1 0107- ● ●
320 WASHER; COVER 1-33129-007-0 02 1 0105-0106 ●
320 WASHER; COVER 1-33129-007-0 02 1 0107- ● ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0105-0106 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0107- ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0105-0106 ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0107- ● ●
513 GASKET; HOUSING 1-34159-058-0 01 1 0105-0106 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 0107- ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0105-0106 ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0107- ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0105-0106 ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0107- ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0105-0106 ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0107- ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 0105-0106 ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
