Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#27586) — 239 parça

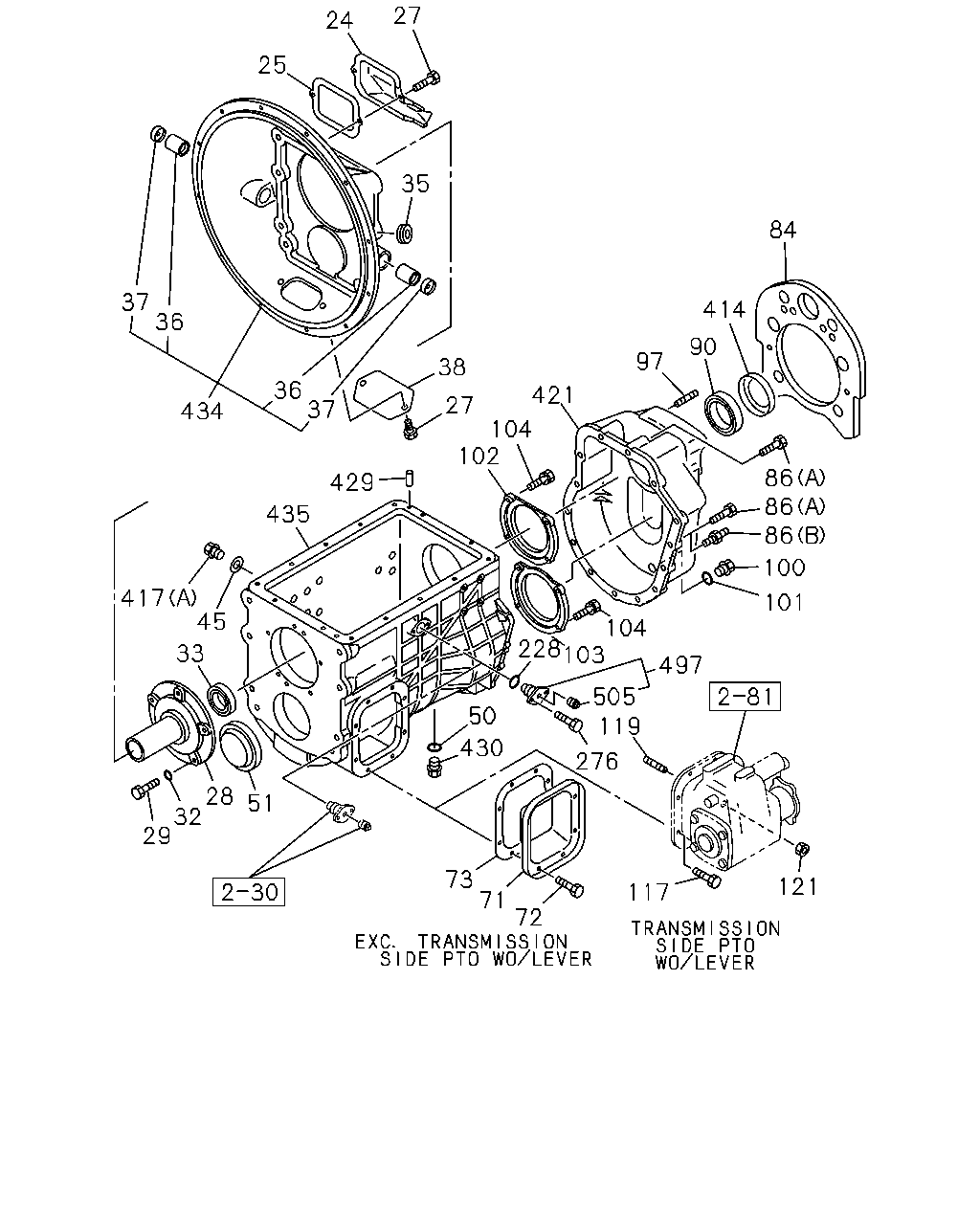

27 24 25 35 37 36 36 37 38 27 434 84 414 90 97 421 104 102 429 435 417 45 33 86 86 86 100 101 104 497 103 228 505 119 276 430 50 51 28 32 29 117 121 72 71 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-0106	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0105-	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0105-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0107-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0105-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0107-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-0106	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0107-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0107-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0105-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0105-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0105-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0107-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0105-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0107-0512		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0105-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0107-		●
84	SPACER; COVER,TRANS BRAKE SYSTEM RETARDER<RE2>	1-46213-103-0	01	1	0107-	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0105-	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0105-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0105-	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0107-0512		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-0106	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0107-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-0106	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X25 L=54	1-09302-086-0	04	1	0107-	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0107-	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0107-		●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0105-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0107-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0105-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0107-0512		●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605		●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0107-0605		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0105-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0107-0512		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0107-0512		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0105-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●
119	STUD; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0107-0604		●
119	STUD; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●
121	NUT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
121	NUT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-		●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	0105-	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	0105-	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0105-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-		●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0105-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-198-2	01	1	0107-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-0106	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●	●
434	HOUSING; CLU	1-31110-171-2	01	1	0105-	●
435	CASE; TRANS	1-33111-195-1	01	1	0105-	●
435	CASE; TRANS	1-33111-321-0	01	1	0107-0510		●
435	CASE; TRANS	1-33111-356-0	01	1	0511-		●
497	ADAPTER; PLUG	1-33119-255-0	01	1	0105-	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	0105-	●

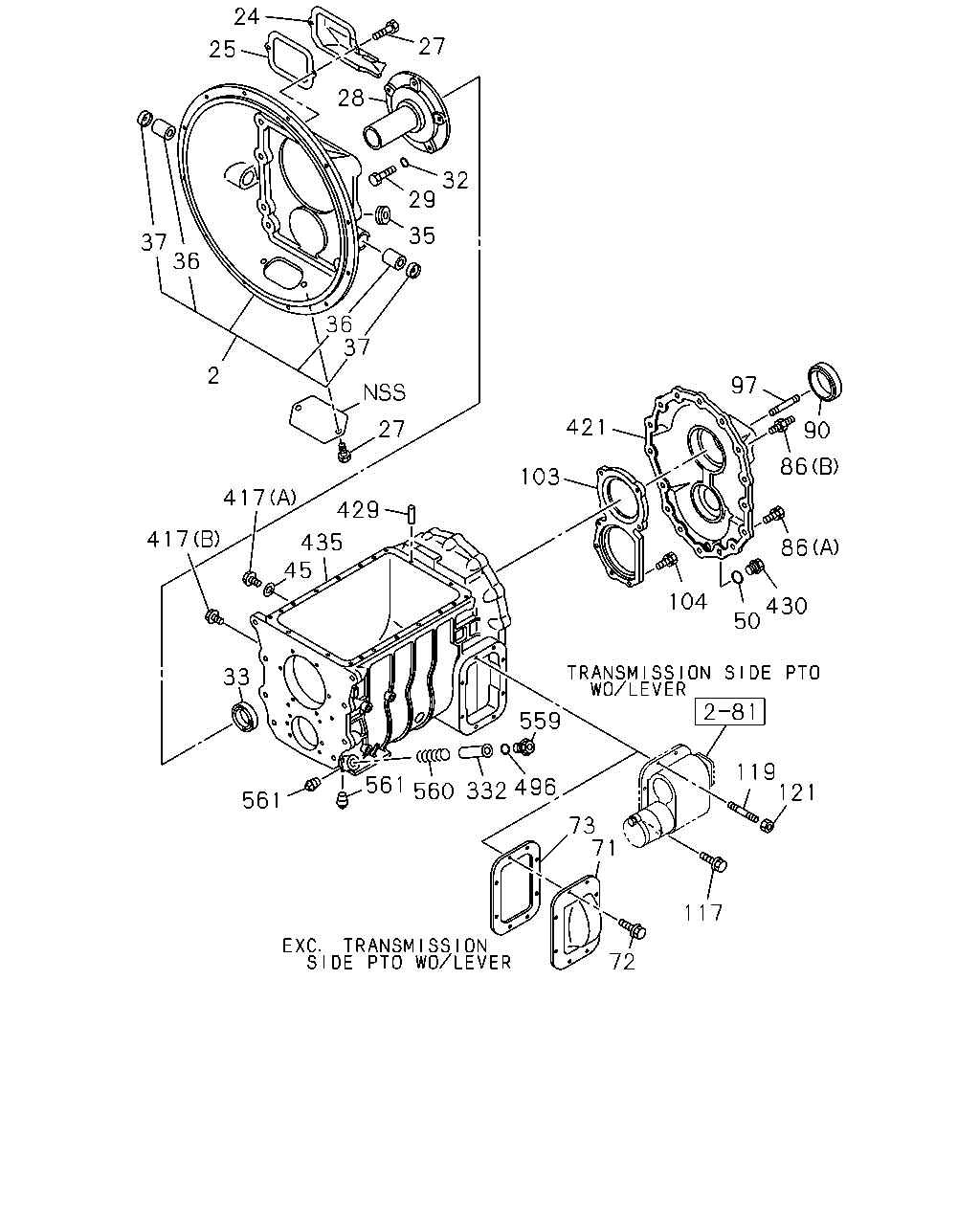

24 25 27 28 32 29 35 37 36 2 36 37 27 417 417 97 421 103 90 86 86 430 50 104 429 435 45 33 561 561 560 332 496 559 73 71 119 121 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-176-1	01	1	0107-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-0106	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0105-	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0105-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0107-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0105-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0107-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-0106	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0107-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0107-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0105-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0107-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0105-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0107-0512		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0105-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0107-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0105-	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0105-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0105-	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0107-0512		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-0106	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0107-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-0106	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X25 L=54	1-09302-086-0	04	1	0107-	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0107-	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0107-		●
103	RETAINER; BRG	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0107-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0105-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0107-0512		●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605		●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0107-0605		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0105-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0107-0512		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0107-0512		●
117	BOLT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0105-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●
119	STUD; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0107-0604		●
119	STUD; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●
121	NUT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
121	NUT; PTO FIX EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-		●
332	FILTER; OIL	1-41383-003-0	01	1	0107-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-		●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0105-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-198-2	01	1	0107-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-0106	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●	●
435	CASE; TRANS	1-33111-195-1	01	1	0105-	●
435	CASE; TRANS	1-33111-321-0	01	1	0107-0510		●
435	CASE; TRANS	1-33111-356-0	01	1	0511-		●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0107-		●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0107-		●
560	SPRING; OIL	1-09580-504-0	01	1	0107-		●
561	PLUG PT1/4	9-99204-513-0	02	1	0107-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

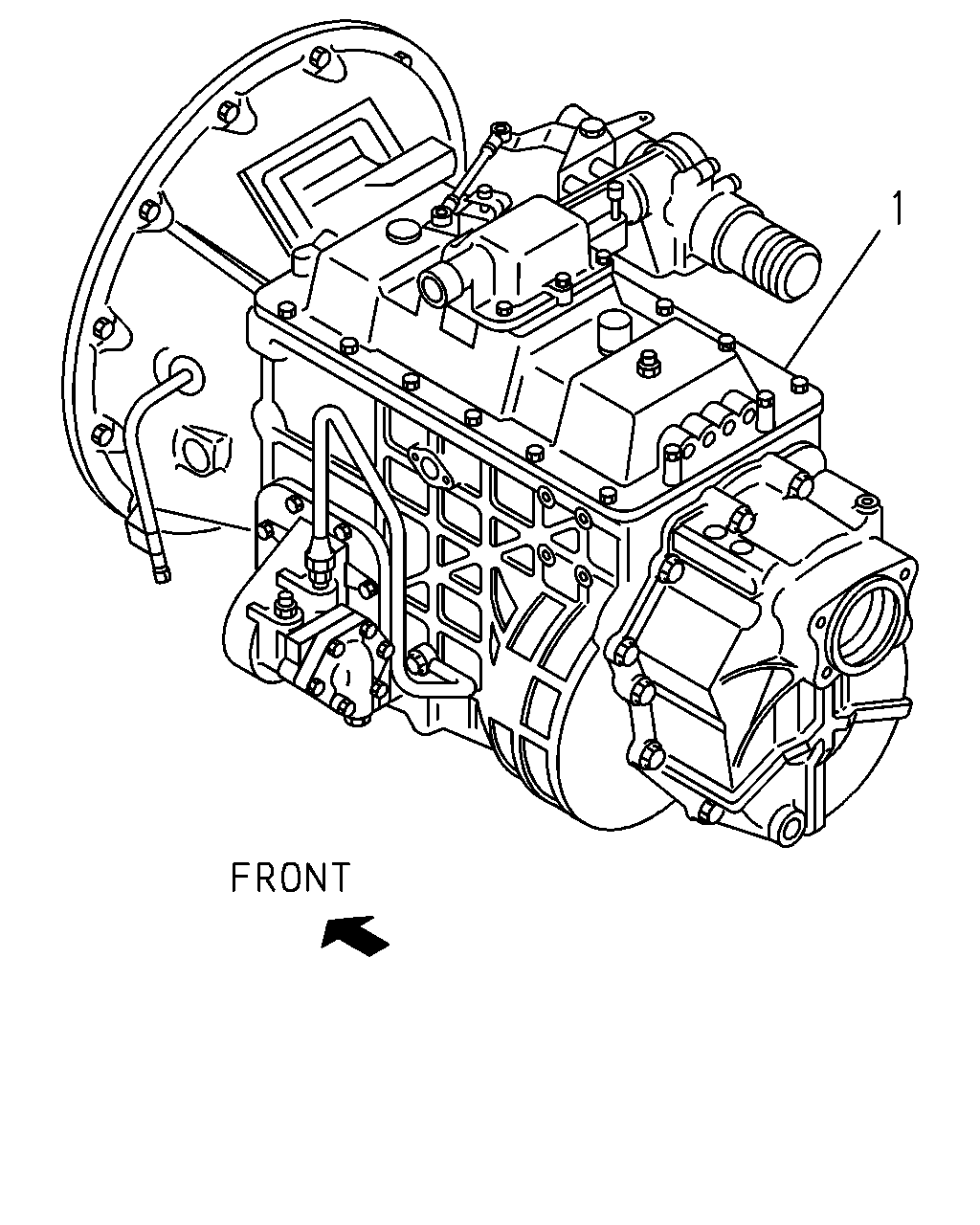

1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-204-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-202-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-204-0	01	1	0107-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

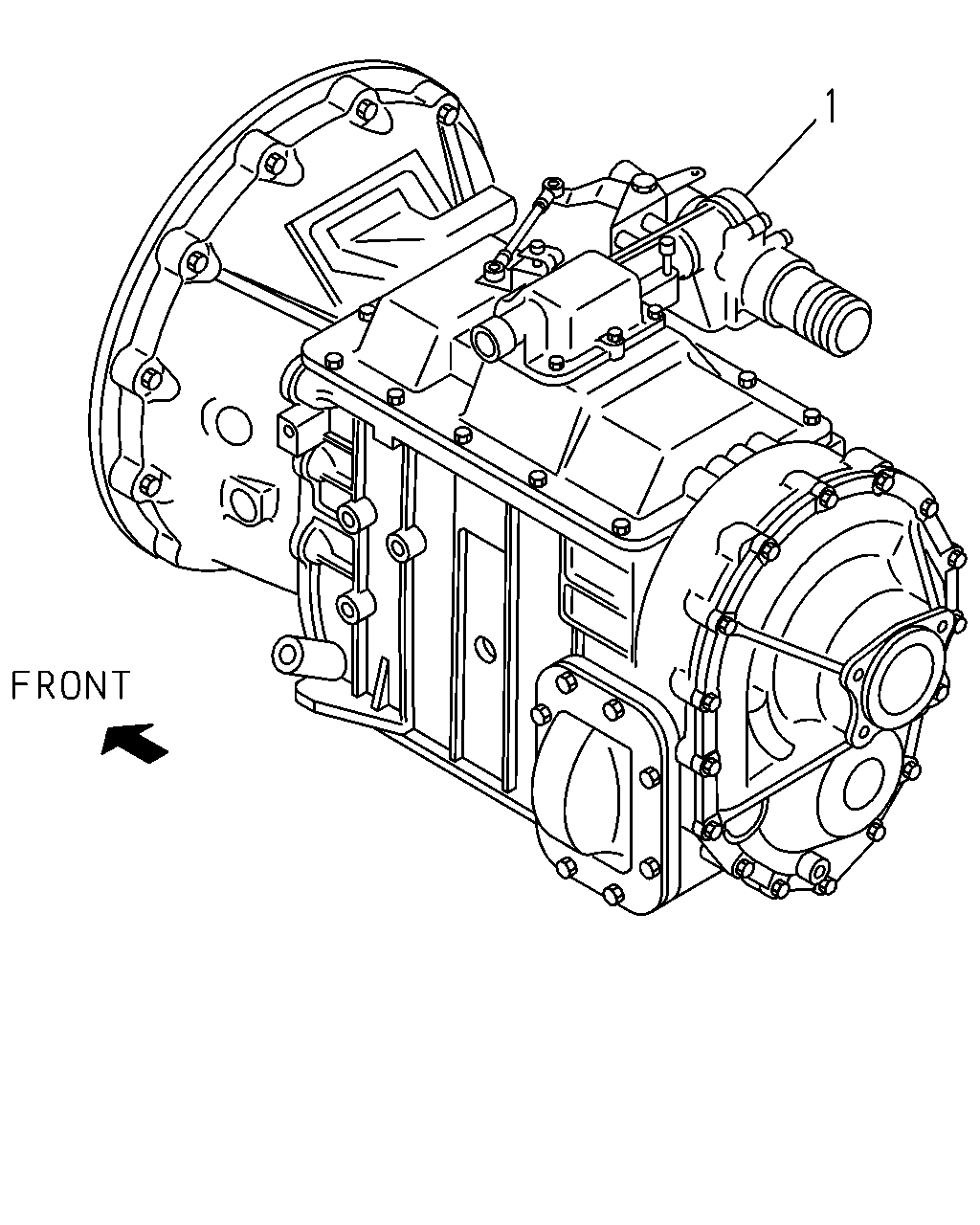

1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-204-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-202-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-204-0	01	1	0107-		●

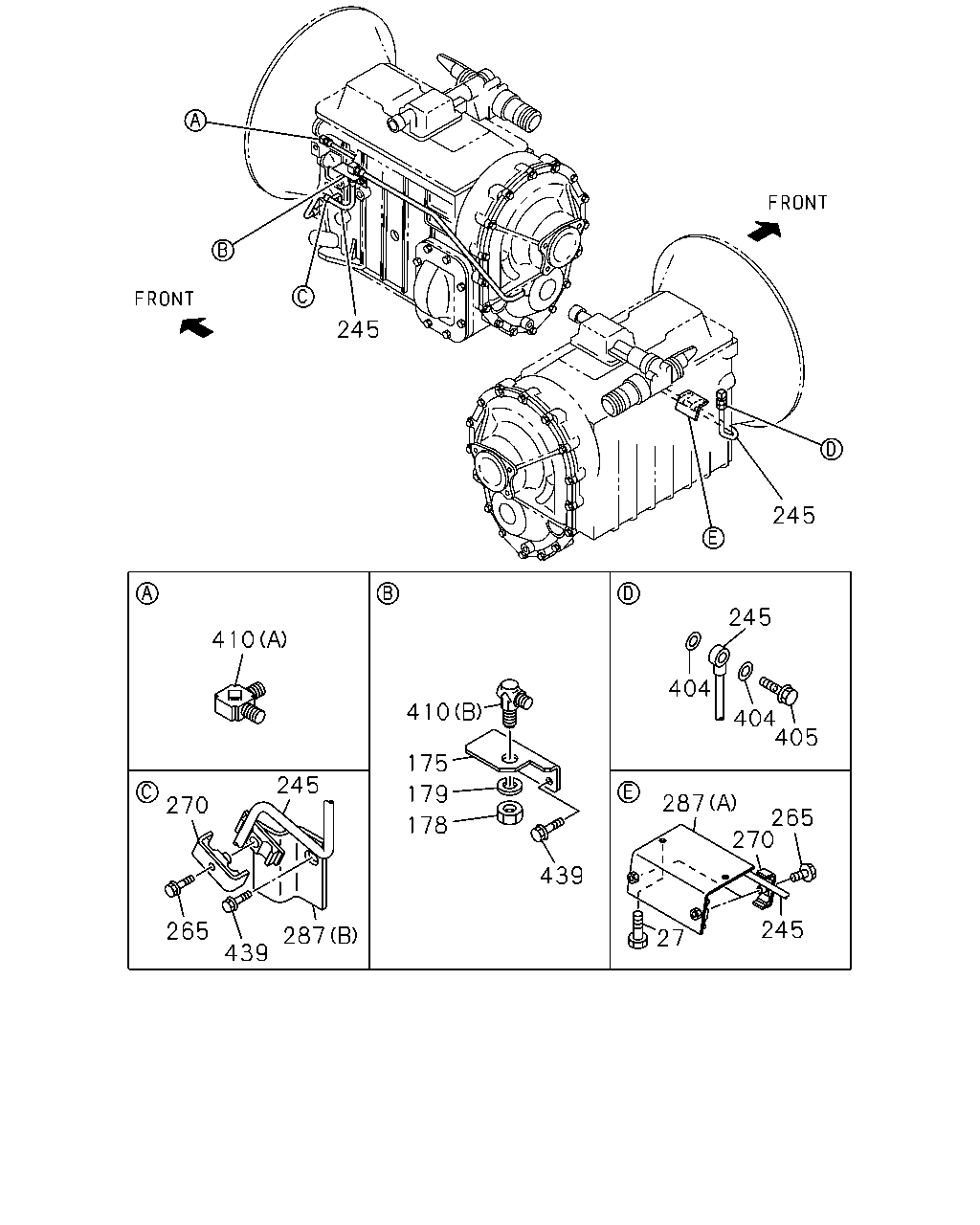

245 245 245 405 404 404 410 175 179 178 410 245 270 265 439 287 439 287 265 270 245 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-0106	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
175	BRACKET; UNION	1-46147-216-2	01	1	0107-		●
178	NUT; UNION M16	9-99111-516-0	01	1	0107-0512		●
178	NUT; UNION M16	0-91111-516-0	01	1	0601-		●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0107-0603		●
179	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0604-		●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0107-		●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0107-0512		●
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-		●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0107-		●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0107-		●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0107-		●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-		●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0107-		●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0107-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0107-		●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0107-0512		●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	03	1	0601-		●

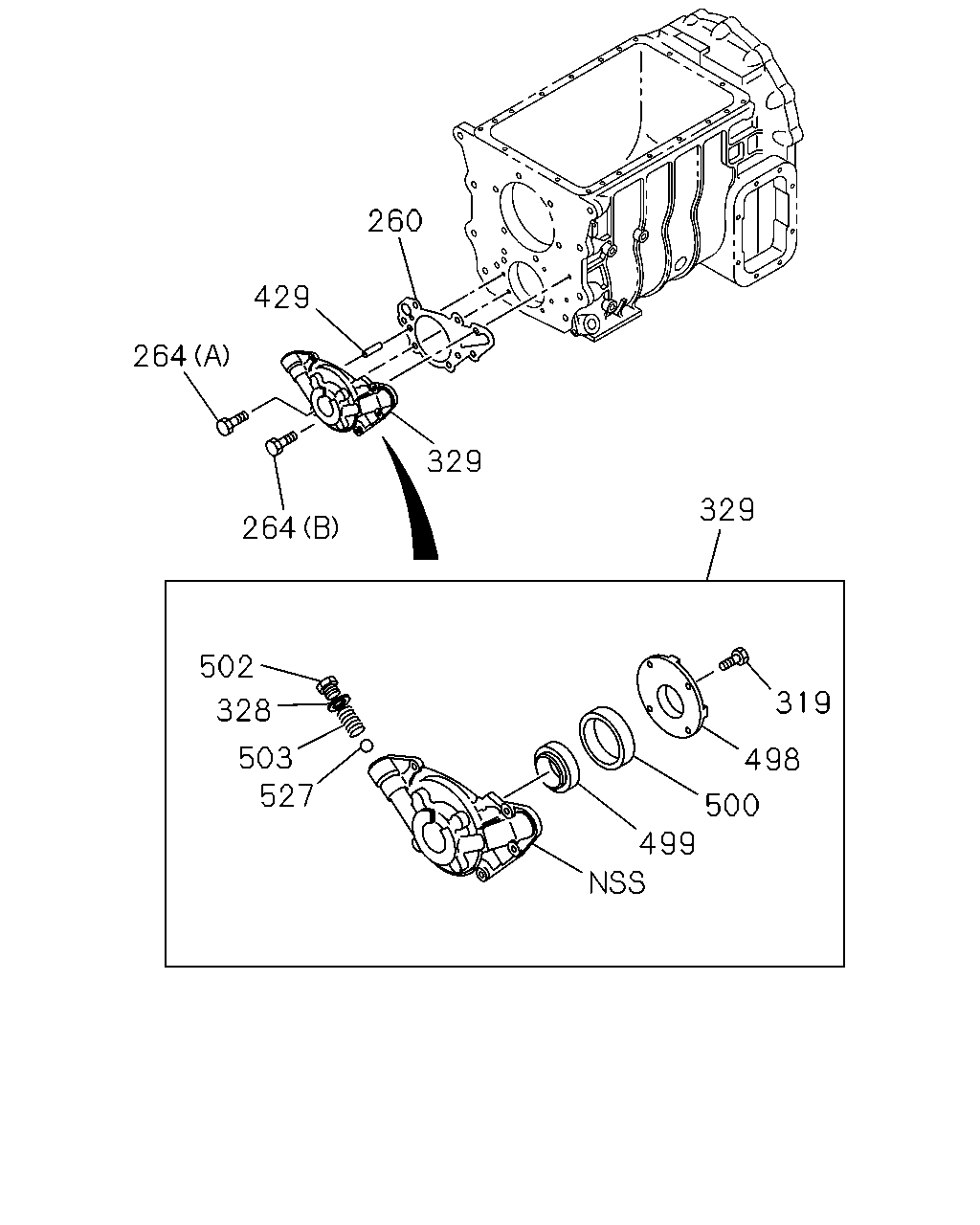

260 429 264 264 329 329 319 498 500 499 527 503 328 502

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0107-		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0107-0512		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	05	1	0601-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0107-0512		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	02	1	0601-		●
319	BOLT; COVER	1-34159-075-0	04	1	0107-		●
328	GASKET; PLUG	8-94244-656-0	01	1	0107-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0107-		●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0107-		●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0107-		●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0107-		●
503	SPRING; OIL PUMP	5-09580-098-0	01	1	0107-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
