◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#27585) — 89 parça

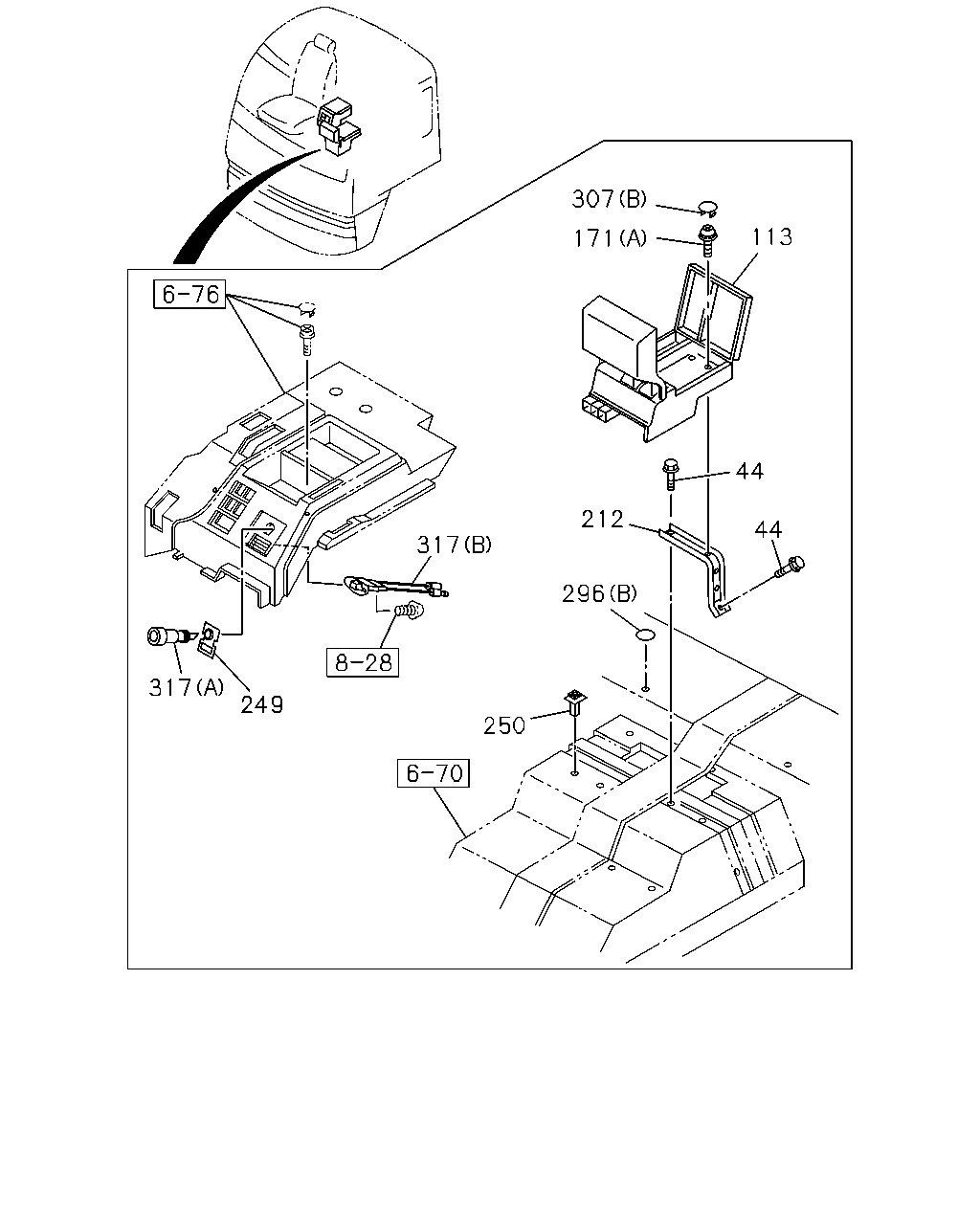

çizim 88007
307 113 171 44 212 44 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0407-
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0407-0511
249 COVER 1-82529-001-0 01 1 0512-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0407-
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0407-0511
317 CONSENT
(A) 		8-94382-451-1 01 1 0512-
317 CONSENT
(B) 		1-82523-020-2 01 1 0407-

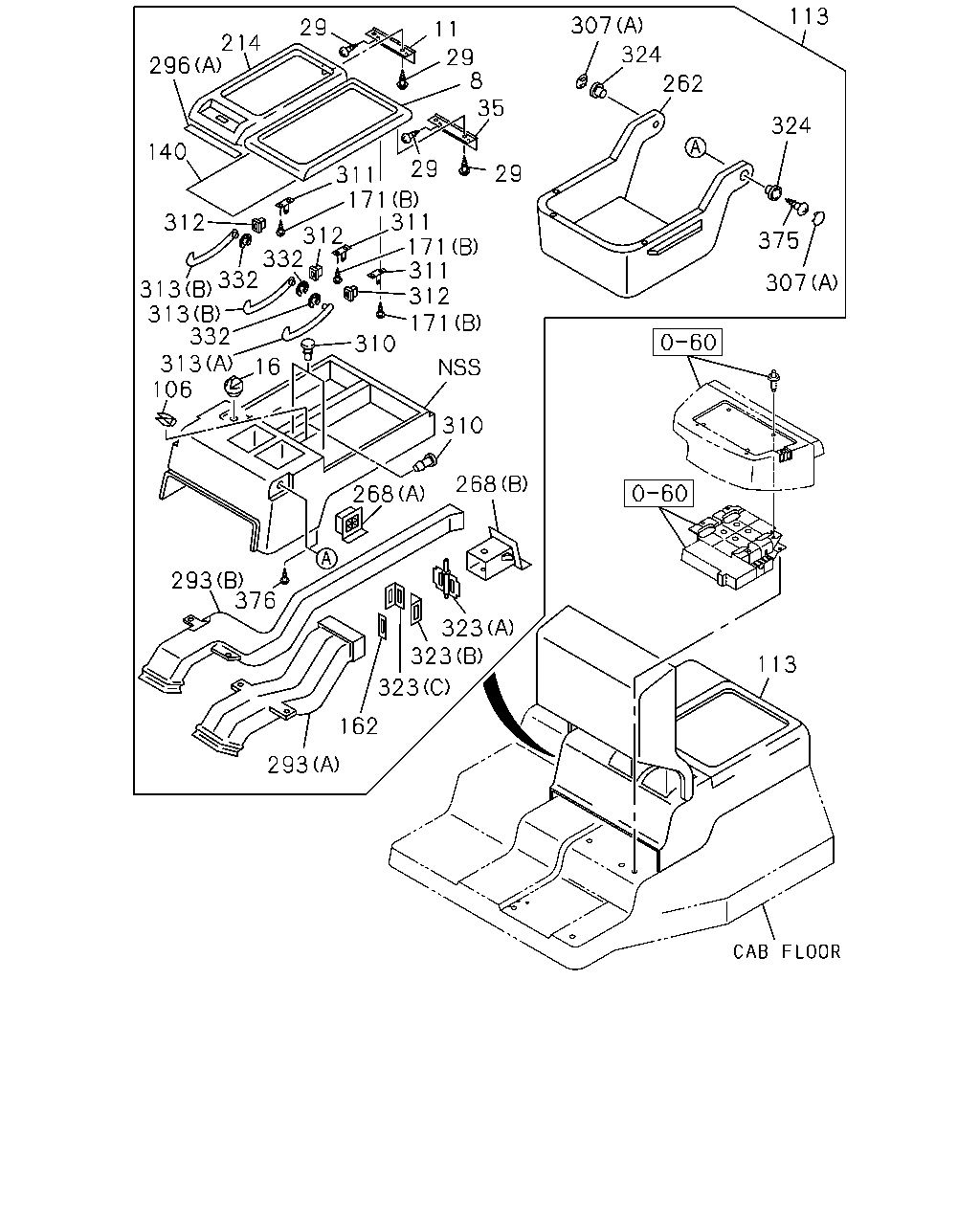

çizim 104477
113 307 29 11 214 324 29 8 35 296 262 324 140 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 313 106 375 307 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-185-0 01 1 0407-0511
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0512-0705
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0407-0511
11 HINGE; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0512-
16 KNOB ASM 1-72537-189-0 01 1 0407-0511
16 KNOB ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0512-
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0407-0511
29 SCREW; HINGE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0512-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0407-0511
35 HINGE; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0512-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0407-0511
106 LOCK; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0512-
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610-
140 SHEET 1-72537-093-1 01 1 0407-0511
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0407-0511
162 CUSHION; PARCEL BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0512-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-
214 LID; CONSOLE 1-72537-186-0 01 1 0407-0511
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0512-0705
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0706-
262 TABLE ASM 1-72537-187-1 01 1 0407-0511
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0512-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0407-0511
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0512-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0407-0511
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0512-
293 DUCT
(A) 		1-72537-081-3 01 1 0407-0511
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0512-
293 DUCT
(B) 		1-72537-083-2 01 1 0407-0511
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0512-
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0407-0511
310 CUSHION; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0512-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0407-0511
311 HOLDER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0512-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0407-0511
312 STOPPER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0512-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0407-0511
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0512-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0407-0511
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0512-
323 SHUTTER
(A) 		1-72537-084-1 01 1 0407-0511
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0512-
323 SHUTTER
(B) 		1-72537-126-0 01 1 0407-0511
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0512-
323 SHUTTER
(C) 		1-72537-127-0 01 1 0407-0511
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0512-
324 BUSHING 1-72537-116-0 02 1 0407-0511
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0512-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0407-0511
332 RING; SNAP,CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0512-
375 SCREW; TAP BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0610-
376 SCREW; TAP DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610-

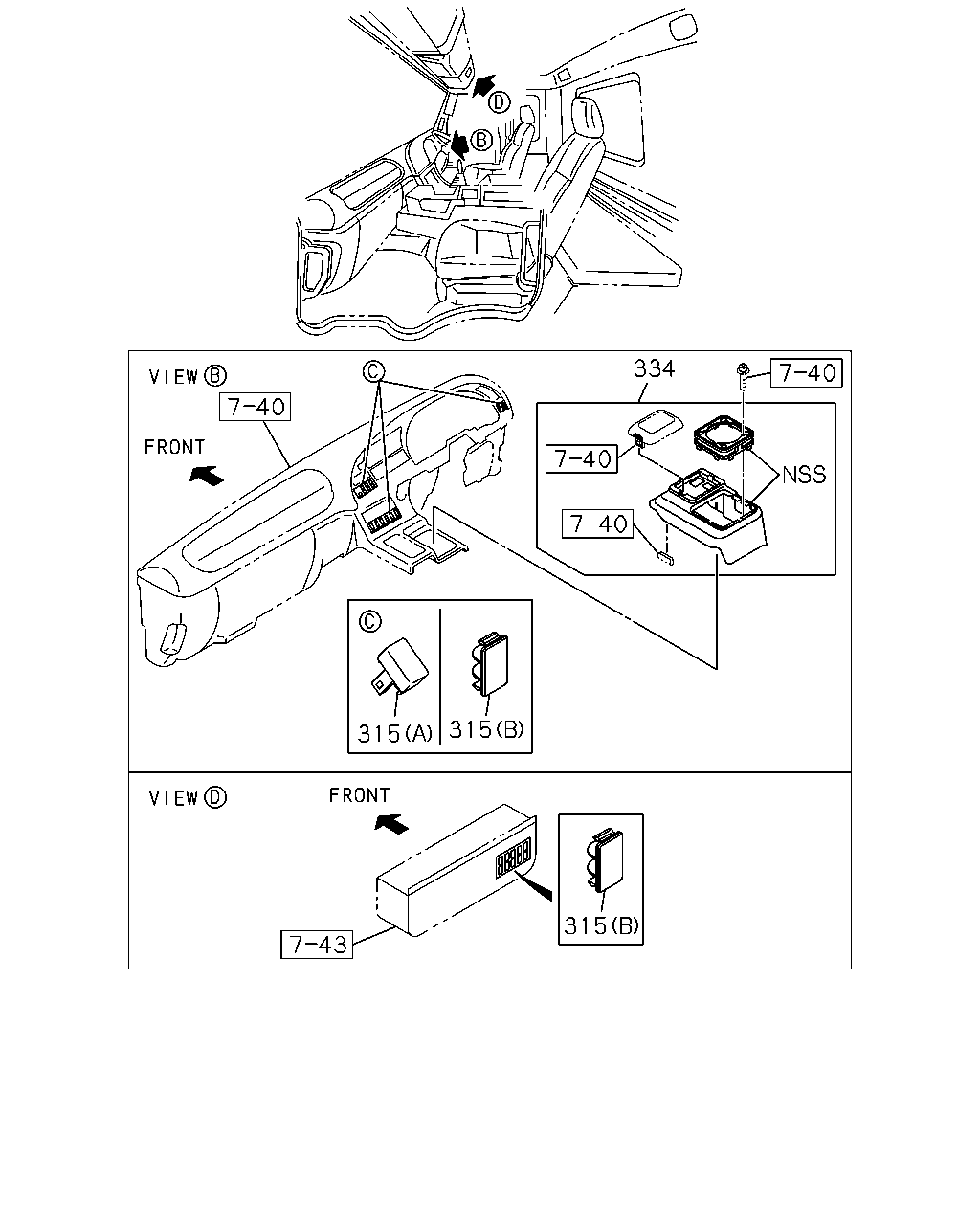

çizim 104478
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0407-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0407-
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0407-
