Sayfa 0-35B - Isuzu EPC

0-35B — ENGINE CONTROL VALVE AND LEVER (#2758) — 266 parça

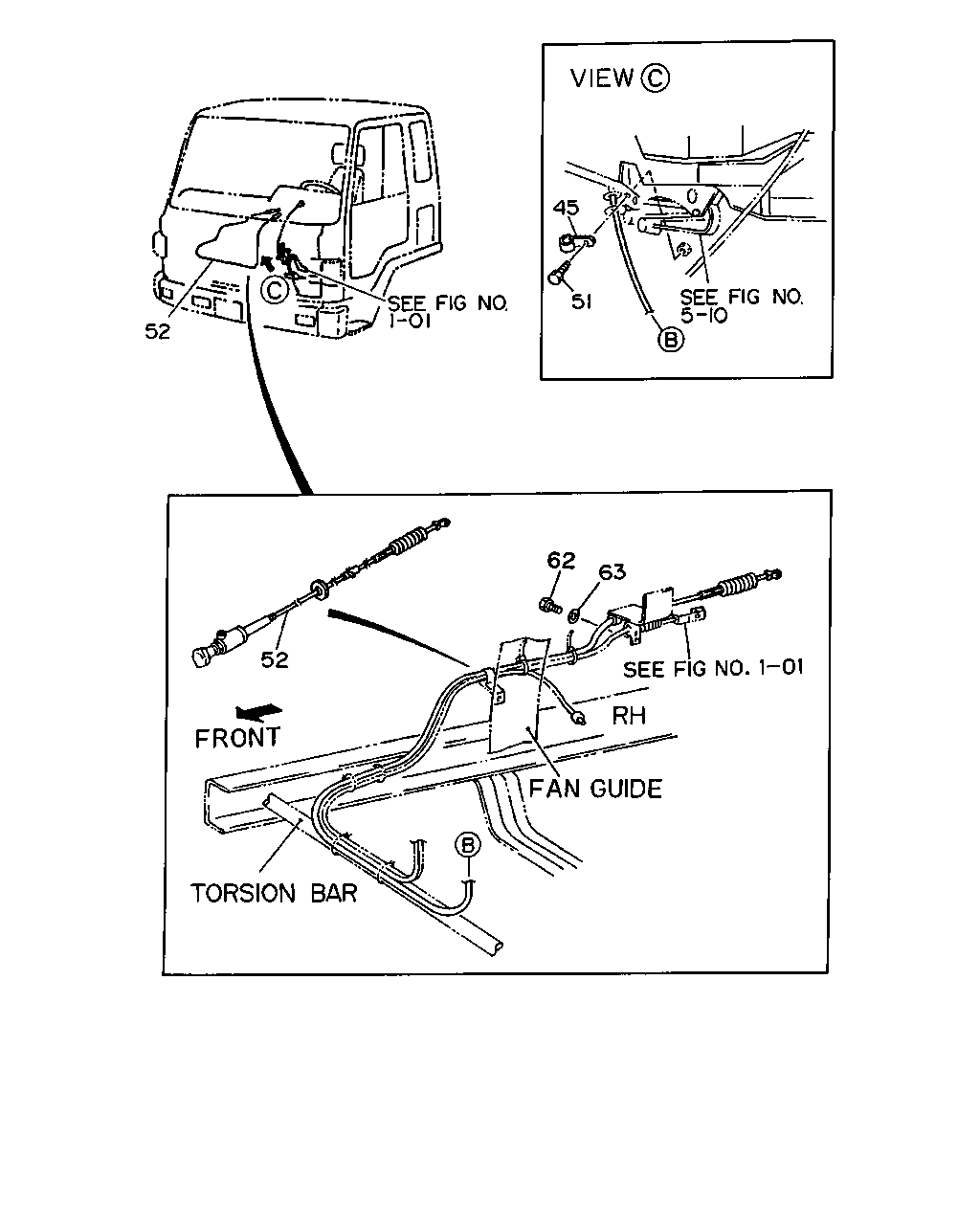

45 51 52 52 62 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	CLIP; FUEL CUT CABLE CAB SUSPENSION RIGID(W71) ID=13 H=24 L=20	9-09527-012-0	01	1	9002-	●	●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●
52	CABLE; FUEL CUT	1-23210-755-4	01	1	9002-	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●

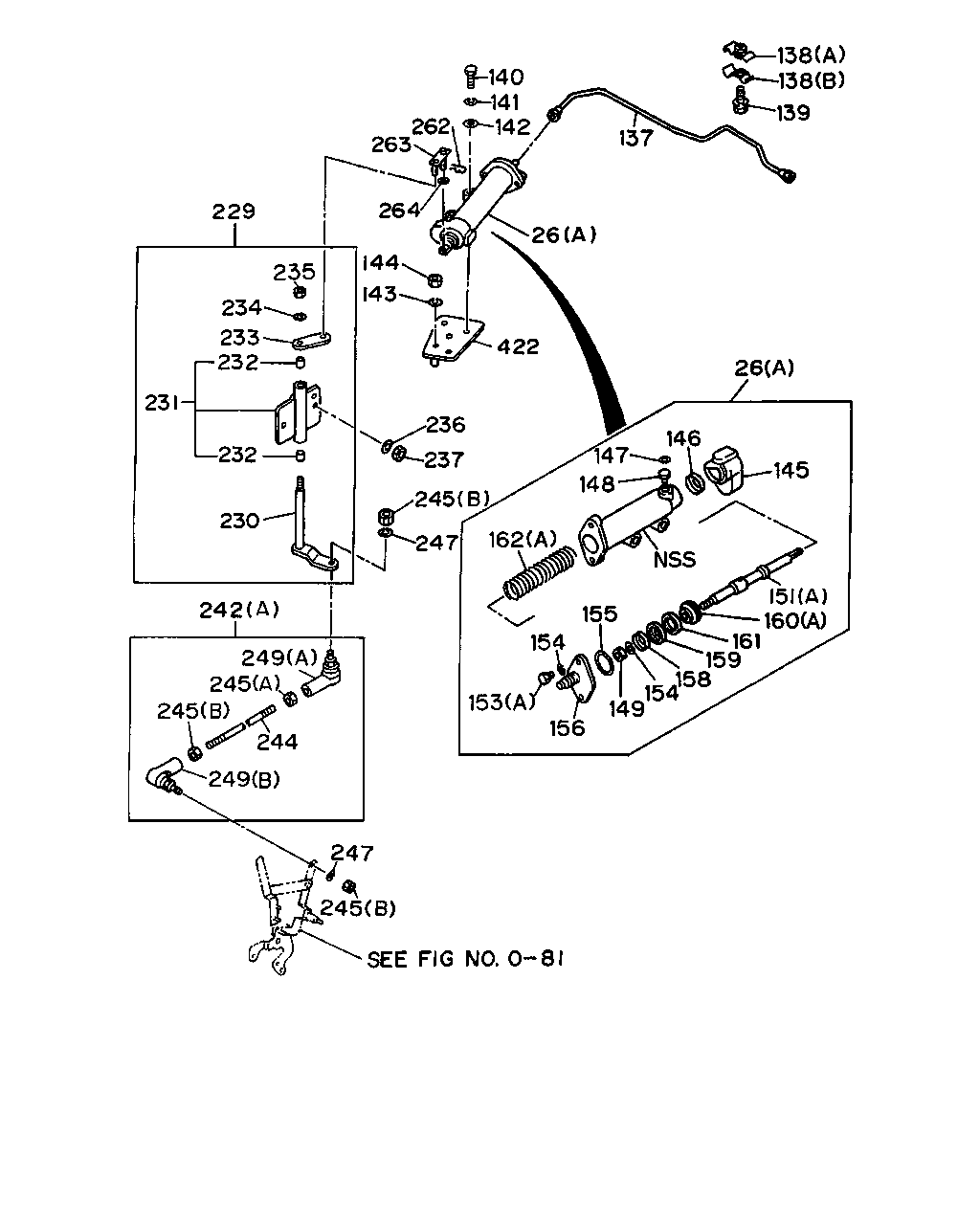

138 138 139 137 140 141 142 262 263 229 264 235 144 26 143 234 422 233 232 231 230 232 242 245 244 249 245 249 247 245 153 156 149 154 158 159 161 160 151 145 146 147 155 162 148 154 247 245 237 236 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	CYLINDER ASM; CONT FIRE TRUCK<RA9> (A)	1-22190-558-1	01	1	9307-	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9002-	●	●
137	PIPE ASM; AIR ENG SPD FIRE TRUCK<RA9>	1-19192-504-0	01	1	9307-	●
138	CLIP; AIR PIPE FIRE TRUCK<RA9> (B) ID=8 & 12	9-09917-471-0	01	1	9307-9401	●
138	CLIP; AIR PIPE FIRE TRUCK<RA9> (B) WO/NUT	1-09700-547-0	01	1	9402-	●
138	CLIP; AIR PIPE FIRE TRUCK<RA9> (A) W/NUT	9-09917-472-0	01	1	9307-9401	●
138	CLIP; AIR PIPE FIRE TRUCK<RA9> (A) W/NUT	1-09700-550-0	01	1	9402-	●
139	BOLT; CLIP AIR PIPE FIRE TRUCK<RA9> M6X22 FLANGE	0-28080-622-0	01	1	9307-	●
140	BOLT; CONNECTOR CYL FIRE TRUCK<RA9> M10X60	0-10806-060-0	02	1	9307-	●
141	WASHER; LK,CONT CYL FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	02	1	9307-	●
142	WASHER; PL,CONT CYL FIRE TRUCK<RA9> ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●
143	WASHER; LK,BRKT FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	03	1	9307-	●
144	NUT; BRKT FIRE TRUCK<RA9> M10	9-09110-410-0	03	1	9307-	●
145	COVER; BREATHER	1-22199-008-0	01	1	9002-	●	●
145	COVER; BREATHER FIRE TRUCK<RA9>	1-22199-008-0	01	1	9002-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●
146	SEAL; DUST,CONT FIRE TRUCK<RA9>	1-22189-016-0	01	1	9002-	●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●
147	RING; RET FIRE TRUCK<RA9>	9-88510-331-0	01	1	9002-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●
148	FILTER; CONT CYL FIRE TRUCK<RA9>	9-88510-330-0	01	1	9002-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●
149	NUT; LOCK,CONT SHAFT FIRE TRUCK<RA9>	9-83315-085-0	01	1	9002-	●
151	SHAFT; CONT CYL FIRE TRUCK<RA9> (A)	1-22199-132-0	01	1	9307-	●
151	SHAFT; CONT CYL (B)	1-22196-256-0	01	1	9002-	●	●
153	BOLT; CONT CYL FIRE TRUCK<RA9> (A)	9-01000-820-0	02	1	9307-	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9002-	●	●
154	WASHER; LK,CYL FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	03	1	9002-	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	9002-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●
155	GASKET; CONT CYL FIRE TRUCK<RA9>	9-88510-372-0	01	1	9002-	●
156	COVER; CONT CYL FIRE TRUCK<RA9>	1-22199-036-0	01	1	9002-	●
156	COVER; CONT CYL	1-22189-162-1	01	1	9002-	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-	●	●
158	RETAINER; GASKET,CYL FIRE TRUCK<RA9>	9-88510-324-0	01	1	9002-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9002-	●	●
159	GASKET; CONT CYL FIRE TRUCK<RA9>	9-88510-373-0	01	1	9002-	●
160	PLATE (A)	1-22199-020-0	01	1	9002-	●	●
160	PLATE FIRE TRUCK<RA9> (A)	1-22199-020-0	01	1	9002-	●
161	RING; WEAR	1-22199-002-0	01	1	9002-9509	●	●
161	RING; WEAR FIRE TRUCK<RA9>	1-22199-002-0	01	1	9002-9509	●
161	RING; WEAR	1-22199-002-0	01	1	9510-	●	●
161	RING; WEAR FIRE TRUCK<RA9>	1-22199-002-0	01	1	9510-	●
162	SPRING; CONT CYL FIRE TRUCK<RA9> (A)	1-22199-131-0	01	1	9307-	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9002-	●	●
229	CONTROL ASM; ENG SPD FIRE TRUCK<RA9>	1-23300-305-1	01	1	9307-	●
230	SHAFT; ENG SPD CONT FIRE TRUCK<RA9>	1-23331-107-0	01	1	9307-	●
231	BRACKET; ENG SPD CONT FIRE TRUCK<RA9>	1-23335-398-1	01	1	9307-	●
232	BUSHING; BRKT,ENG SPD CONT FIRE TRUCK<RA9>	1-23319-216-0	02	1	9307-	●
233	LEVER; ENG SPD CONT FIRE TRUCK<RA9>	1-23311-269-0	01	1	9307-	●
234	WASHER; LK,LEVER,ENG SPD CONT FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	01	1	9307-	●
235	NUT; LEVER ENG SPD CONT FIRE TRUCK<RA9> M10	9-09110-410-0	01	1	9307-	●
236	WASHER; LK,BRKT FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	02	1	9307-	●
237	NUT; BRKT FIRE TRUCK<RA9> M10	9-09110-410-0	02	1	9307-	●
242	LINK ASM (B)	1-23314-159-3	01	1	9002-	●
242	LINK ASM FIRE TRUCK<RA9> (A)	1-22190-494-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-160-3	01	1	9307-		●
244	JOINT ASM; BALL FIRE TRUCK<RA9>	1-09765-210-1	01	1	9002-	●
245	NUT; LINK (D)	9-99110-405-0	02	1	9002-	●
245	NUT; LINK FIRE TRUCK<RA9> (A)	1-09409-002-0	01	1	9307-	●
245	NUT; LINK FIRE TRUCK<RA9> (B)	9-09110-408-0	03	1	9307-	●
245	NUT; LINK (C)	9-09840-277-0	02	1	9002-	●	●
245	NUT; LINK (D)	9-99111-405-0	02	1	9307-		●
247	WASHER; LK,LINK FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	02	1	9307-	●
249	ROD; LINK FIRE TRUCK<RA9> (B) RH THREAD	1-09760-009-0	01	1	9307-	●
249	ROD; LINK FIRE TRUCK<RA9> (A) LH THREAD	1-09760-010-0	01	1	9307-	●
262	PIN; SNAP,LINK,CONT CYL FIRE TRUCK<RA9> L=21.2	1-09747-003-0	02	1	9307-	●
263	LINK ASM; CONT CYL FIRE TRUCK<RA9>	1-22196-183-0	01	1	9307-	●
264	WASHER; LK,LINK,CONT CYL FIRE TRUCK<RA9> ID=6.4	9-09160-506-0	02	1	9307-	●
422	BRACKET; CONT CYL FIRE TRUCK<RA9>	1-23335-399-0	01	1	9307-	●

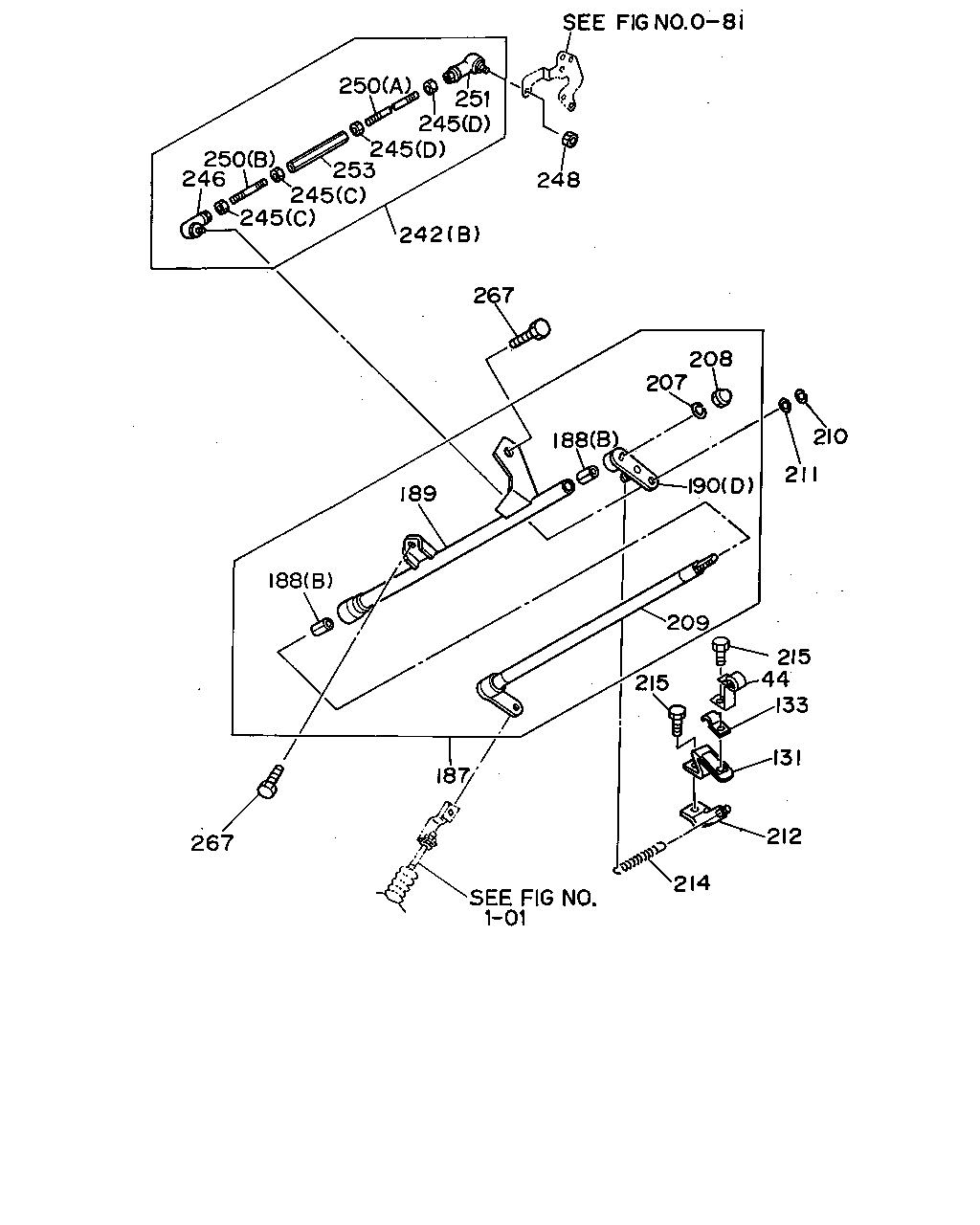

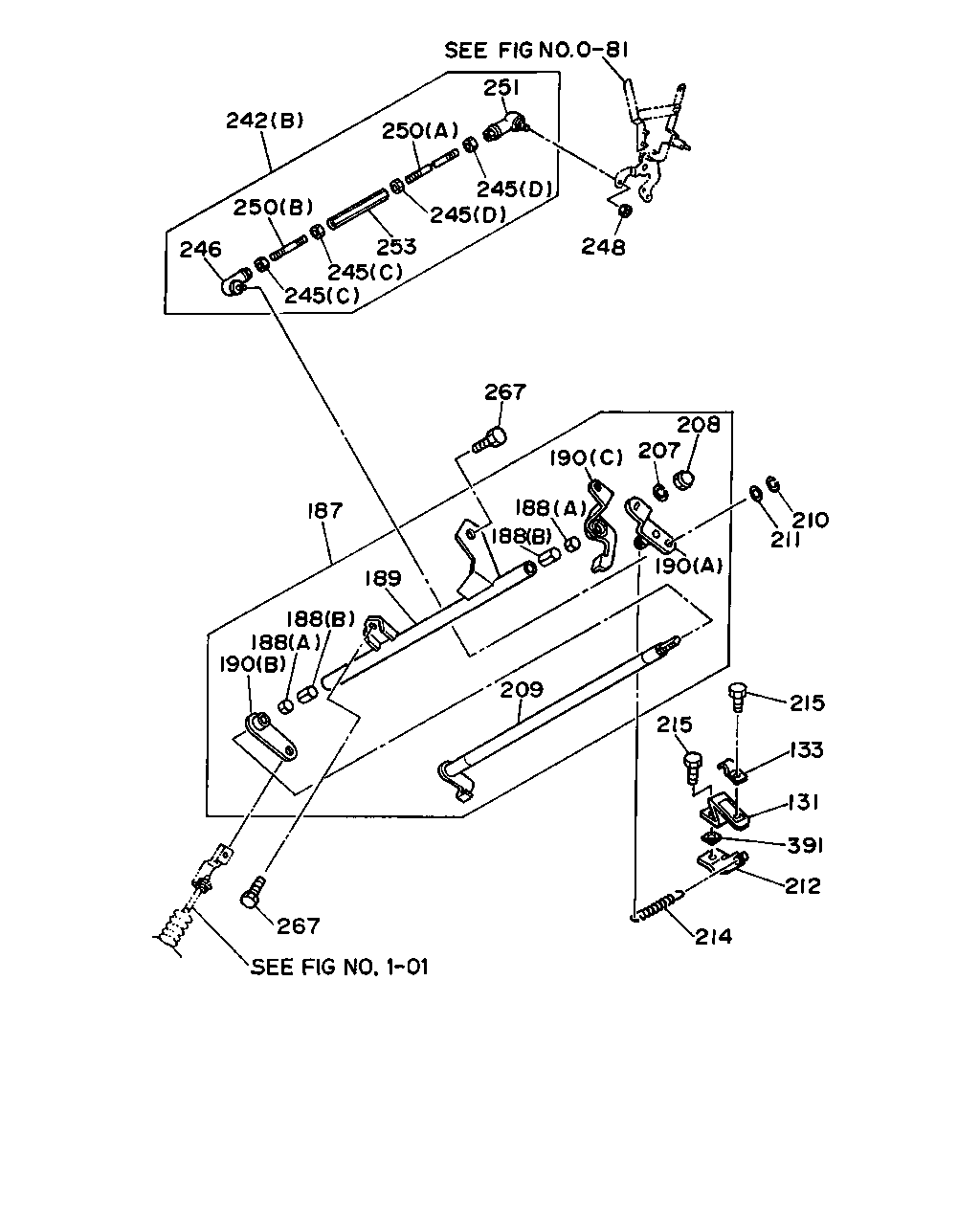

242 246 250 250 251 245 245 253 245 245 248 267 187 190 188 188 189 188 188 190 207 208 210 211 190 209 267 214 212 391 131 133 215 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
131	BRACKET	1-15419-272-0	01	1	9002-	●	●
133	CLIP; FUEL PIPE ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-296-2	01	1	9002-	●
187	CONTROL ASM; ENG EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-285-2	01	1	9002-	●
187	CONTROL ASM; ENG	1-23300-285-2	01	1	9002-		●
188	BUSHING; CONT SHAFT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-09330-059-0	02	1	9002-	●
188	BUSHING; CONT SHAFT (B)	1-09330-053-0	02	1	9002-	●	●
189	BRACKET; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23335-382-0	01	1	9002-	●
189	BRACKET; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23335-297-0	01	1	9002-	●
189	BRACKET; ENG CONT	1-23335-297-0	01	1	9002-		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23311-270-0	01	1	9002-	●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (B)	1-23311-271-0	01	1	9002-	●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (C)	1-23311-272-0	01	1	9002-	●
190	LEVER; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (D)	1-23311-254-1	01	1	9002-	●
190	LEVER; ENG CONT (D)	1-23311-254-1	01	1	9002-		●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9002-	●	●
208	NUT; LEVER	1-09984-015-0	01	1	9002-	●	●
209	SHAFT; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23331-102-0	01	1	9002-	●
209	SHAFT; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23331-093-0	01	1	9002-	●
209	SHAFT; ENG CONT	1-23331-093-0	01	1	9002-		●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	01	1	9002-	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	01	1	9002-	●	●
212	BRACKET; SPR EYE	1-23335-058-0	01	1	9002-	●	●
214	SPRING; ENG CONT RETURN	1-09583-207-0	01	1	9002-9405	●	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9406-	●	●
215	BOLT; BRKT SPR EYE M10X20 W/LK WASHER	0-50051-020-0	01	1	9002-9006	●
215	BOLT; BRKT SPR EYE M10X18	8-94399-729-1	01	1	9007-9104	●
215	BOLT; BRKT SPR EYE M6X25	9-01910-625-0	01	1	9002-9005	●
215	BOLT; BRKT SPR EYE M6X25 W/LK WASHER	0-50040-625-0	01	1	9006-	●
215	BOLT; BRKT SPR EYE M10X18 FLANGE	0-28181-018-0	01	1	9105-	●	●
215	BOLT; BRKT SPR EYE M6X22 FLANGE	0-28080-622-0	01	1	9307-		●
242	LINK ASM (B)	1-23314-159-3	01	1	9002-	●
242	LINK ASM FIRE TRUCK<RA9> (A)	1-22190-494-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-160-3	01	1	9307-		●
245	NUT; LINK (D)	9-99110-405-0	02	1	9002-	●
245	NUT; LINK FIRE TRUCK<RA9> (A)	1-09409-002-0	01	1	9307-	●
245	NUT; LINK FIRE TRUCK<RA9> (B)	9-09110-408-0	03	1	9307-	●
245	NUT; LINK (C)	9-09840-277-0	02	1	9002-	●	●
245	NUT; LINK (D)	9-99111-405-0	02	1	9307-		●
246	JOINT; BALL,ENG CONT LINK	1-09760-096-0	01	1	9002-9006	●
246	JOINT; BALL,ENG CONT LINK	1-09760-102-0	01	1	9007-	●	●
248	NUT; JOINT BALL M5	9-99110-405-0	03	1	9002-	●
248	NUT; JOINT BALL M5	9-99110-405-0	01	1	9307-		●
250	ROD; ROD TO JOINT (A)	9-08400-512-0	01	1	9002-	●
250	ROD; ROD TO JOINT (B)	1-09765-197-0	01	1	9002-	●	●
250	ROD; ROD TO JOINT (A)	9-08400-520-0	01	1	9307-		●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-095-0	01	1	9002-9006	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-101-0	01	1	9007-	●	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9002-	●	●
267	BOLT; ENG CONT M10X18	8-94399-729-1	02	1	9002-9104	●
267	BOLT; ENG CONT M10X18 FLANGE	0-28181-018-0	02	1	9105-	●	●
391	SPACER; BRKT,ENG CONT CABLE MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-13719-069-0	01	1	9204-	●

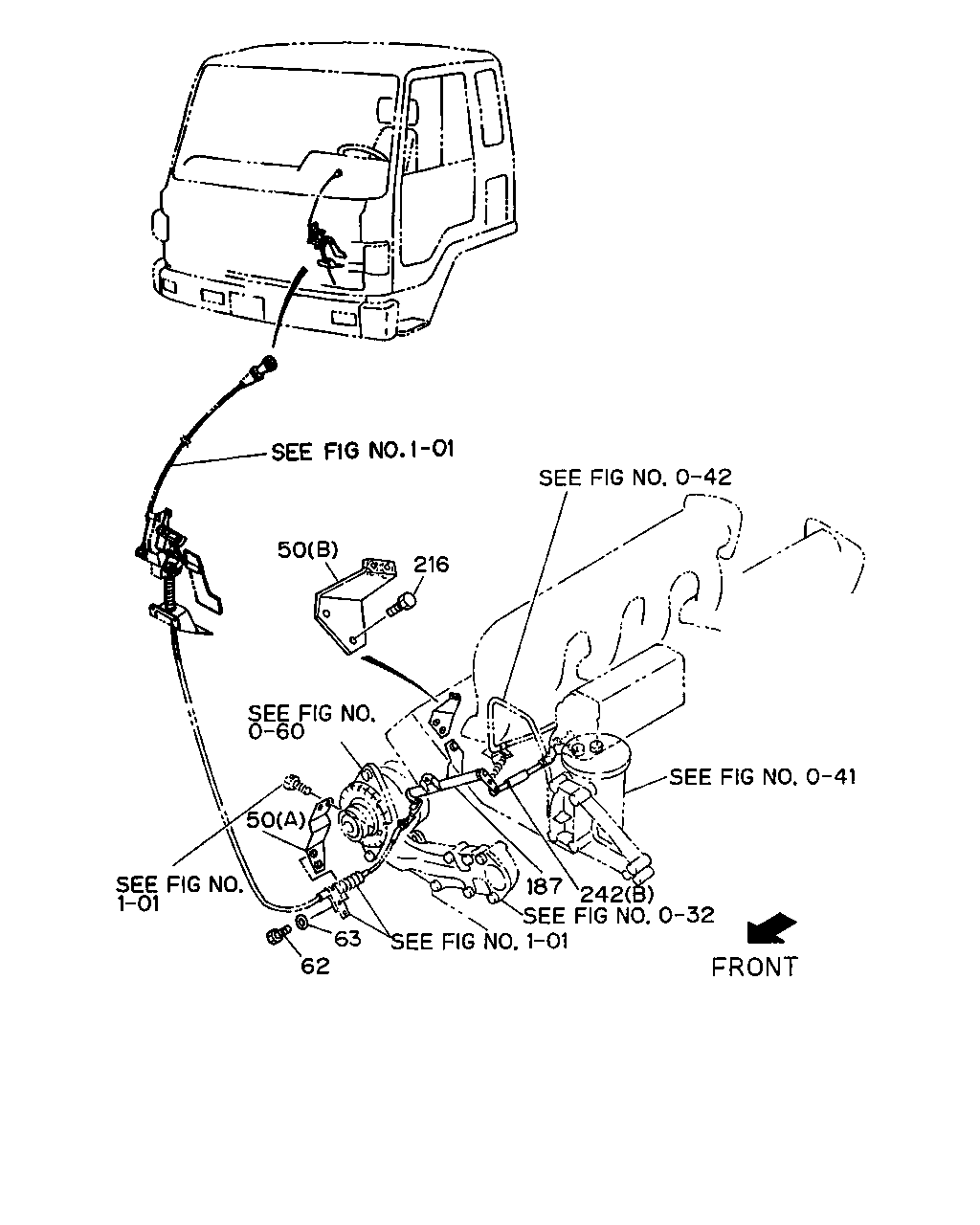

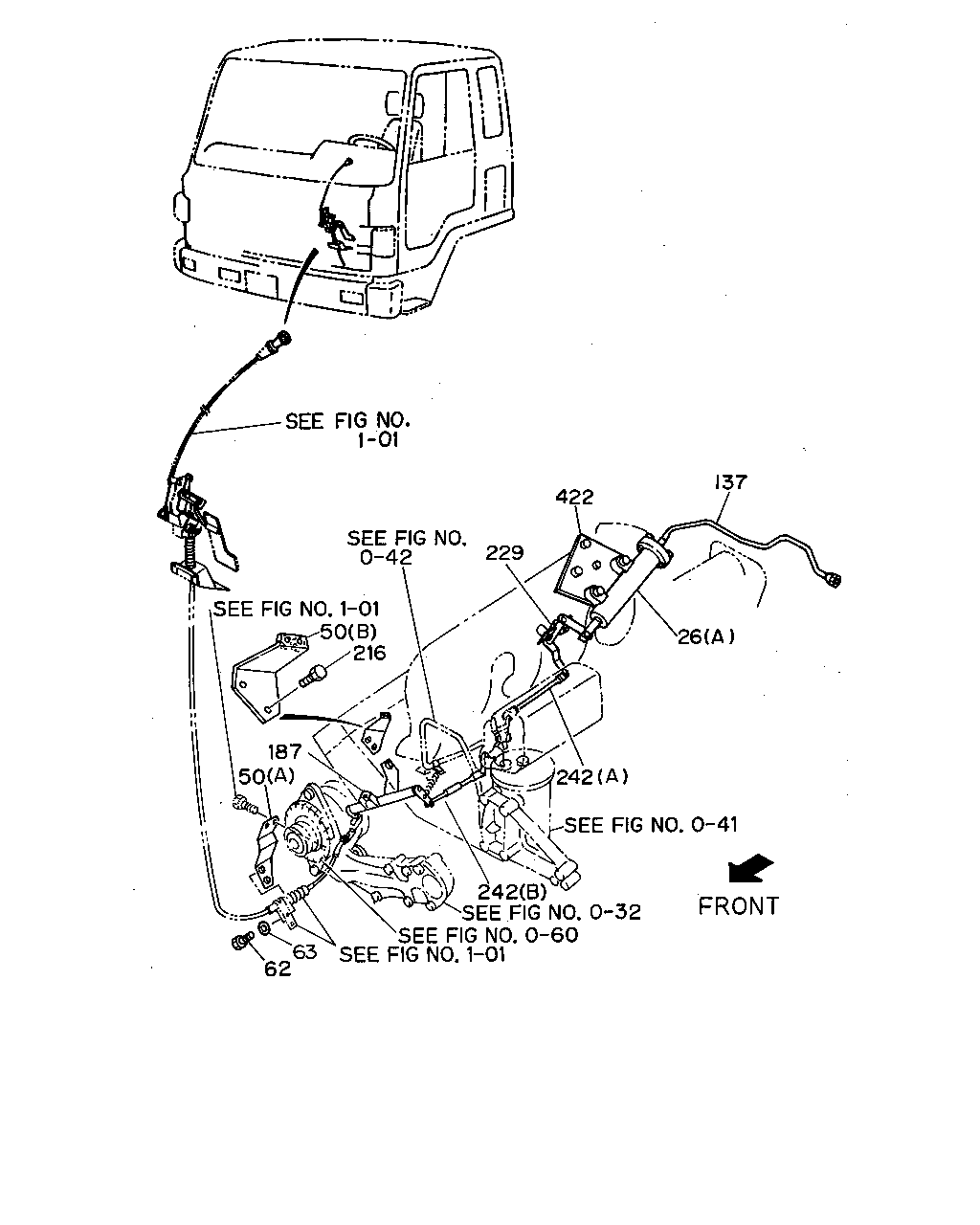

50 216 50 63 62 187 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	BRACKET; ENG CONT CABLE (A)	1-23335-379-0	01	1	9002-	●
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2> (B)	1-23335-329-0	01	1	9002-9009	●
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (B)	1-23335-238-0	01	1	9010-	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-296-2	01	1	9002-	●
187	CONTROL ASM; ENG EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-285-2	01	1	9002-	●
187	CONTROL ASM; ENG	1-23300-285-2	01	1	9002-		●
216	BOLT; BRKT ENG CONT CABLE MIXER TRUCK<RA2> M10X18	8-94399-729-1	01	1	9002-9104	●
216	BOLT; BRKT ENG CONT CABLE MIXER TRUCK<RA2>,FIRE TRUCK<RA9> M10X18 FLANGE	0-28181-018-0	01	1	9105-	●
242	LINK ASM (B)	1-23314-159-3	01	1	9002-	●
242	LINK ASM FIRE TRUCK<RA9> (A)	1-22190-494-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-160-3	01	1	9307-		●

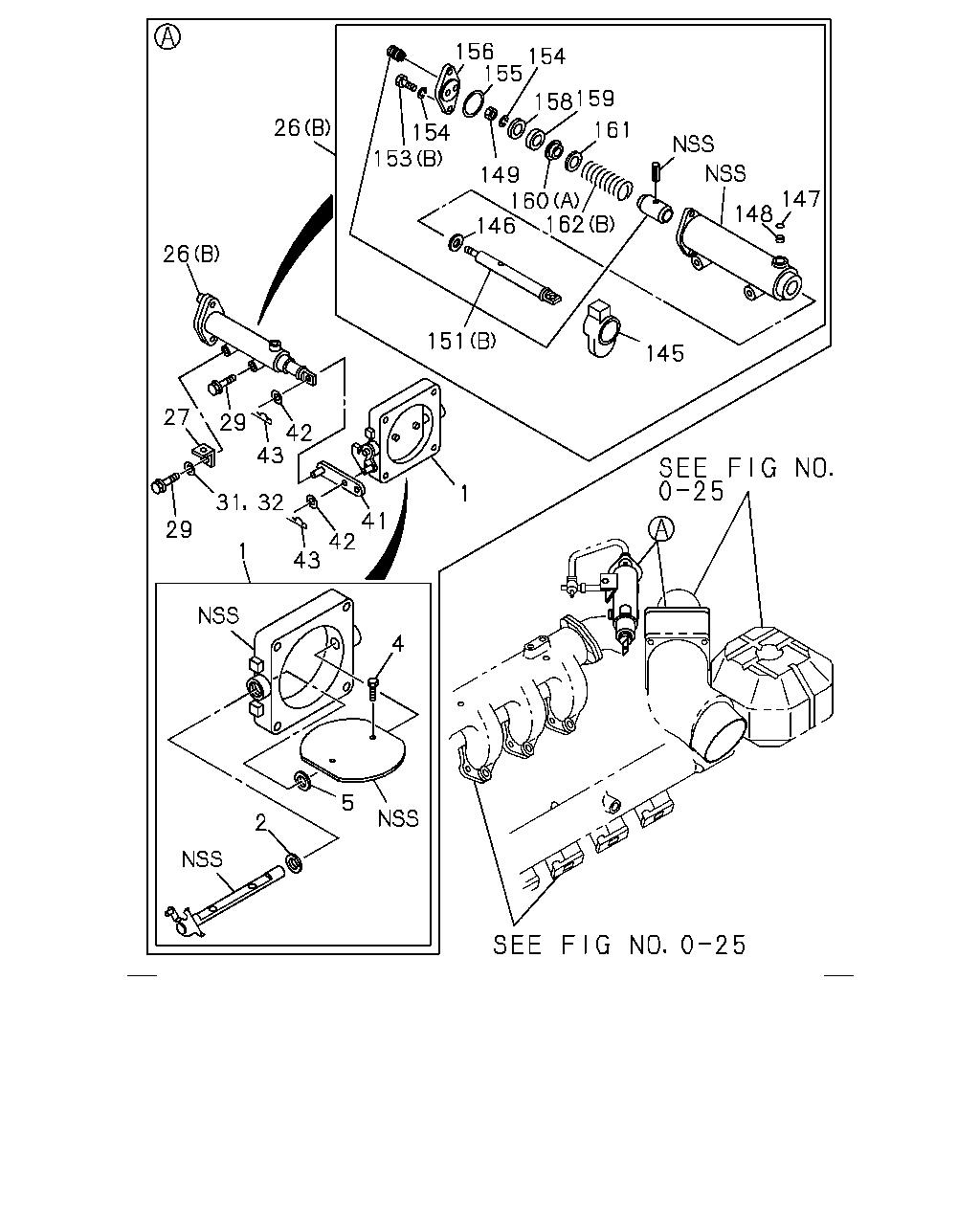

2 5 4 43 42 41 1 32 31 29 27 29 42 43 26 26 151 145 146 162 160 149 154 153 156 154 155 158 159 161 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHUTTER ASM; INT	1-14310-206-2	01	1	9002-9504	●	●
1	SHUTTER ASM; INT '95/4/24-	1-14310-219-0	01	1	9504-	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9002-	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9002-	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9002-	●	●
26	CYLINDER ASM; CONT FIRE TRUCK<RA9> (A)	1-22190-558-1	01	1	9307-	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9002-	●	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9002-	●
27	BRACKET; WIRE CLIP	1-83129-275-0	01	1	9307-		●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9002-	●	●
31	WASHER; PL,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9307-		●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9002-	●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9002-	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●
145	COVER; BREATHER	1-22199-008-0	01	1	9002-	●	●
145	COVER; BREATHER FIRE TRUCK<RA9>	1-22199-008-0	01	1	9002-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●
146	SEAL; DUST,CONT FIRE TRUCK<RA9>	1-22189-016-0	01	1	9002-	●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●
147	RING; RET FIRE TRUCK<RA9>	9-88510-331-0	01	1	9002-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●
148	FILTER; CONT CYL FIRE TRUCK<RA9>	9-88510-330-0	01	1	9002-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●
149	NUT; LOCK,CONT SHAFT FIRE TRUCK<RA9>	9-83315-085-0	01	1	9002-	●
151	SHAFT; CONT CYL FIRE TRUCK<RA9> (A)	1-22199-132-0	01	1	9307-	●
151	SHAFT; CONT CYL (B)	1-22196-256-0	01	1	9002-	●	●
153	BOLT; CONT CYL FIRE TRUCK<RA9> (A)	9-01000-820-0	02	1	9307-	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9002-	●	●
154	WASHER; LK,CYL FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	03	1	9002-	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	9002-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●
155	GASKET; CONT CYL FIRE TRUCK<RA9>	9-88510-372-0	01	1	9002-	●
156	COVER; CONT CYL FIRE TRUCK<RA9>	1-22199-036-0	01	1	9002-	●
156	COVER; CONT CYL	1-22189-162-1	01	1	9002-	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-	●	●
158	RETAINER; GASKET,CYL FIRE TRUCK<RA9>	9-88510-324-0	01	1	9002-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9002-	●	●
159	GASKET; CONT CYL FIRE TRUCK<RA9>	9-88510-373-0	01	1	9002-	●
160	PLATE (A)	1-22199-020-0	01	1	9002-	●	●
160	PLATE FIRE TRUCK<RA9> (A)	1-22199-020-0	01	1	9002-	●
161	RING; WEAR	1-22199-002-0	01	1	9002-9509	●	●
161	RING; WEAR FIRE TRUCK<RA9>	1-22199-002-0	01	1	9002-9509	●
161	RING; WEAR	1-22199-002-0	01	1	9510-	●	●
161	RING; WEAR FIRE TRUCK<RA9>	1-22199-002-0	01	1	9510-	●
162	SPRING; CONT CYL FIRE TRUCK<RA9> (A)	1-22199-131-0	01	1	9307-	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9002-	●	●

137 422 229 50 216 187 50 26 242 242 63 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	CYLINDER ASM; CONT FIRE TRUCK<RA9> (A)	1-22190-558-1	01	1	9307-	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9002-	●	●
50	BRACKET; ENG CONT CABLE (A)	1-23335-379-0	01	1	9002-	●
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2> (B)	1-23335-329-0	01	1	9002-9009	●
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (B)	1-23335-238-0	01	1	9010-	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●
137	PIPE ASM; AIR ENG SPD FIRE TRUCK<RA9>	1-19192-504-0	01	1	9307-	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-296-2	01	1	9002-	●
187	CONTROL ASM; ENG EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-285-2	01	1	9002-	●
187	CONTROL ASM; ENG	1-23300-285-2	01	1	9002-		●
216	BOLT; BRKT ENG CONT CABLE MIXER TRUCK<RA2> M10X18	8-94399-729-1	01	1	9002-9104	●
216	BOLT; BRKT ENG CONT CABLE MIXER TRUCK<RA2>,FIRE TRUCK<RA9> M10X18 FLANGE	0-28181-018-0	01	1	9105-	●
229	CONTROL ASM; ENG SPD FIRE TRUCK<RA9>	1-23300-305-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-159-3	01	1	9002-	●
242	LINK ASM FIRE TRUCK<RA9> (A)	1-22190-494-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-160-3	01	1	9307-		●
422	BRACKET; CONT CYL FIRE TRUCK<RA9>	1-23335-399-0	01	1	9307-	●

251 250 250 246 245 245 253 245 245 242 248 267 208 210 207 211 188 189 188 267 187 214 212 215 131 209 133 190 215 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CLIP; CABLE EXC. FIRE TRUCK<RA9> ID=11	1-09700-474-0	01	1	9002-	●
44	CLIP; CABLE ID=11	1-09700-474-0	01	1	9002-		●
131	BRACKET	1-15419-272-0	01	1	9002-	●	●
133	CLIP; FUEL PIPE ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-296-2	01	1	9002-	●
187	CONTROL ASM; ENG EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23300-285-2	01	1	9002-	●
187	CONTROL ASM; ENG	1-23300-285-2	01	1	9002-		●
188	BUSHING; CONT SHAFT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-09330-059-0	02	1	9002-	●
188	BUSHING; CONT SHAFT (B)	1-09330-053-0	02	1	9002-	●	●
189	BRACKET; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23335-382-0	01	1	9002-	●
189	BRACKET; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23335-297-0	01	1	9002-	●
189	BRACKET; ENG CONT	1-23335-297-0	01	1	9002-		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23311-270-0	01	1	9002-	●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (B)	1-23311-271-0	01	1	9002-	●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (C)	1-23311-272-0	01	1	9002-	●
190	LEVER; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (D)	1-23311-254-1	01	1	9002-	●
190	LEVER; ENG CONT (D)	1-23311-254-1	01	1	9002-		●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9002-	●	●
208	NUT; LEVER	1-09984-015-0	01	1	9002-	●	●
209	SHAFT; ENG CONT MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23331-102-0	01	1	9002-	●
209	SHAFT; ENG CONT EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>	1-23331-093-0	01	1	9002-	●
209	SHAFT; ENG CONT	1-23331-093-0	01	1	9002-		●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	01	1	9002-	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	01	1	9002-	●	●
212	BRACKET; SPR EYE	1-23335-058-0	01	1	9002-	●	●
214	SPRING; ENG CONT RETURN	1-09583-207-0	01	1	9002-9405	●	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9406-	●	●
215	BOLT; BRKT SPR EYE M10X20 W/LK WASHER	0-50051-020-0	01	1	9002-9006	●
215	BOLT; BRKT SPR EYE M10X18	8-94399-729-1	01	1	9007-9104	●
215	BOLT; BRKT SPR EYE M6X25	9-01910-625-0	01	1	9002-9005	●
215	BOLT; BRKT SPR EYE M6X25 W/LK WASHER	0-50040-625-0	01	1	9006-	●
215	BOLT; BRKT SPR EYE M10X18 FLANGE	0-28181-018-0	01	1	9105-	●	●
215	BOLT; BRKT SPR EYE M6X22 FLANGE	0-28080-622-0	01	1	9307-		●
242	LINK ASM (B)	1-23314-159-3	01	1	9002-	●
242	LINK ASM FIRE TRUCK<RA9> (A)	1-22190-494-1	01	1	9307-	●
242	LINK ASM (B)	1-23314-160-3	01	1	9307-		●
245	NUT; LINK (D)	9-99110-405-0	02	1	9002-	●
245	NUT; LINK FIRE TRUCK<RA9> (A)	1-09409-002-0	01	1	9307-	●
245	NUT; LINK FIRE TRUCK<RA9> (B)	9-09110-408-0	03	1	9307-	●
245	NUT; LINK (C)	9-09840-277-0	02	1	9002-	●	●
245	NUT; LINK (D)	9-99111-405-0	02	1	9307-		●
246	JOINT; BALL,ENG CONT LINK	1-09760-096-0	01	1	9002-9006	●
246	JOINT; BALL,ENG CONT LINK	1-09760-102-0	01	1	9007-	●	●
248	NUT; JOINT BALL M5	9-99110-405-0	03	1	9002-	●
248	NUT; JOINT BALL M5	9-99110-405-0	01	1	9307-		●
250	ROD; ROD TO JOINT (A)	9-08400-512-0	01	1	9002-	●
250	ROD; ROD TO JOINT (B)	1-09765-197-0	01	1	9002-	●	●
250	ROD; ROD TO JOINT (A)	9-08400-520-0	01	1	9307-		●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-095-0	01	1	9002-9006	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-101-0	01	1	9007-	●	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9002-	●	●
267	BOLT; ENG CONT M10X18	8-94399-729-1	02	1	9002-9104	●
267	BOLT; ENG CONT M10X18 FLANGE	0-28181-018-0	02	1	9105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
