0-35A — ENGINE CONTROL VALVE AND LEVER (#2757) — 134 parça

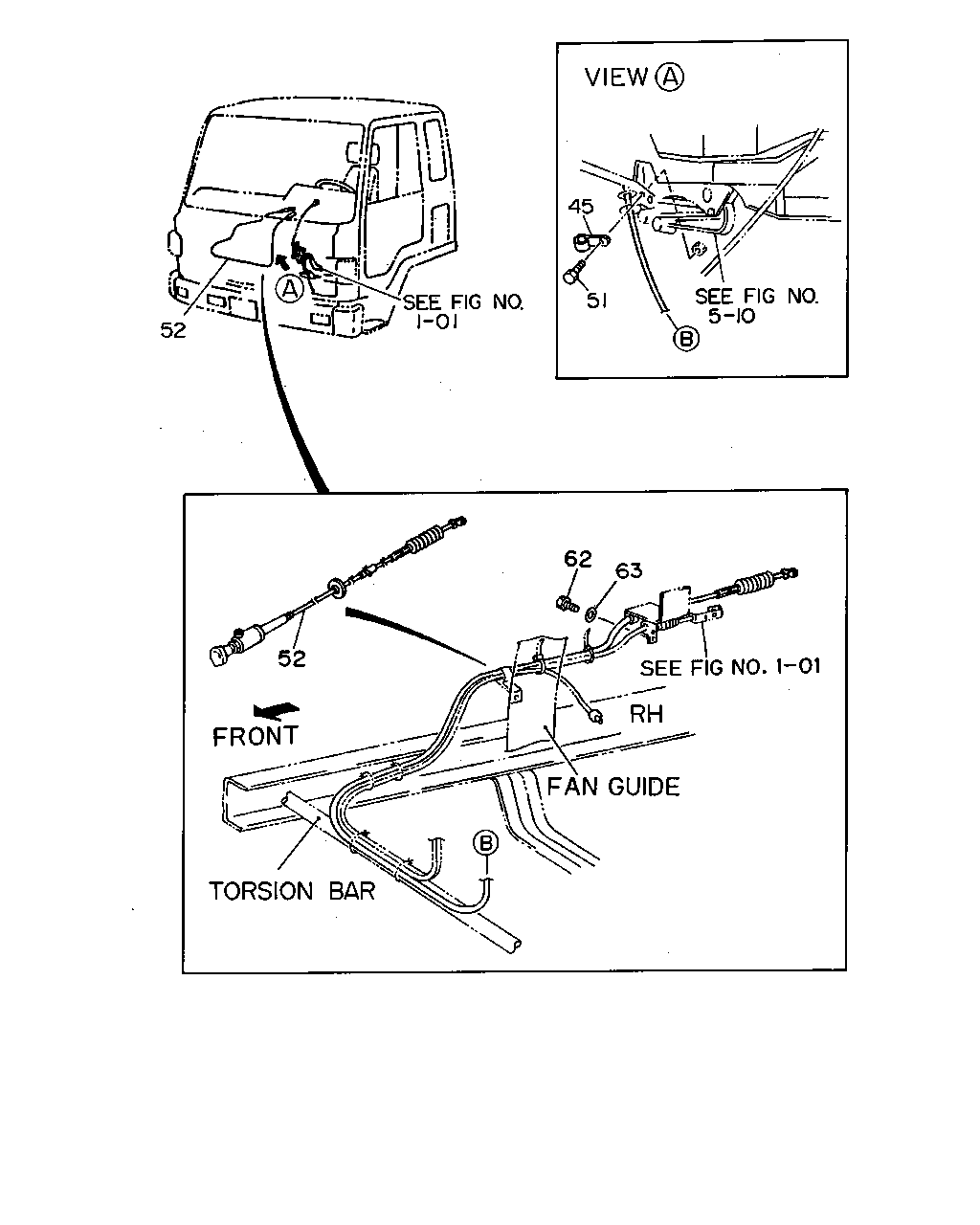

çizim 5666
51 45 52 52 62 63
BalonParca AdiParca NoAdetTipApplied Date
45 CLIP; FUEL CUT CABLE
CAB SUSPENSION RIGID(W71) ID=13 H=24 L=20 		9-09527-012-0 01 1 9002-
51 BOLT; CLIP,FUEL CUT CABLE
CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204
51 BOLT; CLIP,FUEL CUT CABLE
CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302
51 BOLT; CLIP,FUEL CUT CABLE
CAB SUSPENSION RIGID(W71) M6X20 FLANGE 		0-28080-620-0 01 1 9303-
52 CABLE; FUEL CUT
L=3320 		1-23210-754-4 01 1 9002-
62 BOLT; CABLE END
M6X16 W/LK WASHER 		9-01910-616-0 02 1 9002-9005
62 BOLT; CABLE END
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9006-9302
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9303-9306
63 WASHER; PL,FUEL CUT CABLE 1-09985-157-0 01 1 9002-9301

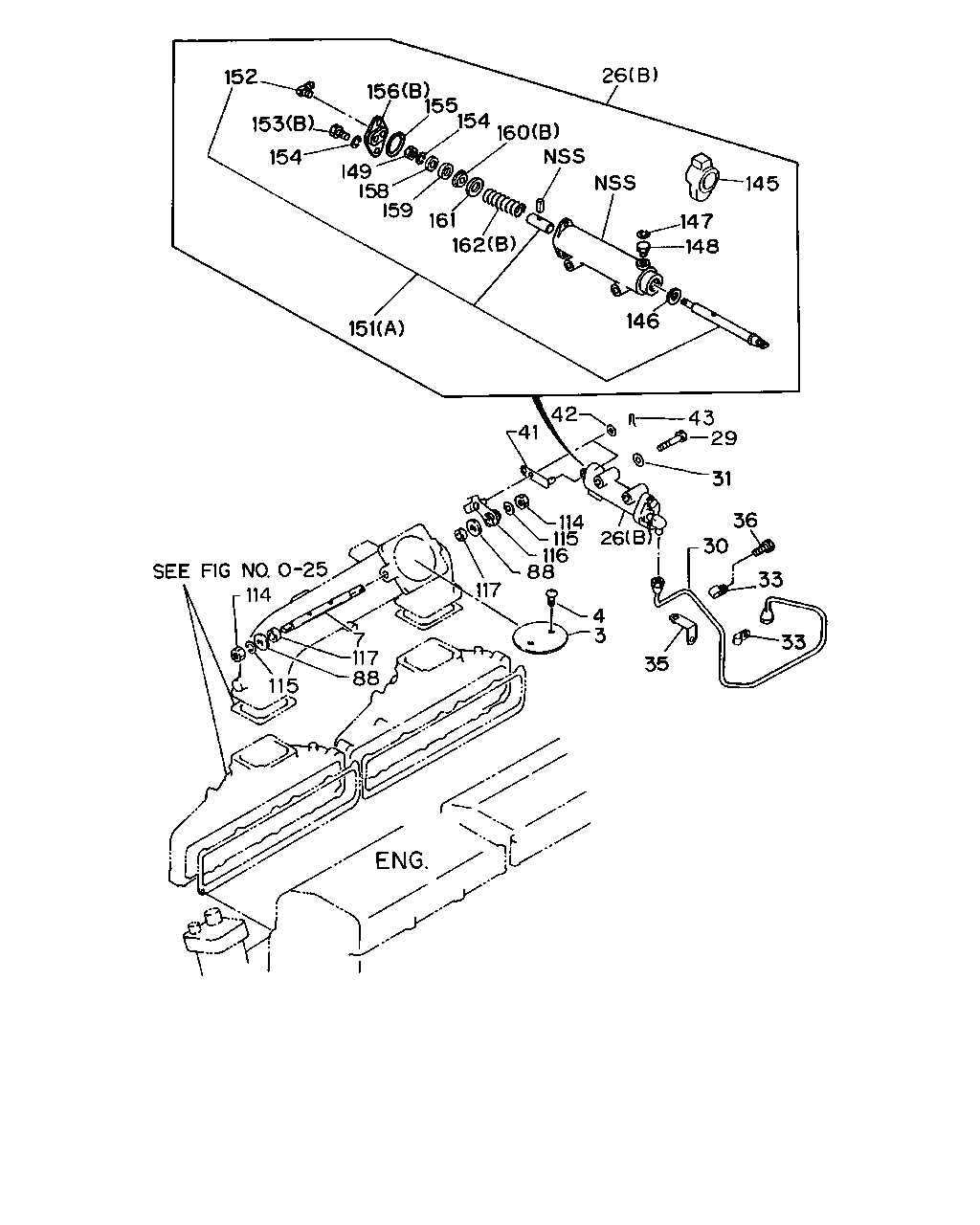

çizim 5667
156 152 155 154 160 153 145 154 149 158 159 161 162 147 148 146 151 42 43 29 41 31 36 117 117 88 115 114 3 4 35 33 33 30 7 114 115 116 88 26
BalonParca AdiParca NoAdetTipApplied Date
3 VALVE; INT SHUTTER 1-14312-012-0 01 1 9002-
4 SCREW; VLV FIX 1-09102-002-0 02 1 9002-
7 SHAFT ASM; INT SHUTTER 9-14313-129-0 01 1 9002-
26 CYLINDER ASM; CONT
(B) 		1-22190-302-1 01 1 9002-
26 CYLINDER ASM; CONT
FIRE TRUCK<RA9> (A) 		1-22190-491-0 01 1 9002-
29 BOLT; CONT CYL
M10X55 		9-01056-055-0 02 1 9002-9004
29 BOLT; CONT CYL
M10X55 		0-10806-055-0 02 1 9005-
30 PIPE ASM; AIR CONT CYL 1-19192-126-0 01 1 9002-
31 WASHER; PL,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 02 1 9002-
33 CLIP; AIR PIPE 1-09700-955-0 02 1 9002-
35 BRACKET; AIR PIPE CLIP 1-13719-027-0 01 1 9002-
36 BOLT; CLIP
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9002-
41 LINK; INT SHUTTER 1-14319-004-2 01 1 9002-
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9002-
42 WASHER; LK,ROD LOCK
ID=10.5 OD=18 		9-09160-510-0 02 1 9002-
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9002-
88 WASHER; SHAFT 9-09855-383-0 02 1 9002-
114 NUT
M12 		9-99111-412-0 02 1 9002-
115 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9002-
116 LEVER 1-22196-129-1 01 1 9002-
117 COVER; VLV 9-14319-316-0 02 1 9002-
145 COVER; BREATHER 1-22199-009-0 01 1 9002-
145 COVER; BREATHER
FIRE TRUCK<RA9> 		1-22199-009-0 01 1 9002-
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9002-
146 SEAL; DUST,CONT
FIRE TRUCK<RA9> 		1-22189-016-0 01 1 9002-
147 RING; RET 9-88510-331-0 01 1 9002-
147 RING; RET
FIRE TRUCK<RA9> 		9-88510-331-0 01 1 9002-
148 FILTER; CONT CYL 9-88510-330-0 01 1 9002-
148 FILTER; CONT CYL
FIRE TRUCK<RA9> 		9-88510-330-0 01 1 9002-
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9002-
149 NUT; LOCK,CONT SHAFT
FIRE TRUCK<RA9> 		9-83315-085-0 01 1 9002-
151 SHAFT; CONT CYL
(A) 		1-22199-083-0 01 1 9002-
151 SHAFT; CONT CYL
FIRE TRUCK<RA9> (B) 		1-22199-084-0 01 1 9002-
152 CONNECTOR
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-
153 BOLT; CONT CYL
(B) 		9-88510-267-0 02 1 9002-
153 BOLT; CONT CYL
FIRE TRUCK<RA9> (A) 		9-01000-820-0 02 1 9002-9306
153 BOLT; CONT CYL
FIRE TRUCK<RA9> (A) 		9-01000-820-0 02 1 9307-
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 03 1 9002-
154 WASHER; LK,CYL
FIRE TRUCK<RA9> ID=8.2 		9-09150-508-0 03 1 9002-
155 GASKET; CONT CYL 9-88510-372-0 01 1 9002-
155 GASKET; CONT CYL
FIRE TRUCK<RA9> 		9-88510-372-0 01 1 9002-
156 COVER; CONT CYL
(B) 		9-88510-375-0 01 1 9002-
156 COVER; CONT CYL
FIRE TRUCK<RA9> (A) 		1-22199-086-0 01 1 9002-
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9002-
158 RETAINER; GASKET,CYL
FIRE TRUCK<RA9> 		9-88510-324-0 01 1 9002-
159 GASKET; CONT CYL 9-88510-373-0 01 1 9002-
159 GASKET; CONT CYL
FIRE TRUCK<RA9> 		9-88510-373-0 01 1 9002-
160 PLATE
(B) 		1-22199-001-0 01 1 9002-
160 PLATE
FIRE TRUCK<RA9> (A) 		1-22199-020-0 01 1 9002-
161 RING; WEAR 1-22199-002-0 01 1 9002-9509
161 RING; WEAR
FIRE TRUCK<RA9> 		1-22199-002-0 01 1 9002-9509
161 RING; WEAR 1-22199-002-0 01 1 9510-
161 RING; WEAR
FIRE TRUCK<RA9> 		1-22199-002-0 01 1 9510-
162 SPRING; CONT CYL
(B) 		9-88510-374-0 01 1 9002-
162 SPRING; CONT CYL
FIRE TRUCK<RA9> (A) 		1-22199-087-0 01 1 9002-

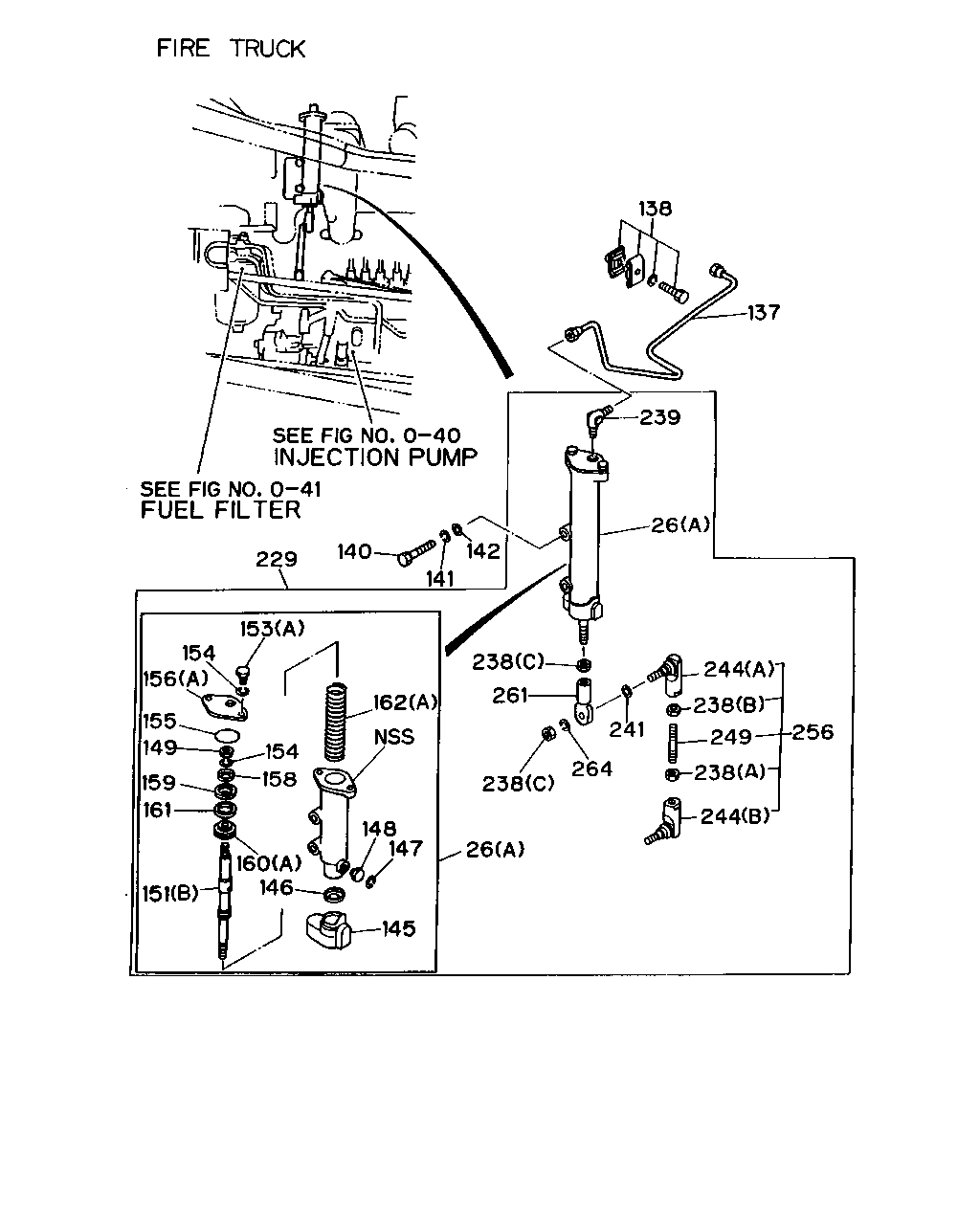

çizim 6934
138 137 239 26 142 141 140 229 153 154 156 155 149 159 161 151 146 160 145 147 148 158 154 26 162 238 264 241 244 261 238 244 238 249 256 238
BalonParca AdiParca NoAdetTipApplied Date
26 CYLINDER ASM; CONT
(B) 		1-22190-302-1 01 1 9002-
26 CYLINDER ASM; CONT
FIRE TRUCK<RA9> (A) 		1-22190-491-0 01 1 9002-
137 PIPE ASM; AIR ENG SPD
FIRE TRUCK<RA9> 		1-19191-869-0 01 1 9002-
138 CLIP; AIR PIPE
FIRE TRUCK<RA9> ID=6 		9-15419-084-0 01 1 9002-
140 BOLT; CONNECTOR CYL
FIRE TRUCK<RA9> M10X85 		9-01056-085-0 02 1 9002-9004
140 BOLT; CONNECTOR CYL
FIRE TRUCK<RA9> M10X85 		0-10806-085-0 02 1 9005-
141 WASHER; LK,CONT CYL
FIRE TRUCK<RA9> ID=10.2 		9-09150-510-0 02 1 9002-9306
141 WASHER; LK,CONT CYL
FIRE TRUCK<RA9> ID=10.2 		9-09150-510-0 02 1 9307-
142 WASHER; PL,CONT CYL
FIRE TRUCK<RA9> ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9306
142 WASHER; PL,CONT CYL
FIRE TRUCK<RA9> ID=10.5 OD=18 		9-09160-510-0 02 1 9307-
145 COVER; BREATHER 1-22199-009-0 01 1 9002-
145 COVER; BREATHER
FIRE TRUCK<RA9> 		1-22199-009-0 01 1 9002-
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9002-
146 SEAL; DUST,CONT
FIRE TRUCK<RA9> 		1-22189-016-0 01 1 9002-
147 RING; RET 9-88510-331-0 01 1 9002-
147 RING; RET
FIRE TRUCK<RA9> 		9-88510-331-0 01 1 9002-
148 FILTER; CONT CYL 9-88510-330-0 01 1 9002-
148 FILTER; CONT CYL
FIRE TRUCK<RA9> 		9-88510-330-0 01 1 9002-
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9002-
149 NUT; LOCK,CONT SHAFT
FIRE TRUCK<RA9> 		9-83315-085-0 01 1 9002-
151 SHAFT; CONT CYL
(A) 		1-22199-083-0 01 1 9002-
151 SHAFT; CONT CYL
FIRE TRUCK<RA9> (B) 		1-22199-084-0 01 1 9002-
153 BOLT; CONT CYL
(B) 		9-88510-267-0 02 1 9002-
153 BOLT; CONT CYL
FIRE TRUCK<RA9> (A) 		9-01000-820-0 02 1 9002-9306
153 BOLT; CONT CYL
FIRE TRUCK<RA9> (A) 		9-01000-820-0 02 1 9307-
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 03 1 9002-
154 WASHER; LK,CYL
FIRE TRUCK<RA9> ID=8.2 		9-09150-508-0 03 1 9002-
155 GASKET; CONT CYL 9-88510-372-0 01 1 9002-
155 GASKET; CONT CYL
FIRE TRUCK<RA9> 		9-88510-372-0 01 1 9002-
156 COVER; CONT CYL
(B) 		9-88510-375-0 01 1 9002-
156 COVER; CONT CYL
FIRE TRUCK<RA9> (A) 		1-22199-086-0 01 1 9002-
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9002-
158 RETAINER; GASKET,CYL
FIRE TRUCK<RA9> 		9-88510-324-0 01 1 9002-
159 GASKET; CONT CYL 9-88510-373-0 01 1 9002-
159 GASKET; CONT CYL
FIRE TRUCK<RA9> 		9-88510-373-0 01 1 9002-
160 PLATE
(B) 		1-22199-001-0 01 1 9002-
160 PLATE
FIRE TRUCK<RA9> (A) 		1-22199-020-0 01 1 9002-
161 RING; WEAR 1-22199-002-0 01 1 9002-9509
161 RING; WEAR
FIRE TRUCK<RA9> 		1-22199-002-0 01 1 9002-9509
161 RING; WEAR 1-22199-002-0 01 1 9510-
161 RING; WEAR
FIRE TRUCK<RA9> 		1-22199-002-0 01 1 9510-
162 SPRING; CONT CYL
(B) 		9-88510-374-0 01 1 9002-
162 SPRING; CONT CYL
FIRE TRUCK<RA9> (A) 		1-22199-087-0 01 1 9002-
229 CONTROL ASM; ENG SPD
FIRE TRUCK<RA9> 		1-23300-277-0 01 1 9002-
238 NUT; LINK
FIRE TRUCK<RA9> (A) LH THREAD 		1-09409-002-0 01 1 9002-
238 NUT; LINK
FIRE TRUCK<RA9> (B) M8 		9-09110-408-0 01 1 9002-
238 NUT; LINK
FIRE TRUCK<RA9> (C) M8 		9-09111-408-0 02 1 9002-
239 UNION; LINK ROD
FIRE TRUCK<RA9> M12 & PT1/8 		9-09224-306-2 01 1 9002-
241 WASHER; PL
FIRE TRUCK<RA9> ID=8.4 		9-09160-508-0 01 1 9002-
244 JOINT ASM; BALL
FIRE TRUCK<RA9> (A) RH THREAD 		1-09760-009-0 01 1 9002-
244 JOINT ASM; BALL
FIRE TRUCK<RA9> (B) LH THREAD 		1-09760-010-0 01 1 9002-
249 ROD; LINK
FIRE TRUCK<RA9> 		1-09765-224-0 01 1 9002-
256 ROD ASM; LINK
FIRE TRUCK<RA9> 		1-22190-508-0 01 1 9002-
261 JAW; LINK ROD
FIRE TRUCK<RA9> 		9-09511-108-0 01 1 9002-
264 WASHER; LK,LINK,CONT CYL
FIRE TRUCK<RA9> ID=8.2 		9-09150-508-0 01 1 9002-
çizim 36650
56 118 136 345 119 120 121 118 122 131 130 38 122 120 132 130 130 134 135
BalonParca AdiParca NoAdetTipApplied Date
38 ROD; LINK SHAFT TO LEVER 9-08400-532-0 01 1 9002-
56 BRACKET; FUEL CUT LINK 1-23335-261-1 01 1 9002-
118 ROD ASM; LINK FUEL CUT 1-23310-465-0 01 1 9002-
119 BOLT; LINK ROD
M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005
119 BOLT; LINK ROD
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-
120 WASHER; LK,BALL JOINT
ID=5.1 		9-09150-505-0 02 1 9002-
121 NUT; BALL JOINT
M5 		9-99110-405-0 01 1 9002-
122 BALL ASM; JOINT
RH THREAD 		1-09760-002-0 02 1 9002-
130 NUT; BALL JOINT
M5 		9-99110-405-0 03 1 9002-
131 BRACKET 1-23335-226-0 01 1 9002-
132 LEVER; W/BUSHING 1-23311-267-0 01 1 9002-
134 WASHER; LK,LEVER
ID=10.5 OD=22 		9-09164-610-0 01 1 9002-
135 NUT; LEVER
M10 		9-09110-410-0 01 1 9002-
136 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 9002-
345 NUT; BRKT
M10 		9-09110-410-0 04 1 9002-
