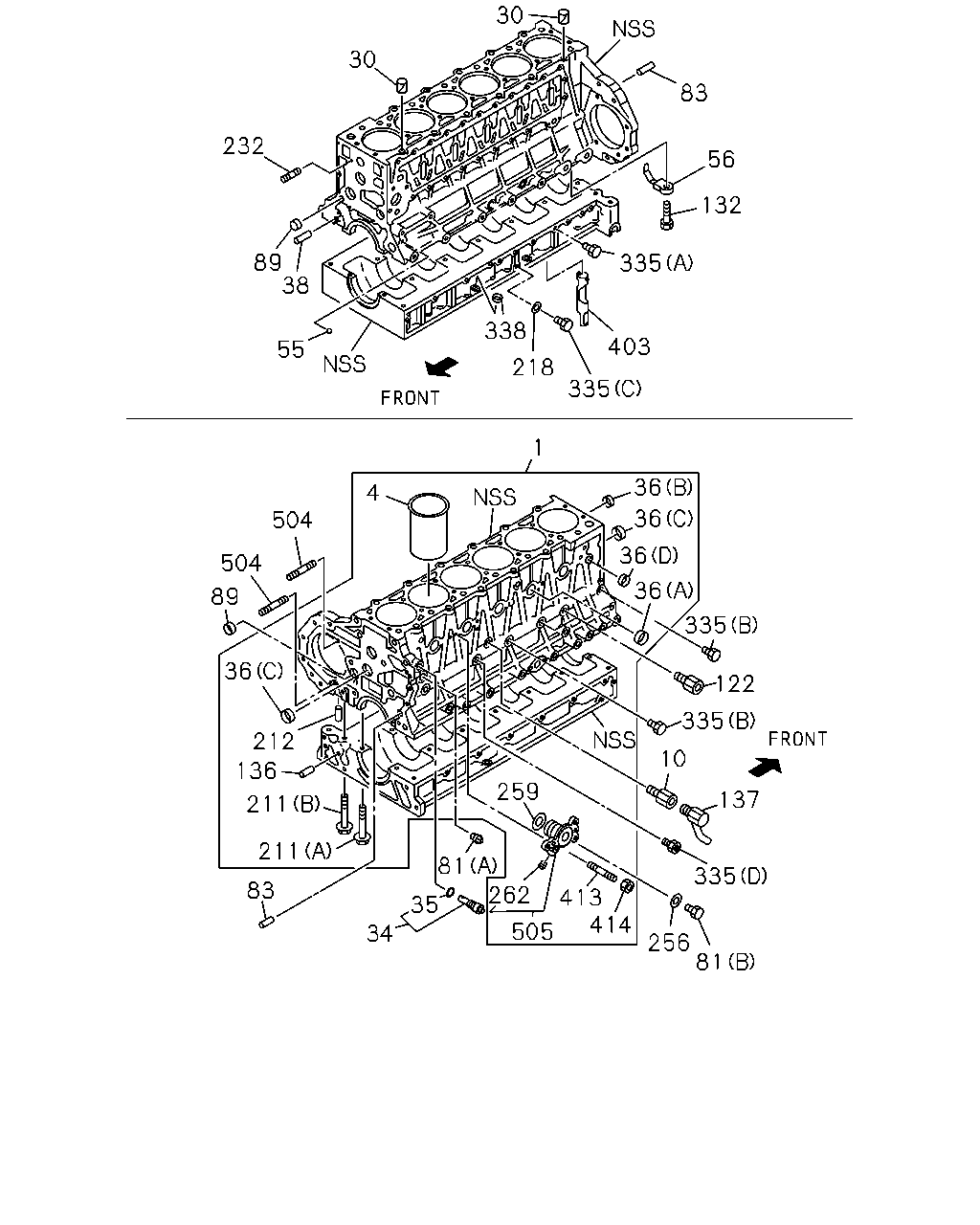

0-12 — CYLINDER BLOCK (#27564) — 57 parça

30 30 83 232 56 132 89 38 335 338 403 55 218 335 1 36 4 36 504 36 36 504 89 335 36 122 335 212 10 136 259 137 211 211 81 335 83 262 413 414 35 505 34 256 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1210-
1	BLOCK ASM; CYL	8-97618-663-3	01	1	0612-1209
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0612-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0612-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0612-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0612-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0612-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0612-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0612-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0612-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0612-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	0612-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	0612-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0612-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0612-
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0612-1007
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-
81	PLUG; WATER JACKET (A) PT3/8	8-94397-338-0	01	1	0612-
81	PLUG; WATER JACKET (B) M14X14	9-09862-156-0	01	1	0612-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0612-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0612-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0612-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0612-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0612-0812
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0612-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0612-0905
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0612-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0612-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0612-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0612-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0612-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0612-
262	PLUG; ADAPTER M14X14	9-09862-156-0	01	1	0612-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0612-
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0612-
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0612-
335	PLUG; C/BL,SIDE ENGINE REAR PTO(SV1) (D) M14 M10	8-94396-547-0	01	1	0612-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0612-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0612-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0612-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0612-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	0612-

163 215 214 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-050-0	06	1	0612-0612
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0701-
2	LINER SET; ENG CYL GRADE=3X	1-87813-051-0	06	1	0612-0612
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0701-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0612-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0612-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	0612-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	0612-
215	WASHER; PL,NOISE COVER ID=10.5 OD=40 T=3.2	9-09651-094-0	02	1	0612-0702
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	0703-
