9-01 — TOOLS (#27559) — 49 parça
çizim 26514
274 271 268 209
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0612-0708
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709-
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0612-
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0612-0708
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709-
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0612-

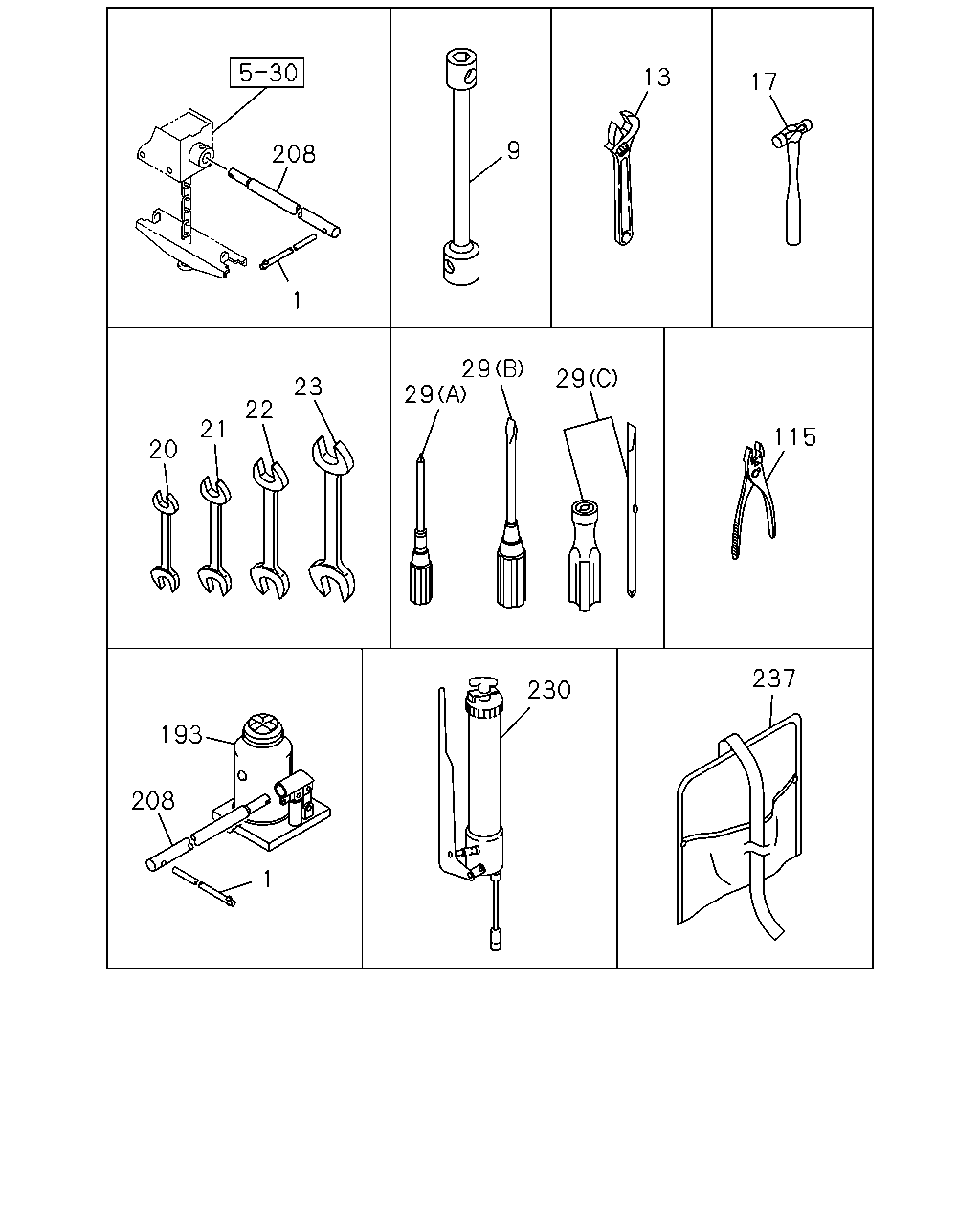

çizim 89555
13 17 9 208 1 29 29 23 29 22 21 115 20 237 230 193 208 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
L=280 		1-85515-007-0 01 1 0612-1107
1 HANDLE; SPARE TIRE CARRIER
L=280 		8-98181-251-0 01 1 1108-
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> 41X21 L=330 		8-94340-033-2 01 1 0612-
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0612-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0612-1407
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0612-
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0612-
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0612-
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0612-
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0612-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0612-
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0612-0612
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612-
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0612-
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0612-1410
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411-
193 JACK ASM
TOOL A KIT<SK9> 7TON 		1-85510-017-0 01 1 0612-
193 JACK ASM
TOOL B KIT<SL1> 7TON 		1-85510-005-2 01 1 0612-
208 HANDLE; JACK
TOOL A KIT<SK9> L=580 		1-85515-005-1 01 1 0612-1107
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0612-1107
208 HANDLE; JACK
TOOL A KIT<SK9> L=580 		8-98181-249-0 01 1 1108-
208 HANDLE; JACK
L=580 		8-98181-249-0 01 1 1108-
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0612-
237 BAG; TOOL
TOOL A KIT<SK9> 		8-97312-893-0 01 1 0612-
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0612-
çizim 90297
61 128 129 143 153 144 141 161 154 157 158 159 174 186 180 178
BalonParca AdiParca NoAdetTipApplied Date
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0612-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0612-
129 PULLER ASM; PITMAN ARM 9-85210-170-0 01 1 0612-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0612-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0612-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0612-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0612-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0612-
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 0612-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0612-
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 0612-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0612-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0612-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0612-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0612-
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> 		1-85269-008-0 01 1 0612-
