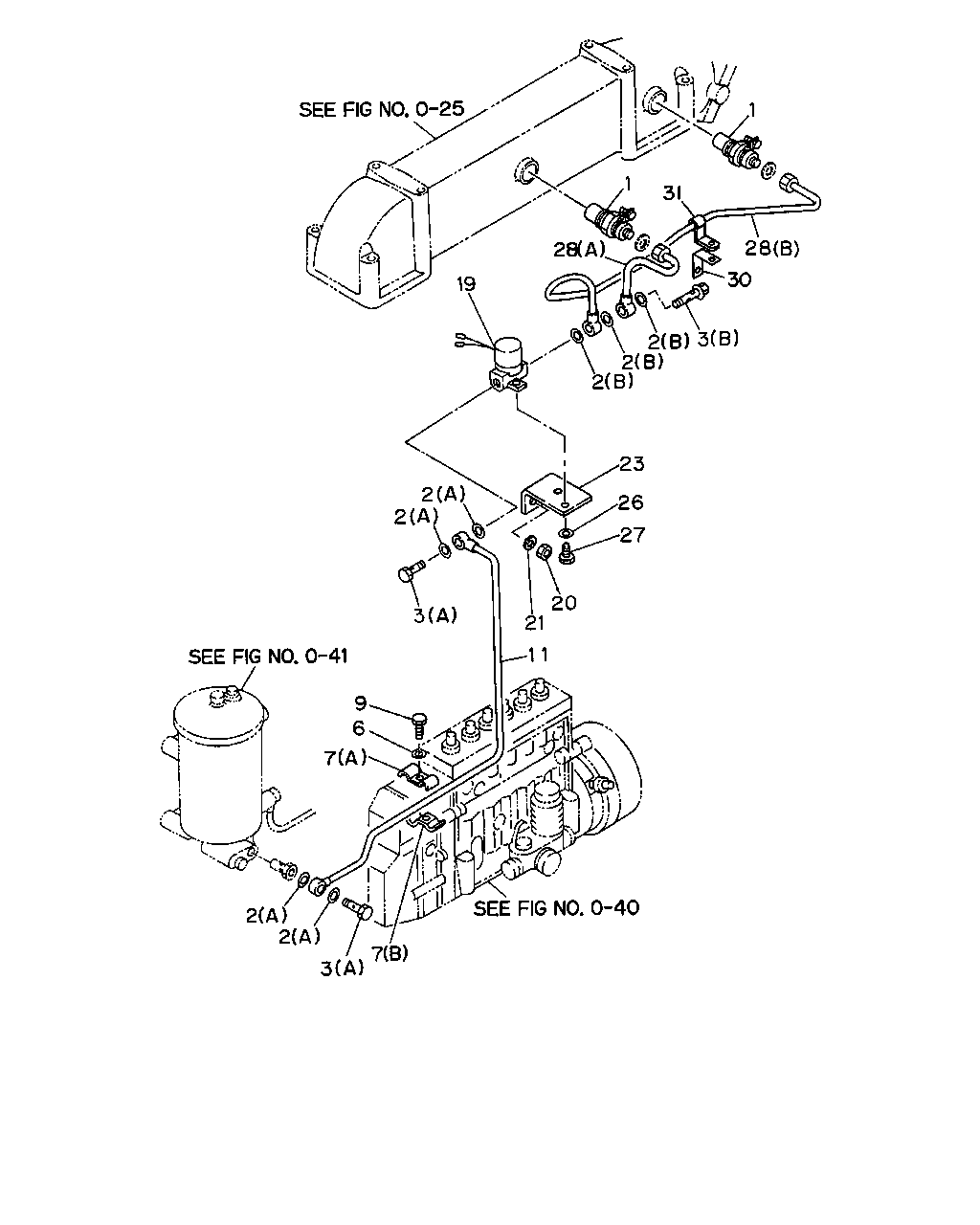

1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-022-0 |
02 |
1 |
9002-9102 |
| |
1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-022-0 |
02 |
1 |
9103- |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9002-9411 |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
9002-9411 |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(B)
M8X24 FLANGE
|
1-09675-038-1 |
01 |
1 |
9002-9411 |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(A)
M10X18 FLANGE
|
1-09675-076-0 |
02 |
1 |
9002-9411 |
| |
6 |
WASHER; LK,CLIP,FUEL PIPE
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9307- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(A)
ID=10 & 8 L=20
|
1-09700-741-0 |
02 |
1 |
9002- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(A)
ID=10 & 8 L=20 W/NUT
|
1-09700-742-0 |
02 |
1 |
9002- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(A)
ID=6 & 4.5 L=20
|
1-09700-749-0 |
01 |
1 |
9002- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(B)
ID=6 & 4.5 L=20 W/NUT
|
1-09700-750-1 |
01 |
1 |
9002- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
(A)
ID=10 & 8 L=20
|
1-09700-741-0 |
01 |
1 |
9002- |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
(A)
ID=10 & 8 L=20 W/NUT
|
1-09700-742-0 |
01 |
1 |
9002- |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
M5X20
|
9-09802-539-0 |
01 |
1 |
9002- |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
M6X20 W/LK WASHER
|
0-50040-620-0 |
02 |
1 |
9006- |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
M6X20
|
9-01910-620-0 |
01 |
1 |
9002-9005 |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
M6X20 W/LK WASHER
|
0-50040-620-0 |
01 |
1 |
9006- |
| |
11 |
PIPE ASM; FUEL FILTER TO VLV
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
|
1-15413-561-0 |
01 |
1 |
9002- |
| |
11 |
PIPE ASM; FUEL FILTER TO VLV
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
|
1-15413-334-0 |
01 |
1 |
9002- |
| |
19 |
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
|
1-82563-344-1 |
01 |
1 |
9002-9411 |
| |
20 |
NUT; BRKT
INTAKE HEATER<SL2>
M10
|
9-09110-410-0 |
02 |
1 |
9002- |
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9002-9411 |
| |
23 |
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
|
1-82569-045-0 |
01 |
1 |
9002- |
| |
23 |
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
|
1-82569-034-0 |
01 |
1 |
9002- |
| |
26 |
WASHER; LK,BRKT
INTAKE HEATER<SL2>
ID=10.2
|
9-09150-510-0 |
02 |
1 |
9002- |
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
M5X10
|
9-92050-510-0 |
02 |
1 |
9002-9005 |
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
M5X10
|
0-20800-510-0 |
02 |
1 |
9006- |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(A)
|
1-15413-562-1 |
01 |
1 |
9002- |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
FIRE TRUCK<RA9>
(B)
|
1-15413-563-1 |
01 |
1 |
9002- |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
(A)
|
1-15413-550-1 |
01 |
1 |
9002- |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
EXC. FIRE TRUCK<RA9>
(B)
|
1-15413-551-1 |
01 |
1 |
9002- |
| |
30 |
BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2>
|
1-13719-036-0 |
01 |
1 |
9002- |
| |
31 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
L=15
|
1-09700-563-0 |
01 |
1 |
9002- |
