Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

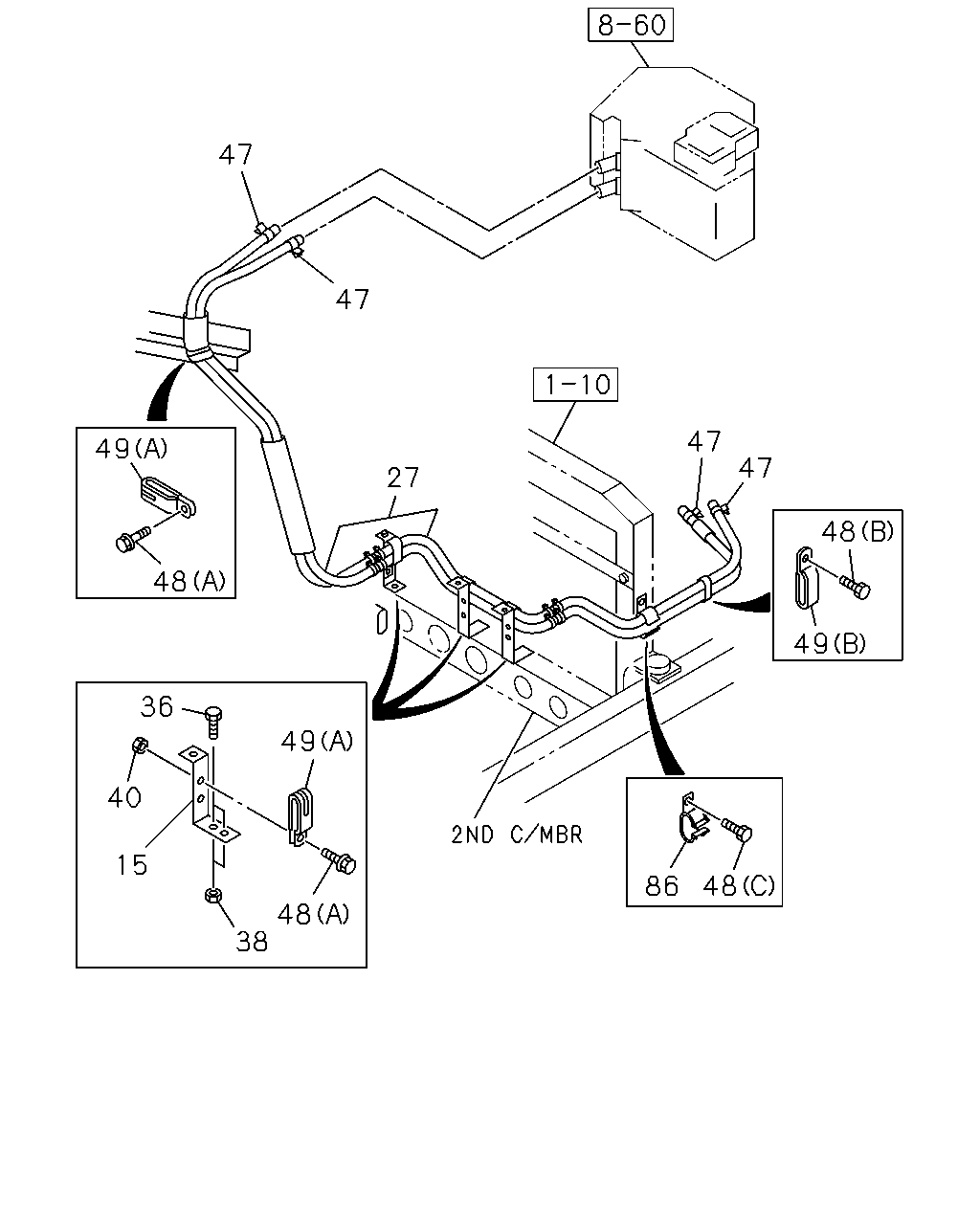

8-45 — HEATER PIPING
(#27549) — 15 parça
47
47
47
49
47
27
48
48
49
36
49
40
15
48
86
48
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
1-83571-927-1
03
1
0612-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-850-1
01
1
0612-
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
06
1
0612-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
0612-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0612-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0612-0612
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
(B) M8X16 FLANGE
0-28050-816-0
01
1
0612-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
03
1
0612-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
03
1
0612-
48
BOLT; CLIP FIX
(C) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0612-
49
CLIP; WATER HOSE,HTR
(A) ID=24X2 L=25
1-09700-710-0
03
1
0612-
49
CLIP; WATER HOSE,HTR
(A) ID=24X2 L=25
1-09700-710-0
03
1
0612-
49
CLIP; WATER HOSE,HTR
(B) ID=24 L=32
1-09700-766-1
01
1
0612-
86
CLIP; HTR HOSE
1-83571-049-1
01
1
0612-
