Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#27548) — 31 parça
◀
[840A] NO.2 (5 parça)
[840A] NO.1 (19 parça)
[840A] NO.3 (7 parça)
▶
250
459
460
461
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0612-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0612-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0612-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0612-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0612-

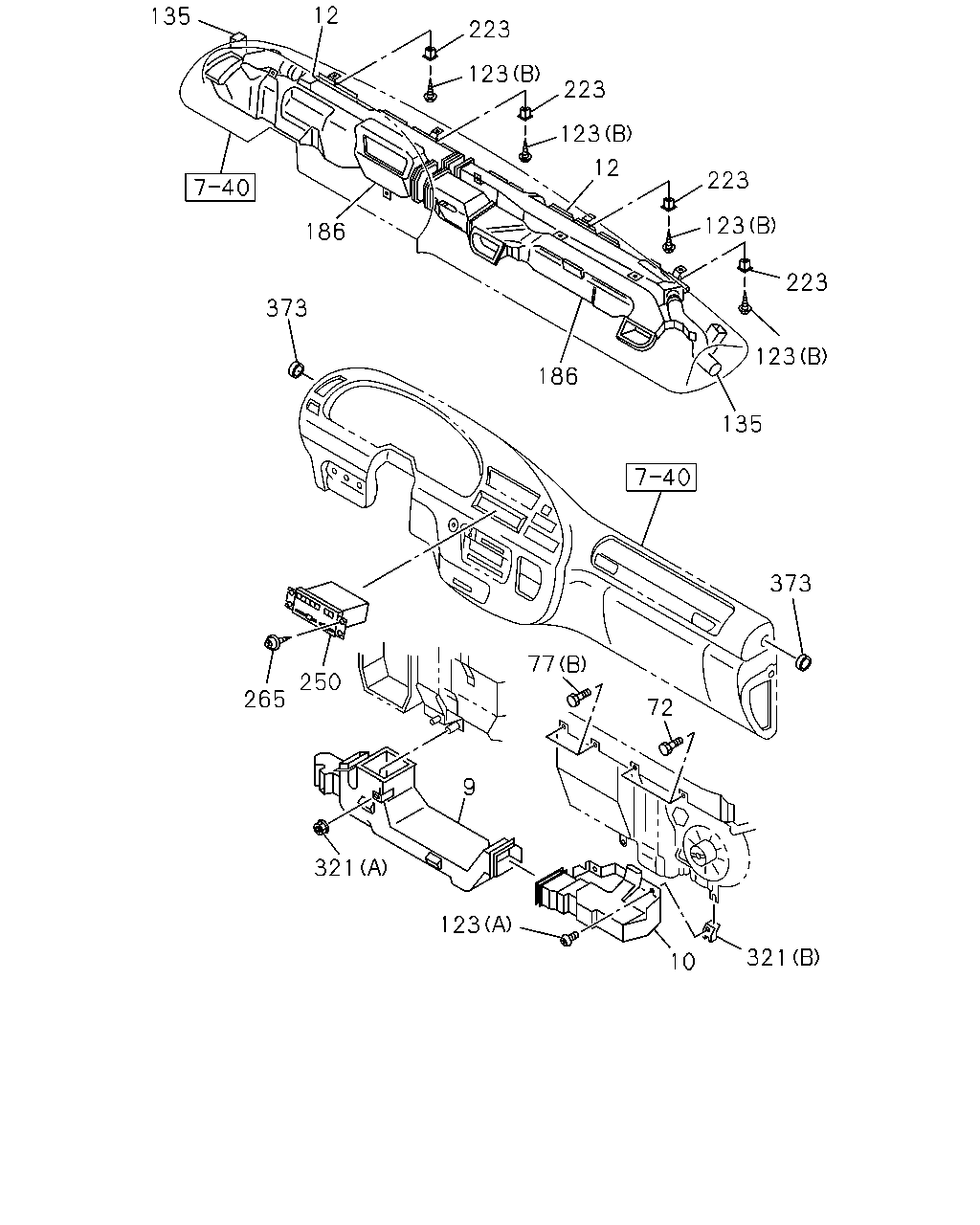

12
135
223
123
223
123
12
223
123
186
223
373
123
186
135
373
77
250
265
72
9
321
123
321
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
1-76378-445-0
01
1
0612-
10
DUCT; HTR AIR,ASSIST FOOT
1-76378-368-2
01
1
0612-
12
NOZZLE; DEFROSTER
1-76378-360-2
01
1
0612-
12
NOZZLE; DEFROSTER
1-76378-359-2
01
1
0612-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0612-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0612-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0612-
123
SCREW; DUCT
(B) M5X14
8-94279-325-0
02
1
0612-
123
SCREW; DUCT
(A) M5X14
8-94279-325-0
08
1
0612-
135
HOSE; DEFROSTER
1-76378-364-3
01
1
0612-
135
HOSE; DEFROSTER
1-76378-363-2
01
1
0612-
186
DUCT; VENTILATOR
1-76378-362-4
01
1
0612-
186
DUCT; VENTILATOR
1-76378-361-3
01
1
0612-
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0612-
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0612-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
02
1
0612-
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91180-106-0
01
1
0612-
321
NUT; DUCT FIX
(B) M5
1-09984-196-0
01
1
0612-
373
RUBBER; JOINT
1-76378-291-0
02
1
0612-

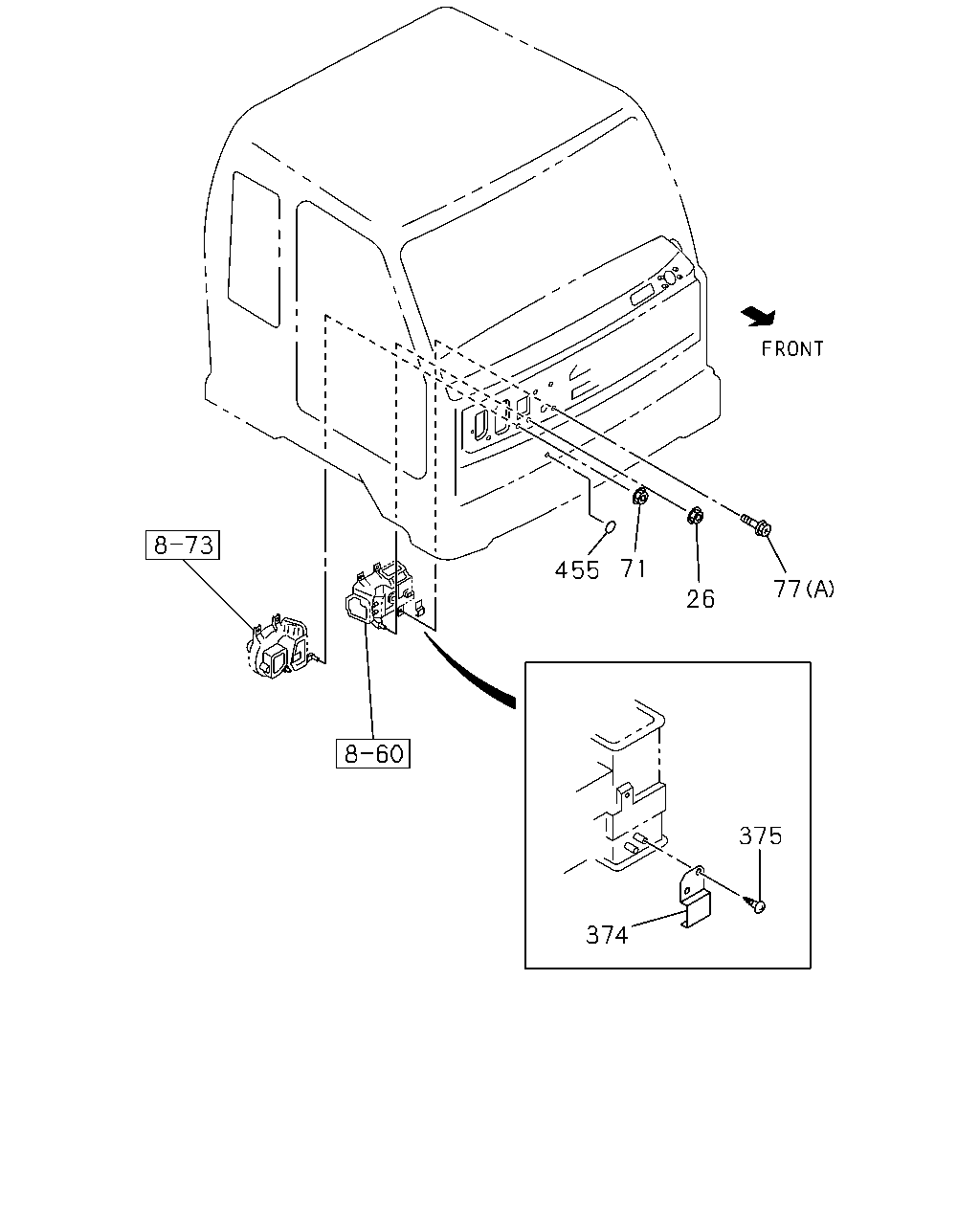

71
455
77
26
375
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0612-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0612-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0612-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0612-
374
HOLDER; DUCT
1-76398-012-1
01
1
0612-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0612-
455
SEAL; CLIP HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
0612-
