◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11040 - FRR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#27545) — 17 parça
çizim 89999
257 29 30
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0612-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0612-
257 COVER; HOLE,SW 8-94229-914-1 01 1 0612-

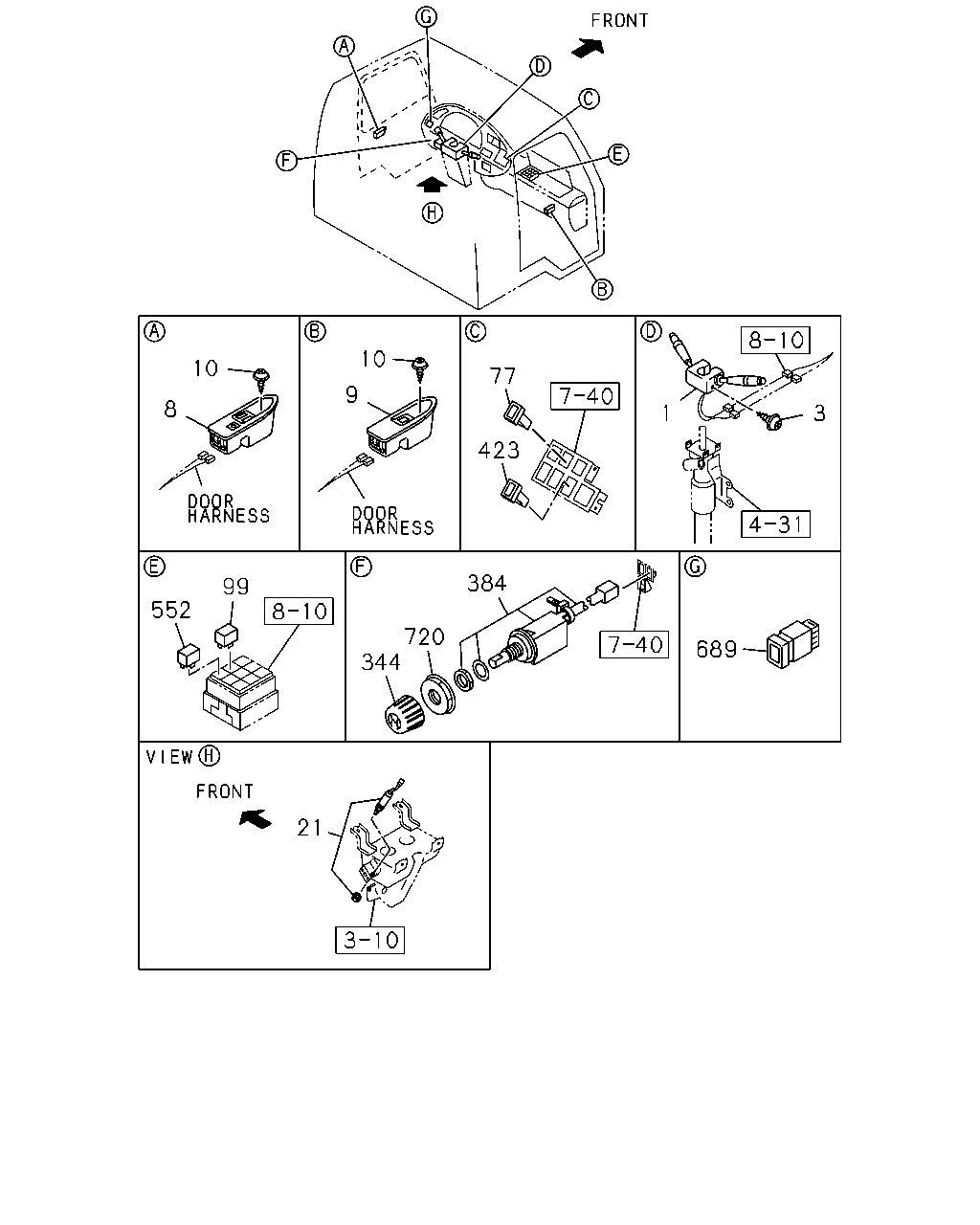

çizim 90320
10 10 77 9 8 3 1 423 384 99 552 720 344 689 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-734-0 01 1 0612-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0612-
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-157-4 01 1 0612-
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-158-3 01 1 0612-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0612-
21 SWITCH; CLU 1-82440-126-1 01 1 0612-
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0612-
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
344 KNOB; SW,IDLE 8-98013-420-0 01 1 0612-
384 SWITCH; IDLING CONT,ELEC 8-98013-418-0 01 1 0612-
423 SWITCH; ENG WARMING 1-82340-697-0 01 1 0612-
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
689 SWITCH; DPD 1-82340-693-0 01 1 0612-
720 HOLDER; SW,IDLE 8-97352-127-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
