Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

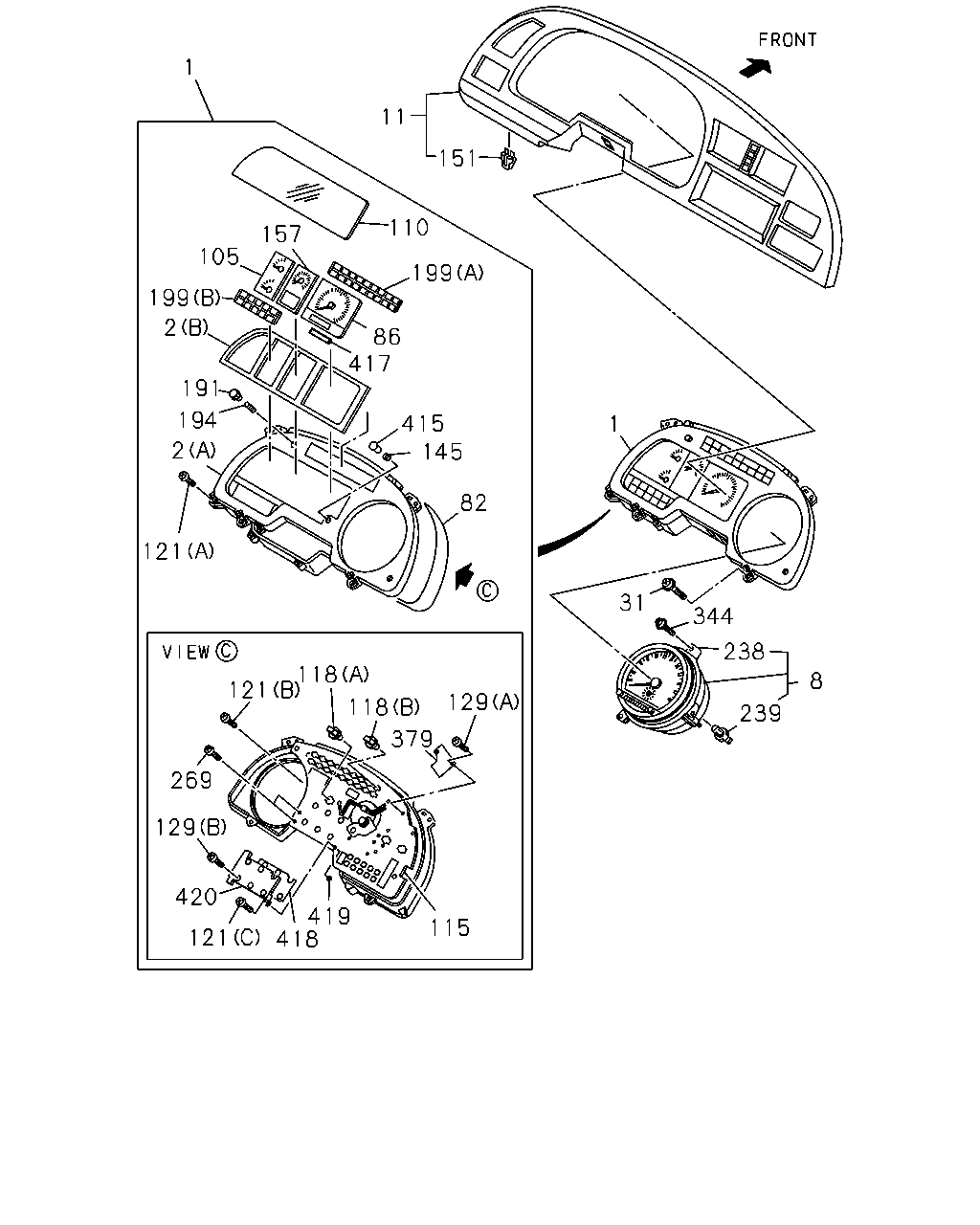

8-21 — METER ASM
(#27544) — 35 parça
1
11
151
110
157
105
199
199
2
86
417
191
194
415
145
1
2
82
121
31
344
238
118
121
8
129
118
239
379
269
129
420
419
418
115
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98047-063-0
01
1
0612-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
0612-
2
PANEL; CLUSTER
(B)
1-83119-651-0
01
1
0612-
8
TACHOGRAPH; CLUSTER METER
1-83120-857-0
01
1
0612-
11
CLUSTER ASM; METER
1-72418-022-7
01
1
0612-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0612-
82
CASE ASM; CLUSTER METER
1-83119-653-0
01
1
0612-
86
TACHOMETER; CLUSTER METER
1-83120-911-0
01
1
0612-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-281-0
01
1
0612-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
0612-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-387-0
01
1
0612-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
03
1
0612-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
28
1
0612-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M3 TAPPING
1-83119-084-0
01
1
0612-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING
1-83119-442-0
05
1
0612-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-676-0
02
1
0612-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-657-0
09
1
0612-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-675-0
06
1
0612-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
0612-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
0612-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-217-0
01
1
0612-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
0612-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
0612-
199
LENS; WARNING LAMP
(A)
1-83119-942-0
01
1
0612-
199
LENS; WARNING LAMP
(B)
1-83119-943-0
01
1
0612-
238
PANEL; TACHOGRAPH
1-83129-311-0
01
1
0612-
239
BULB; TACHOGRAPH
24V 1.4W
5-82194-034-0
03
1
0612-
269
SCREW; METER CLUSTER
M3
1-83119-273-0
02
1
0612-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0612-
379
CIRCUIT; DROP
1-83189-369-0
01
1
0612-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
0612-
417
DISPLAY; ODO & TRIP,METER
1-83119-671-0
01
1
0612-
418
CIRCUIT; CONTROL,METER
8-98045-370-0
01
1
0612-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
0612-
420
HEAT SINK; METER
1-83119-679-0
01
1
0612-
