Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33B - FAN AND FAN BELT
▶

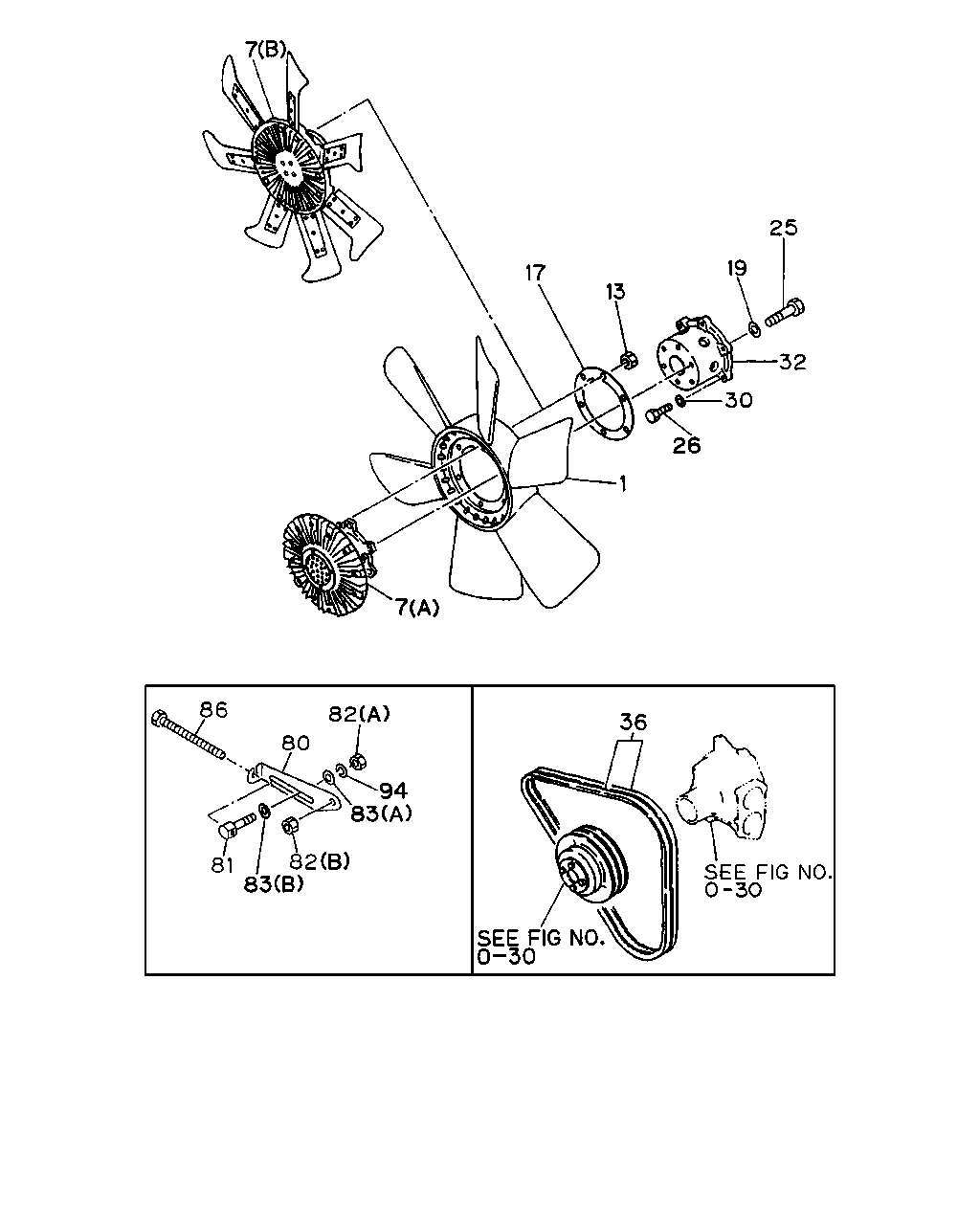

0-33B — FAN AND FAN BELT
(#2754) — 33 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
36
94
82
80
86
81
82
83
83
7
1
26
30
32
25
13
17
19
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
EXC. STEEL FAN<E1P>
1-13660-224-0
01
1
9002-
●
1
FAN; COOLING
1-13660-239-0
01
1
9307-
●
7
COUPLING; FAN
FIRE TRUCK<RA9> (A)
1-21650-130-0
01
1
9002-9306
●
7
COUPLING; FAN
STEEL FAN<E1P> (B)
1-21650-041-1
01
1
9111-
●
7
COUPLING; FAN
EXC. STEEL FAN<E1P>,FIRE TRUCK<RA9> (A)
1-21650-129-0
01
1
9002-9306
●
7
COUPLING; FAN
EXC. STEEL FAN<E1P>,TAIWAN EQUIPMENT(WW5) (A)
1-21650-129-0
01
1
9307-
●
7
COUPLING; FAN
TAIWAN EQUIPMENT(WW5) EXC. STEEL FAN<E1P> (A)
1-21650-124-1
01
1
9307-
●
7
COUPLING; FAN
(A)
1-21650-133-2
01
1
9307-
●
13
NUT; COOLING FAN
M8 FLANGE
0-91150-108-0
06
1
9002-
●
●
17
WASHER; LK,FAN TO COUPLING
1-13669-107-0
01
1
9002-
●
●
19
WASHER; PL,FAN DRIVE
ID=10
1-09503-033-1
06
1
9002-
●
●
25
BOLT; ADAPTER
M10X110
9-09801-316-1
06
1
9002-
●
●
26
BOLT; FAN TO CLU
STEEL FAN<E1P> M10X75
0-10806-075-0
06
1
9111-
●
26
BOLT; FAN TO CLU
EXC. STEEL FAN<E1P> M10X30 FLANGE
0-28181-030-0
06
1
9002-9306
●
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28181-030-0
06
1
9307-
●
●
30
WASHER; PL,ADAPTER
ID=10
1-09503-033-1
06
1
9002-
●
●
32
ADAPTER; FAN TO PULLEY
1-13669-085-2
01
1
9002-9105
●
32
ADAPTER; FAN TO PULLEY
STEEL FAN<E1P>
1-13669-102-0
01
1
9111-
●
32
ADAPTER; FAN TO PULLEY
EXC. STEEL FAN<E1P>
1-13669-156-0
01
1
9106-
●
32
ADAPTER; FAN TO PULLEY
1-13669-115-1
01
1
9307-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136710940) BANDO
1-13671-095-0
01
1
9002-
●
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711470) MITSUBOSHI
1-13671-146-0
01
1
9002-
●
●
80
PLATE; ADJ
GENERATOR NIKKO 24V-40A 1KW(SC5)
1-13674-105-0
01
1
9002-
●
80
PLATE; ADJ
1-13674-105-0
01
1
9002-
●
80
PLATE; ADJ
EXC. GENERATOR NIKKO 24V-40A 1KW(SC5)
1-13674-093-0
01
1
9002-
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9002-
●
●
82
NUT; ADJ PLATE
(B) M12 FLANGE
0-91150-112-0
01
1
9002-
●
82
NUT; ADJ PLATE
(A) M12
9-99110-412-0
01
1
9002-
●
82
NUT; ADJ PLATE
(A),(B) M12 FLANGE
0-91150-112-0
02
1
9307-
●
83
WASHER; PL
(A) ID=12.5
9-09160-512-0
01
1
9002-
●
83
WASHER; PL
(B) ID=12.5 OD=32
9-09160-712-0
01
1
9002-
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9002-
●
●
94
WASHER; LK,ADJ PLATE
ID=12.2
9-09150-512-0
01
1
9002-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
