◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11040 - FRR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#27534) — 14 parça

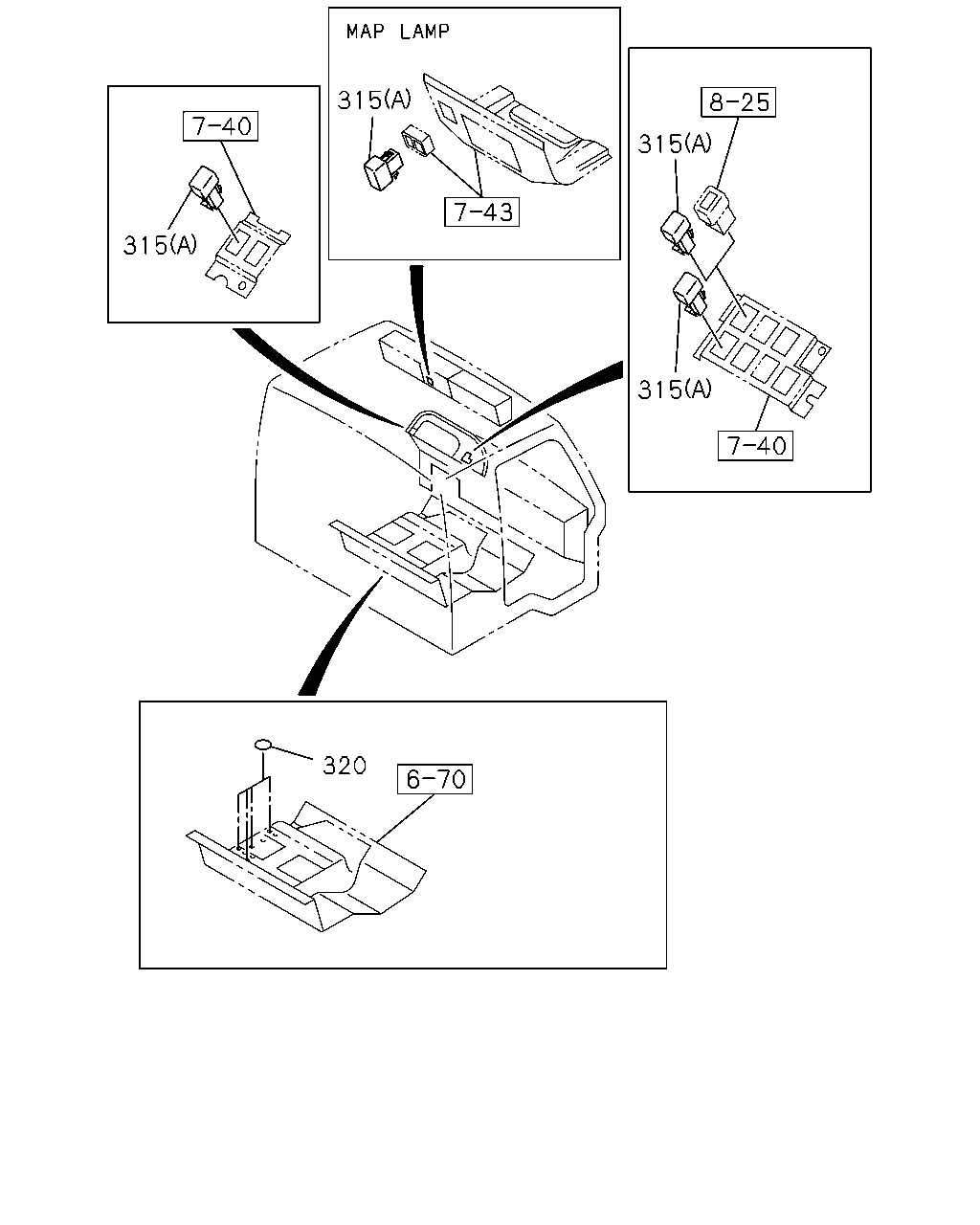

çizim 26494
315 315 315 315 320
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0612-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0612-
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0612-
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0612-
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 0612-

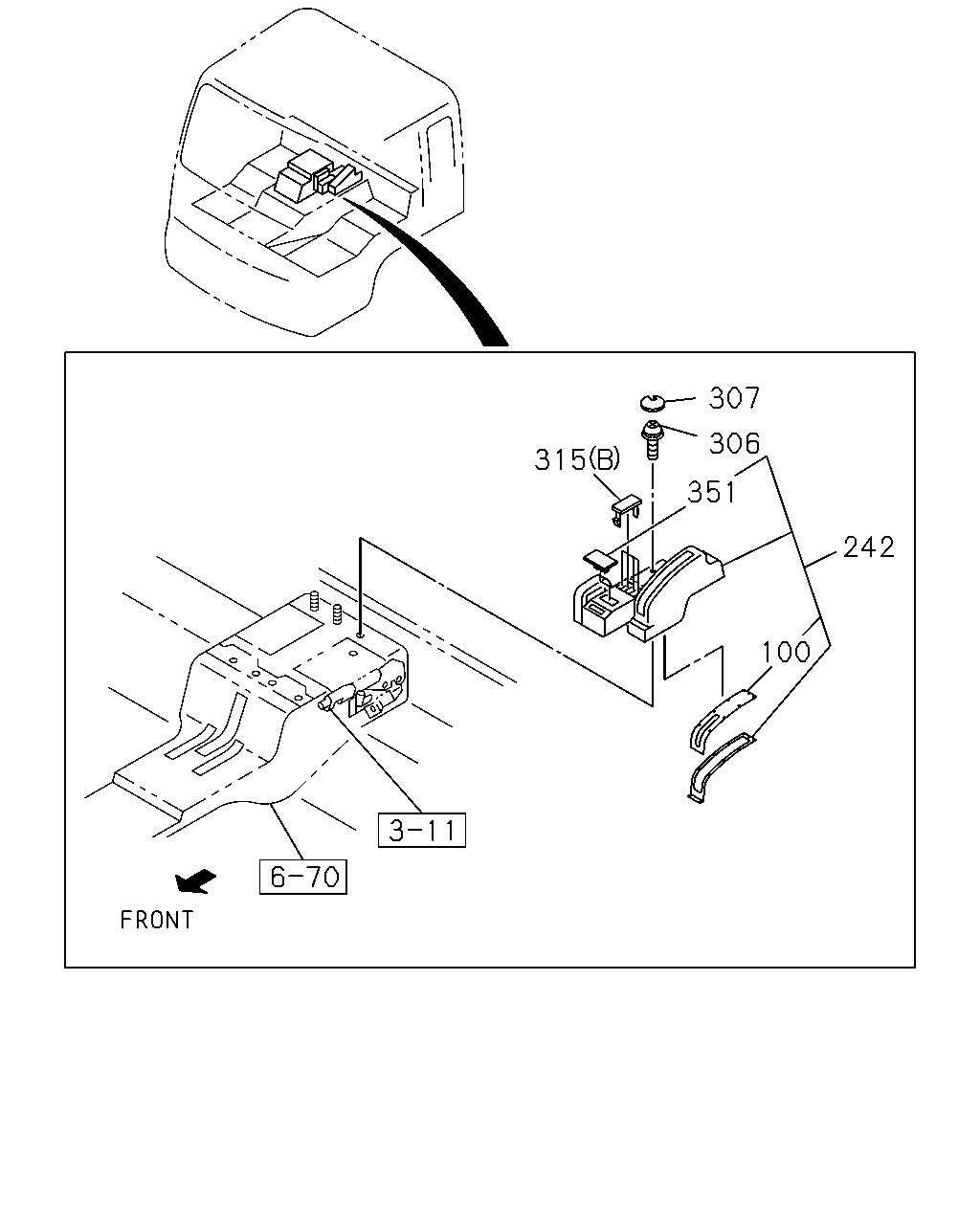

çizim 90313
307 306 315 351 242 100
BalonParca AdiParca NoAdetTipApplied Date
100 RUBBER; CONSOLE,FRT 8-97535-034-0 01 1 0612-
242 TRAY ASM; CTR CONSOLE 8-97535-029-0 01 1 0612-
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0612-
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 02 1 0612-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0612-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0612-
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0612-
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0612-
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 0612-
