Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶

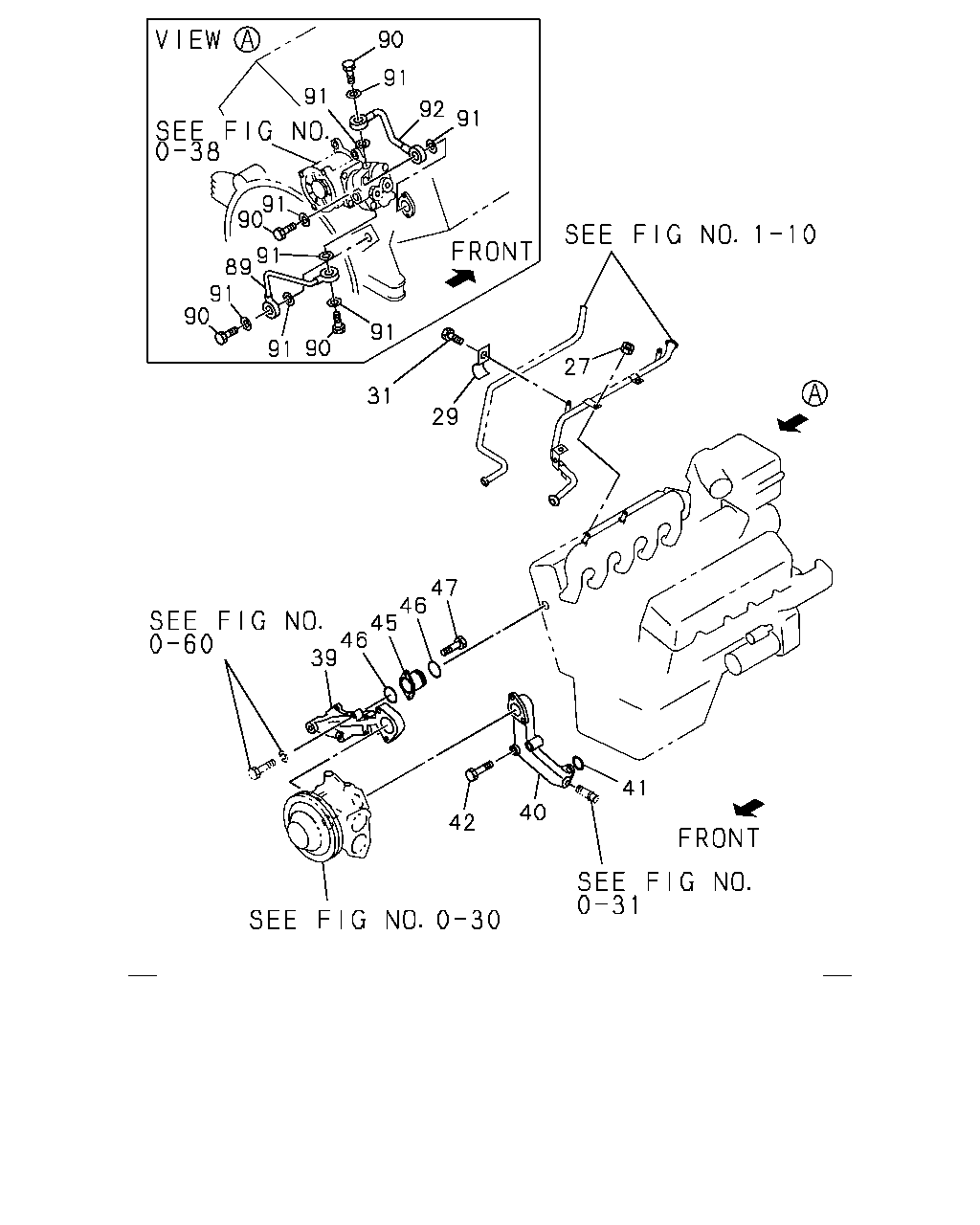

0-32B - WATER PIPING; ENGINE
▶
0-32B — WATER PIPING; ENGINE
(#2752) — 21 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
90
91
91
92
91
91
90
89
91
90
91
90
91
29
31
27
47
46
45
46
39
42
40
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
9002-
●
●
29
CLIP; PIPE
ID=9.7 L=20
1-09700-878-1
04
1
9002-
●
●
31
BOLT; CLIP
M6X12
0-28020-612-0
04
1
9002-9005
●
31
BOLT; CLIP
M6X12 FLANGE
0-28080-612-0
04
1
9006-
●
●
39
DUCT ASM; WATER,PUMP OUT
1-13711-544-1
01
1
9002-
●
●
40
DUCT; WATER
1-13711-382-1
01
1
9002-
●
●
41
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
01
1
9002-
●
●
42
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
0-28181-030-0
04
1
9002-
●
●
45
DUCT; WATER,TO OIL COOLER
1-13711-334-1
01
1
9002-
●
45
DUCT; WATER,TO OIL COOLER
1-13711-381-2
01
1
9307-
●
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9002-
●
●
47
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
0-28081-025-0
02
1
9002-
●
●
89
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-379-0
01
1
9002-
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-379-0
01
1
9002-
●
89
PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-223-0
01
1
9002-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9002-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9002-9306
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9307-
●
●
92
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-376-0
01
1
9002-
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-376-0
01
1
9002-
●
92
PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-345-0
01
1
9002-
●
