Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

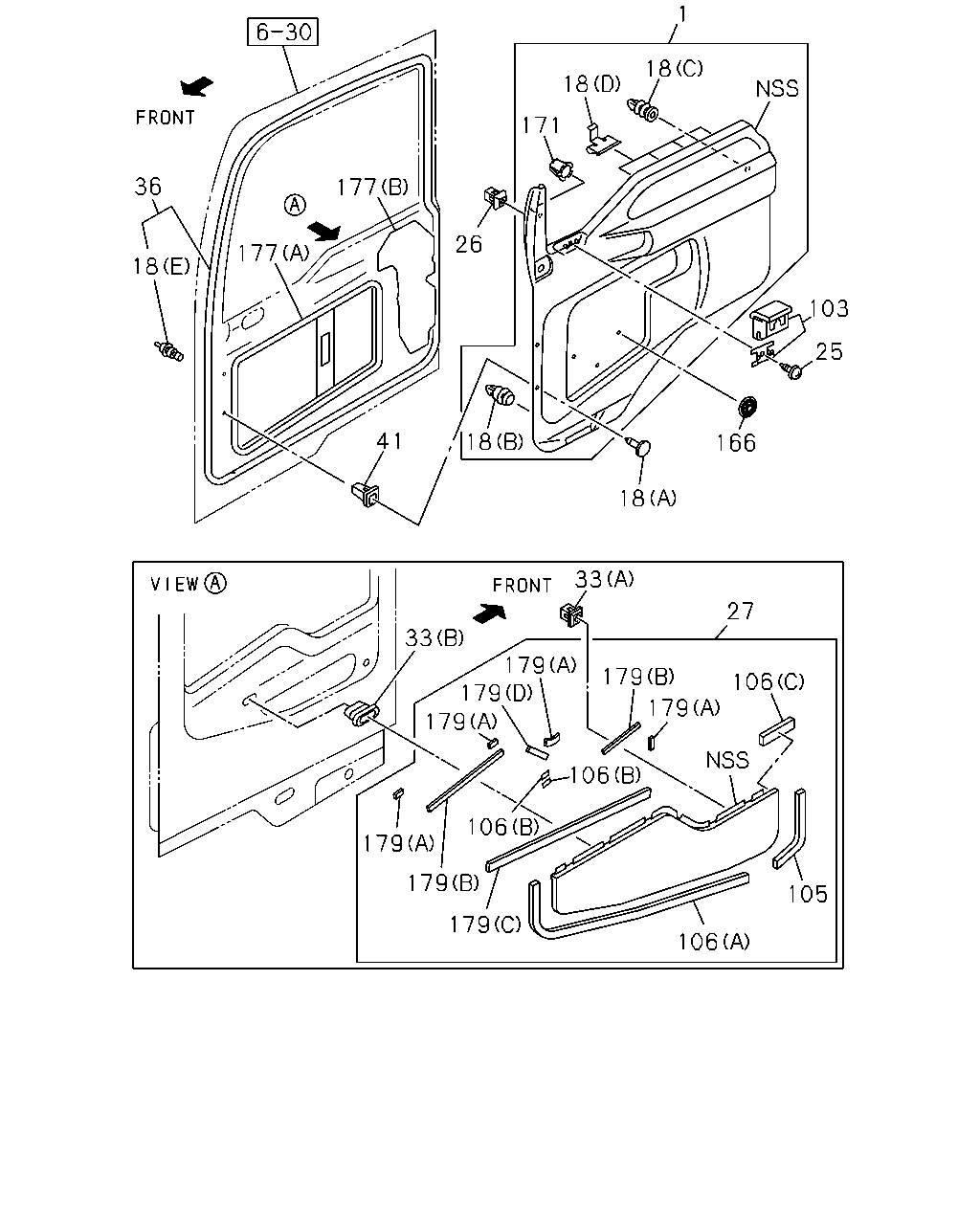

6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#27514) — 38 parça
1
18
18
171
26
18
41
18
166
25
103
177
177
18
36
33
33
27
106
179
179
179
179
179
179
179
179
106
106
106
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
1-73337-509-0
01
1
0612-0702
1
PAD; TRIM,FRT DOOR
1-73337-513-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
1-73338-539-0
01
1
0612-0702
1
PAD; TRIM,FRT DOOR
1-73337-516-1
01
1
0703-
18
CLIP; DOOR PAD
(D)
1-09987-262-0
10
1
0612-
18
CLIP; DOOR PAD
(A) D4.2X19.9 GRAY
1-09987-272-0
04
1
0612-
18
CLIP; DOOR PAD
(C) OD=7.9 BLACK
8-94279-974-1
02
1
0612-
18
CLIP; DOOR PAD
(B) OD=8.5 GRAY
8-97893-482-0
10
1
0612-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0612-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0612-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING
8-94279-123-0
02
1
0612-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0612-
27
PANEL; ORNAMENT,DOOR
1-76218-096-7
01
1
0612-
27
PANEL; ORNAMENT,DOOR
1-76218-125-7
01
1
0612-1210
27
PANEL; ORNAMENT,DOOR
8-98229-329-0
01
1
1211-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0612-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0612-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0612-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-764-0
01
1
1011-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0612-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-763-0
01
1
1011-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0612-
103
TRAY ASM; ASH,DOOR
1-76458-086-1
01
1
0612-
103
TRAY ASM; ASH,DOOR
1-76458-085-1
01
1
0612-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
02
1
0612-
106
SEAL; DOOR ORNAMENT
(C)
8-98226-642-0
01
1
1211-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
02
1
0612-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0612-
166
PLUG; HOLE
8-97535-108-0
02
1
0612-0701
171
RETAINER; DOOR PAD
1-09987-264-0
02
1
0612-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0612-
177
SEAL; WATER,DOOR
(A)
1-76778-052-2
01
1
0612-
177
SEAL; WATER,DOOR
(A)
1-76778-035-6
01
1
0612-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
08
1
0612-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
02
1
0612-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
02
1
0612-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
04
1
0612-
