4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#27511) — 95 parça

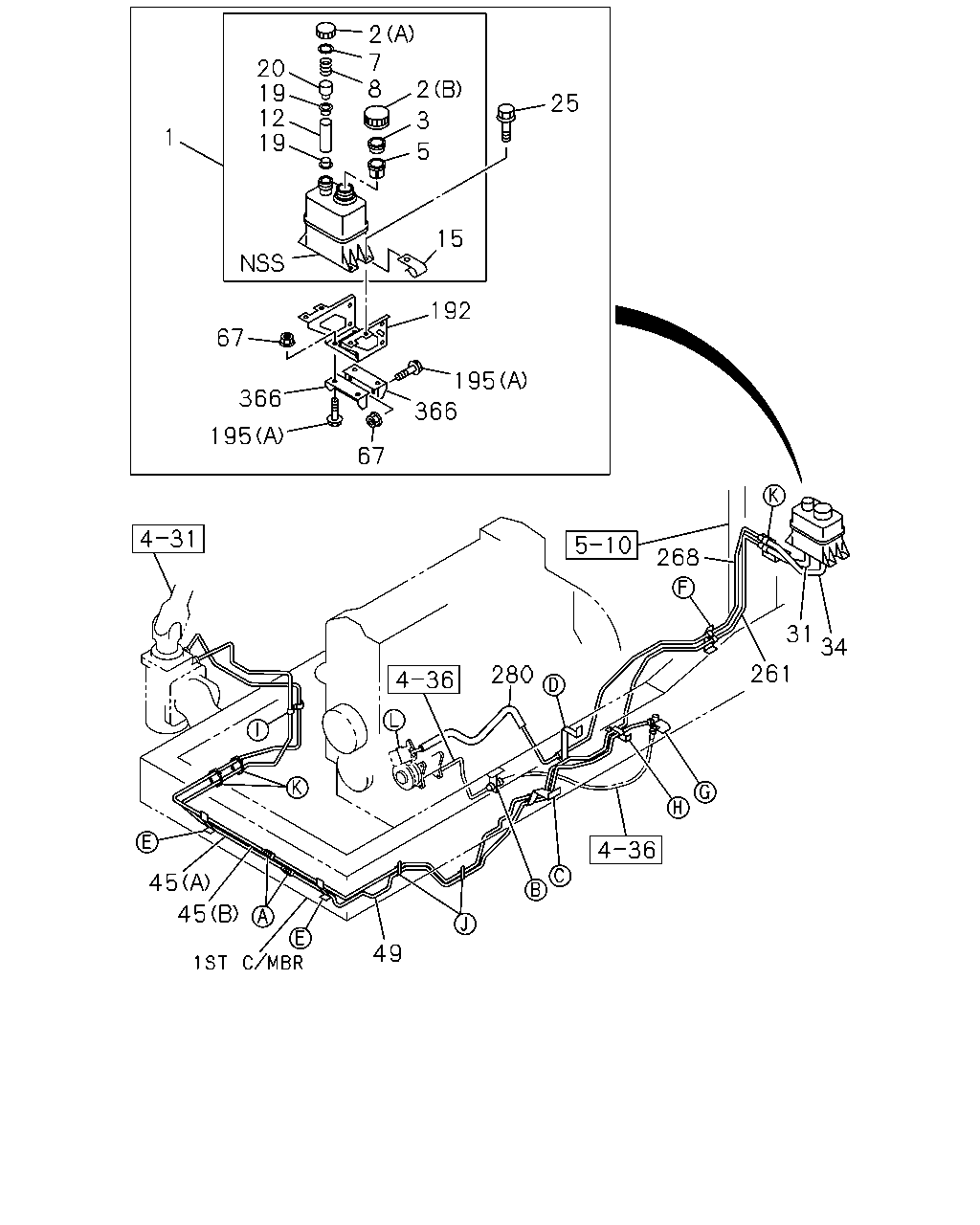

20 1 19 19 12 2 8 5 2 7 25 15 192 195 366 67 195 366 67 45 45 49 280 268 261 31 34 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0610-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0610-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0610-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0610-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0610-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0610-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0610-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0610-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0610-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0610-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0610-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0610-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0610-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0610-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0610-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0610-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0610-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0610-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0610-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0610-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0610-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0610-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0610-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0610-	●	●

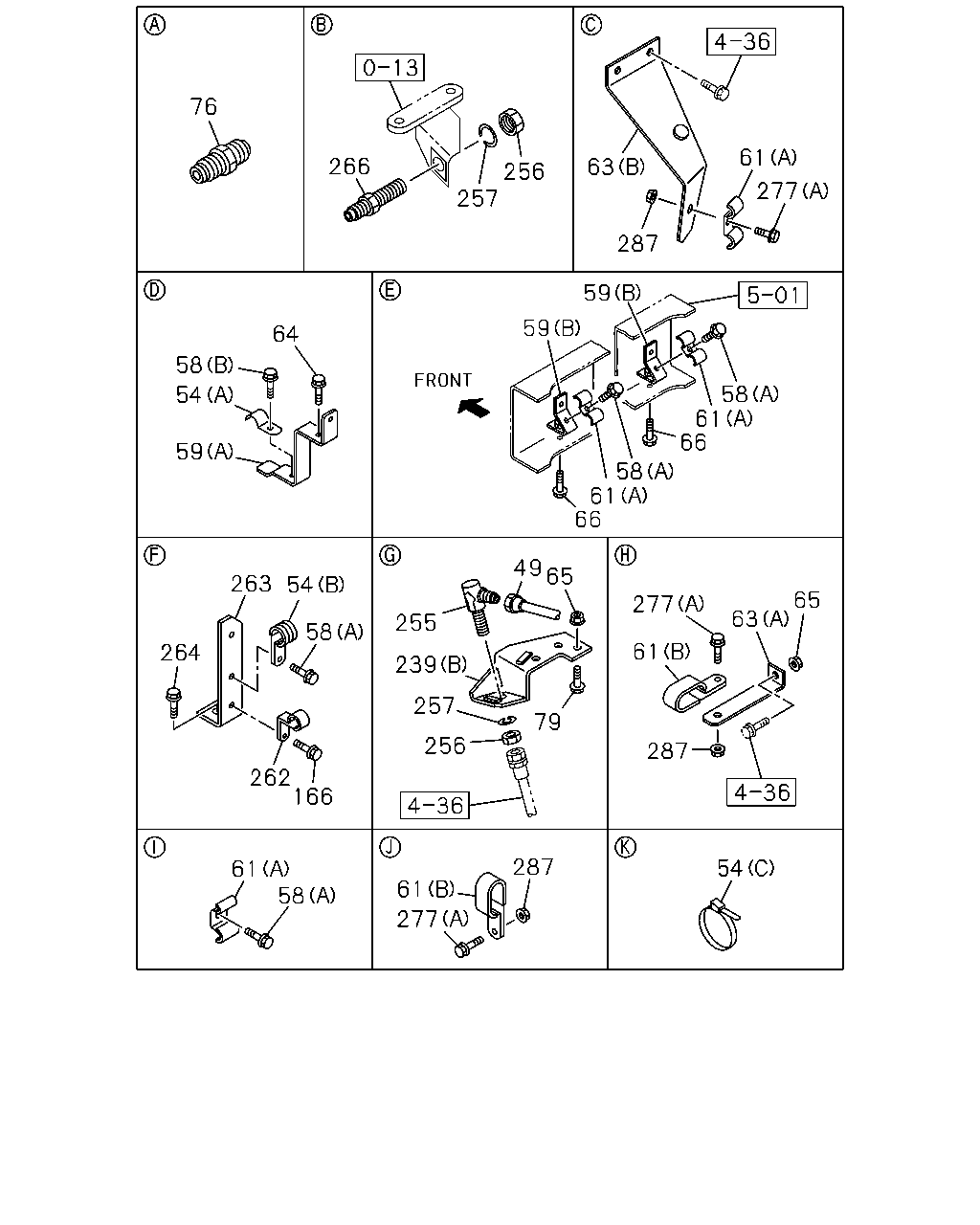

76 266 257 256 63 61 287 59 59 61 66 58 66 61 58 277 64 58 59 54 263 58 262 166 264 54 255 239 257 49 65 79 256 61 58 61 277 287 54 287 61 277 65 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0610-	●	●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0610-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0610-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-0610	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-0610	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-0610	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	0610-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0610-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0610-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0610-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0610-	●	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0610-	●	●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0610-	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0610-0610	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0611-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0610-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0610-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0610-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0610-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0610-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0610-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0610-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0610-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0610-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0610-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0610-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0610-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0610-	●	●

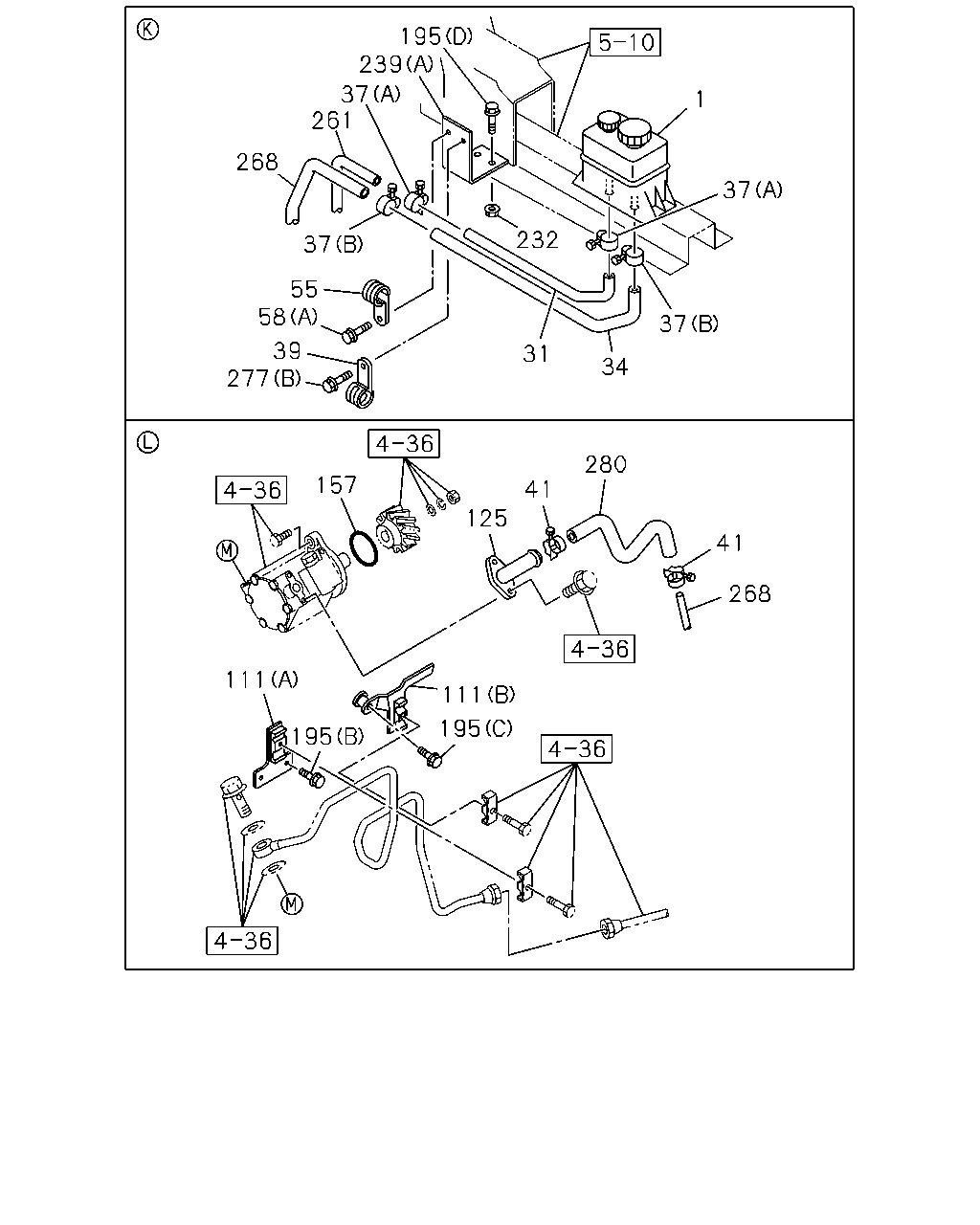

195 239 37 261 1 268 37 232 37 55 58 37 39 277 31 34 280 157 41 125 41 268 111 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0610-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0610-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0610-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0610-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0610-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0610-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0610-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0610-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-0610	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-0610	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-0610	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0610-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0610-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0610-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0610-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0610-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0610-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0610-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0610-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0610-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0610-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0610-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0610-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0610-	●	●
