4-31 — STEERING COLUMN AND SHAFT (#27509) — 191 parça

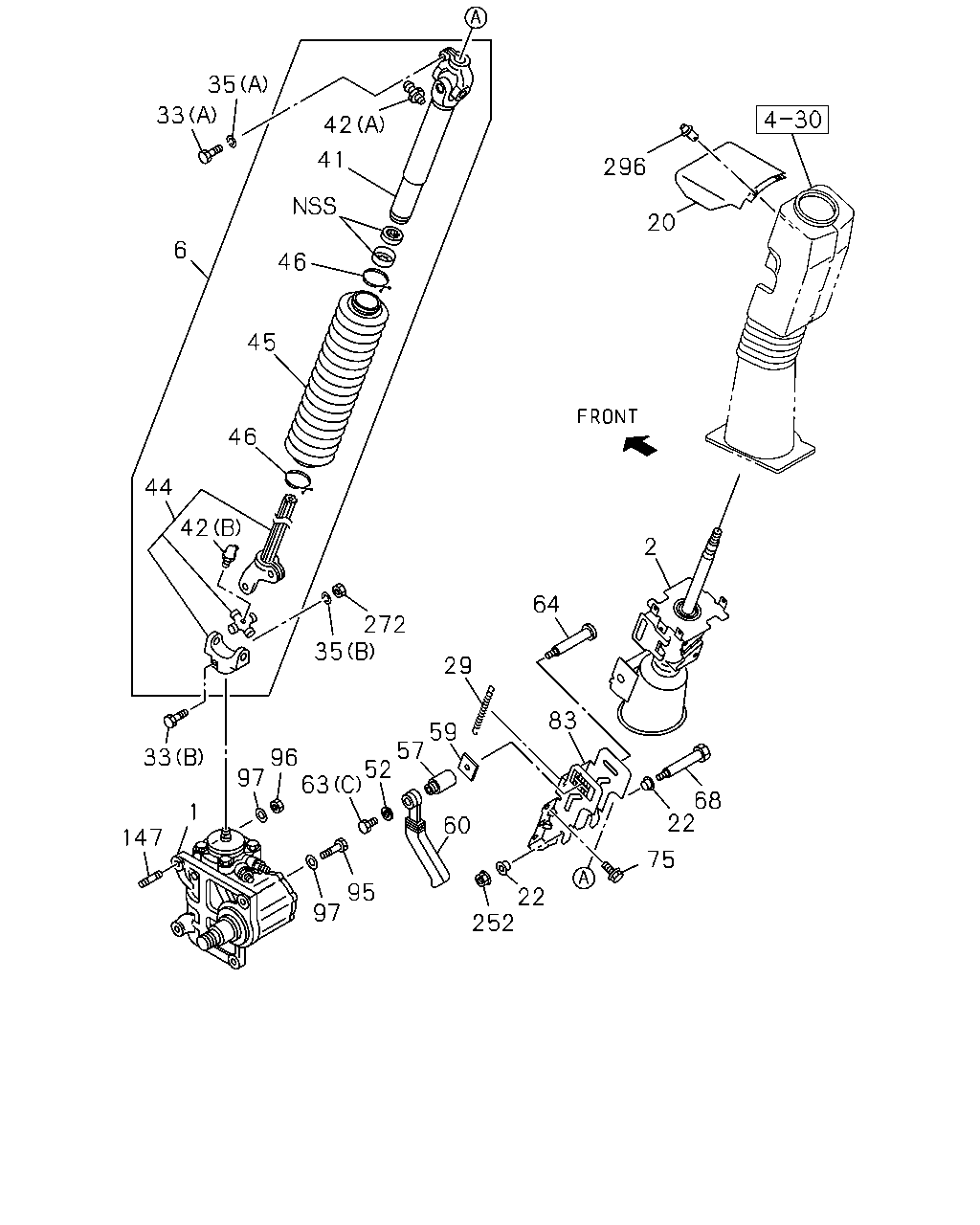

35 33 42 41 296 20 6 46 45 46 44 42 2 64 272 35 29 83 59 57 96 52 97 63 33 68 22 1 60 147 75 95 97 22 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-904-0	01	1	0610-0703	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-942-2	01	1	0704-	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-783-0	01	1	0610-0711	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-823-1	01	1	0712-	●	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-1	01	1	0610-	●	●
6	SHAFT; STRG LWR AIR BAG(TFQ)	1-44135-385-0	01	1	0610-0711	●	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0610-	●	●
22	BUSHING; STRG COLUMN AIR BAG(TFQ)	1-44227-165-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	0712-	●	●
29	SPRING; COLUMN AIR BAG(TFQ)	1-44227-136-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0610-0707	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0708-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	0712-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (A)	1-44139-142-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (B) ID=10.2	0-91510-810-0	01	1	0610-	●	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (A)	1-44139-154-0	01	1	0712-	●	●
41	YOKE; SLEEVE,STRG AIR BAG(TFQ)	1-44135-359-0	01	1	0610-0711	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	0-90301-406-0	01	1	0610-0711	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0610-0711	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (A)	1-44135-375-0	01	1	0610-0709	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (B)	1-44135-376-0	01	1	0610-0709	●	●
44	SHAFT; SPLINE,STRG AIR BAG(TFQ)	1-44135-316-0	01	1	0610-0711	●	●
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	0610-0711	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0610-0709	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-163-0	01	1	0710-0711	●	●
45	BOOT; STRG SHAFT	1-44139-163-0	01	1	0712-1409	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	1410-	●	●
46	CLIP; BOOT AIR BAG(TFQ)	8-98019-551-0	02	1	0610-0711	●	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	0610-0711	●	●
46	CLIP; BOOT	1-44139-156-0	02	1	0712-	●	●
52	WASHER; PL,ADJ LEVER AIR BAG(TFQ)	1-44227-154-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	0712-	●	●
59	COLLAR; DIST,ADJ BOLT AIR BAG(TFQ)	1-44227-127-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-160-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) (C)	1-44227-126-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	0712-	●	●
64	BOLT; ADJ,PROTECTOR AIR BAG(TFQ)	1-44227-156-0	01	1	0610-0711	●	●
68	PIN; TILT CENTER AIR BAG(TFQ)	8-97163-920-1	01	1	0610-0711	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
83	BRACKET; TILT STRG UPR AIR BAG(TFQ)	1-44227-166-0	01	1	0610-0711	●	●
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0610-0805	●	●
95	BOLT; STRG UNIT M18X60	8-98036-497-0	03	1	0806-	●	●
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0610-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0610-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0610-	●	●
252	NUT; TILT CENTER BOLT AIR BAG(TFQ)	1-44227-135-0	01	1	0610-0711	●	●
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0610-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0610-	●	●

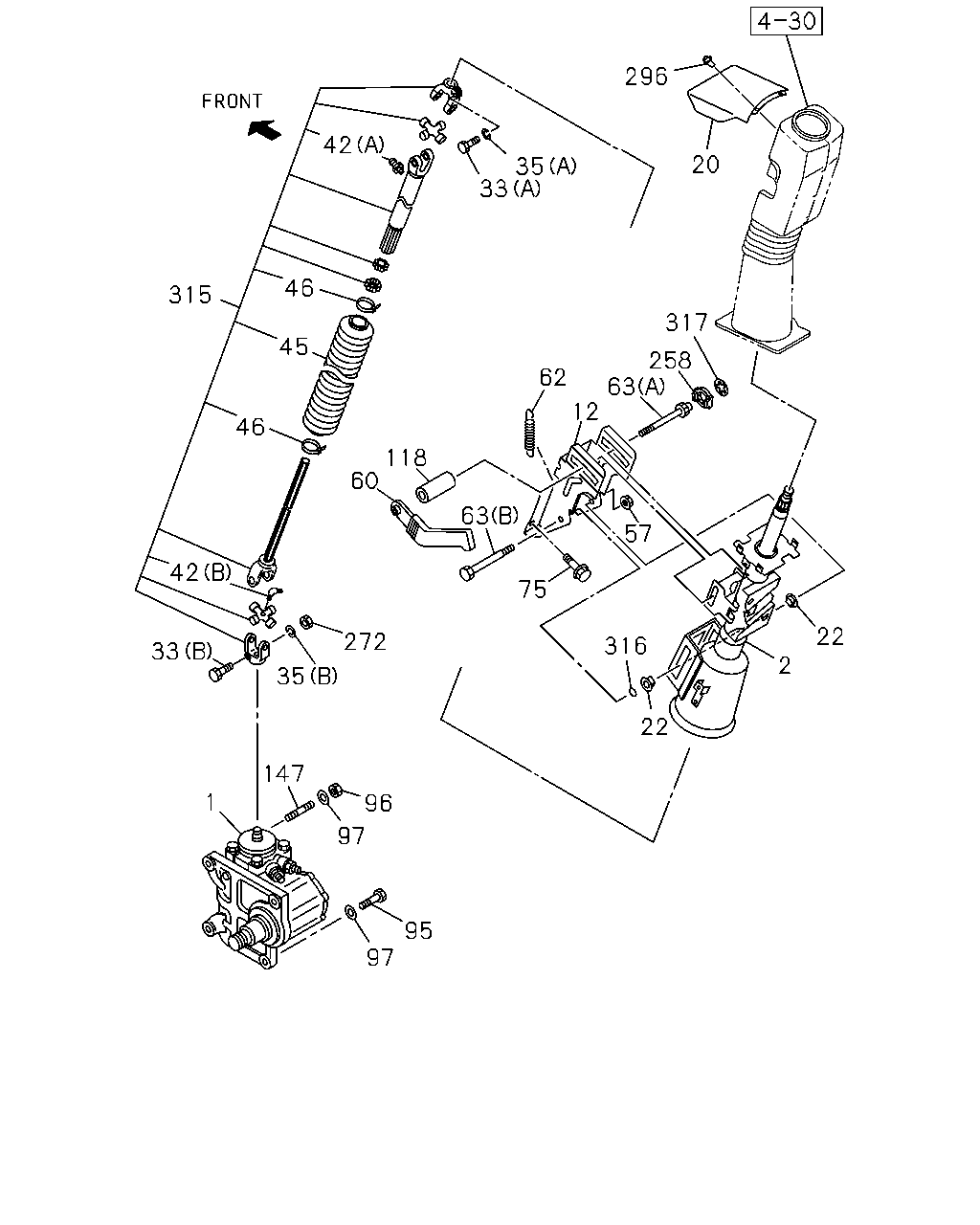

296 42 20 35 33 46 315 317 45 258 63 12 62 46 118 60 63 57 42 75 22 272 316 33 2 35 22 147 1 96 97 95 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-904-0	01	1	0610-0703	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-942-2	01	1	0704-	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-783-0	01	1	0610-0711	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-823-1	01	1	0712-	●	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-1	01	1	0610-	●	●
12	BRACKET; LWR,STRG COLUMN AIR BAG(TFQ)	1-44227-167-0	01	1	0807-0811	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-167-0	01	1	0812-	●	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0610-0711	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	0712-0806	●	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0807-0811	●	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0610-	●	●
22	BUSHING; STRG COLUMN AIR BAG(TFQ)	1-44227-165-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	0712-	●	●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0610-0707	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0708-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	0712-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (A)	1-44139-142-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (B) ID=10.2	0-91510-810-0	01	1	0610-	●	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (A)	1-44139-154-0	01	1	0712-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	0-90301-406-0	01	1	0610-0711	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0610-0711	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (A)	1-44135-375-0	01	1	0610-0709	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (B)	1-44135-376-0	01	1	0610-0709	●	●
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	0610-0711	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0610-0709	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-163-0	01	1	0710-0711	●	●
45	BOOT; STRG SHAFT	1-44139-163-0	01	1	0712-1409	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	1410-	●	●
46	CLIP; BOOT AIR BAG(TFQ)	8-98019-551-0	02	1	0610-0711	●	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	0610-0711	●	●
46	CLIP; BOOT	1-44139-156-0	02	1	0712-	●	●
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	0712-	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-160-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	0712-	●	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	01	1	0610-0711	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) (C)	1-44227-126-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	0712-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0610-0805	●	●
95	BOLT; STRG UNIT M18X60	8-98036-497-0	03	1	0806-	●	●
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0610-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0610-	●	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-163-0	01	1	0610-0711	●	●
118	NUT; LEVER,TILT BOLT	1-44227-163-0	01	1	0712-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0610-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	0610-0711	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	0712-	●	●
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0610-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0610-	●	●
315	JOINT; SPLINE AIR BAG(TFQ)	1-44135-388-0	01	1	0712-1409	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-345-1	01	1	0610-0709	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-392-0	01	1	0710-1409	●	●
315	JOINT; SPLINE	1-44135-345-2	01	1	1410-	●	●
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	0610-0711	●	●
316	RING	1-44227-152-0	01	1	0712-	●	●
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	0610-0711	●	●
317	NUT; PUSH	1-44227-148-0	01	1	0712-	●	●

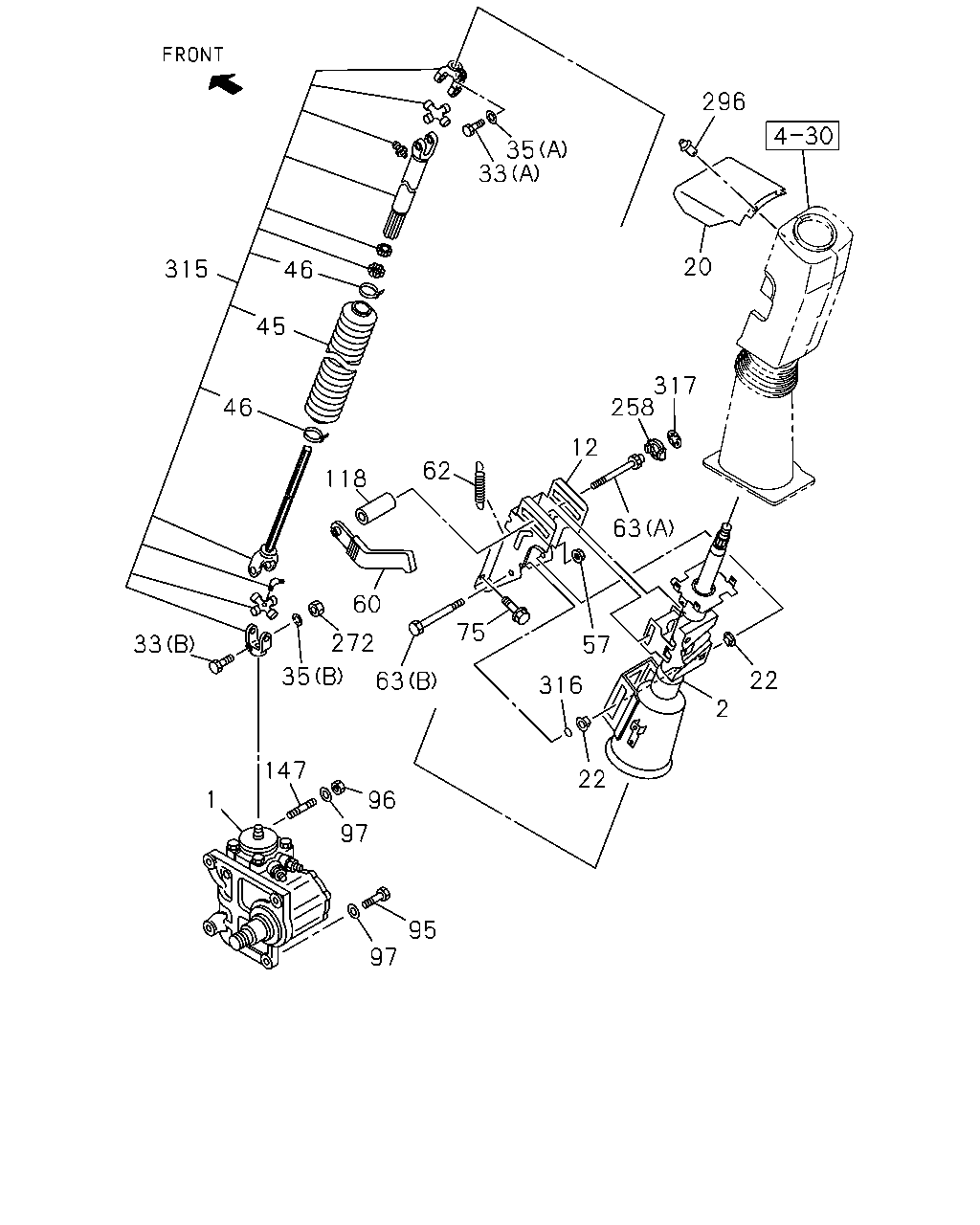

296 35 33 20 315 46 45 317 258 46 12 62 118 63 60 75 272 33 57 35 22 63 316 2 147 22 1 96 97 95 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-904-0	01	1	0610-0703	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-942-2	01	1	0704-	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-783-0	01	1	0610-0711	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-823-1	01	1	0712-	●	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-1	01	1	0610-	●	●
12	BRACKET; LWR,STRG COLUMN AIR BAG(TFQ)	1-44227-167-0	01	1	0807-0811	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-167-0	01	1	0812-	●	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0610-0711	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	0712-0806	●	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0807-0811	●	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0610-	●	●
22	BUSHING; STRG COLUMN AIR BAG(TFQ)	1-44227-165-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0610-0711	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	0712-	●	●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0610-0707	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0708-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0610-0711	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	0712-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (A)	1-44139-142-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (B) ID=10.2	0-91510-810-0	01	1	0610-	●	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0610-0711	●	●
35	WASHER; LK,STRG SHAFT (A)	1-44139-154-0	01	1	0712-	●	●
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	0610-0711	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0610-0709	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-163-0	01	1	0710-0711	●	●
45	BOOT; STRG SHAFT	1-44139-163-0	01	1	0712-1409	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	1410-	●	●
46	CLIP; BOOT AIR BAG(TFQ)	8-98019-551-0	02	1	0610-0711	●	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	0610-0711	●	●
46	CLIP; BOOT	1-44139-156-0	02	1	0712-	●	●
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0610-0711	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	0712-	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-160-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0610-0711	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	0712-	●	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	01	1	0610-0711	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) (C)	1-44227-126-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	0712-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0610-0711	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	0712-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0610-0805	●	●
95	BOLT; STRG UNIT M18X60	8-98036-497-0	03	1	0806-	●	●
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0610-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0610-	●	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-163-0	01	1	0610-0711	●	●
118	NUT; LEVER,TILT BOLT	1-44227-163-0	01	1	0712-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0610-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	0610-0711	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	0712-	●	●
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0610-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0610-	●	●
315	JOINT; SPLINE AIR BAG(TFQ)	1-44135-388-0	01	1	0712-1409	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-345-1	01	1	0610-0709	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-392-0	01	1	0710-1409	●	●
315	JOINT; SPLINE	1-44135-345-2	01	1	1410-	●	●
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	0610-0711	●	●
316	RING	1-44227-152-0	01	1	0712-	●	●
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	0610-0711	●	●
317	NUT; PUSH	1-44227-148-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
