Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#27502) — 409 parça

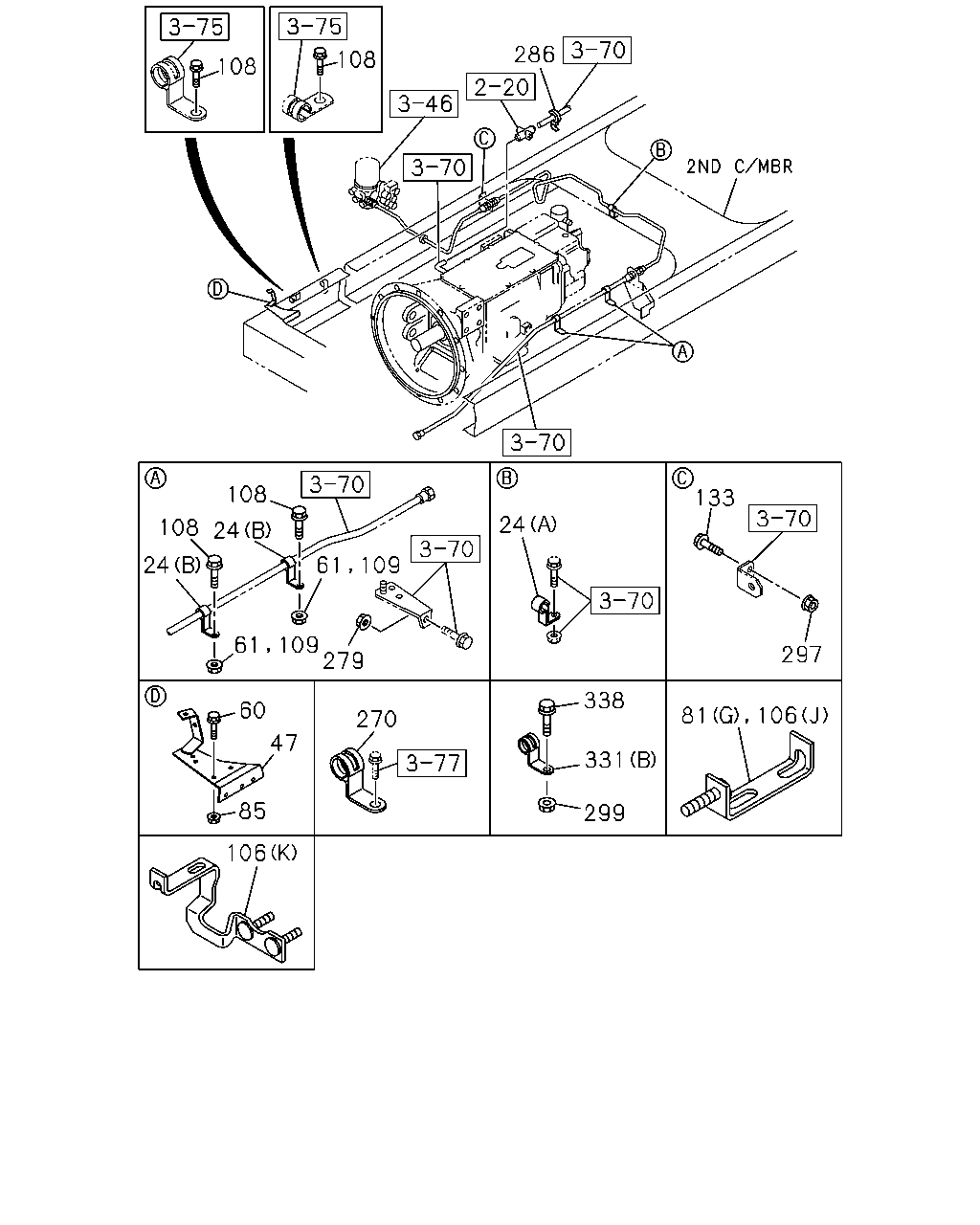

106 47 60 270 85 331 338 299 81 106 297 133 24 109 61 279 109 61 108 24 108 24 286 108 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0610-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-	●	●
47	BRACKET; PIPE CLIP	1-47471-389-0	01	1	0610-	●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
81	BRACKET; CLIP WHEEL BASE 4500MM(45W) (G)	8-98061-758-0	01	1	0610-	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0610-	●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0610-	●	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0610-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0610-	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	0610-	●	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	0610-	●	●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-0610	●
81	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-47471-274-0	01	1	0610-0610		●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-	●
81	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47471-274-0	01	1	0610-		●
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W) (J)	8-98061-758-0	01	1	0610-1504	●
106	BRACKET; TUBE CLIP (K)	8-98302-600-0	01	1	1505-	●	●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (H)	8-97615-493-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	0610-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (H)	8-98043-312-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0610-		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-0610	●
106	BRACKET; TUBE CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-47471-274-0	01	1	0610-0610		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-1504	●
106	BRACKET; TUBE CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47471-274-0	01	1	0610-1504		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0610-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0610-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-		●
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	02	1	0610-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0610-1504	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1505-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0610-1504	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1505-	●	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) ID=15 & 7	1-09709-311-0	01	1	0610-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0610-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	06	1	0610-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	08	1	0610-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	0610-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-		●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	14	1	0610-		●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	15	1	0610-		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0610-	●
331	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0610-	●	●
331	CLIP; NYLON TUBE (B) ID=13 H=75 L=25	1-09700-601-0	02	1	0610-		●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0610-		●

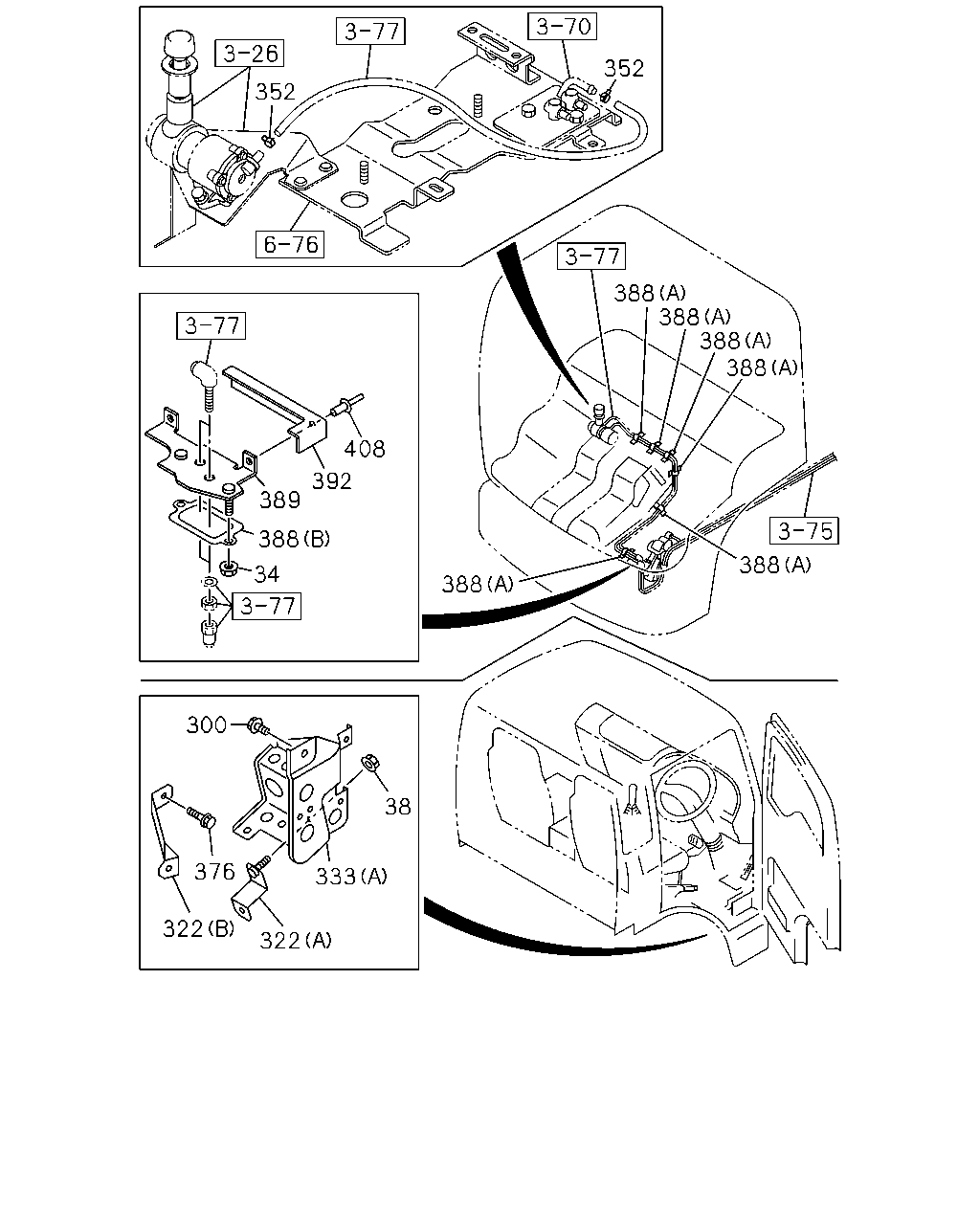

352 352 388 388 388 388 408 392 389 388 388 34 388 300 38 376 333 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0610-	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-0702	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0610-0904	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●
322	BRACKET; CLIP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98152-740-1	01	1	0908-	●	●
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0610-0702	●	●
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	0610-	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0610-0702	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0610-	●	●
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
376	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0610-	●
376	BOLT; BRKT EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0610-		●
388	SEAL (B)	1-47478-174-1	01	1	0610-	●	●
388	SEAL (A) 180X40	1-72498-019-1	07	1	0610-	●	●
389	BRACKET; UNION	1-47479-166-1	01	1	0610-	●	●
392	COVER; BRKT	1-79907-090-0	01	1	0610-	●	●
408	FASTENER; COVER D8X13.5	1-09987-248-1	02	1	0610-	●	●

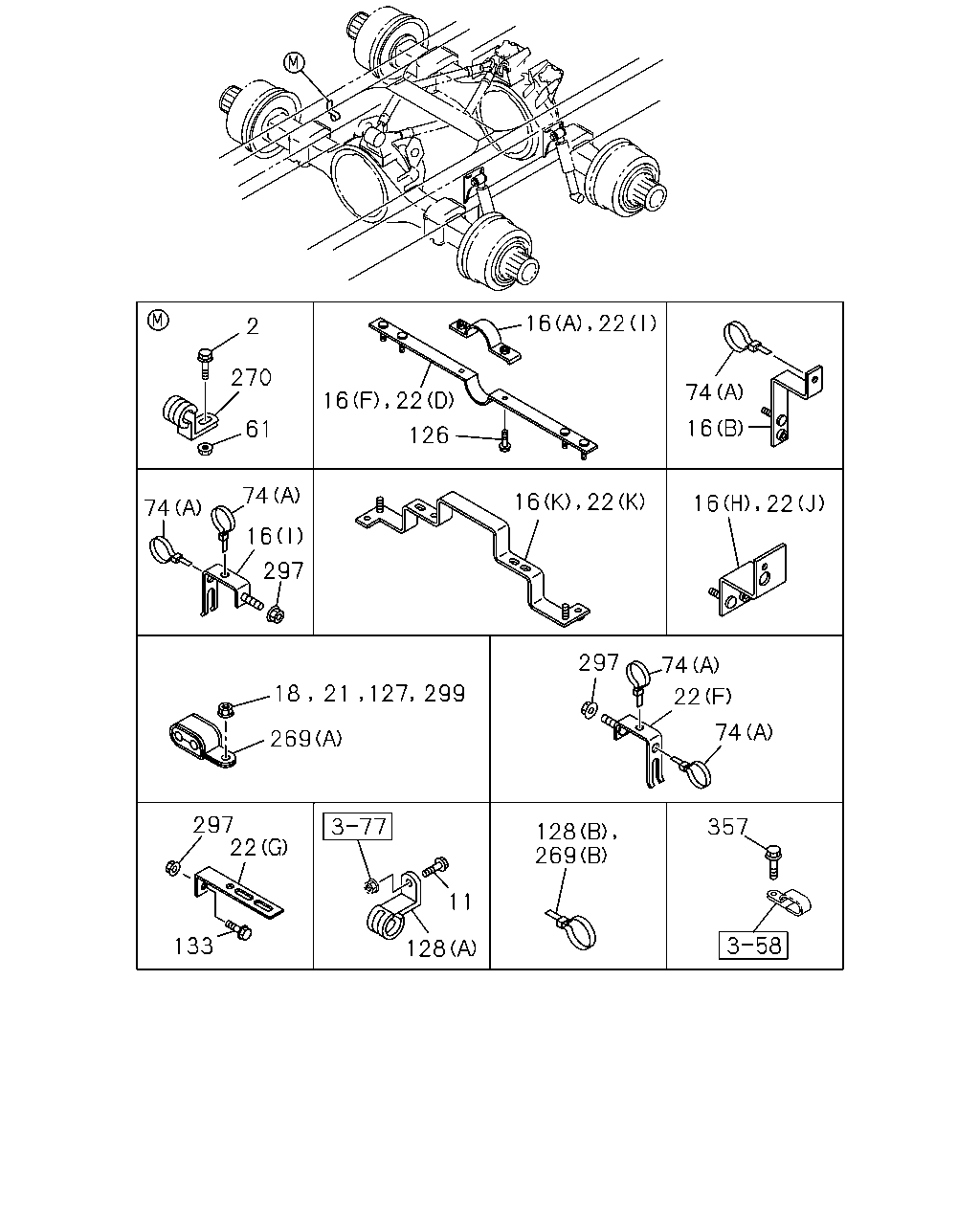

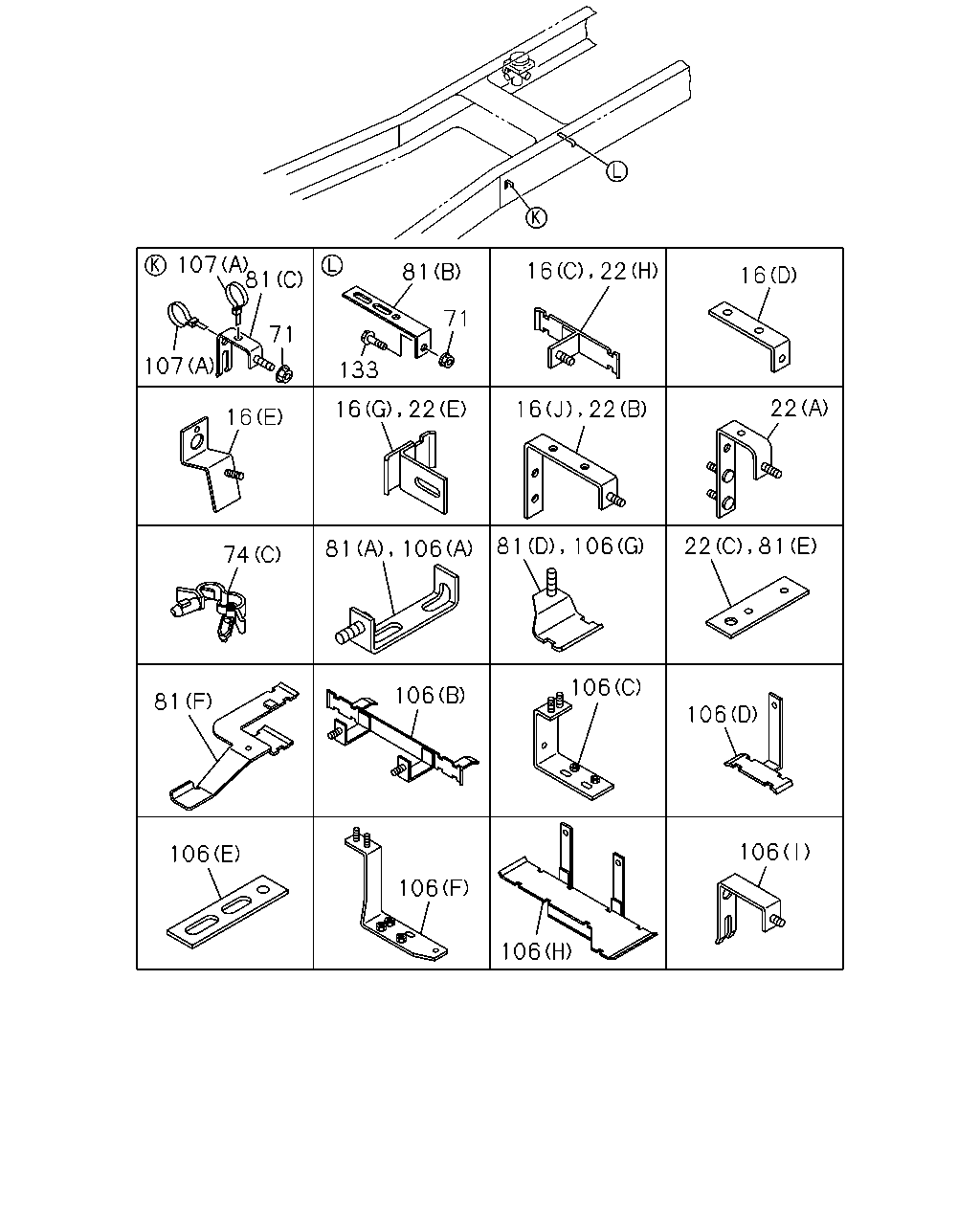

107 81 81 16 71 71 107 133 22 16 22 16 81 106 81 106 74 106 106 81 106 106 106 106 106 16 22 16 22 22 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0912-		●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0610-0907	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0908-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	04	1	0908-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	0610-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0610-0907	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) (I)	1-47479-381-2	05	1	0610-0907		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0908-0911	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0908-0911		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	06	1	0912-	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (K)	1-47479-898-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	0610-	●
16	BRACKET; PIPE CLIP EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (H)	1-47479-722-1	01	1	0610-		●
16	BRACKET; PIPE CLIP LOAD SENSING PROPORTIONING VALVE<JR7> (E)	1-47471-081-0	01	1	0610-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	0610-		●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	0610-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	07	1	0610-		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0610-	●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	0610-	●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	06	1	0610-	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0610-0911	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0610-0911	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0912-	●	●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	0610-	●	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	0610-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0610-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0610-	●	●
22	BRACKET; CLIP (K)	1-47479-898-0	01	1	0610-	●	●
22	BRACKET; CLIP WHEEL BASE 5300MM(53W) (F)	1-47479-381-2	07	1	0610-		●
22	BRACKET; CLIP (G) L=100 H=30	1-47477-645-2	01	1	0610-		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	0610-		●
22	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	08	1	0610-		●
22	BRACKET; CLIP (C) L=130	1-47478-959-0	02	1	0610-		●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0610-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0610-0610	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0610-	●	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (A) L=350	1-09707-183-0	01	1	0610-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	13	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	13	1	0610-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0610-	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-	●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	18	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0610-		●
81	BRACKET; CLIP WHEEL BASE 4500MM(45W) (G)	8-98061-758-0	01	1	0610-	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0610-	●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0610-	●	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0610-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0610-	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	0610-	●	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	0610-	●	●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-0610	●
81	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-47471-274-0	01	1	0610-0610		●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-	●
81	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47471-274-0	01	1	0610-		●
106	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W) (J)	8-98061-758-0	01	1	0610-1504	●
106	BRACKET; TUBE CLIP (K)	8-98302-600-0	01	1	1505-	●	●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (H)	8-97615-493-0	01	1	0610-	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	0610-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (H)	8-98043-312-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	0610-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0610-		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-0610	●
106	BRACKET; TUBE CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-47471-274-0	01	1	0610-0610		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (A)	1-47471-274-0	01	1	0610-1504	●
106	BRACKET; TUBE CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47471-274-0	01	1	0610-1504		●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (C) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0610-	●	●
107	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0610-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-		●

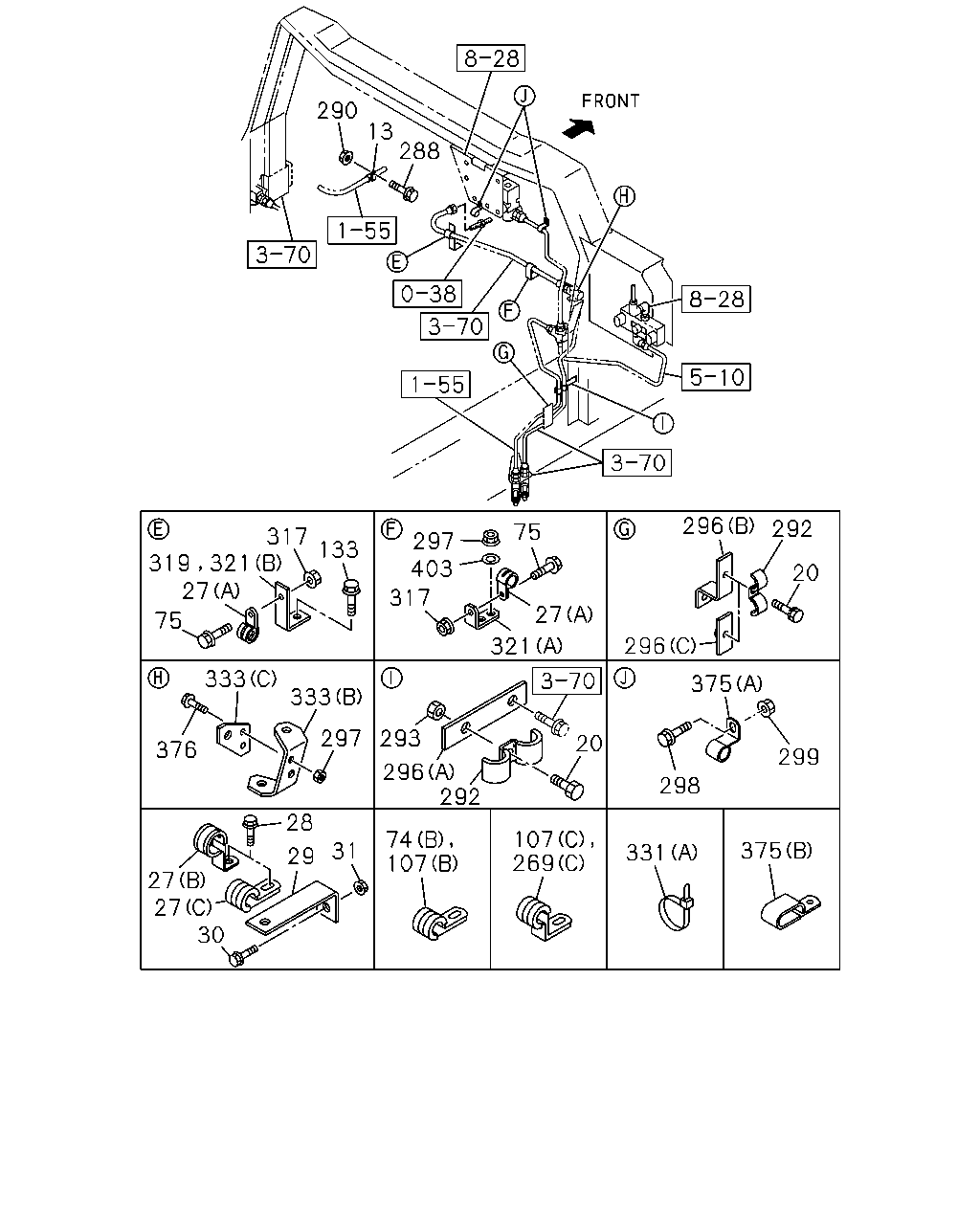

290 288 319 317 133 321 27 75 297 403 317 27 321 75 296 292 375 299 298 331 375 107 269 74 107 28 29 27 27 30 31 20 293 296 292 333 333 376 297 13 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0610-0610	●	●
20	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0611-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-0610	●	●
20	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0610-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0610-		●
27	CLIP; FLEX HOSE (C) ID=26 L=27	1-09701-006-0	01	1	0610-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0610-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0610-	●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	0610-		●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-	●	●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (A) L=350	1-09707-183-0	01	1	0610-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	13	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	13	1	0610-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0610-	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-	●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	18	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0610-		●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-		●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (C) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0610-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0610-	●	●
107	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0610-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-		●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	0610-	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0610-0610	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-208-0	01	1	0610-0610	●	●
292	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0611-	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0611-		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0610-0610	●	●
292	CLIP; AIR PIPE MIXER TRUCK<RA2> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0611-	●
293	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0611-	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0611-		●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-0610	●	●
293	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0611-	●
296	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0610-0610	●
296	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (C) L=50	1-47475-299-2	01	1	0611-	●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0610-	●	●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0610-		●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0610-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	06	1	0610-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	08	1	0610-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	0610-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-		●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	14	1	0610-		●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	15	1	0610-		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	0610-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0610-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0610-	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0610-		●
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	0610-	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0610-	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0610-		●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0610-	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0610-		●
331	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0610-	●	●
331	CLIP; NYLON TUBE (B) ID=13 H=75 L=25	1-09700-601-0	02	1	0610-		●
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	0610-	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0610-0702	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-	●	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	0610-	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0610-	●
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
376	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0610-	●
376	BOLT; BRKT EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0610-		●
403	WASHER; PL SMOOTHER-G(C1W) D=12	0-91614-612-0	01	1	1212-		●

16 22 2 270 74 16 61 126 74 74 16 297 27 74 18 21 22 74 269 297 22 357 128 269 11 133 128 16 22 16 22 16 22 127 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
11	BOLT; CLIP BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28650-825-0	01	1	0610-		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0912-		●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0610-0907	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0908-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	04	1	0908-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	0610-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0610-0907	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) (I)	1-47479-381-2	05	1	0610-0907		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0908-0911	●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	05	1	0908-0911		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (I)	1-47479-381-2	06	1	0912-	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (K)	1-47479-898-0	01	1	0610-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	0610-	●
16	BRACKET; PIPE CLIP EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (H)	1-47479-722-1	01	1	0610-		●
16	BRACKET; PIPE CLIP LOAD SENSING PROPORTIONING VALVE<JR7> (E)	1-47471-081-0	01	1	0610-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	0610-		●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	0610-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	07	1	0610-		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0610-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0610-	●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	0610-	●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	06	1	0610-	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0610-0911	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0610-0911	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	0912-	●	●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	0610-	●	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	0610-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0610-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0610-	●	●
22	BRACKET; CLIP (K)	1-47479-898-0	01	1	0610-	●	●
22	BRACKET; CLIP WHEEL BASE 5300MM(53W) (F)	1-47479-381-2	07	1	0610-		●
22	BRACKET; CLIP (G) L=100 H=30	1-47477-645-2	01	1	0610-		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	0610-		●
22	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	08	1	0610-		●
22	BRACKET; CLIP (C) L=130	1-47478-959-0	02	1	0610-		●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0610-		●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0610-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0610-		●
27	CLIP; FLEX HOSE (C) ID=26 L=27	1-09701-006-0	01	1	0610-		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (A) L=350	1-09707-183-0	01	1	0610-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	13	1	0610-	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	13	1	0610-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0610-	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-	●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) ID=5-12 L=18	1-09709-287-0	02	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	18	1	0610-		●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0610-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	0610-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0610-		●
127	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	09	1	0908-0911		●
127	NUT; CLIP BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	06	1	0610-	●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	07	1	0610-0911	●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	09	1	0912-	●
127	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	0912-		●
127	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	0610-0907		●
127	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	08	1	0908-0911		●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	07	1	0912-	●
127	NUT; CLIP BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	11	1	0610-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0610-		●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (B) L=350	1-09707-183-0	12	1	0908-		●
128	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (B) L=350	1-09707-183-0	09	1	0610-	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	10	1	0610-0911	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (B) L=350	1-09707-183-0	11	1	0912-	●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (B) L=350	1-09707-183-0	11	1	0912-		●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE<JR7> (A) ID=16 H=25 L=25	1-09701-162-0	01	1	0610-		●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE<JR7> (B) L=350	1-09707-183-0	01	1	0610-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM HSA<SLD> (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0610-		●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (B) L=350	1-09707-183-0	12	1	0610-0907		●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (B) L=350	1-09707-183-0	11	1	0908-0911		●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> (B) L=350	1-09707-183-0	10	1	0912-	●
128	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	14	1	0610-		●
128	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0610-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0610-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-		●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	0610-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	0610-	●	●
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	02	1	0610-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0610-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	06	1	0610-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	08	1	0610-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	0610-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-		●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	14	1	0610-		●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	15	1	0610-		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0610-	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
