Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#27501) — 78 parça

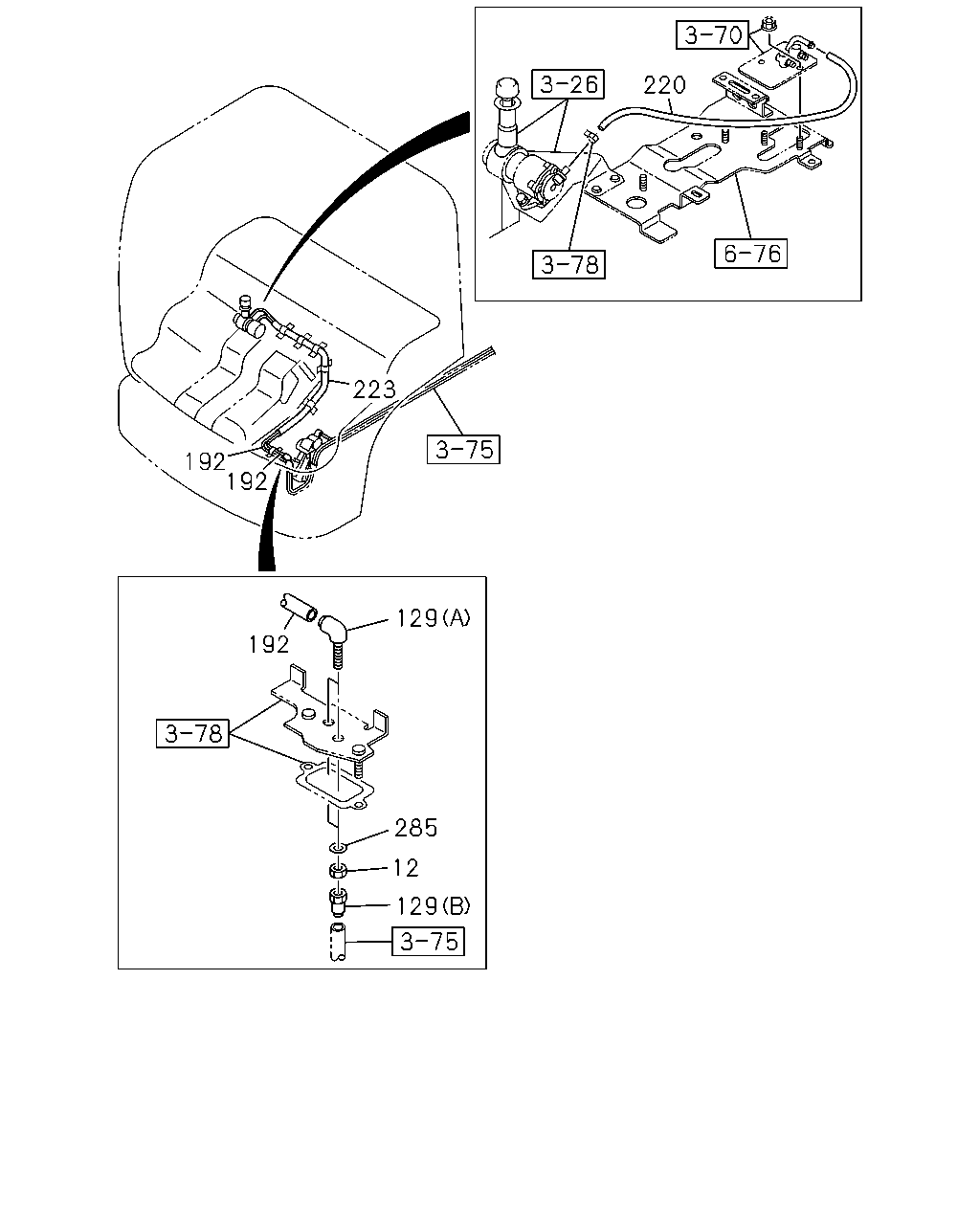

220 223 192 192 129 192 285 12 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; CONNECTOR M20	0-91111-520-0	02	1	0610-	●	●
129	CONNECTOR; NYLON TUBE (C)	1-09654-416-1	02	1	0610-0610	●	●
129	CONNECTOR; NYLON TUBE (C)	8-97618-539-0	02	1	0611-0803	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0610-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0610-0706	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	01	1	0707-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0610-0706	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0707-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0610-	●	●
285	WASHER; PL,CONNECTOR ID=21	0-91610-520-0	02	1	0610-	●	●

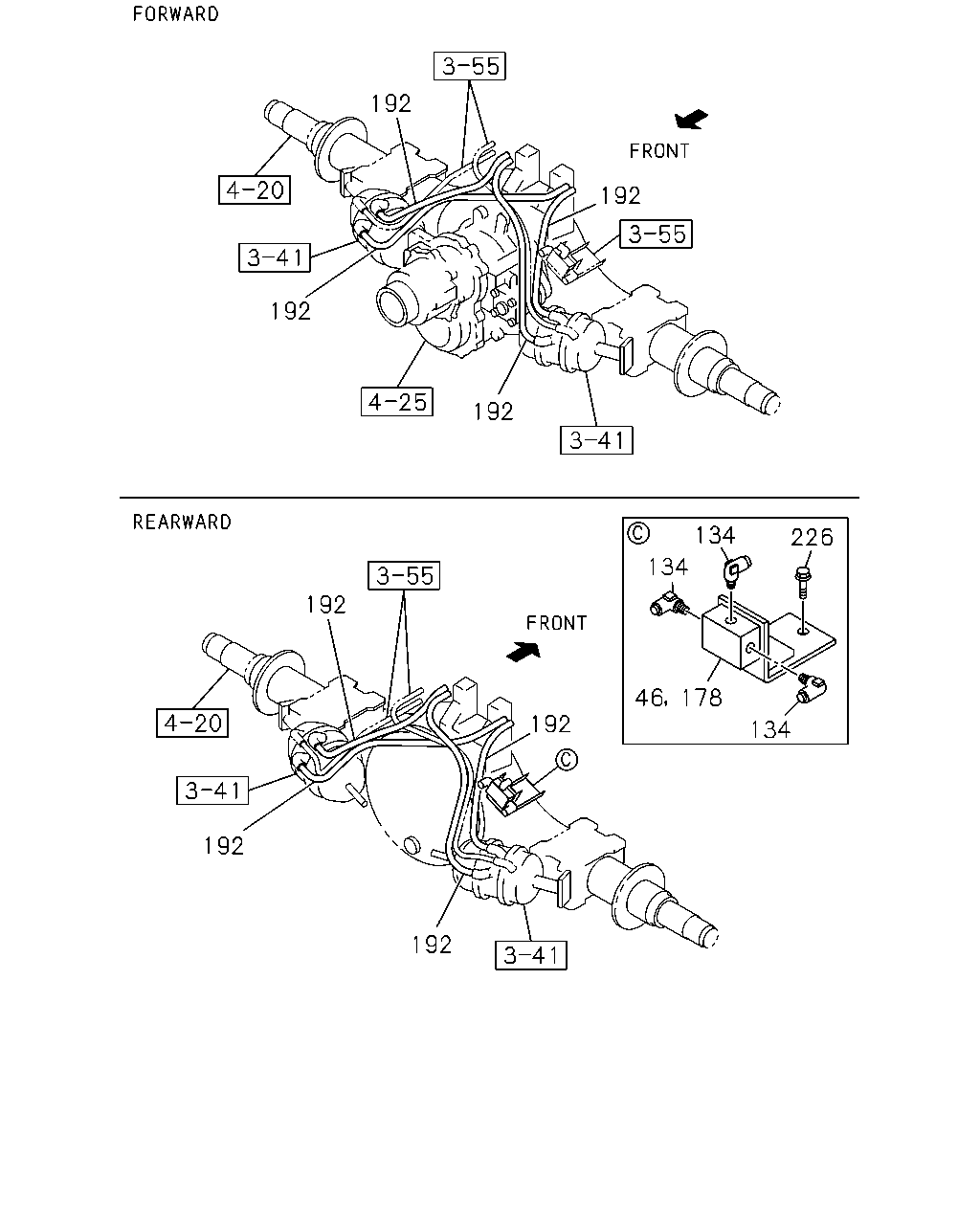

192 192 192 192 134 226 134 192 46 178 192 134 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	NIPPLE; AIR PIPE	1-47471-083-0	01	1	0610-0908	●	●
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0610-	●	●
178	BRACKET; UNION	8-98153-830-0	01	1	0909-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	0610-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●

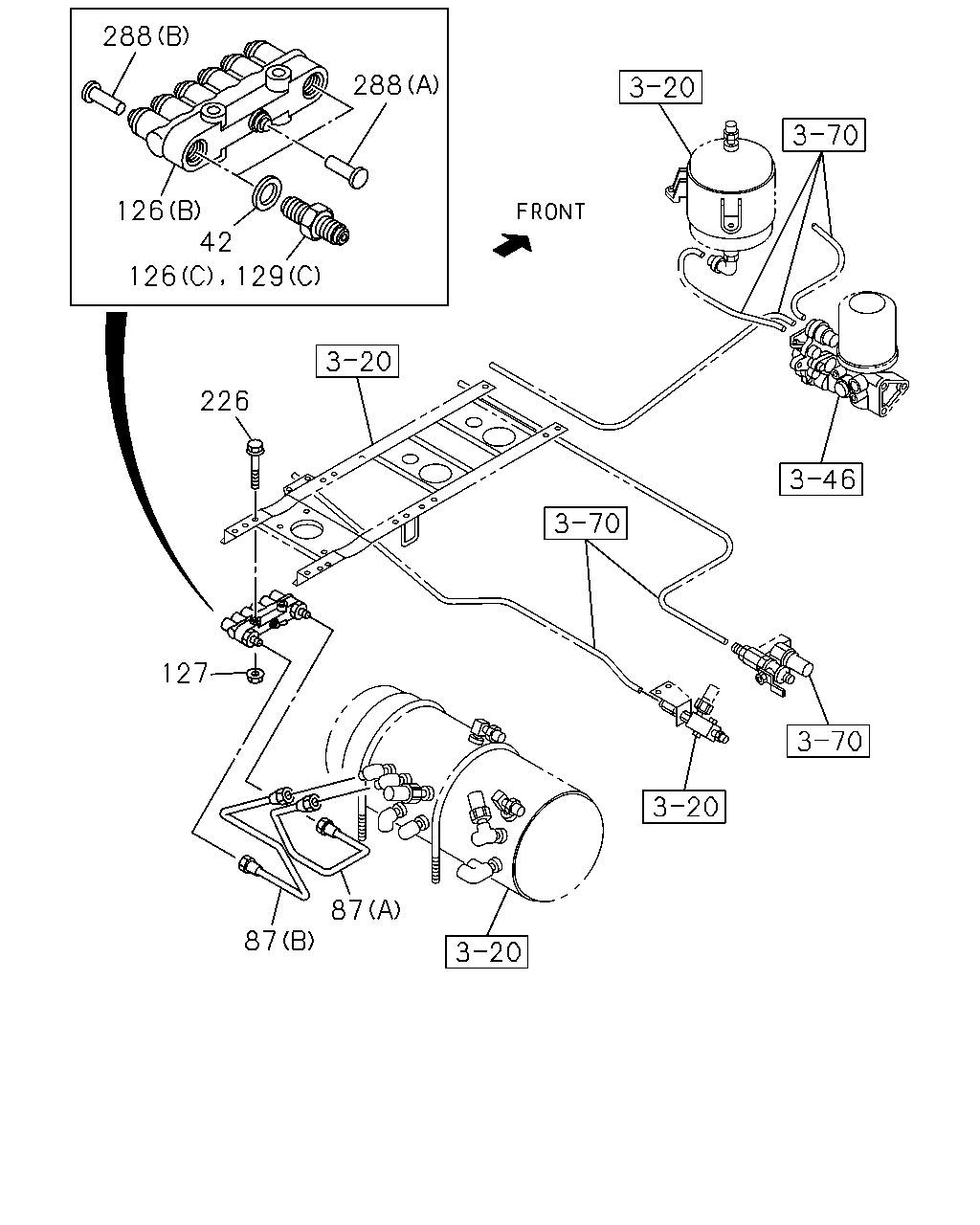

288 288 126 42 126 129 226 127 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	GASKET; CONNECTOR	9-09572-022-0	02	1	0610-0803	●	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=425	1-49124-670-0	01	1	0610-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=541	1-49124-671-0	01	1	0610-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=561	1-49124-520-0	01	1	0610-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=426	1-49124-521-0	01	1	0610-		●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	0804-	●	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0610-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	0610-	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
129	CONNECTOR; NYLON TUBE (C)	1-09654-416-1	02	1	0610-0610	●	●
129	CONNECTOR; NYLON TUBE (C)	8-97618-539-0	02	1	0611-0803	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0610-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0610-0706	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	01	1	0707-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0610-0706	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0707-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	0610-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0610-	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	0610-	●	●

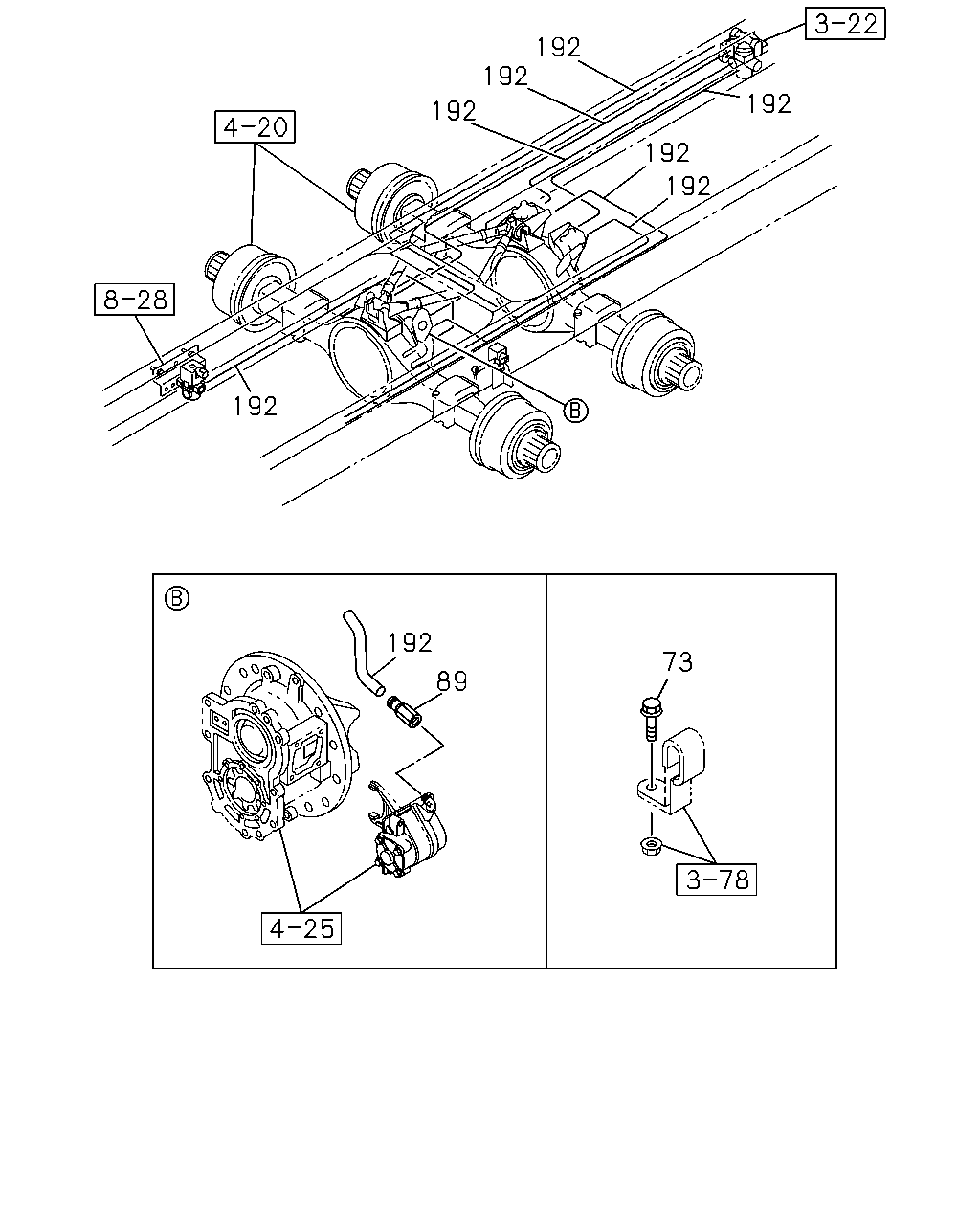

192 192 192 192 192 192 192 192 73 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●

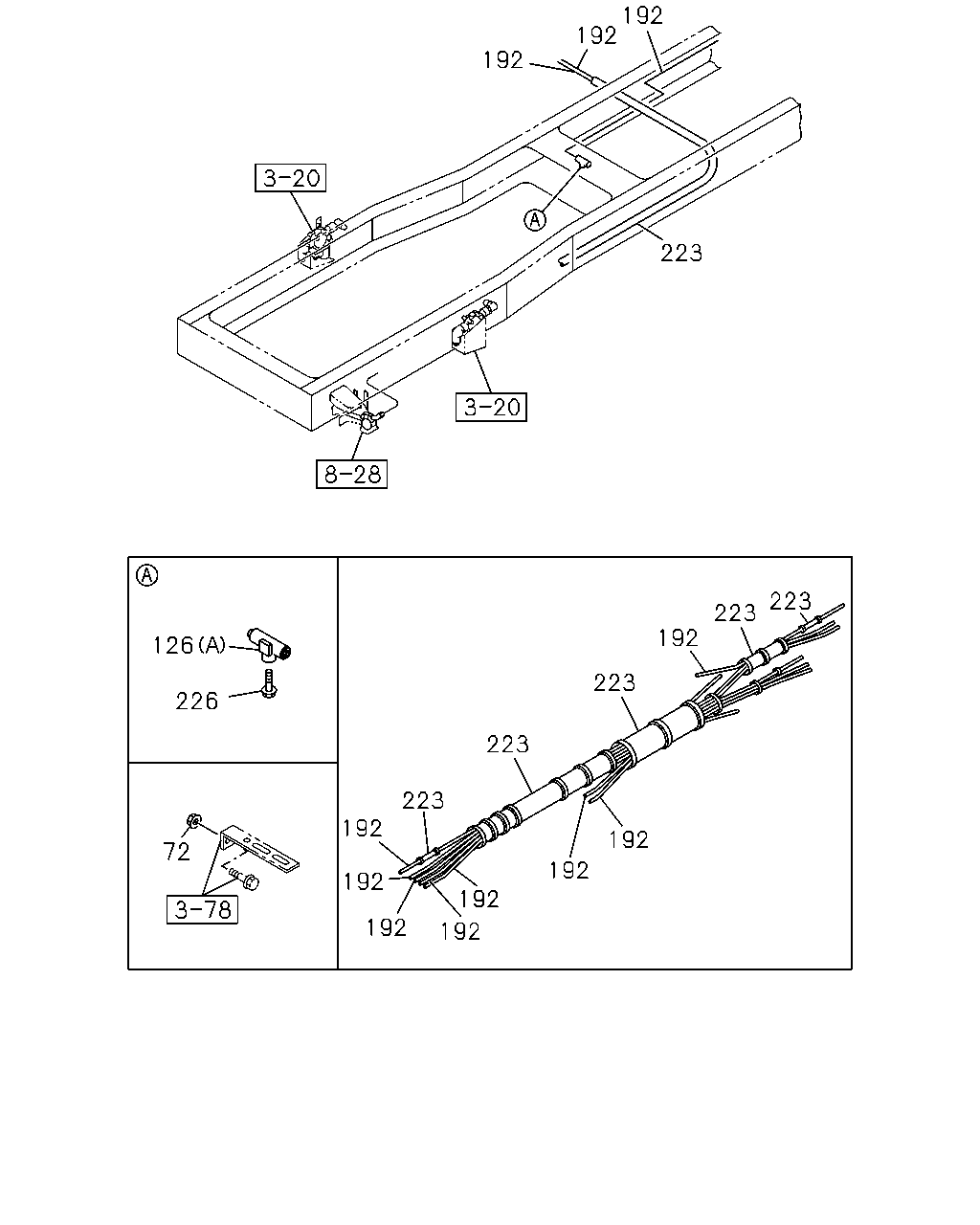

192 192 192 223 223 223 192 126 223 226 223 223 192 192 72 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	01	1	0610-		●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	0804-	●	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0610-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0610-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0610-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	0610-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
