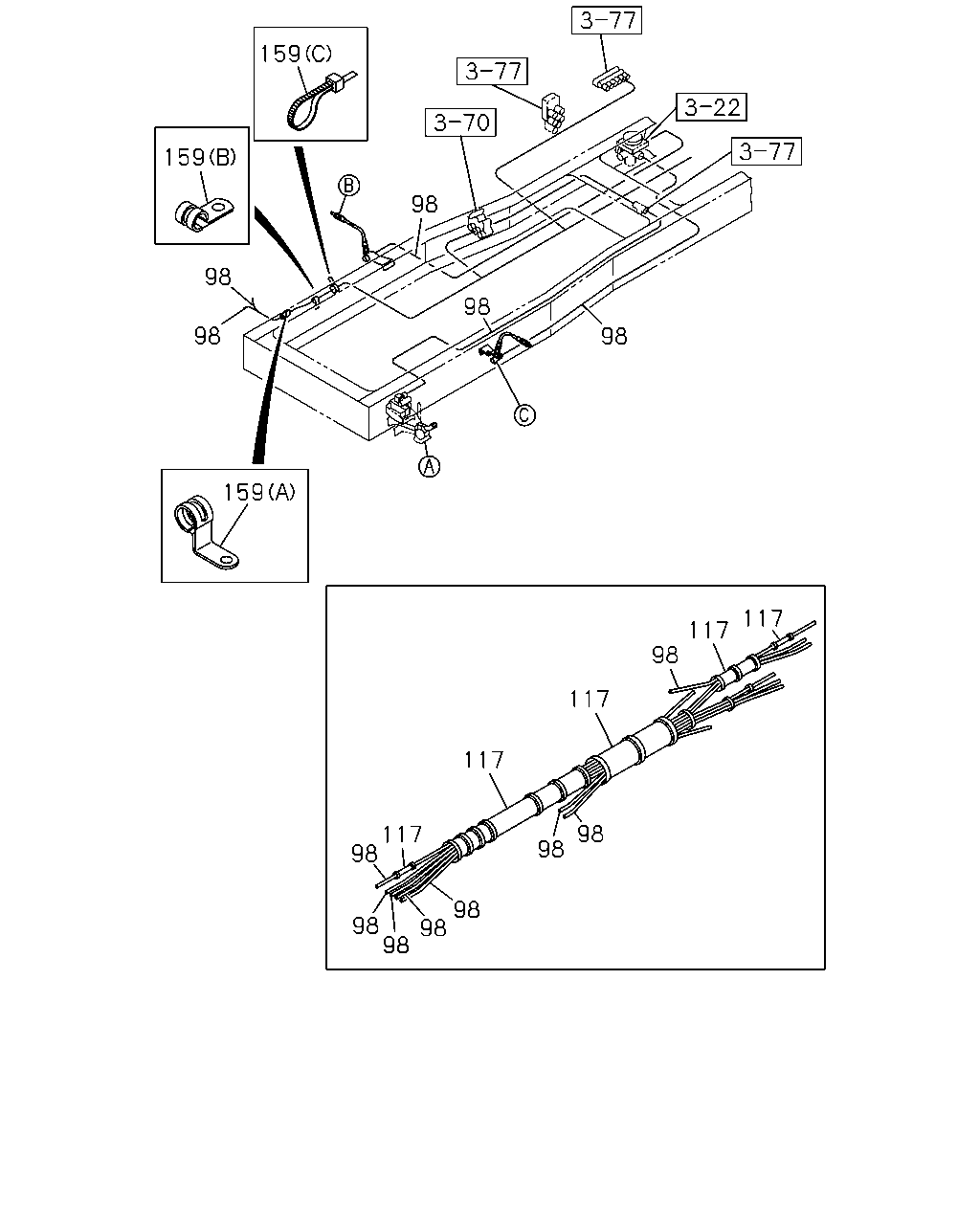

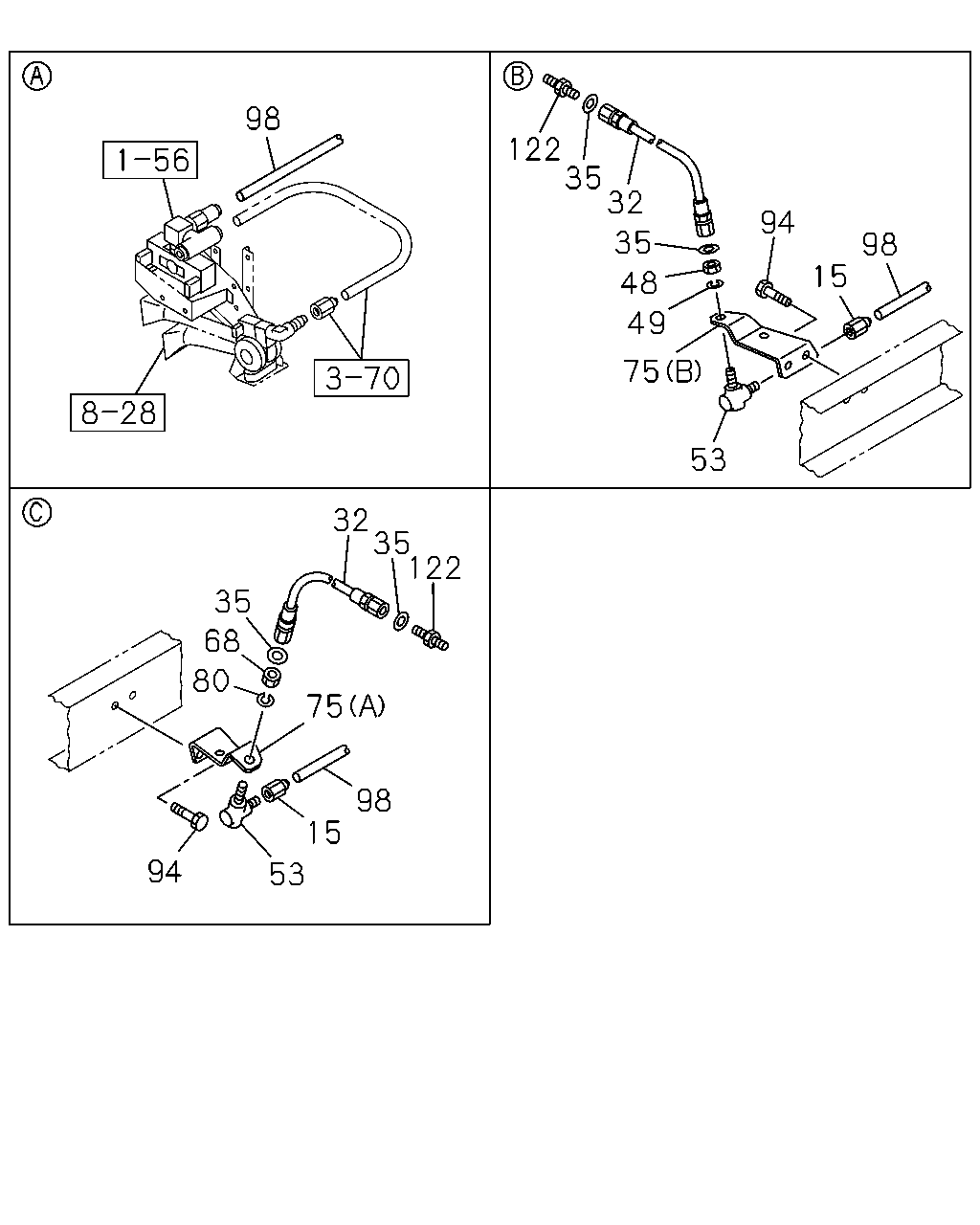

3-75 — BRAKE PIPING; AIR,FRONT (#27500) — 57 parça

159 159 98 98 98 98 98 159 117 117 98 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON BRAKE SYSTEM HSA<SLD> L=2220 OD=12	1-49222-731-0	01	1	0610-	●	●
98	TUBE; NYLON L=170 OD=12	1-49222-063-0	02	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0907-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0610-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0610-	●	●
159	CLIP; NYLON TUBE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0907-	●	●
159	CLIP; NYLON TUBE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33	1-09700-945-0	02	1	0907-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	19	1	0610-	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0610-0906	●	●
159	CLIP; NYLON TUBE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33	1-09700-945-0	04	1	0907-	●	●
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0610-0906	●	●
159	CLIP; NYLON TUBE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0907-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0610-0906	●	●
159	CLIP; NYLON TUBE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0907-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0610-	●	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0610-	●	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (A) ID=21 L=30 H=40	1-09700-991-1	02	1	0610-	●	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (C) L=350	1-09707-183-0	06	1	0610-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	12	1	0610-		●

98 122 35 32 94 35 98 15 48 49 75 53 32 35 122 35 68 80 75 98 15 94 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0610-	●	●
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	0610-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0610-	●	●
48	NUT; UNION BRKT M20	0-91111-520-0	01	1	0610-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0610-	●	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	0610-	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	0610-	●	●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	0610-	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	0610-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0610-	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0610-	●	●
98	TUBE; NYLON BRAKE SYSTEM HSA<SLD> L=2220 OD=12	1-49222-731-0	01	1	0610-	●	●
98	TUBE; NYLON L=170 OD=12	1-49222-063-0	02	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0610-	●	●
98	TUBE; NYLON SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0907-	●	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0610-	●	●
