◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#27499) — 199 parça

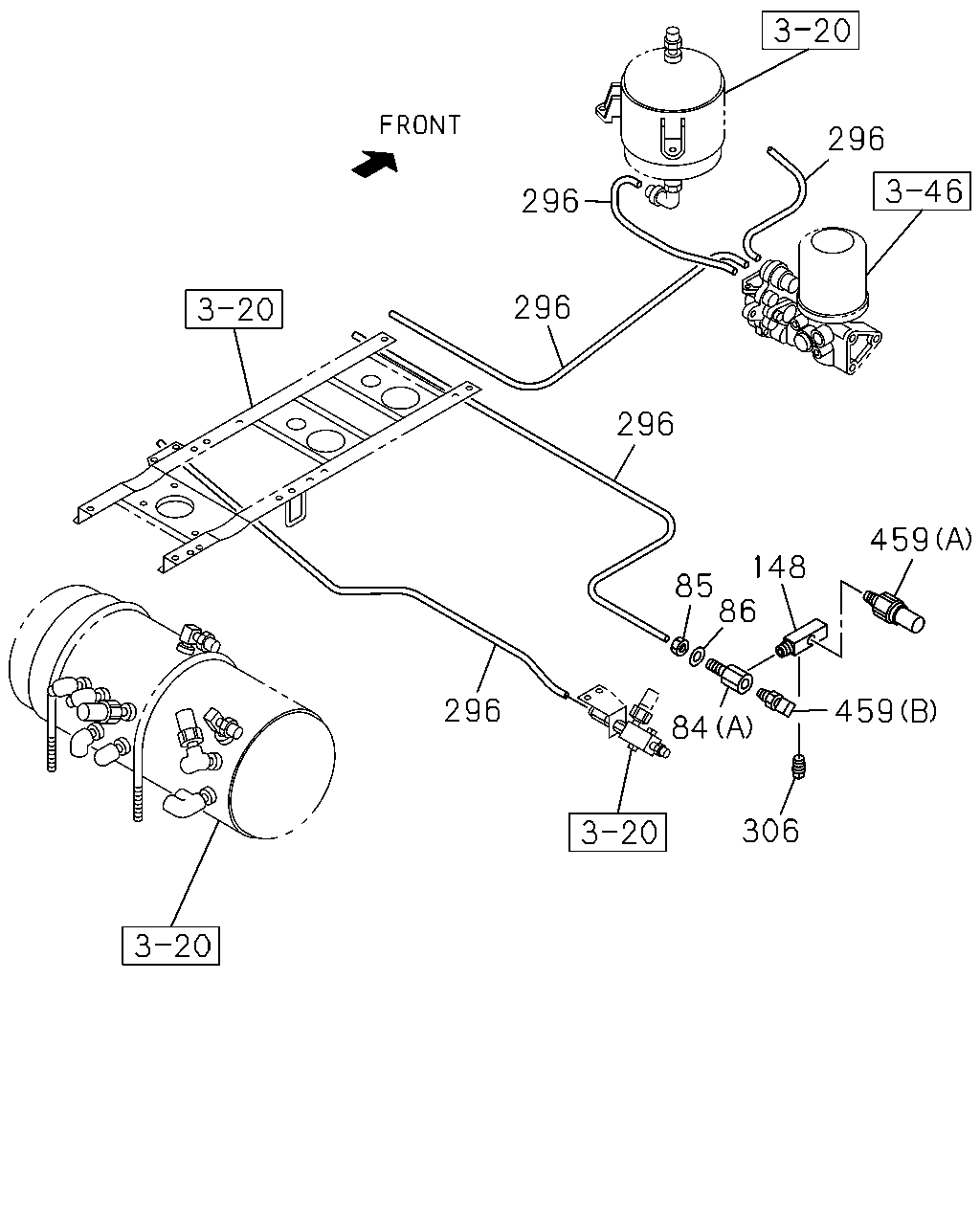

çizim 139897
296 296 296 296 459 148 85 86 84 296 459 306
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0610- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610- ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0610- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0610- ● ●
148 CONNECTOR; UNION
DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 0610- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 0610- ● ●
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 0610- ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0610- ● ●

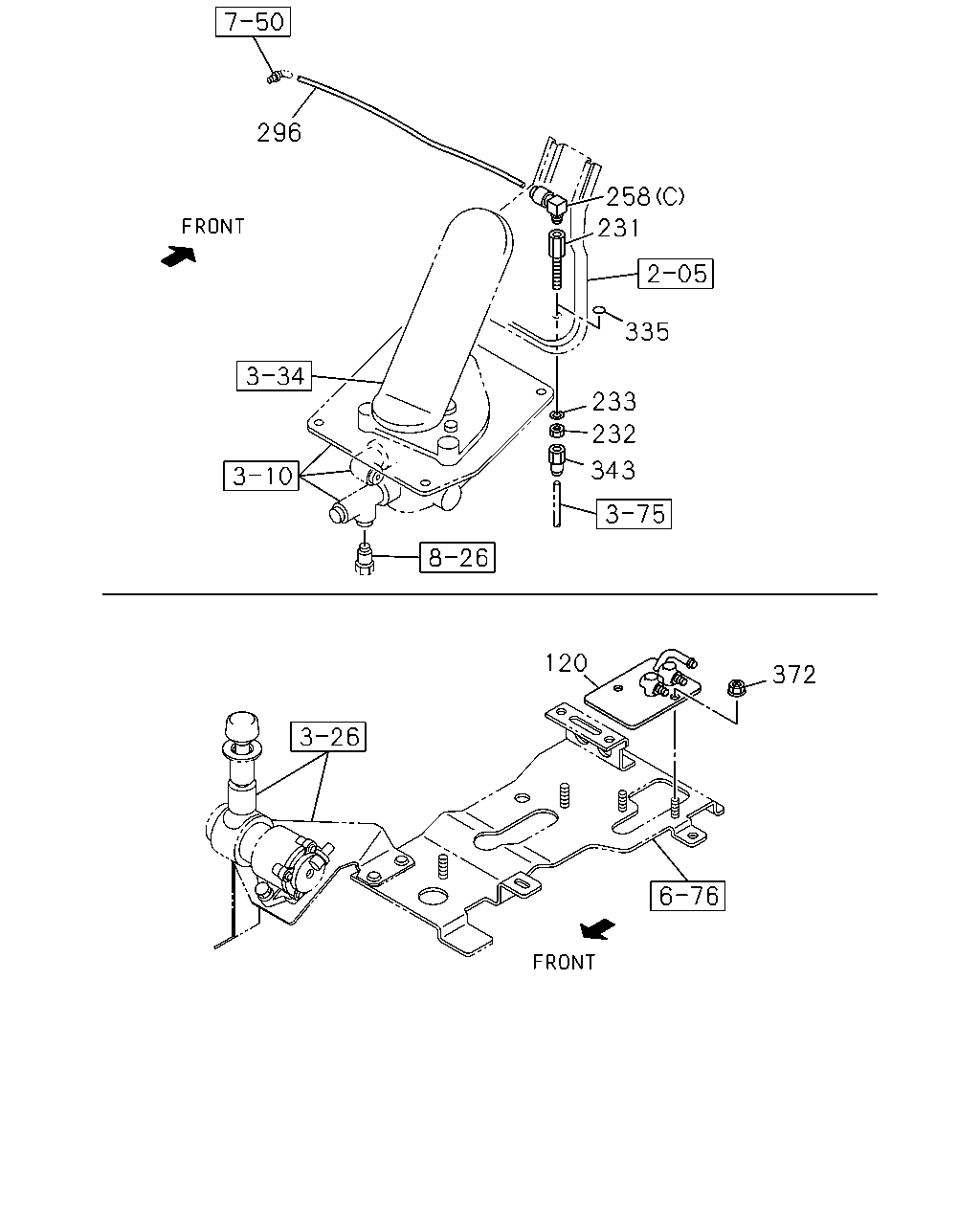

çizim 139898
296 258 231 335 233 232 343 120 372
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-547-0 01 1 0610- ● ●
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 0610- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0610- ● ●
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA<SLD> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612- ● ●
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0610- ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 0610- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●

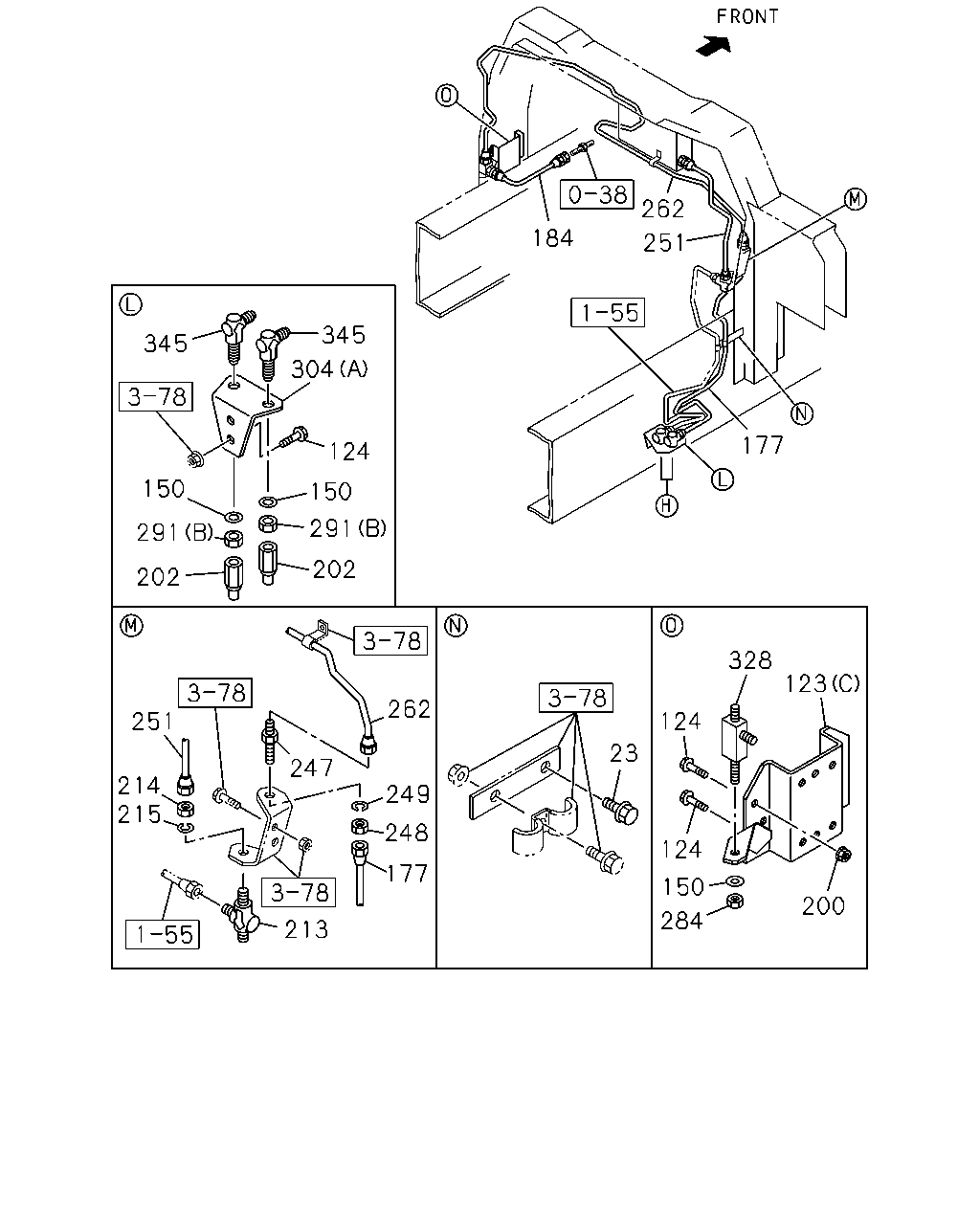

çizim 139899
262 184 251 345 345 304 177 124 150 150 291 291 202 202 328 123 262 124 251 23 247 214 215 249 248 124 177 150 200 284 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0610- ●
123 BRACKET; UNION
WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA<SLD> (A) 		1-47479-401-0 01 1 0610- ●
123 BRACKET; UNION
WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ●
123 BRACKET; UNION
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0610- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0610- ● ●
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 0610- ●
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=785 SERVICED BY L=800 		1-47428-812-0 01 1 0610- ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 0610- ●
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 0610- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0610- ● ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0610- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0610- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0610- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0610- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0610- ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0610- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0610- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0610- ● ●
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 0610- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 0610- ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 0610- ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-942-0 01 1 0610- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 0610- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0610- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0610- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0610- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0610- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0610- ● ●

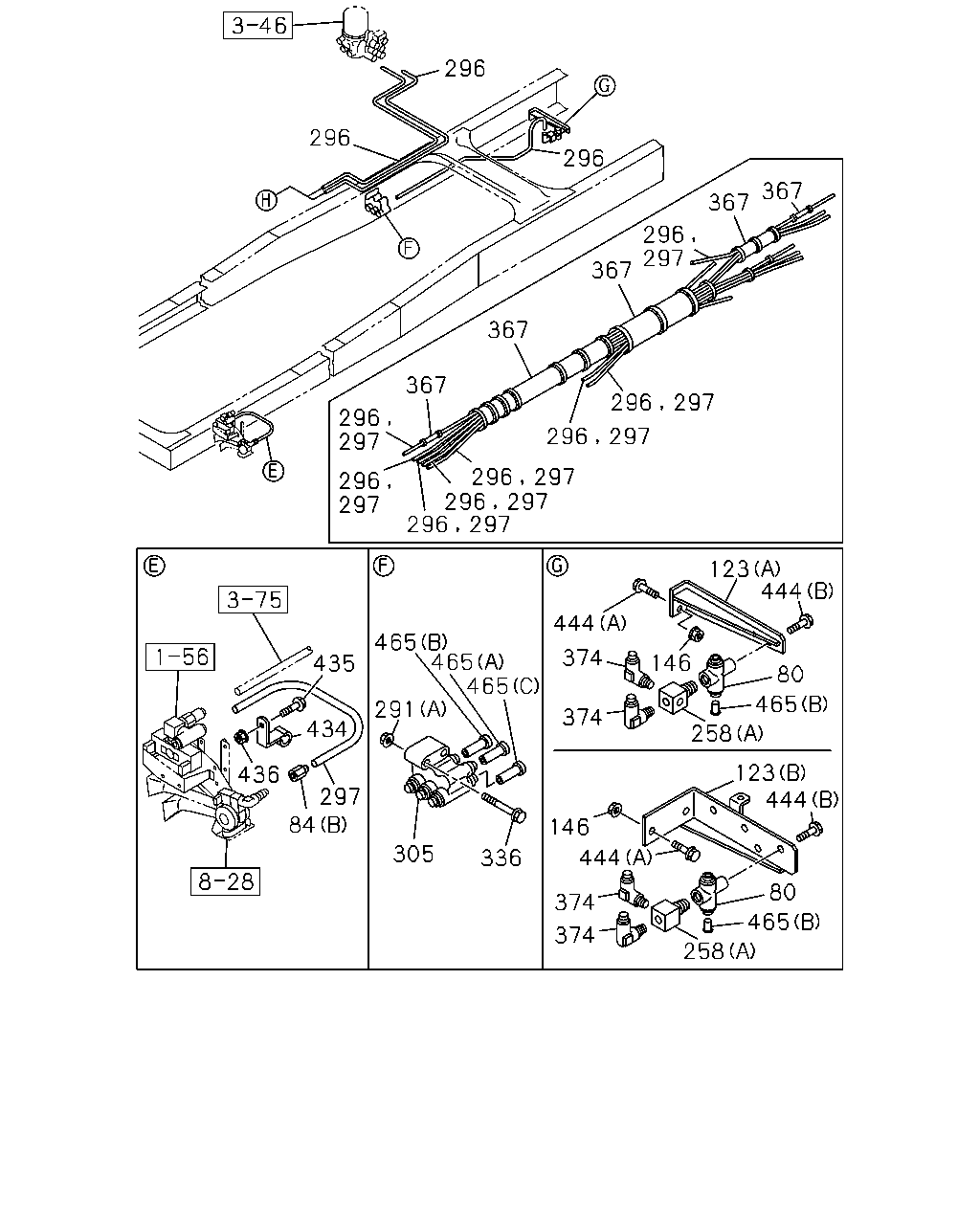

çizim 139906
296 296 296 367 367 296 297 367 367 367 296 297 296 297 123 444 444 465 465 465 374 146 435 80 465 291 374 434 258 123 444 436 297 84 146 305 444 336 80 374 465 374 258 296 297 297 296 297 296 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
EXC. BRAKE SYSTEM HSA<SLD> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ● ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0610- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0610- ●
123 BRACKET; UNION
WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA<SLD> (A) 		1-47479-401-0 01 1 0610- ●
123 BRACKET; UNION
WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ●
123 BRACKET; UNION
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ●
146 NUT; UNION
EXC. BRAKE SYSTEM HSA<SLD> M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA<SLD> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0610- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0610- ● ●
336 BOLT; PIPE UNION
MIXER TRUCK<RA2> SINGAPORE EQUIPMENT(WQ3) M8X70 FLANGE 		0-28050-870-0 02 1 0907-0912 ●
336 BOLT; PIPE UNION
MIXER TRUCK<RA2> M8X70 FLANGE 		0-28050-870-0 02 1 1001- ●
336 BOLT; PIPE UNION
SINGAPORE EQUIPMENT(WQ3) EXC. MIXER TRUCK<RA2> M8X60 FLANGE 		0-28050-860-0 02 1 0907-0912 ●
336 BOLT; PIPE UNION
EXC. SINGAPORE EQUIPMENT(WQ3) M8X60 FLANGE 		0-28050-860-0 02 1 0907-0912 ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-0912 ●
336 BOLT; PIPE UNION
EXC. MIXER TRUCK<RA2> M8X60 FLANGE 		0-28050-860-0 02 1 1001- ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1001- ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 0610-0906 ● ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 0610-0906 ● ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0610- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0610- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0610- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0610- ● ●
374 CONNECTOR
EXC. BRAKE SYSTEM HSA<SLD> DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0610- ● ●
434 CLIP
ID=6 H=20 L=20 		1-09700-603-0 01 1 0610- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
444 BOLT; UNION
EXC. BRAKE SYSTEM HSA<SLD> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
444 BOLT; UNION
EXC. BRAKE SYSTEM HSA<SLD> (A) M8X35 FLANGE 		0-28650-835-0 02 1 0610- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610- ● ●
465 PLUG
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA<SLD> (B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610- ●
465 PLUG
EXC. BRAKE SYSTEM HSA<SLD> (B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610- ●
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-0704 ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-0704 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-0704 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-0704 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-0704 ●
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 0705- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0705- ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0705- ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0705- ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0705- ●
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=12 		1-09661-617-0 01 1 0610- ●

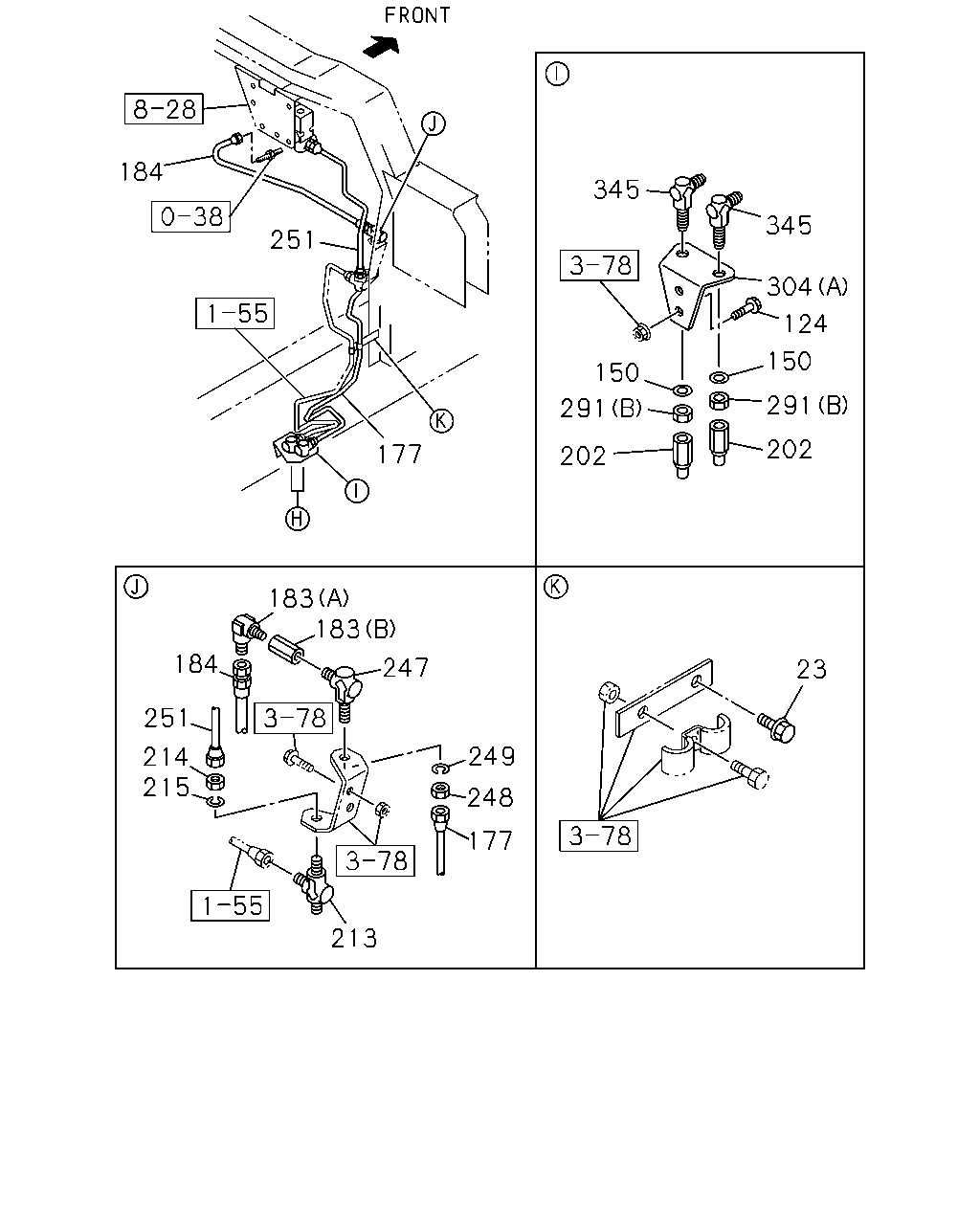

çizim 139907
184 345 345 251 304 124 150 150 291 291 202 177 202 183 183 184 247 23 251 249 214 215 248 177 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0610- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0610- ● ●
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 0610- ●
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=785 SERVICED BY L=800 		1-47428-812-0 01 1 0610- ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0610- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0610- ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0610- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0610- ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 0610- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 0610- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0610- ● ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0610- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0610- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0610- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0610- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0610- ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0610- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0610- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0610- ● ●
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 0610- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 0610- ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 0610- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0610- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0610- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0610- ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0610- ● ●

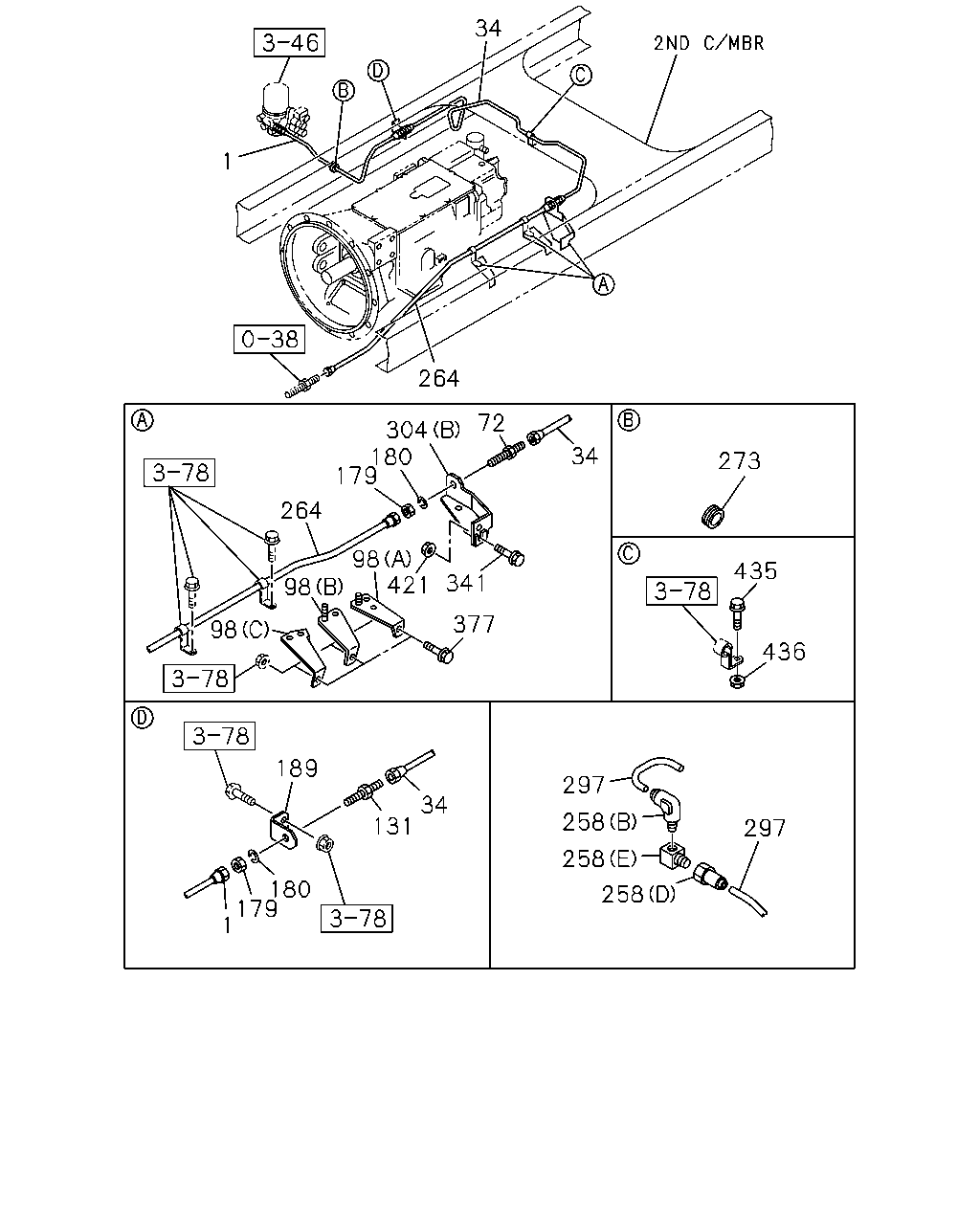

çizim 139910
34 1 264 72 304 180 179 34 273 264 98 98 421 435 341 98 377 436 189 297 34 258 131 297 258 180 179 1 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0610- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0610- ●
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 0610- ●
34 PIPE; AIR
L=1131 		1-49124-915-0 01 1 0610- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0610- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		1-47471-283-0 01 1 0706- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0610-0705 ● ●
98 BRACKET; AIR PIPE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-47479-639-0 01 1 0706- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0610- ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0610- ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 0610- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0610- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610- ● ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA<SLD> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610- ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0610- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0610- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0610- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0610- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0610- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0610- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0610- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
