◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#27495) — 46 parça

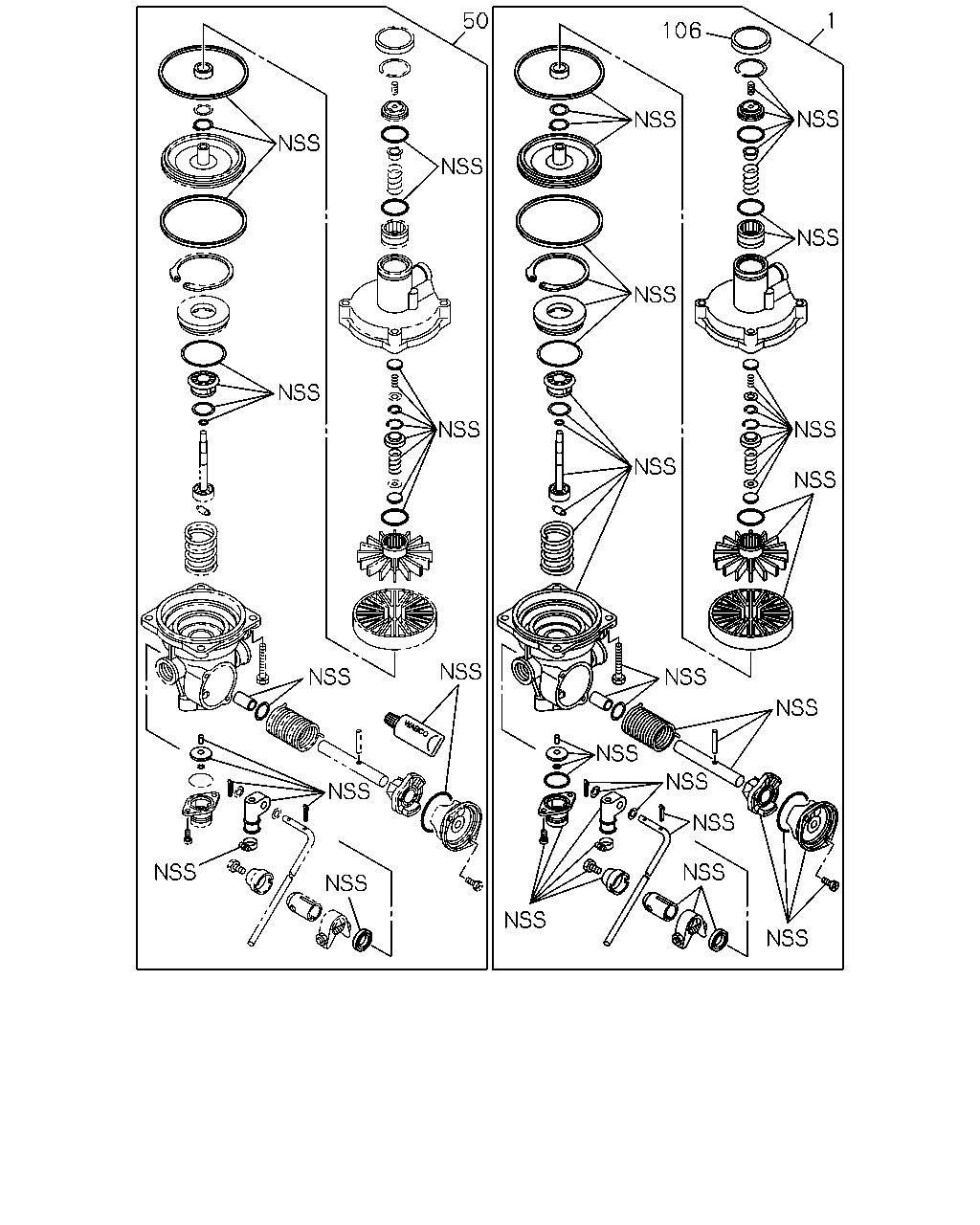

çizim 139909
50 1 106
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47720-150-0 01 1 0610-
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-85576-393-0 01 1 0610-
106 COVER; PISTON
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47729-001-0 01 1 0610-

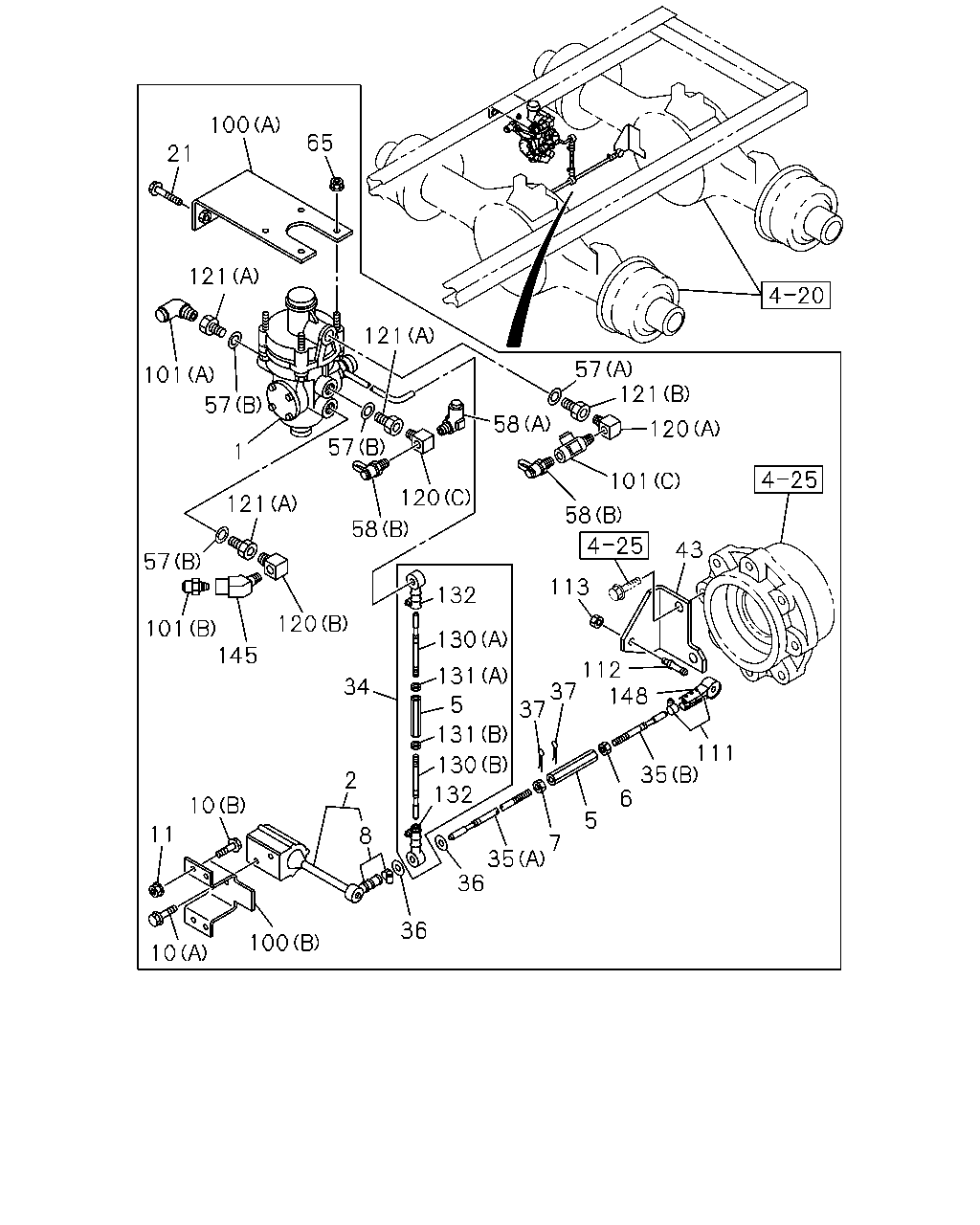

çizim 139914
100 65 21 121 121 57 121 101 57 58 120 57 1 101 120 121 58 58 43 57 113 132 120 101 145 130 112 37 148 37 131 34 5 131 111 35 6 130 2 132 10 5 11 8 7 35 36 36 100 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47720-150-0 01 1 0610-
2 DAMPER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47725-047-0 01 1 0610-
5 JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-09768-091-0 01 1 0610-
5 JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-09768-091-0 01 1 0610-
6 NUT; LK,UPR
LOAD SENSING PROPORTIONING VALVE<JR7> M8 		0-91111-508-0 01 1 0610-
7 NUT; LK,LWR
LOAD SENSING PROPORTIONING VALVE<JR7> LH THREAD 		1-09409-002-0 01 1 0610-
8 ROD END
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 01 1 0610-
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0610-
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0610-
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE 		0-91180-208-0 04 1 0610-
21 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> M8X35 FLANGE 		0-28650-835-0 02 1 0610-
34 ROD; LEVER TO ROD,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47725-052-0 01 1 0610-
35 ROD; LINK,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-09765-282-0 01 1 0610-
35 ROD; LINK,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-09765-318-0 01 1 0610-
36 WASHER; PL,ROD
LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4 OD=16 		0-91610-508-0 02 1 0610-
37 PIN; SPLIT,ROD
LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25 		0-81122-025-0 02 1 0610-
43 BRACKET; DAMPER TO AXLE
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-42129-517-0 01 1 0610-
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (A) ID=16.2 OD=24 		9-09571-416-0 01 1 0610-
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (B) ID=22.5 		9-09571-422-0 03 1 0610-
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0610-
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0610-
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE 		0-91180-108-0 04 1 0610-
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-42129-511-0 01 1 0610-
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-47471-208-0 01 1 0610-
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610-
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610-
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (C) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 0610-
111 RUBBER; JOINT,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 01 1 0610-
112 PIN; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-09744-123-0 01 1 0610-
113 NUT; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE 		0-91180-108-0 01 1 0610-
120 CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (C) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 0610-
120 CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT3/8 ELBOW 		1-09660-696-0 01 1 0610-1005
120 CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1006-
120 CONNECTOR
LOAD SENSING PROPORTIONING VALVE<JR7> (B) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610-1005
121 ADAPTER
LOAD SENSING PROPORTIONING VALVE<JR7> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0610-
121 ADAPTER
LOAD SENSING PROPORTIONING VALVE<JR7> (B) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0610-
130 ROD; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-09765-290-0 01 1 0610-
130 ROD; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-09765-315-0 01 1 0610-
131 NUT; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) LH THREAD 		1-09409-002-0 01 1 0610-
131 NUT; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48119-089-0 01 1 0610-
132 RUBBER ASM; CONN
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 02 1 0610-
145 UNION
LOAD SENSING PROPORTIONING VALVE<JR7> R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0610-
148 COVER; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47729-058-0 02 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
