Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11036 - CYZ RHD EURO4
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#27491) — 31 parça
Tümü
A - CYZ5MC
B - CYZ5MF
◀

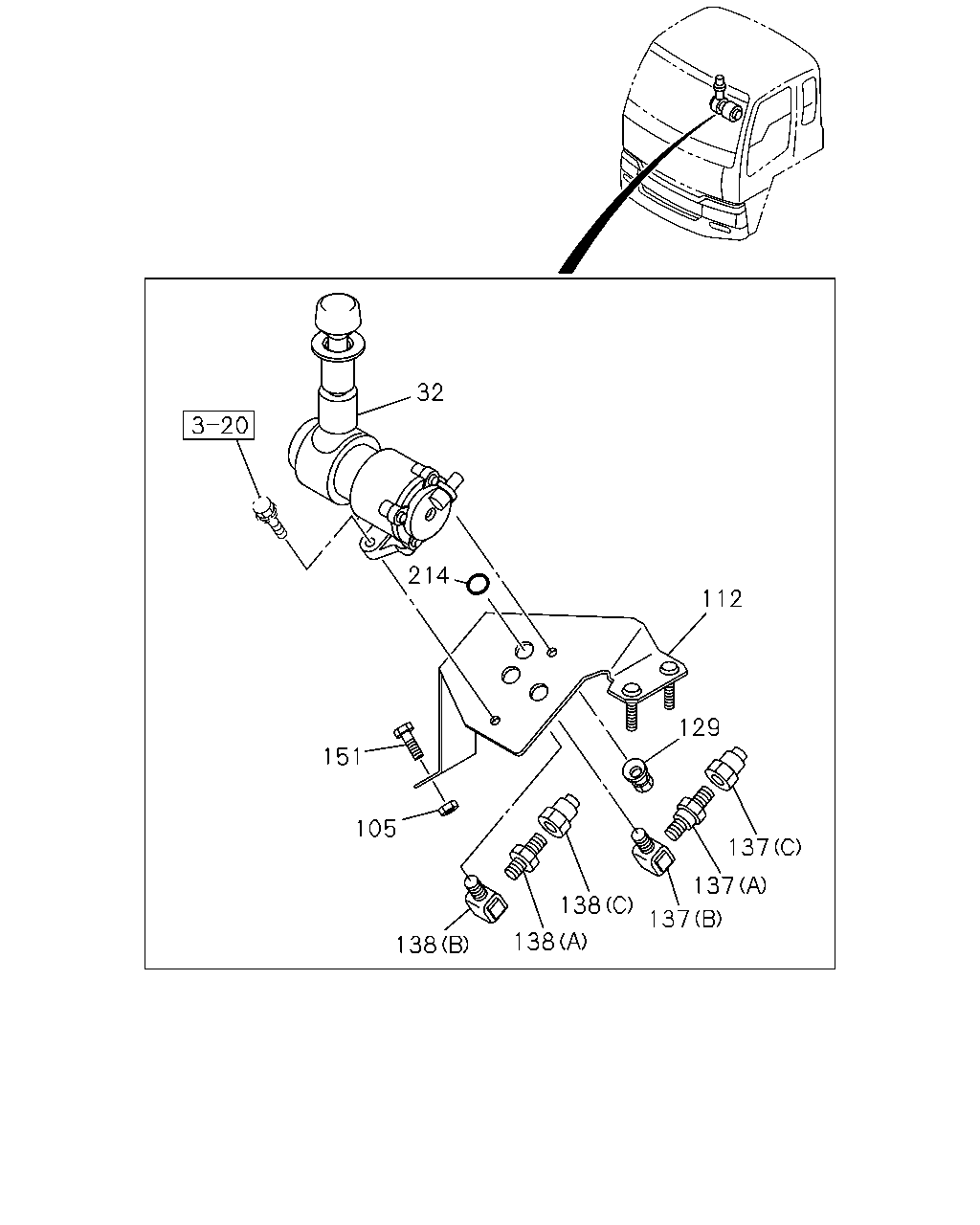

[326A] FIXING (12 parça)

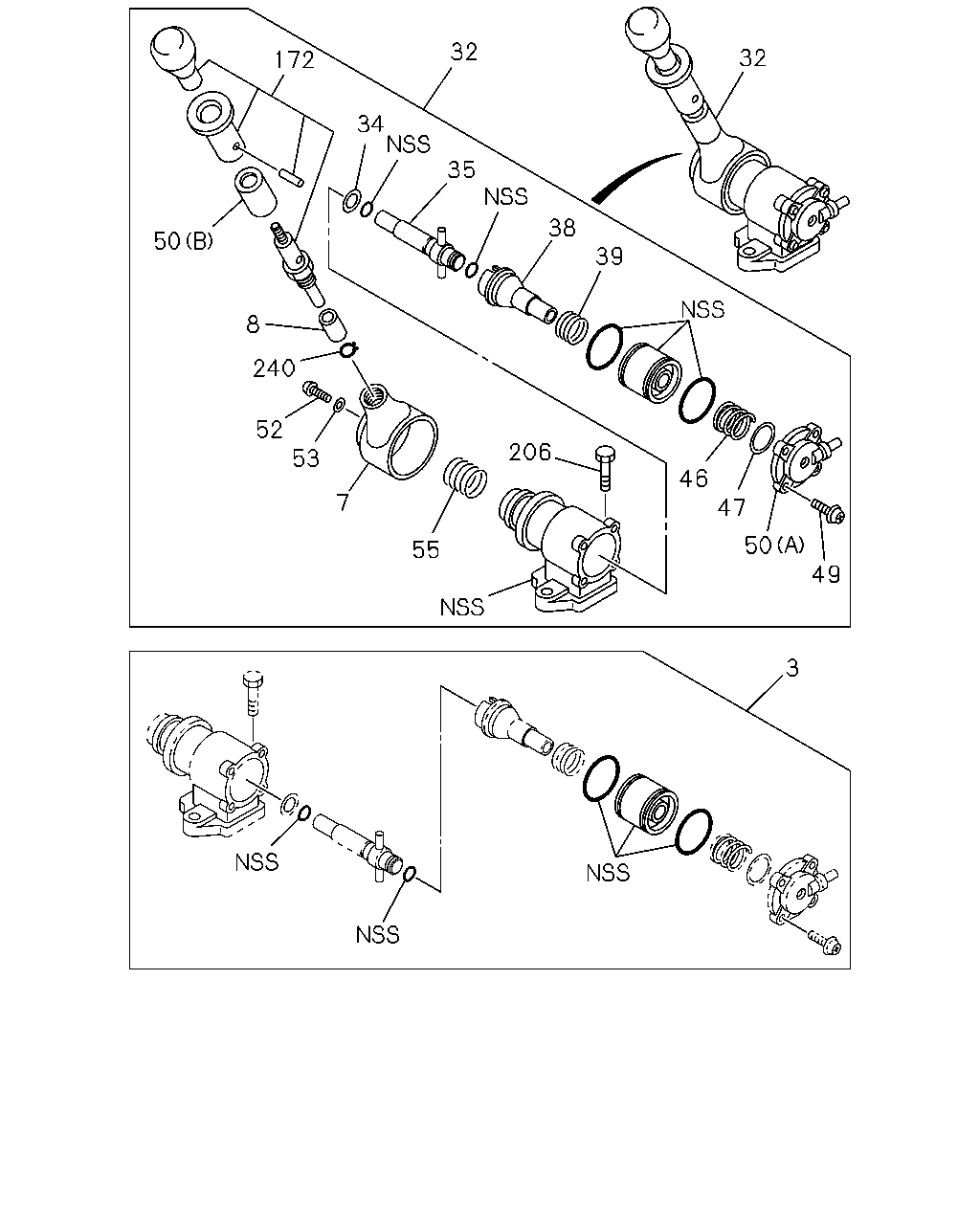

[326A] COMPONENT AND REPAIR KIT (19 parça)
▶
32
214
112
129
151
105
137
137
138
137
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
0610-
●
●
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0610-
●
●
112
BRACKET; CONT VLV
1-79996-387-0
01
1
0610-
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
0610-
●
●
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
0610-
●
●
137
CONNECTOR; SUPPLY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
0610-
●
●
137
CONNECTOR; SUPPLY
(C) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0610-
●
●
138
CONNECTOR; DELIVERY
(A) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
0610-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
0610-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0610-
●
●
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0610-
●
●
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
02
1
0610-
●
●
32
32
172
34
35
38
50
39
8
240
52
53
206
46
47
7
50
49
55
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; HAND BRK VLV
1-85576-375-0
01
1
0610-
●
●
7
HEAD; BRK VLV
1-48469-195-0
01
1
0610-
●
●
8
STOPPER; BRK VLV
1-48469-194-0
01
1
0610-
●
●
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
0610-
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0610-
●
●
35
HOLDER; CAM
1-48469-148-0
01
1
0610-
●
●
38
SEAT; EXH VLV
1-48469-149-0
01
1
0610-
●
●
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
0610-
●
●
46
SPRING; MAIN,PISTON
1-48469-152-0
01
1
0610-
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0610-
●
●
49
SCREW; COVER
1-48469-169-0
04
1
0610-
●
●
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
0610-
●
●
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
0610-
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
0610-
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
0610-
●
●
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
0610-
●
●
172
KNOB; VALVE
1-48469-204-0
01
1
0610-
●
●
206
BOLT; HAND BRK VALVE
1-48469-160-0
01
1
0610-
●
●
240
RING; STOPPER
1-48469-193-0
01
1
0610-
●
●
