3-22 — AIR CONTROL PARTS (#27490) — 180 parça
çizim 139877
13 157 216 158 262
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
EXC. BRAKE SYSTEM HSA<SLD> 		1-48410-726-1 01 1 0610- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0610-1006 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM HSA<SLD> (A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0610-1006 ● ●
157 RETAINER; VALVE
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-48419-020-0 01 1 0610- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0610-1006 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
BRAKE SYSTEM HSA<SLD> (A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0610-1006 ● ●
158 SPRING; VALVE
EXC. BRAKE SYSTEM HSA<SLD> (B) 		9-48419-003-0 01 1 0610- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
EXC. BRAKE SYSTEM HSA<SLD> 		1-85576-235-0 01 1 0610-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
EXC. BRAKE SYSTEM HSA<SLD> 		1-85576-484-0 01 1 1110- ● ●
262 SILENCER; RELAY VALVE
EXC. BRAKE SYSTEM HSA<SLD> 		1-48219-149-0 01 1 0610- ● ●

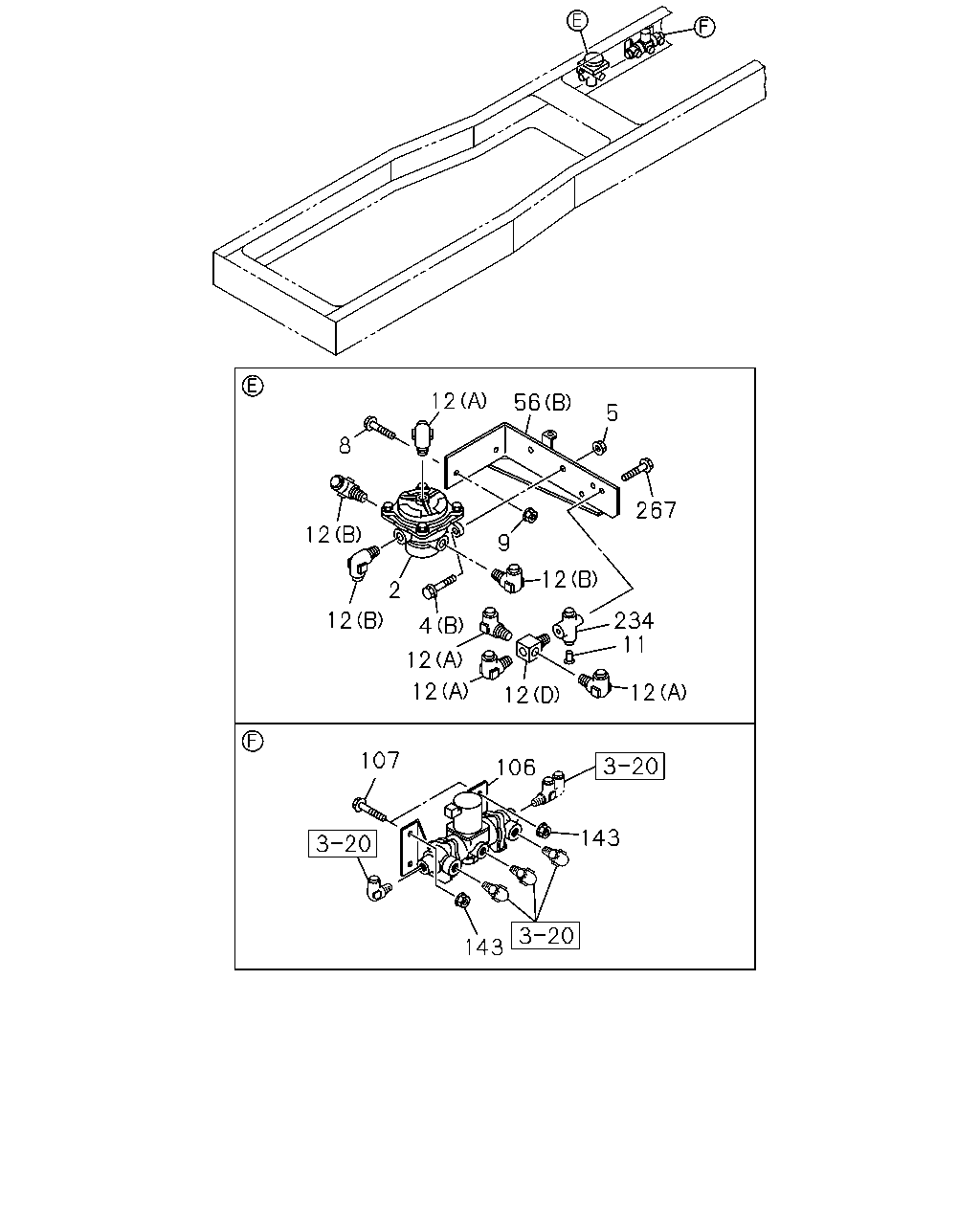

çizim 139880
12 56 5 8 267 12 9 12 2 12 234 11 4 12 12 12 12 107 106 143 143
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-875-0 01 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0610- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
8 BOLT; BRKT
BRAKE SYSTEM HSA<SLD> M8X35 FLANGE 		0-28650-835-0 02 1 0610- ● ●
9 NUT
BRAKE SYSTEM HSA<SLD> M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
11 PLUG
BRAKE SYSTEM HSA<SLD> OD=8 PLASTIC 		1-09661-616-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0610- ● ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0610- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 04 1 0610- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (D) PT3/8 4WAY 		1-09661-489-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ● ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610- ●
56 BRACKET; RELAY VLV
BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ● ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 0610- ● ●
56 BRACKET; RELAY VLV
MJT7S M/T(Y3E) (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-47479-328-0 01 1 0610- ●
106 VALVE; HSA
BRAKE SYSTEM HSA<SLD> 		1-46362-118-1 01 1 0610- ● ●
107 BOLT; VLV
BRAKE SYSTEM HSA<SLD> M8X30 FLANGE 		0-28650-830-0 04 1 0610- ● ●
143 NUT; VLV
BRAKE SYSTEM HSA<SLD> M8 FLANGE 		0-91180-108-0 04 1 0610- ● ●
234 UNION
BRAKE SYSTEM HSA<SLD> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ● ●
267 BOLT; UNION
BRAKE SYSTEM HSA<SLD> M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●

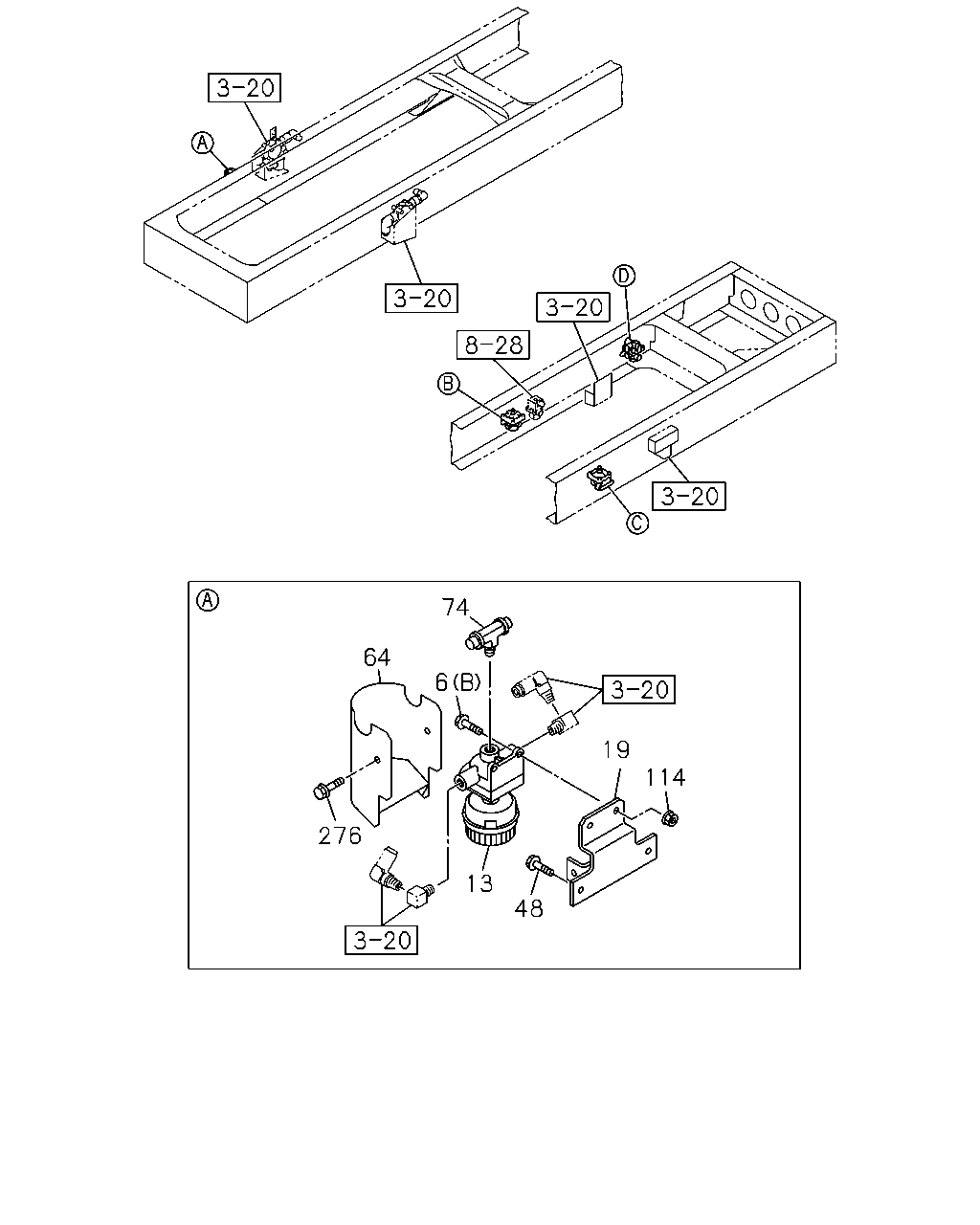

çizim 139883
74 64 6 19 114 276 13 48
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0610- ● ●
6 BOLT; VLV
EXC. BRAKE SYSTEM HSA<SLD> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ●
13 VALVE ASM; QUICK RELEASE
EXC. BRAKE SYSTEM HSA<SLD> 		1-48410-726-1 01 1 0610- ● ●
19 BRACKET; QUICK RELEASE VLV
EXC. BRAKE SYSTEM HSA<SLD> 		1-47471-014-0 01 1 0610- ● ●
48 BOLT; QUICK RELEASE VLV
EXC. BRAKE SYSTEM HSA<SLD> M8X30 FLANGE 		0-28650-830-0 02 1 0610- ● ●
64 PROTECTOR; QUICK RELEASE VALVE
EXC. BRAKE SYSTEM HSA<SLD> 		8-98043-421-0 01 1 0610- ● ●
74 CONNECTOR; 3WAY
EXC. BRAKE SYSTEM HSA<SLD> DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0610- ● ●
114 NUT; VLV
EXC. BRAKE SYSTEM HSA<SLD> M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
276 BOLT; PROTECTOR
EXC. BRAKE SYSTEM HSA<SLD> M8X20 FLANGE 		0-28650-820-0 02 1 0610- ● ●
çizim 139885
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-85576-304-1 01 1 0610- ● ●
204 PIPE ASM; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-194-0 01 1 0610- ● ●

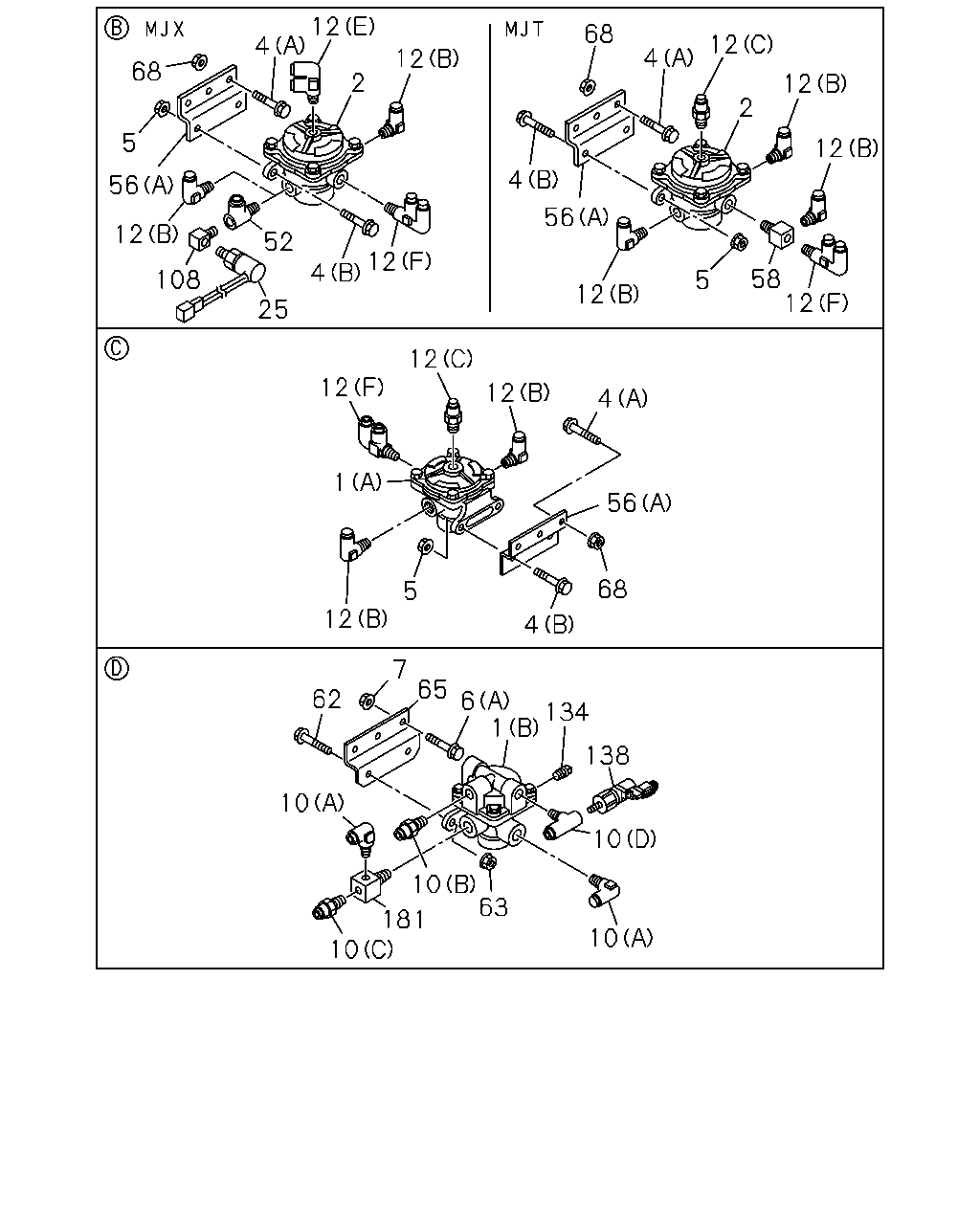

çizim 139886
12 68 12 4 4 12 68 2 12 2 5 12 4 56 56 12 52 12 4 58 12 108 5 12 25 12 12 12 4 1 56 68 5 12 4 7 65 62 6 134 1 138 10 10 10 63 181 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 0610- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 0610- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0610- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0610- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0610- ● ●
6 BOLT; VLV
EXC. BRAKE SYSTEM HSA<SLD> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ● ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610- ● ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0610- ● ●
10 CONNECTOR
(D) 		1-09661-537-0 01 1 0610-0704 ● ●
10 CONNECTOR
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 0705- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0610- ● ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0610- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 04 1 0610- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM HSA<SLD> (D) PT3/8 4WAY 		1-09661-489-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ● ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610- ● ●
12 CONNECTOR; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610- ●
25 SWITCH; PRESSURE
MJX12P M/T SMOOTHER-G(Y4S) 		8-97383-820-1 01 1 0610- ●
52 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0610- ●
56 BRACKET; RELAY VLV
BRAKE SYSTEM HSA<SLD> (B) 		1-47479-893-1 01 1 0610- ● ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 0610- ● ●
56 BRACKET; RELAY VLV
MJT7S M/T(Y3E) (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-47479-328-0 01 1 0610- ●
56 BRACKET; RELAY VLV
MJT7S M/T(Y3E) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-47479-328-0 01 1 0610- ●
58 ADAPTER
LOAD SENSING PROPORTIONING VALVE<JR7> PT3/8 3WAY 		1-09661-300-0 01 1 0610- ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0610- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0610- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0610- ● ●
108 CONNECTOR; ELBOW
MJX12P M/T SMOOTHER-G(Y4S) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0610- ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0610- ● ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0610- ● ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 01 1 0610- ● ●

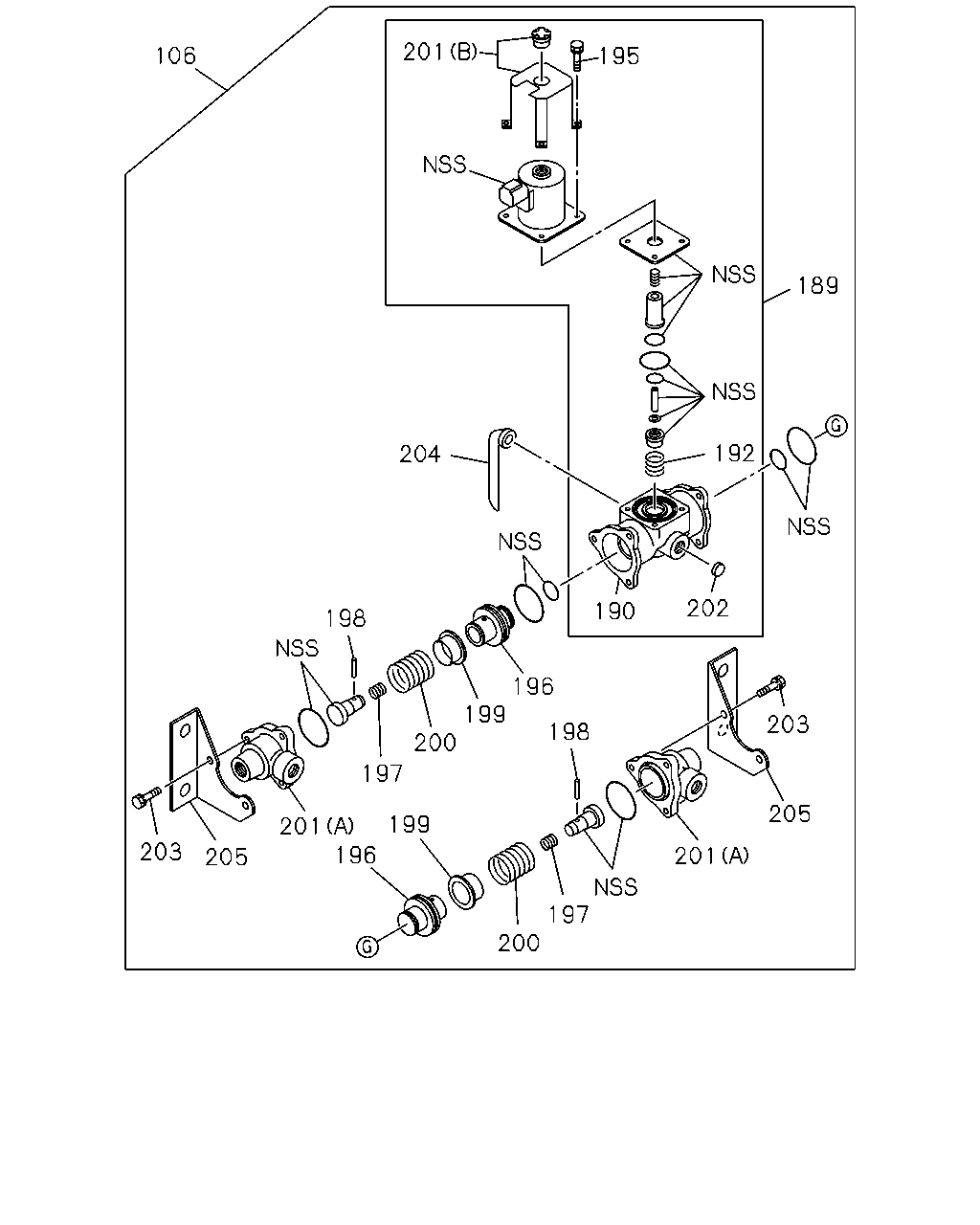

çizim 139887
201 106 195 189 192 204 202 190 198 196 199 200 203 198 197 205 199 201 196 203 201 205 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
BRAKE SYSTEM HSA<SLD> 		1-46362-118-1 01 1 0610- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-242-0 01 1 0610- ● ●
190 BODY; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-234-0 01 1 0610- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-181-0 01 1 0610- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-191-0 04 1 0610- ● ●
196 PISTON; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-232-0 02 1 0610- ● ●
197 SPRING; INNER,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-161-0 02 1 0610- ● ●
198 PIN; STRAIGHT,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-122-0 02 1 0610- ● ●
199 RETAINER; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-121-0 02 1 0610- ● ●
200 SPRING; OUTER,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-120-0 02 1 0610- ● ●
201 COVER; HSA VLV
BRAKE SYSTEM HSA<SLD> (A) 		1-46366-118-1 02 1 0610- ● ●
201 COVER; HSA VLV
BRAKE SYSTEM HSA<SLD> (B) 		1-46366-241-0 01 1 0610- ● ●
202 FILTER; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-117-1 02 1 0610- ● ●
203 SCREW; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-116-1 06 1 0610- ● ●
204 PIPE ASM; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-194-0 01 1 0610- ● ●
205 BRACKET; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-243-0 02 1 0610- ● ●

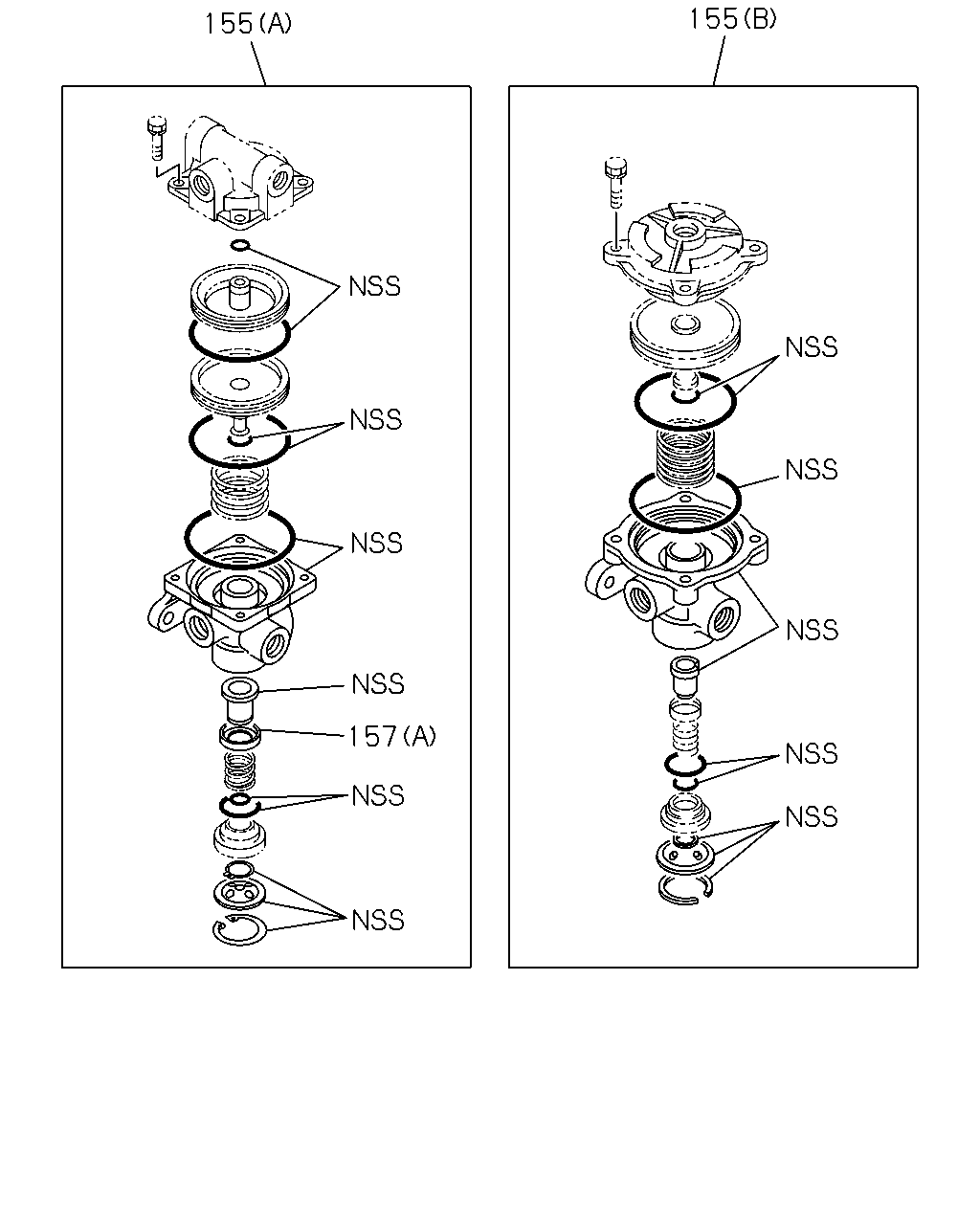

çizim 139892
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0610- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0610- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0610- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0610-1006 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM HSA<SLD> (A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0610-1006 ● ●
157 RETAINER; VALVE
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-48419-020-0 01 1 0610- ● ●

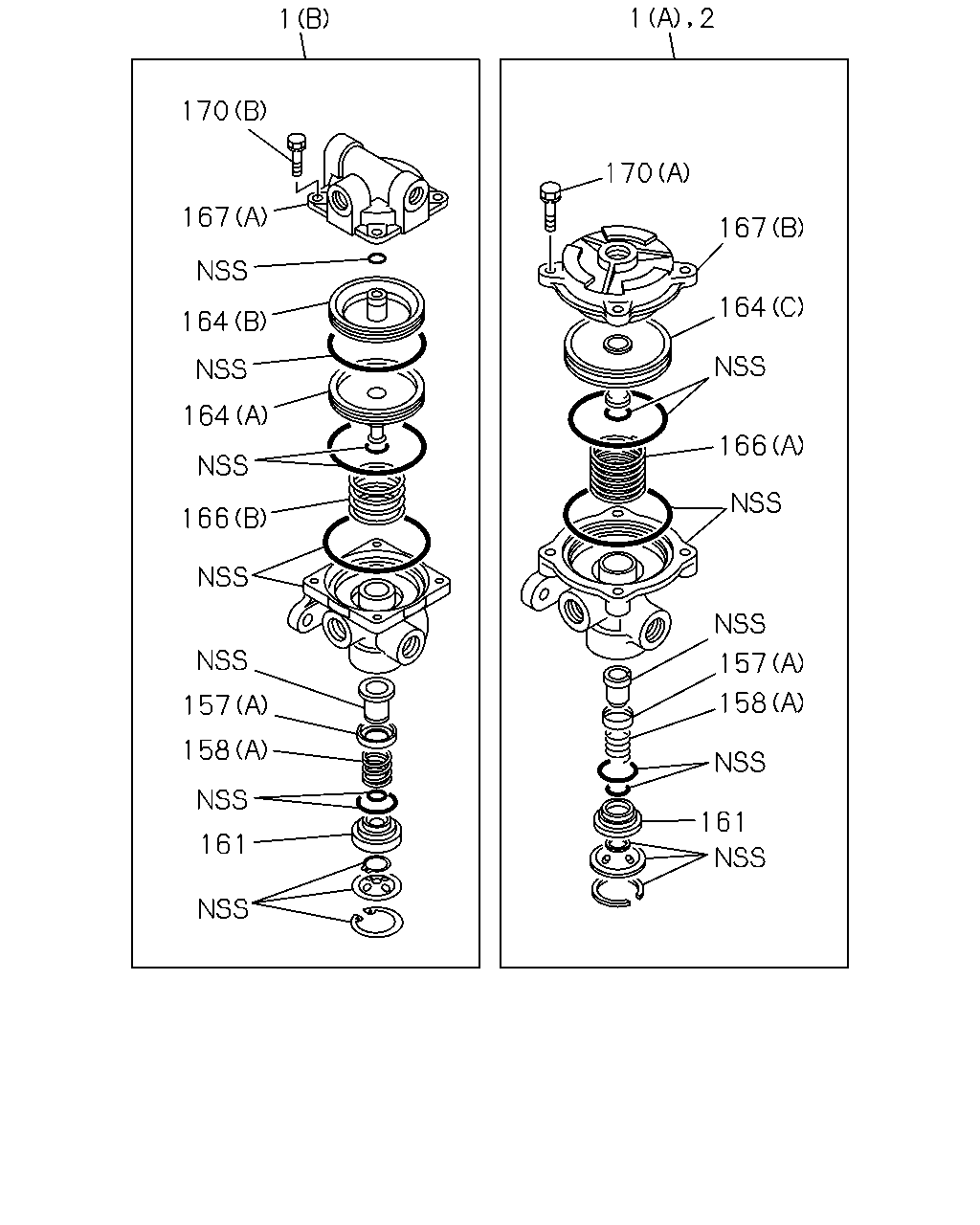

çizim 139893
2 1 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 0610- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 0610- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0610- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0610-1006 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM HSA<SLD> (A) 		1-48213-002-0 01 1 1007- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0610-1006 ● ●
157 RETAINER; VALVE
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-48419-020-0 01 1 0610- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0610-1006 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
BRAKE SYSTEM HSA<SLD> (A) 		1-47819-089-0 01 1 1007- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0610-1006 ● ●
158 SPRING; VALVE
EXC. BRAKE SYSTEM HSA<SLD> (B) 		9-48419-003-0 01 1 0610- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0610-1006 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1007- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1007- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1007- ● ●
161 GUIDE; VALVE
BRAKE SYSTEM HSA<SLD> 		1-48129-014-0 01 1 1007- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0610-1006 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0610- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0610- ● ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0610- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0610- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0610- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0610- ● ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0610- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0610- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0610- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0610- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0610- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0610- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
