2-85 — POWER TAKE OFF CONTROL (#27484) — 53 parça
çizim 139854
1 3 246 217 132 3 3 1 139 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
ENGINE REAR PTO(SV1) (B) 		1-79907-048-1 01 1 0912-0912 ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 0610- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
ENGINE REAR PTO(SV1) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0912-0912 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 0610-0911 ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,ENGINE REAR PTO(SV1) 		1-09983-068-0 01 1 0912-0912 ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 0912-0912 ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 1001- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0610- ● ●
139 BRACKET; CONT BOX
ENGINE REAR PTO(SV1) 		1-79907-044-0 01 1 0912-0912 ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0610- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 0610- ● ●

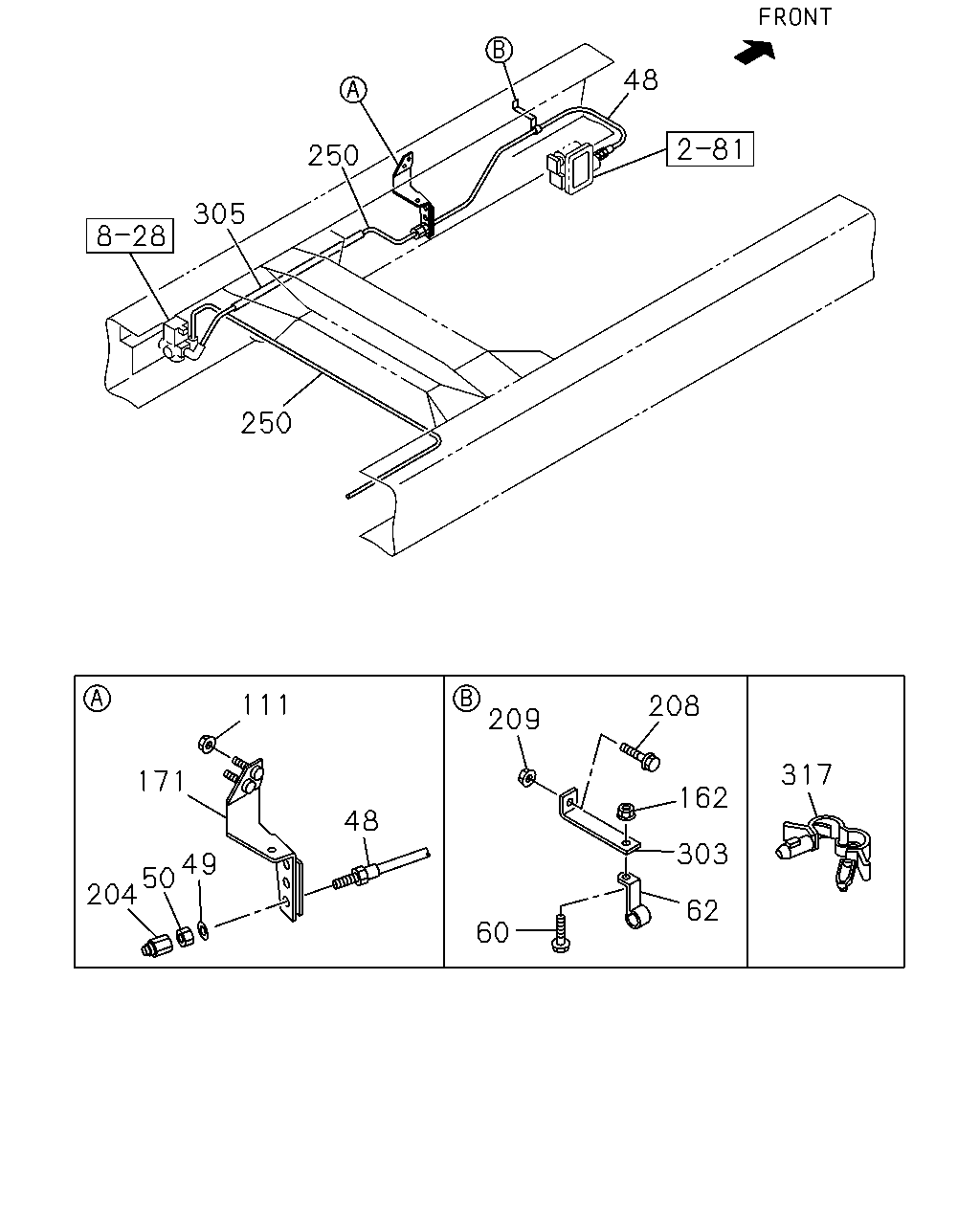

çizim 139859
48 250 305 250 111 208 209 317 171 162 48 303 49 50 204 62 60
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 0706- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 0610- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=370 		1-09363-621-0 01 1 0610- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0610-0705 ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0610-0705 ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0706- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0706- ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0610-0705 ● ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0706- ● ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 0610- ● ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0610-0705 ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0610-0705 ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0706- ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0706- ●
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-337-0 01 1 0610-0705 ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) 		1-47471-337-0 01 1 0610-0705 ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-337-0 01 1 0706- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) 		1-47471-337-0 01 1 0706- ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-0705 ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-0705 ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0706- ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0706- ●
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 0610- ● ●
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
250 TUBE; NYLON
WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 02 1 0610-0705 ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 02 1 0610-0705 ●
250 TUBE; NYLON
WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 02 1 0706- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 02 1 0706- ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0610-0804 ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0610-0804 ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0805- ● ●
305 TUBE; CORRUGATE
WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0610-0705 ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0610-0705 ●
305 TUBE; CORRUGATE
WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0706- ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0706- ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0705 ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0705 ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=5-12 L=18 		1-09709-287-0 01 1 0706- ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) ID=5-12 L=18 		1-09709-287-0 01 1 0706- ●
