Sayfa 2-53 - Isuzu EPC

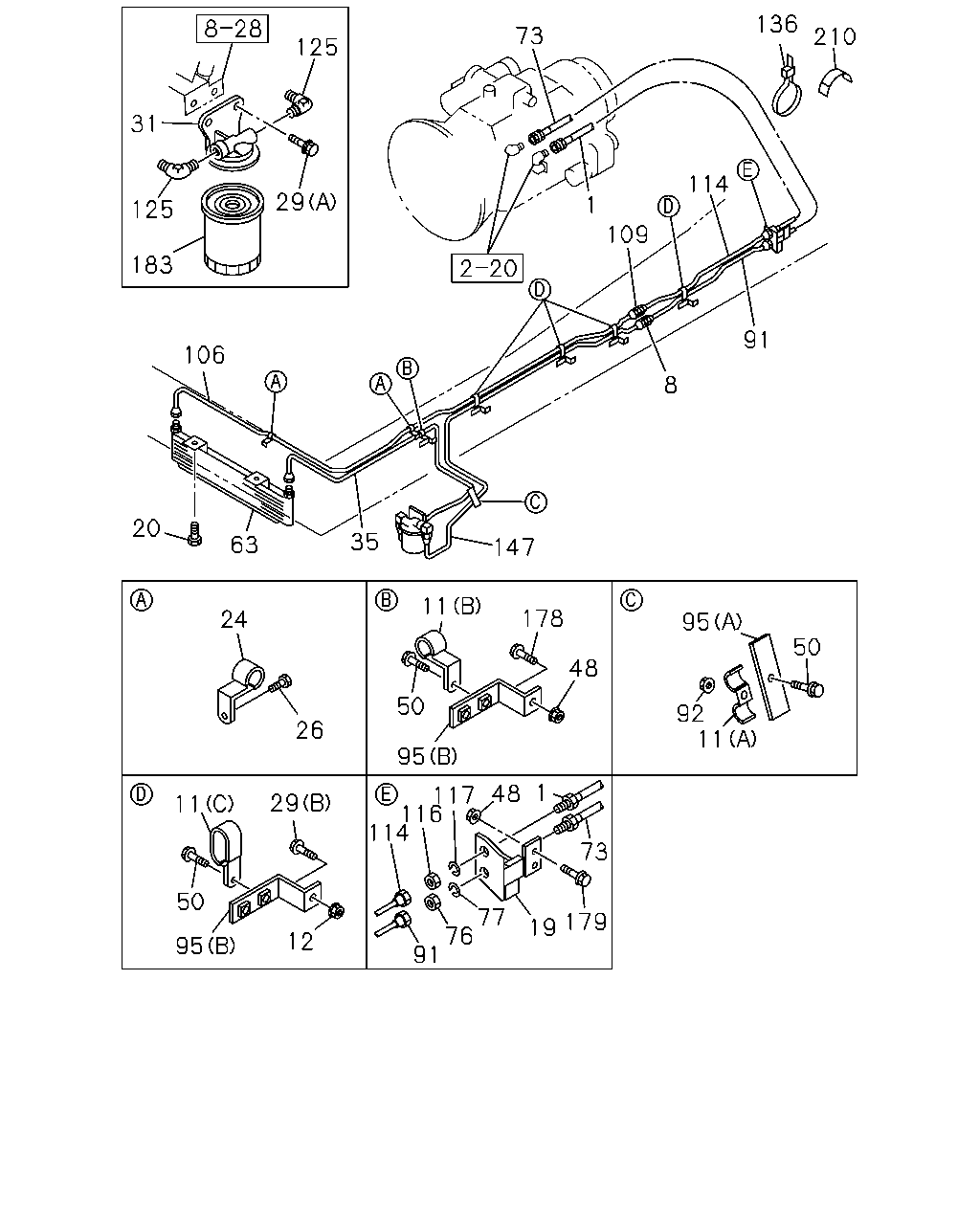

2-53 — TRANSMISSION OIL COOLER SYSTEM (#27482) — 218 parça

136 73 210 125 31 114 29 1 125 109 183 91 106 8 20 35 63 147 11 178 24 95 50 48 50 92 11 26 95 1 48 117 116 114 29 11 73 50 77 76 91 179 19 12 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	0610-	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0610-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	0610-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	0610-	●	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	0610-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	0610-	●	●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	0610-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0610-		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	0610-	●	●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	0610-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0610-	●	●
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	0610-	●	●
24	CLIP; OIL PIPE ID=11 H=20 L=20	5-09700-351-0	02	1	0610-0707	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	5-09700-351-0	02	1	0610-0707		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	0708-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	0610-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	0610-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	0610-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
31	BRACKET; OIL FILTER	1-33119-222-0	01	1	0610-	●
31	BRACKET; OIL FILTER MJT7 M/T<Y9E>	1-33119-222-0	01	1	0610-		●
35	PIPE; OIL,OIL COOLER TO FILTER WHEEL BASE 4900MM(49W) L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0612-	●
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0612-		●
35	PIPE; OIL,OIL COOLER TO FILTER L=1319 SERVICED BY L=1400	1-47428-878-0	01	1	0610-0610	●
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1319 SERVICED BY L=1400	1-47428-878-0	01	1	0610-0610		●
35	PIPE; OIL,OIL COOLER TO FILTER L=1329 SERVICED BY L=1400	1-47428-878-0	01	1	0610-0611	●
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1329 SERVICED BY L=1400	1-47428-878-0	01	1	0610-0611		●
35	PIPE; OIL,OIL COOLER TO FILTER WHEEL BASE 4500MM(45W) L=1324 SERVICED BY L=1400	1-47428-878-0	01	1	0612-	●
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	0610-		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0610-0611	●	●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0612-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	0610-0611		●
63	COOLER; OIL	1-21700-290-0	01	1	0610-0610	●
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-290-0	01	1	0610-0610		●
63	COOLER; OIL	1-21700-394-0	01	1	0610-1405	●
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	0610-1405		●
63	COOLER; OIL	8-98269-766-0	01	1	1406-	●
63	COOLER; OIL MJT7 M/T<Y9E>	8-98269-766-0	01	1	1406-		●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0610-	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0610-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	0610-		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	0610-	●	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	0610-0610		●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	0610-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	0610-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	0610-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0610-	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	0610-		●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	0610-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	0610-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	0610-		●
106	PIPE ASM; OIL,COOLER TO UNION	8-98034-834-0	01	1	0610-	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E>	8-98034-834-0	01	1	0610-		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	0610-	●	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	0610-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98054-529-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98053-697-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98053-697-0	01	1	0610-0810		●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	0811-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	0610-		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	0610-	●	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	0610-	●	●
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0610-	●
125	CONNECTOR; OIL FILTER MJT7 M/T<Y9E> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0610-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0610-	●	●
147	PIPE; OIL,UNION TO FILTER L=1713 SERVICED BY L=1783	1-47428-881-0	01	1	0610-0611	●
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1713 SERVICED BY L=1783	1-47428-881-0	01	1	0610-0611		●
147	PIPE; OIL,UNION TO FILTER L=1764	8-98069-775-0	01	1	0612-	●
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1764	8-98069-775-0	01	1	0612-		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0610-	●
183	CARTRIDGE; OIL FILTER MJT7 M/T<Y9E>	8-94459-700-1	01	1	0610-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0610-	●	●

11 29 178 8 109 12 50 95 1 101 48 136 210 82 111 114 73 80 179 82 81 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	0610-	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0610-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	0610-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	0610-	●	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	0610-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	0610-	●	●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	0610-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0610-		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	0610-	●	●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	0610-		●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	0610-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	0610-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	0610-		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0610-0611	●	●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0612-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	0610-0611		●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0610-	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0610-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	0610-		●
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	0610-		●
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	0610-		●
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	0610-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	0610-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0610-	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	0610-		●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	0610-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	0610-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	0610-		●
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	0610-		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	0610-	●	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	0610-		●
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	0610-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98054-529-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98053-697-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98053-697-0	01	1	0610-0810		●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	0811-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	0610-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0610-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	0610-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0610-	●	●

114 91 94 94 94 29 95 26 95 24 50 11 12 50 11 92 29 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	0610-	●	●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0610-0611		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0612-		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	0610-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	0610-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-	●	●
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0610-		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	5-09700-351-0	02	1	0610-0707	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	5-09700-351-0	02	1	0610-0707		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	0708-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	0610-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	0610-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	0610-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	0610-		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0610-0611	●	●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0612-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	0610-0611		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	0610-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	0610-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	0610-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (B) L=2045	1-49167-291-0	01	1	0610-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (A) L=1610	1-49167-565-0	01	1	0610-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (C) L=1010	1-49167-738-0	01	1	0610-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0610-	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	0610-		●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	0610-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	0610-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	0610-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98054-529-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98053-697-0	01	1	0610-0810	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98053-697-0	01	1	0610-0810		●
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	0811-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	0811-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
