Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11036 - CYZ RHD EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-38 - SHIFT CONTROL
▶
2-38 — SHIFT CONTROL
(#27480) — 10 parça
◀

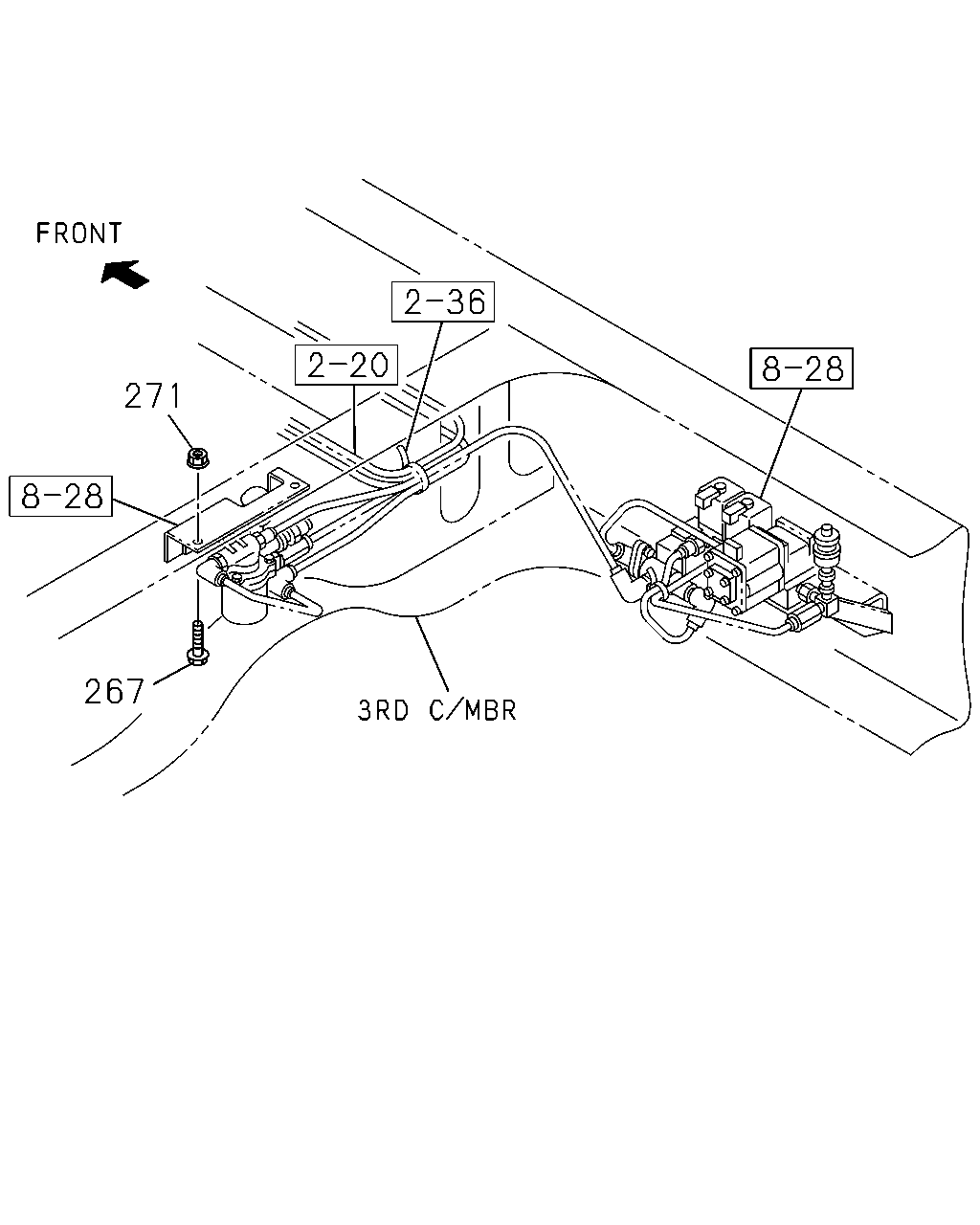

[238A] FIXING;AIR FILTER (2 parça)
[238A] ASM (8 parça)
▶
271
267
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
267
BOLT; AIR FILTER
M8X25 FLANGE
0-28650-825-0
02
1
0610-
271
NUT; AIR FILTER
M8 FLANGE
0-91180-108-0
02
1
0610-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1

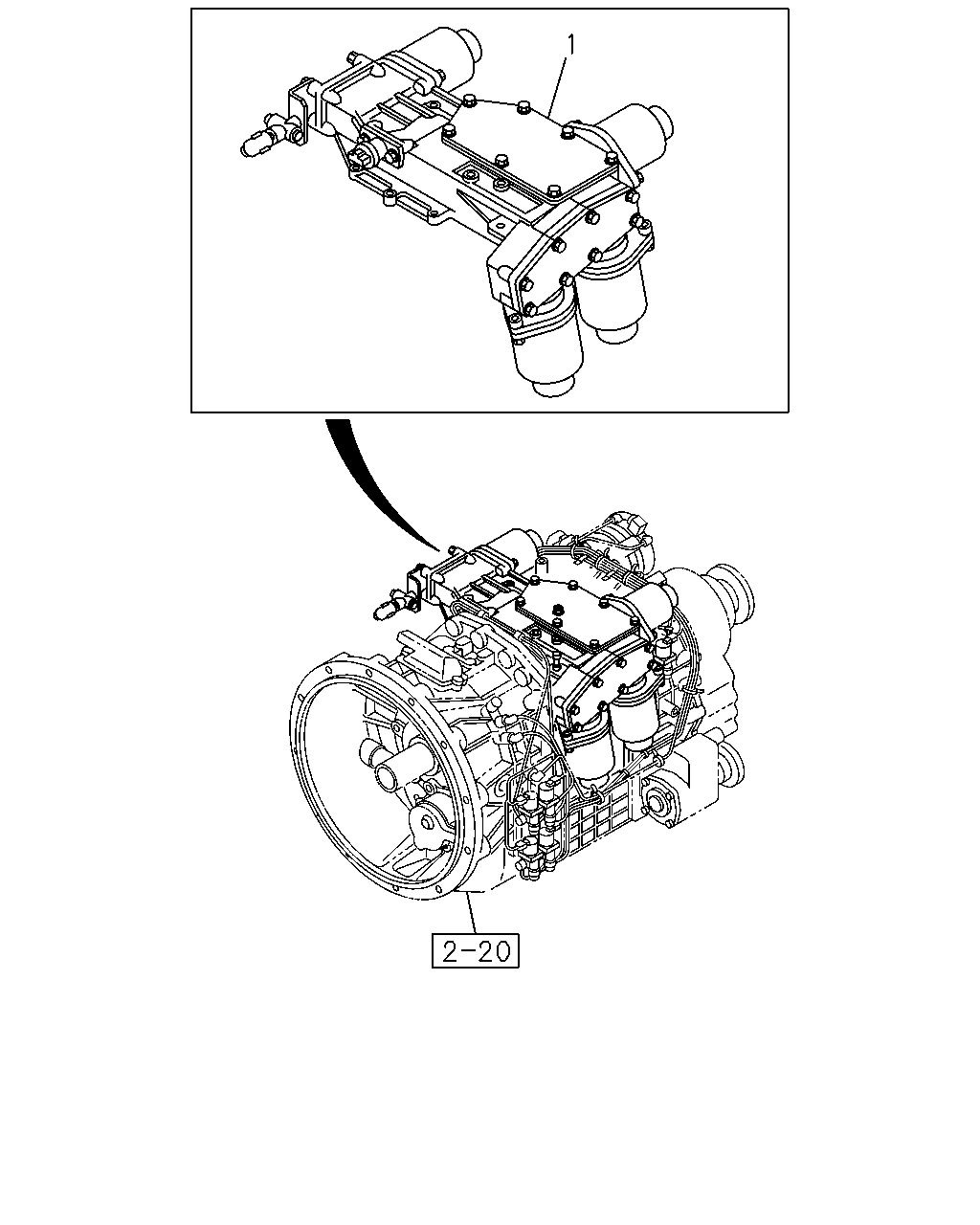

ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98055-134-0
01
1
0610-0701
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98070-039-1
01
1
0702-0905
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98147-540-0
01
1
0906-1007
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98163-035-0
01
1
1008-1106
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98186-515-0
01
1
1107-1310
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98248-186-0
01
1
1311-1311
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98254-316-0
01
1
1311-1506
1
ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT.
8-98302-714-0
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
