0-30B — WATER PUMP AND CORROSION RESISTOR (#2748) — 44 parça

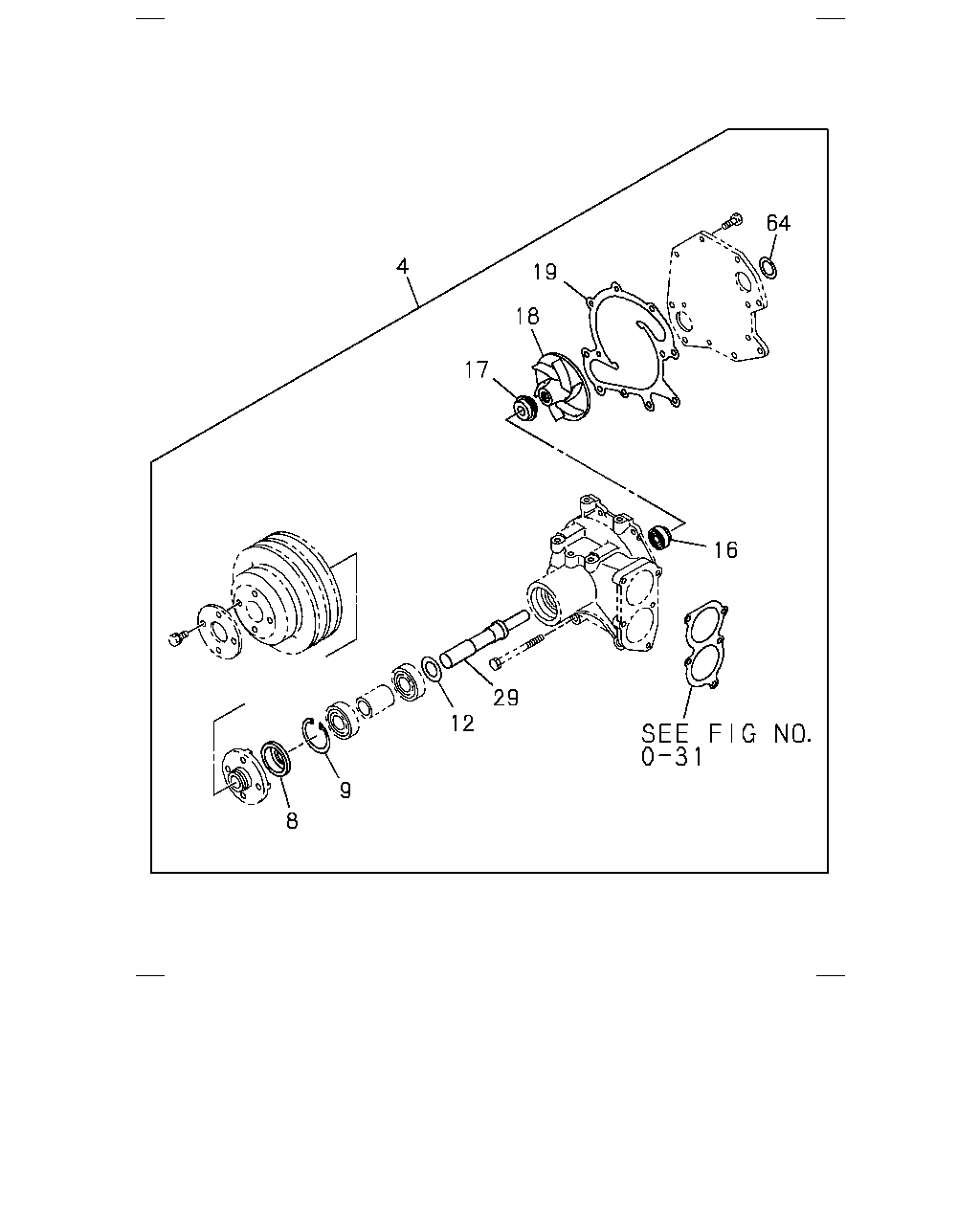

çizim 5564
4 19 18 17 16 29 12 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
4 REPAIR KIT; WATER PUMP 1-87810-772-1 01 1 9002-9306 ●
4 REPAIR KIT; WATER PUMP 1-87810-979-0 01 1 9307- ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 9002- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9002- ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9002- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9002- ● ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9002- ● ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9002- ● ●
19 GASKET; COVER TO BODY 1-13613-037-0 01 1 9002-9106 ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9107- ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9002- ● ●

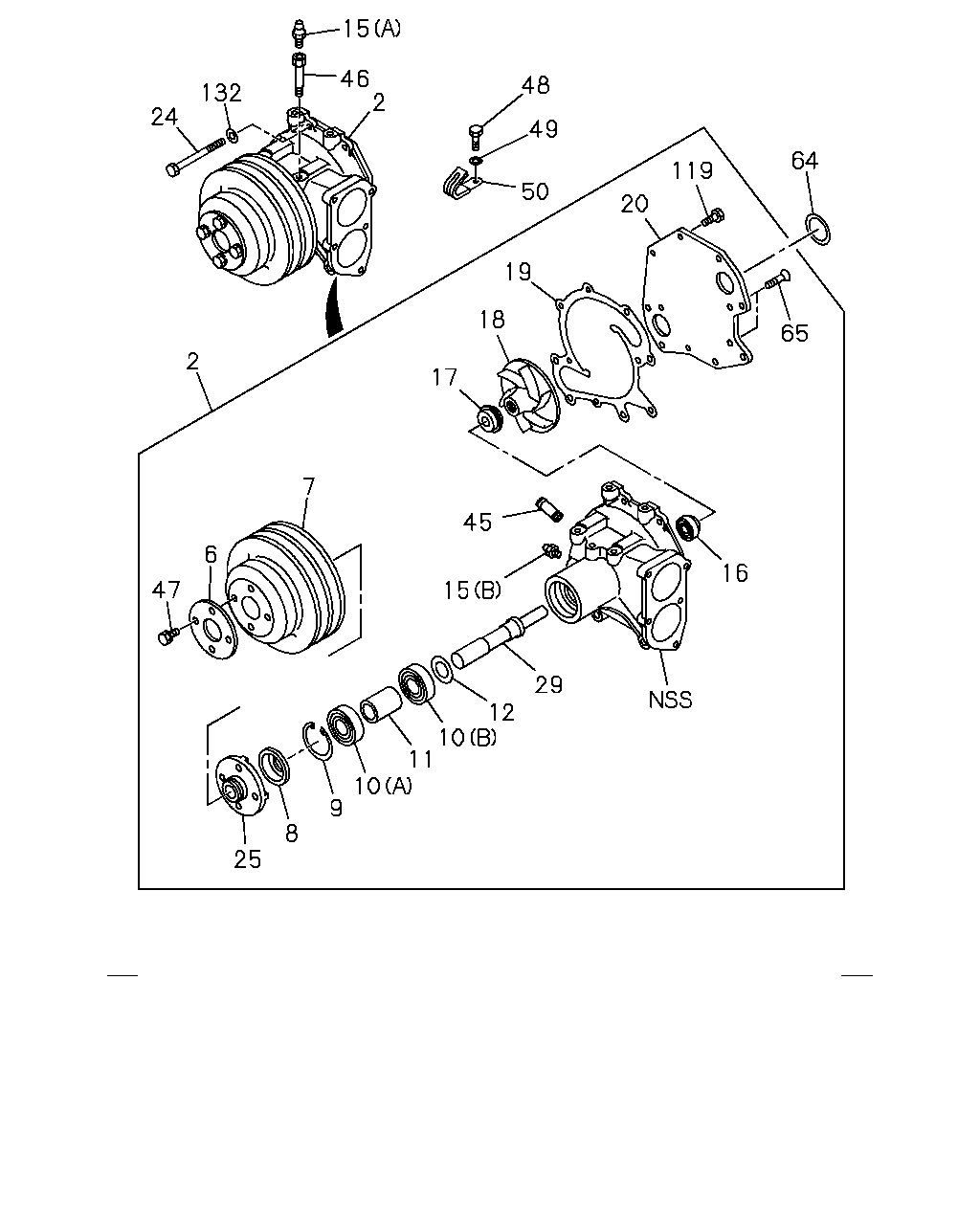

çizim 37146
24 132 15 46 2 48 49 50 2 47 6 7 17 18 19 20 119 64 65 45 15 16 29 12 10 11 10 9 8 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 PUMP ASM; WATER 1-13610-789-3 01 1 9002- ● ●
6 WASHER; PL,PULLEY 1-13639-024-0 01 1 9002- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-104-0 01 1 9002- ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 9002- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9002- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-011-0 01 1 9002- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-012-0 01 1 9002- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 9002- ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9002- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9002- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9002- ● ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9002- ● ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9002- ● ●
19 GASKET; COVER TO BODY 1-13613-037-0 01 1 9002-9106 ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9107- ● ●
20 COVER; WATER PUMP 1-13612-027-1 01 1 9002- ● ●
24 BOLT; WATER PUMP
M10X110 		1-09020-004-0 03 1 9002- ● ●
24 BOLT; WATER PUMP
M10X170 		1-09020-013-0 01 1 9002- ● ●
25 CENTER; WATER PUMP 1-13669-092-0 01 1 9002- ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9002- ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9002- ● ●
46 CONNECTOR; GREASE PIPE 1-09660-102-0 01 1 9002- ● ●
47 BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER 		0-50051-022-0 04 1 9002- ● ●
48 BOLT; CLIP
M10X16 		0-23801-016-0 01 1 9002- ● ●
49 WASHER; LK,CLIP
ID=10.2 		9-09150-510-0 01 1 9002- ● ●
50 CLIP; ENG HARNESS
L=36 		8-94224-891-1 01 1 9002- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9002- ● ●
65 SCREW; COVER,WATER PUMP
M8X16 CK-HEAD 		9-03090-816-0 02 1 9002- ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		9-01910-818-0 04 1 9002-9005 ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		0-50040-818-0 04 1 9006- ● ●
132 WASHER; PL,WATER PUMP
ID=10.2 		9-09150-610-0 04 1 9002-9106 ●
132 WASHER; PL,WATER PUMP
ID=10.5 		9-09851-866-0 04 1 9107- ● ●
