2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#27478) — 88 parça

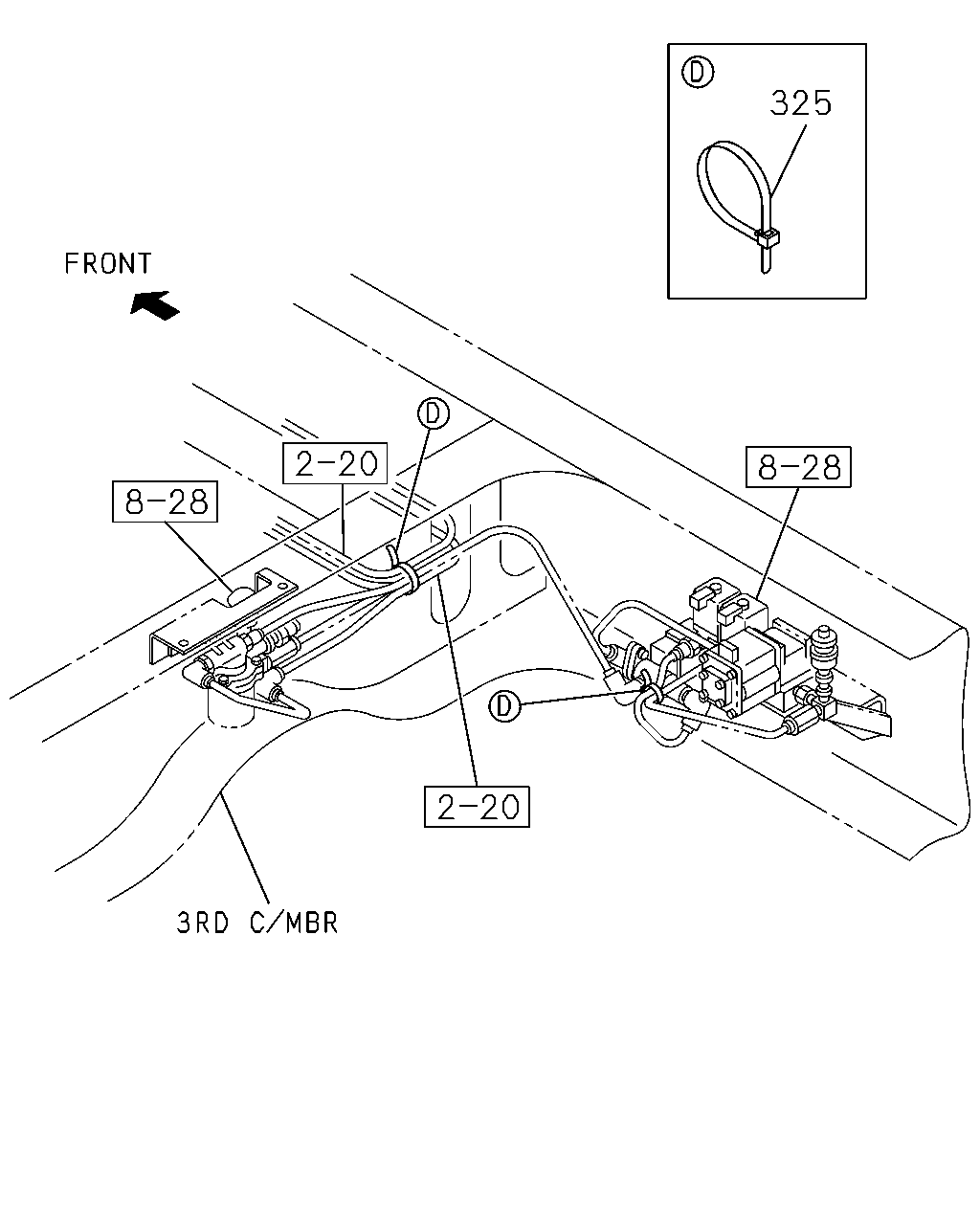

325

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	325	CLIP; NYLON TUBE SMOOTHER-G(C1W) L=350	1-09707-183-0	02	1	0610-	●

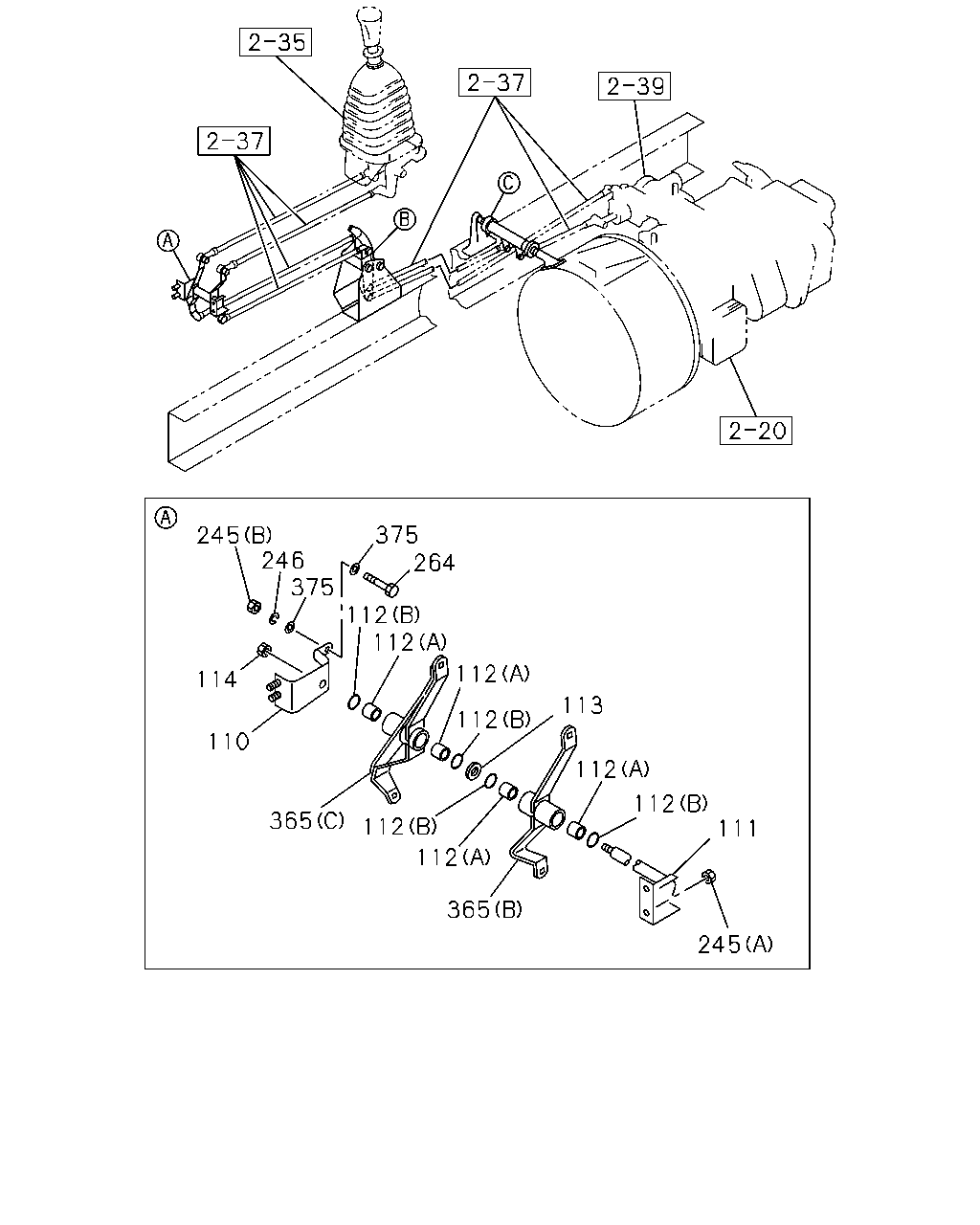

375 264 245 246 375 112 112 112 114 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST	1-33657-839-1	01	1	0610-		●
110	BRACKET; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0610-	●
111	SHAFT; RELAY LEVER,1ST	1-33619-777-2	01	1	0610-		●
111	SHAFT; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0610-	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0610-		●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	0610-	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0610-		●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	0610-	●
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	0610-		●
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	0610-	●
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0610-		●
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	0610-	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0610-1304		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	0610-1304	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-110-0	02	1	1305-		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-110-0	02	1	1305-	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0610-		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	0610-	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0610-		●
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	0610-	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0610-		●
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	0610-	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0610-	●
365	LEVER; RELAY,SELECT (B)	1-33651-822-3	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0610-	●
365	LEVER; RELAY,SELECT (C)	1-33651-823-3	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0610-	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0610-		●
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0610-	●

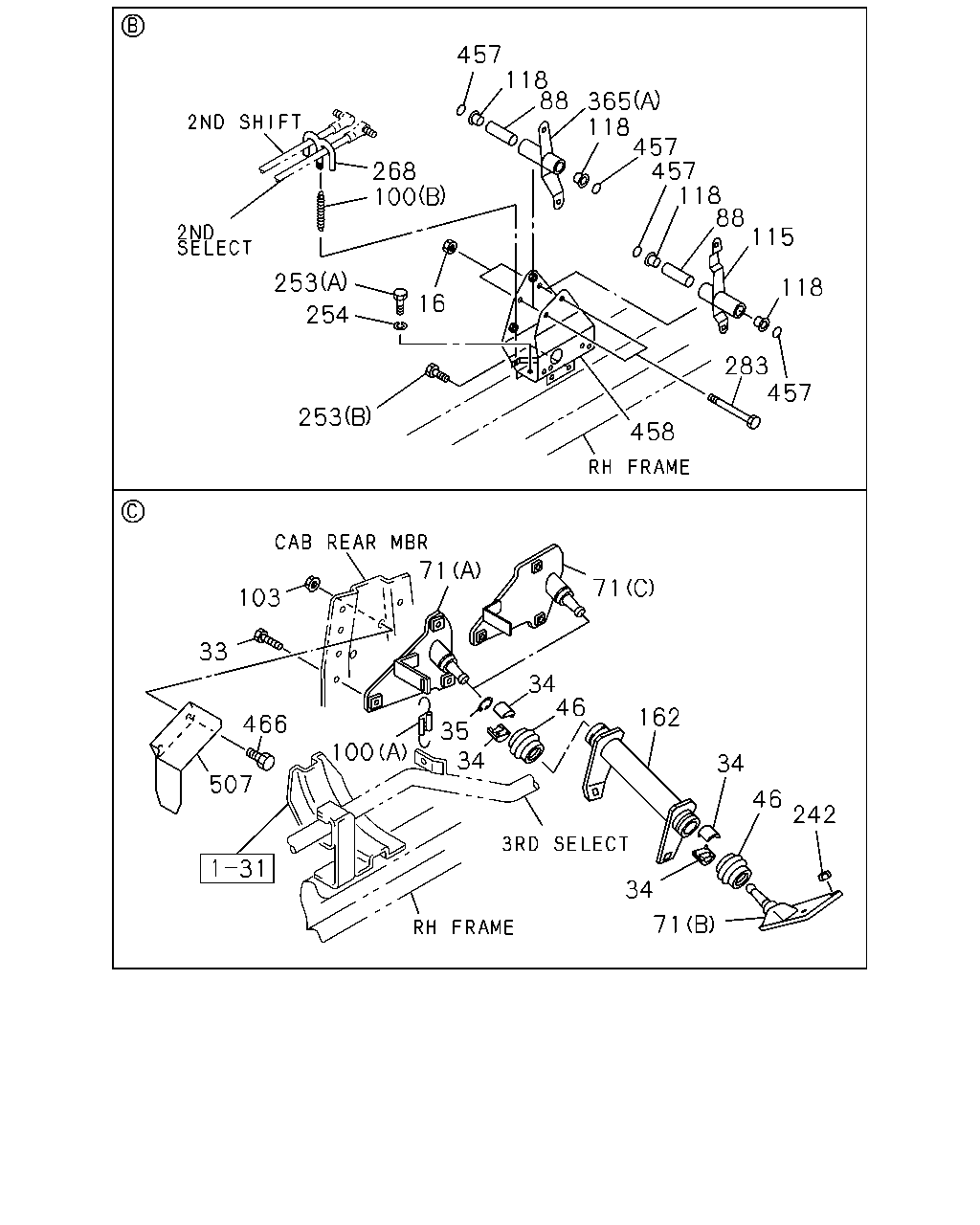

457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0610-		●
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0610-1003		●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28651-030-0	03	1	0610-1003	●
33	BOLT; BRKT,3RD RELAY LEVER M10X35 FLANGE	0-28651-035-0	03	1	1004-		●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1004-	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0610-		●
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	0610-	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0610-		●
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	0610-	●
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0610-		●
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	0610-	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (C)	1-33657-827-0	01	1	0610-		●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0610-		●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	0610-	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2> (A)	1-33657-706-0	01	1	0610-		●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	0610-	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0610-		●
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	0610-	●
100	SPRING (A)	1-09583-319-0	01	1	0610-		●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	0610-	●
100	SPRING (B)	1-09583-351-0	01	1	0610-		●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	0610-	●
103	NUT M8 FLANGE	0-91180-108-0	01	1	0610-		●
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0610-	●
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0610-		●
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	0610-	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0610-		●
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	0610-	●
162	LEVER; RELAY	1-33651-625-1	01	1	0610-		●
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	0610-	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0610-		●
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	0610-	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0610-		●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	0610-	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28051-025-0	02	1	0610-		●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28051-025-0	02	1	0610-	●
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0610-		●
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	0610-	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0610-		●
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	0610-	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0610-		●
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	0610-	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0610-	●
365	LEVER; RELAY,SELECT (B)	1-33651-822-3	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0610-	●
365	LEVER; RELAY,SELECT (C)	1-33651-823-3	01	1	0610-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0610-	●
457	GASKET	1-09623-594-0	04	1	0610-		●
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-594-0	04	1	0610-	●
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0610-		●
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	0610-	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0610-		●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	02	1	0610-	●
507	PROTECTOR; HEAT	1-14181-287-1	01	1	0610-		●
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	1-14181-287-1	01	1	0610-	●
