2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#27477) — 118 parça

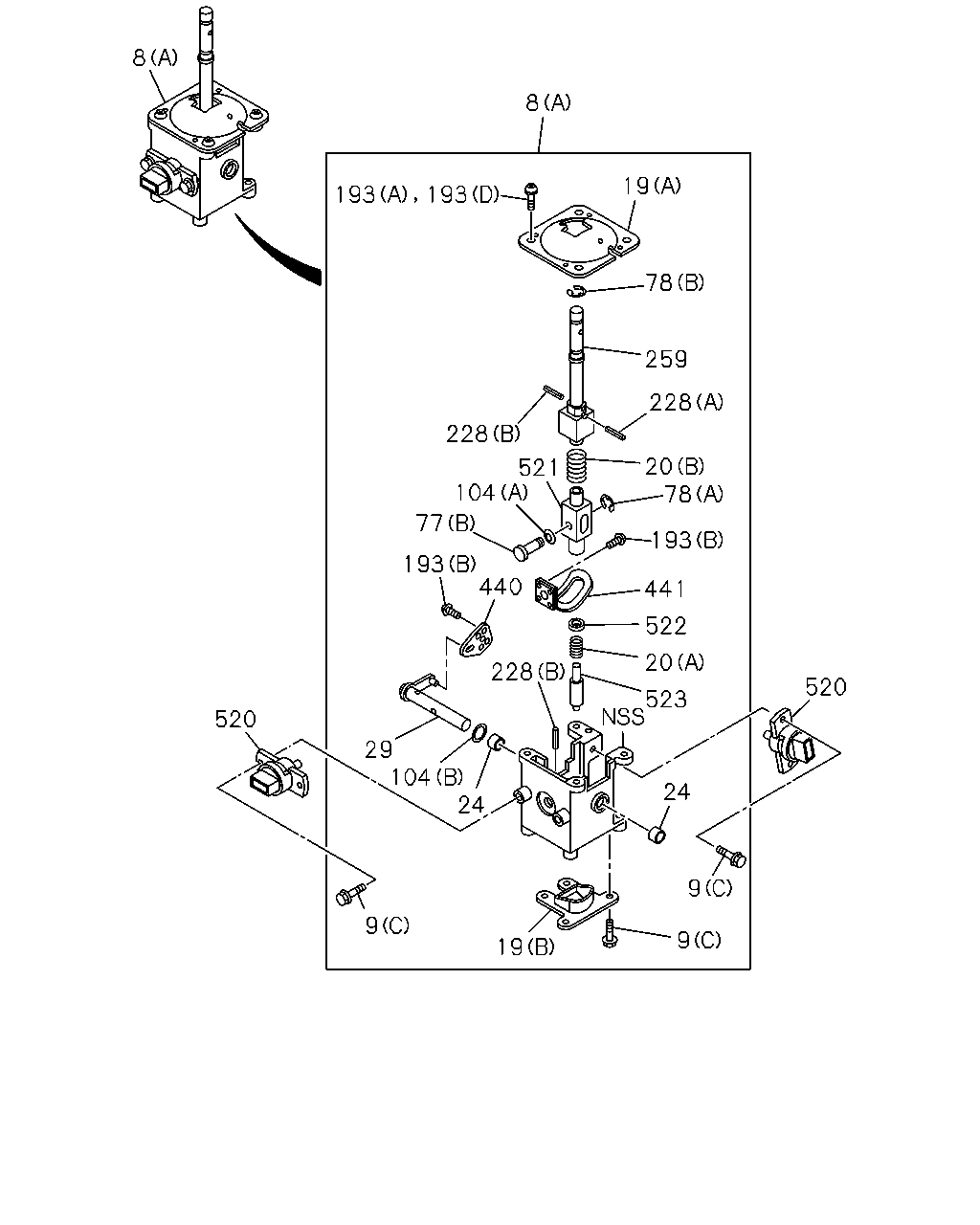

çizim 139832
8 8 19 193 193 78 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 520 523 520 29 104 24 24 9 9 9 19
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (A) 		1-33620-114-2 01 1 0610-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0610-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610- ●
19 COVER; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-790-0 01 1 0610-1010 ●
19 COVER; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-791-0 01 1 0610-1010 ●
20 SPRING; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-786-0 01 1 0610-1010 ●
20 SPRING; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-787-0 01 1 0610-1010 ●
24 BUSHING; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-797-0 02 1 0610-1010 ●
29 SHAFT
SMOOTHER-G(C1W) 		1-33619-792-0 01 1 0610-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0610-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0610-1010 ●
78 RING; SNAP,CHANGE LEVER
SMOOTHER-G(C1W) (A) ID=4 		9-09185-404-0 01 1 0610-1010 ●
78 RING; SNAP,CHANGE LEVER
SMOOTHER-G(C1W) (B) ID=9 		9-09185-409-0 01 1 0610-1010 ●
104 WASHER; WAVED
SMOOTHER-G(C1W) (A) 		1-33619-788-0 01 1 0610-1010 ●
104 WASHER; WAVED
SMOOTHER-G(C1W) (B) 		1-33619-789-0 01 1 0610-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0610-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0610-0911 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
228 PIN; SPR,CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-505-0 01 1 0610-1010 ●
228 PIN; SPR,CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-796-0 02 1 0610-1010 ●
259 LEVER; CHANGE,UPR
SMOOTHER-G(C1W) 		1-33619-782-0 01 1 0610-1010 ●
440 LEVER; SHIFT
SMOOTHER-G(C1W) 		1-33619-794-0 01 1 0610-1010 ●
441 LEVER; SELECT
SMOOTHER-G(C1W) 		1-33619-793-0 01 1 0610-1010 ●
520 SENSOR; CHANGE LEVER
SMOOTHER-G(C1W) 		1-81541-113-0 02 1 0610-1010 ●
521 LEVER; CHANGE,LOW
SMOOTHER-G(C1W) 		1-33619-783-0 01 1 0610-1010 ●
522 GUIDE; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-784-0 01 1 0610-1010 ●
523 PLUNGER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-785-0 01 1 0610-1010 ●

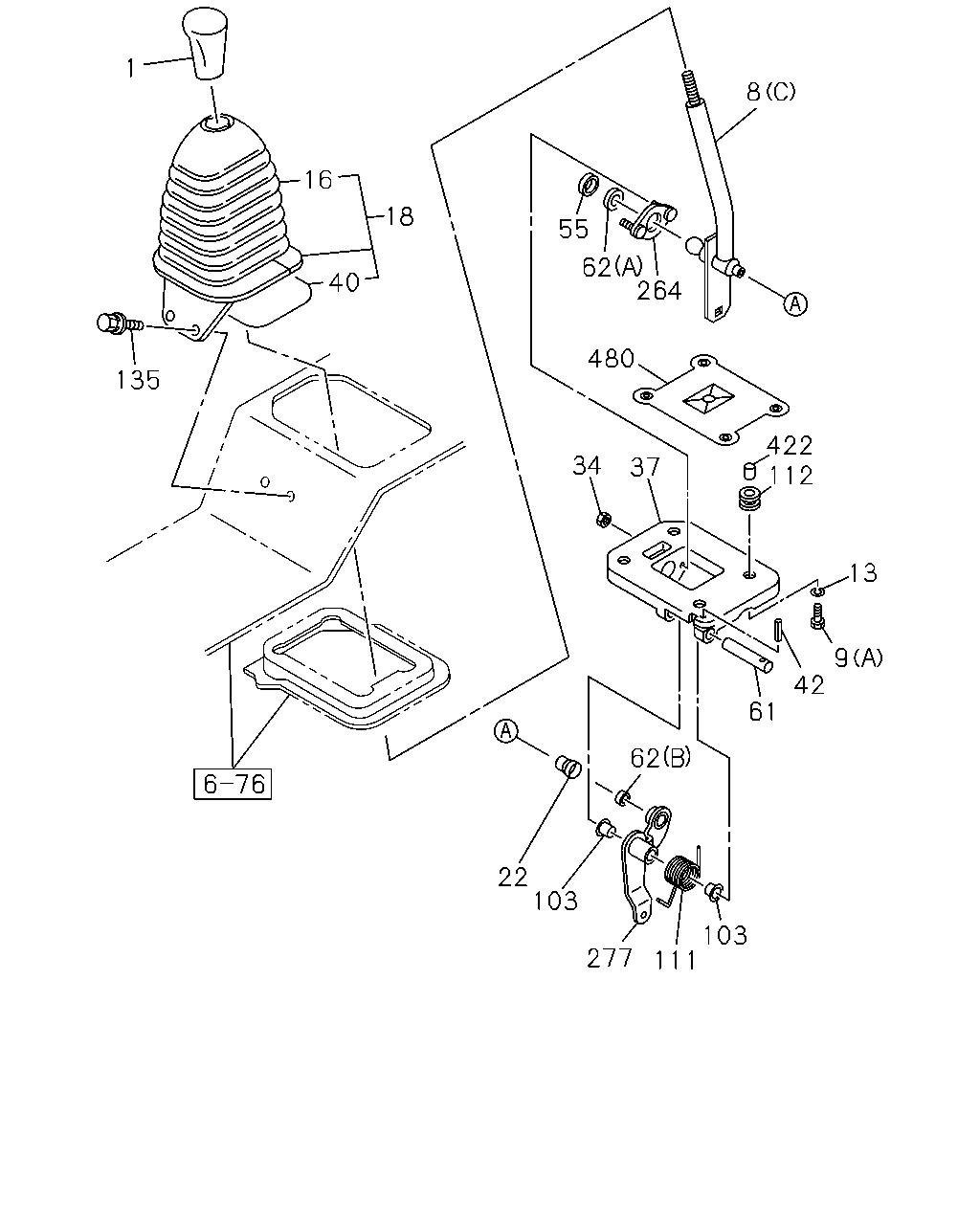

çizim 139840
1 8 16 18 55 62 40 264 480 135 422 112 34 37 13 9 42 61 62 22 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-082-1 01 1 0610- ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33611-082-1 01 1 0610- ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0610-0911 ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) 		8-98152-481-0 01 1 0912-1010 ●
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (A) 		1-33620-114-2 01 1 0610-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0610-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0610- ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 04 1 0610- ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 0610- ● ●
16 BOOT; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0610-1010 ●
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-436-2 01 1 0610- ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0610- ●
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-573-0 01 1 0610- ●
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0610- ●
34 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE 		0-91180-106-0 02 1 0610- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0610-0802 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-467-0 01 1 0610-0802 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0803- ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98100-876-1 01 1 0803- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-345-0 01 1 0610- ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0610- ●
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28 		8-94252-581-0 01 1 0610- ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0610-0802 ●
55 SEAT; RUBBER,SELECT SPRING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-429-0 01 1 0610-0802 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0610- ●
61 PIN; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-470-0 01 1 0610- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0610- ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33619-427-0 01 1 0610- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0610- ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97011-900-0 01 1 0610- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0610- ●
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16 		8-94252-671-0 02 1 0610- ●
111 SPRING 1-09585-133-1 01 1 0610- ●
111 SPRING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09585-133-1 01 1 0610- ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0610-0810 ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-426-0 04 1 0610-0810 ●
135 BOLT
MJT7S M/T(Y3E) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0610-0904 ● ●
135 BOLT
MJT7S M/T(Y3E) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
264 PLATE; COVER 1-33619-469-0 01 1 0610- ●
264 PLATE; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-469-0 01 1 0610- ●
277 LEVER; RELAY 1-33651-636-1 01 1 0610- ●
277 LEVER; RELAY
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33651-636-1 01 1 0610- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0610- ●
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-427-0 04 1 0610- ●
480 RUBBER; COVER 1-33619-554-0 01 1 0610-0810 ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-554-0 01 1 0610-0810 ●
480 RUBBER; COVER 8-98119-365-0 01 1 0811- ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98119-365-0 01 1 0811- ●

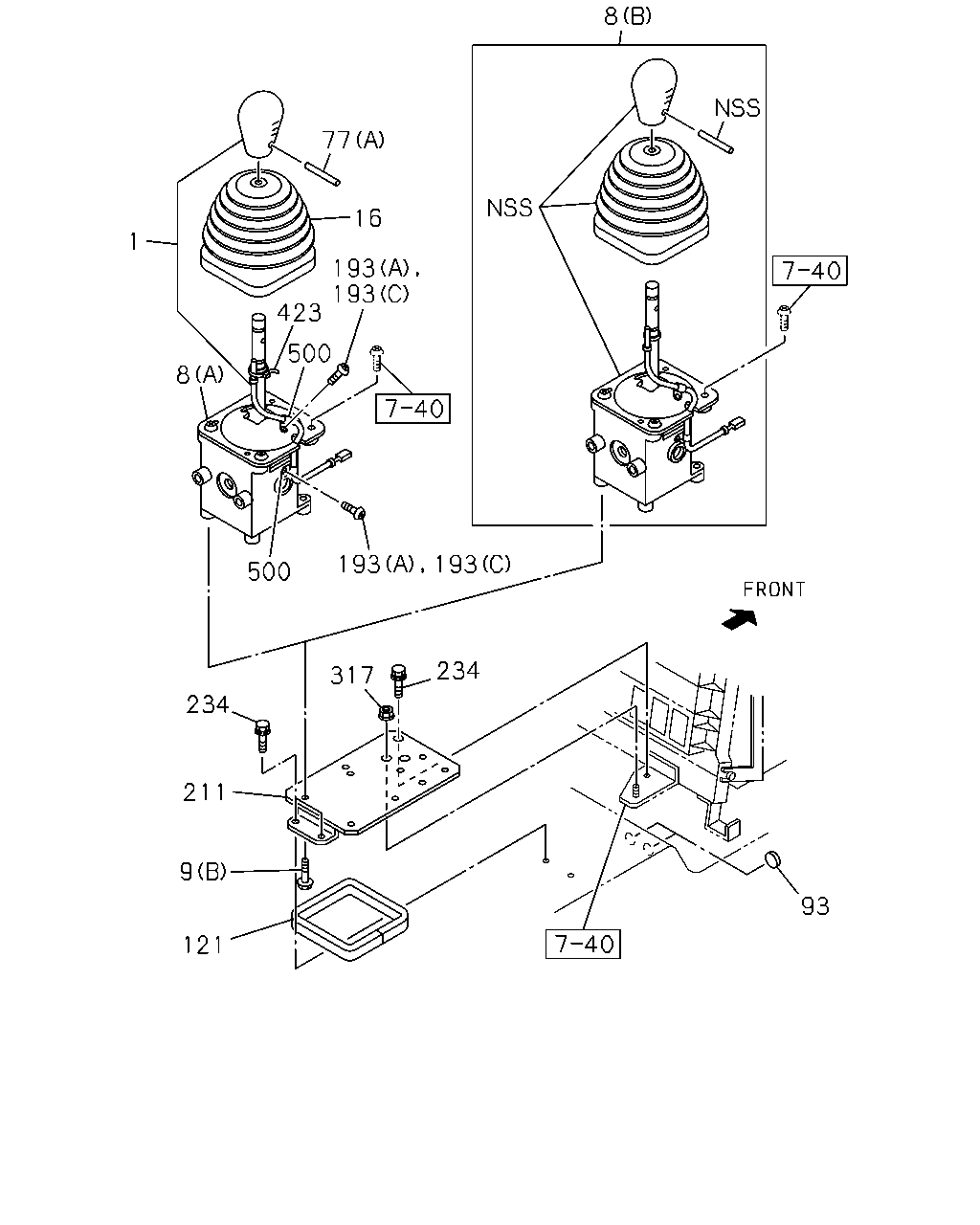

çizim 139869
8 77 16 1 193 193 423 500 8 193 193 500 234 317 234 211 9 93 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-082-1 01 1 0610- ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33611-082-1 01 1 0610- ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0610-0911 ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) 		8-98152-481-0 01 1 0912-1010 ●
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33613-344-0 01 1 0610- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (A) 		1-33620-114-2 01 1 0610-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0610- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0610-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610- ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 0610- ● ●
16 BOOT; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0610-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0610-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0610-1010 ●
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1010- ●
93 SEAL; HOLE COVER,GEAR CONT
EXC. SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 02 1 1010- ●
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 04 1 0610- ●
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 0610- ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0610-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0610-0911 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 0610- ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0610-0904 ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0610- ●
423 CLIP; BAND
SMOOTHER-G(C1W) 		1-33619-781-0 01 1 0610-0911 ●
423 CLIP; BAND
SMOOTHER-G(C1W) 		8-97138-392-0 01 1 0912-1010 ●
500 CLIP; HARNESS
SMOOTHER-G(C1W) ID=9 L=16 		9-09524-822-0 02 1 0610-1010 ●
