2-07 — CLUTCH BOOSTER; MINIPACK (#27469) — 200 parça

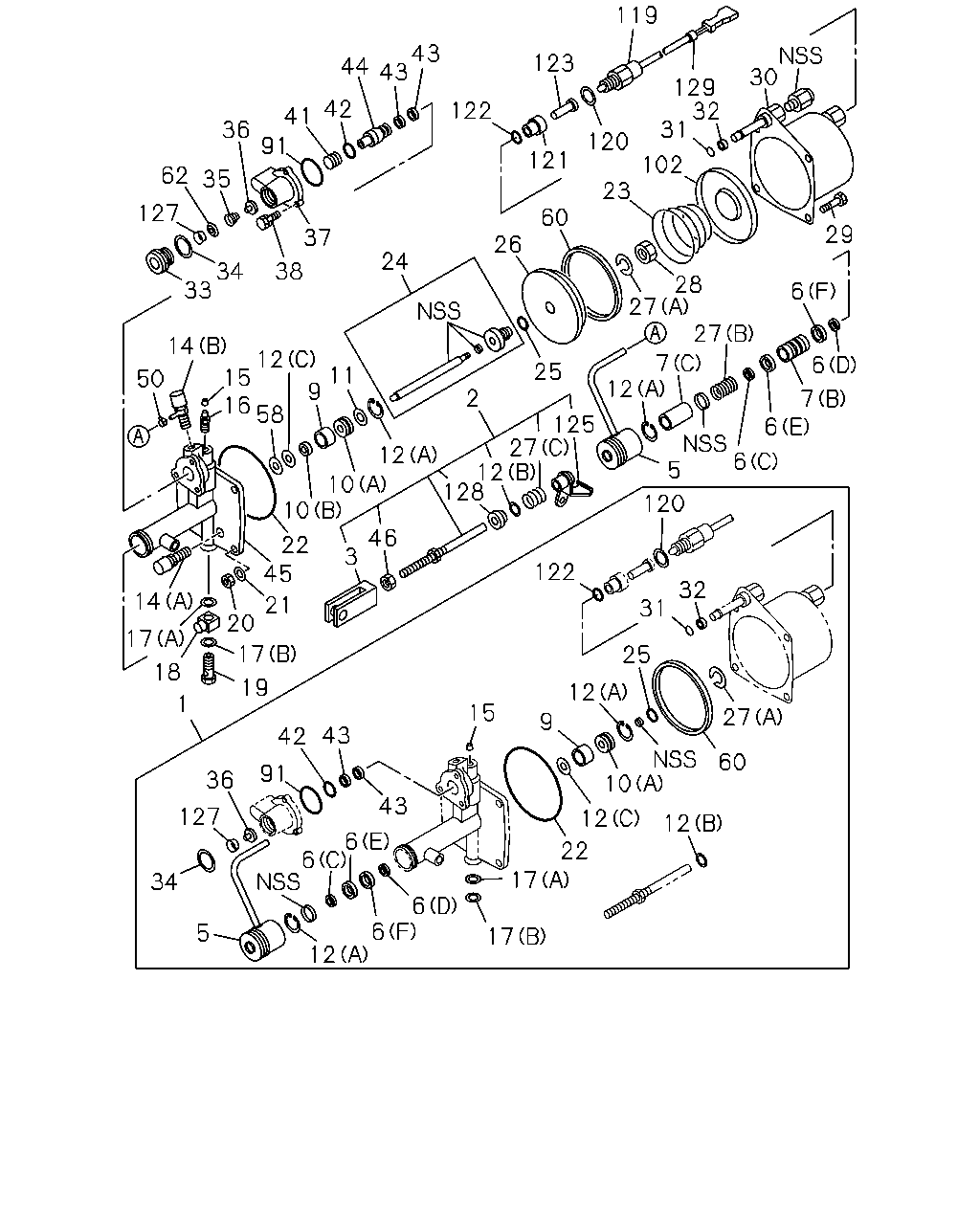

çizim 139826
119 123 30 129 32 31 120 102 122 121 23 29 28 6 60 26 27 43 43 44 42 41 91 36 35 62 127 37 38 34 33 24 14 12 15 50 16 58 11 9 25 2 12 10 10 27 7 12 6 7 6 6 5 125 27 12 128 46 22 3 45 14 21 20 17 120 122 17 18 19 32 31 25 27 60 12 9 10 12 12 15 43 42 91 36 1 127 43 6 6 34 5 22 17 17 6 6 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 0610-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0610- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 0610-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0610- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0610-1105 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 0610-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 0610- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0610- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0610- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 0610-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 0610- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0610- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0610- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0610- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0610- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0610-1105 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1106- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0610- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0610- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0610- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 0610- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0610- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0610- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 0610- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 0610- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0610- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 0610-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 0610- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0610- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0610- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0610- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0610- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0610- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0610- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0610- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0610- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0610- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0610- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0610-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 0610- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0610-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0610- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 0610- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 0610- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0610- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0610- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0610- ● ●
102 PLATE; BOOSTER 1-31829-508-0 01 1 0610- ●
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 0610- ●
120 GASKET; SWITCH 1-31829-361-0 01 1 0610- ●
121 GUIDE; ROD 1-31824-165-0 01 1 0610- ●
122 GASKET; ROD 1-31829-360-0 01 1 0610- ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1106- ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1106- ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1106- ●
125 BRACKET; CLU BOOSTER 1-31829-512-0 01 1 0610-1105 ●
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1106- ●
127 FILTER; POPPET 1-31829-488-0 01 1 0610- ● ●
128 COLLAR; ROD,CLU BOOSTER 1-31829-509-0 01 1 0610-1105 ●
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 0610- ●

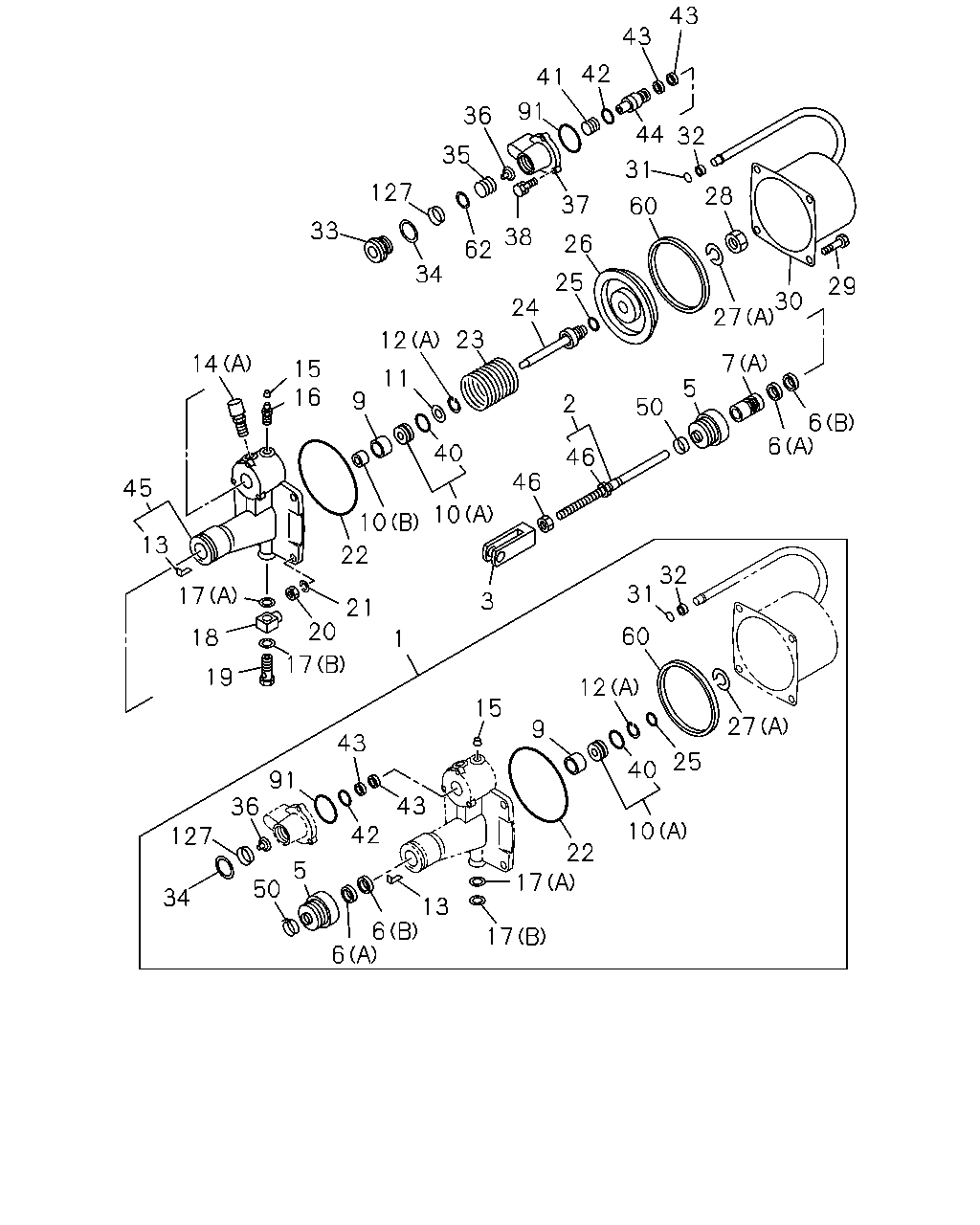

çizim 139837
14 45 9 16 15 12 23 11 2 40 46 46 50 5 7 6 6 60 26 25 24 38 62 34 127 33 36 35 91 41 42 43 43 32 44 31 27 30 29 10 10 22 21 1 20 17 19 18 17 13 3 37 28 32 31 60 12 9 15 43 43 42 5 50 127 91 36 34 6 13 6 17 17 22 40 10 25 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 0610-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0610- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 0610-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0610- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0610-1105 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 0610-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 0610- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0610- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0610- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 0610-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 0610- ●
13 PIN; SPR 1-31829-109-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 0610- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0610- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0610- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0610- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0610- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0610-1105 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1106- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0610- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0610- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0610- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 0610- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0610- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0610- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 0610- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 0610- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0610- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 0610-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 0610- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0610- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0610- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0610- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0610- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0610- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0610- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0610- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0610- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0610- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0610- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0610-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 0610- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0610-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0610- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 0610- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0610- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0610- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0610- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
