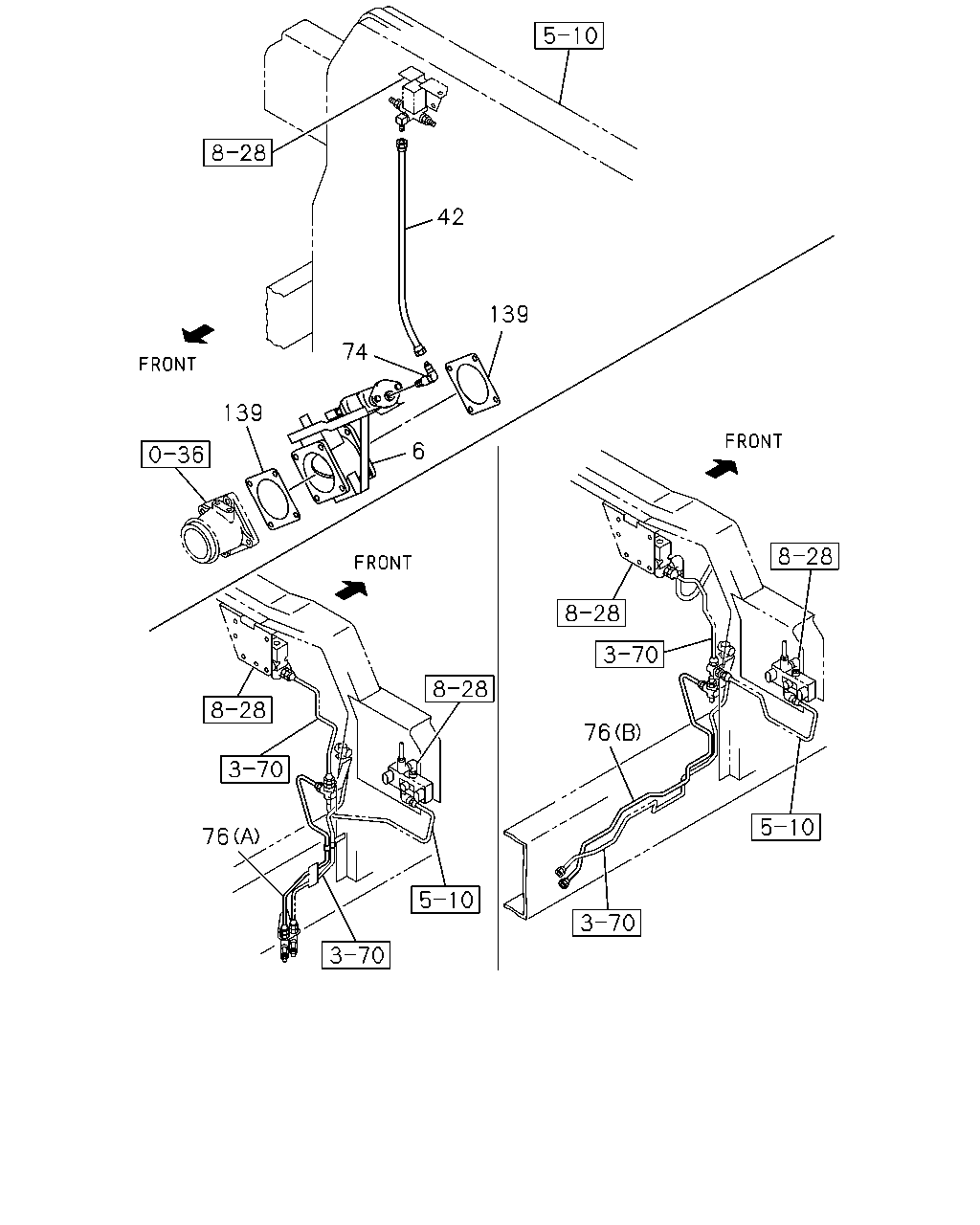

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#27464) — 7 parça

42 139 74 139 6 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE	8-98024-270-3	01	1	0610-
42	HOSE; FLEX,EXH BRK L=360	1-09363-637-0	01	1	0610-
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-
76	PIPE ASM; AIR UNION TO UNION MIXER TRUCK<RA2> (A) L=671 SERVICED BY L=700	1-47428-811-0	01	1	0610-
76	PIPE ASM; AIR UNION TO UNION SHORT CHASSIS & RHD(CYZ5MC) EXC. MIXER TRUCK<RA2> (A) L=795 SERVICED BY L=800	1-47428-812-0	01	1	0610-
76	PIPE ASM; AIR UNION TO UNION LONG CHASSIS & RHD(CYZ5MF) (B) L=808 SERVICED BY L=900	1-47428-813-0	01	1	0610-
139	GASKET; EXH BRK VLV ID=100	1-14145-175-0	02	1	0610-
