Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#27463) — 186 parça

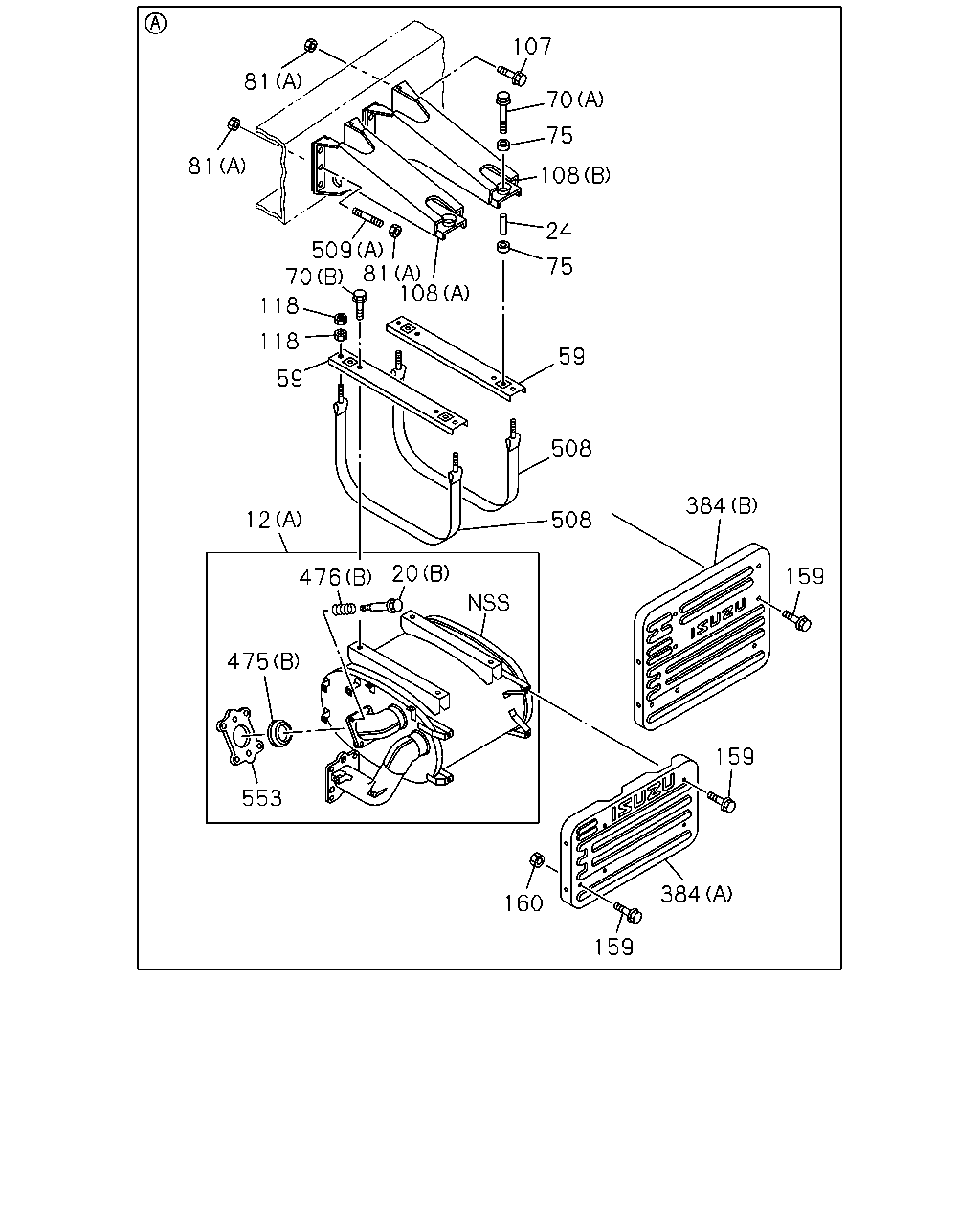

107 81 70 75 81 108 24 509 70 81 108 75 118 118 59 59 508 384 12 508 20 159 476 475 159 553 384 160 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ> (A)	8-97611-398-0	01	1	0610-	●
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97611-398-0	01	1	0610-		●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	8-97611-399-0	01	1	0610-		●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	03	1	0610-0701	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701		●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	02	1	0702-	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	8-94436-943-0	02	1	0702-		●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-		●
24	COLLAR; DIST,CLAMP CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	04	1	0610-	●	●
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	1-22134-147-1	02	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	01	1	0610-		●
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	08	1	0610-	●	●
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M12 FLANGE	0-91180-212-0	12	1	0610-	●	●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C) M10	0-91110-510-0	01	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0610-		●
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> M12X40 FLANGE	0-28051-240-0	06	1	0610-	●
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	06	1	0610-		●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> M12X45 FLANGE	0-28051-245-0	04	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (A)	1-22134-145-0	01	1	0610-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-145-0	01	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (B)	1-22134-146-0	01	1	0610-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-146-0	01	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (C)	1-22134-148-3	02	1	0610-		●
118	NUT; SILENCER MTG BRKT CATALYSIS CONTROL<6MZ> M10	0-91110-510-0	08	1	0610-	●	●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0610-	●	●
160	NUT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (B)	1-22119-557-1	01	1	0610-	●
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (A)	1-22119-556-0	01	1	0610-		●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-	●	●
508	BAND; EXHAUST SILENCER CATALYSIS CONTROL<6MZ>	1-22159-384-0	02	1	0610-	●	●
509	STUD; BRKT CATALYSIS CONTROL<6MZ> (A) M12X40 L=56	1-09300-123-0	06	1	0610-	●
509	STUD; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M12X40 L=56	1-09300-123-0	06	1	0610-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (A) M12X40 L=56	1-09300-123-0	04	1	0610-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	1-22152-082-1	02	1	0610-		●
553	FLANGE; SILENCER CATALYSIS CONTROL<6MZ>	1-22115-148-1	01	1	0610-	●
553	FLANGE; SILENCER CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-22115-148-1	01	1	0610-		●

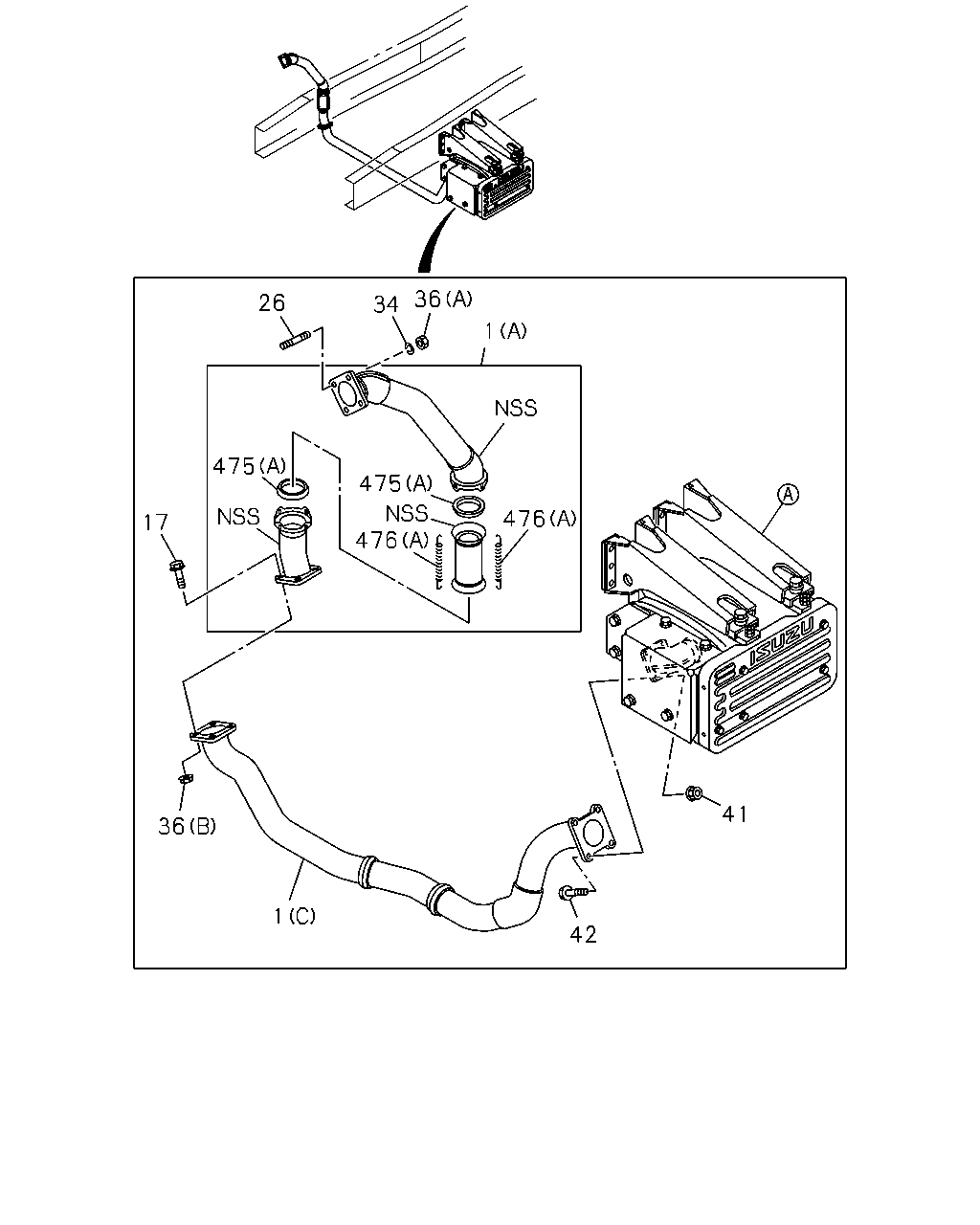

36 26 34 1 475 475 476 476 17 41 36 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (A)	1-22124-034-0	01	1	0610-	●	●
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (C)	1-22123-762-1	01	1	0610-	●
1	PIPE; EXH CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22123-762-1	01	1	0610-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	1-22123-768-0	01	1	0610-		●
17	BOLT; EXH PIPE CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	04	1	0610-	●	●
26	STUD; EXH MANIF CATALYSIS CONTROL<6MZ> M12X140 L=160	1-09302-163-0	04	1	0610-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0610-	●	●
36	NUT; EXH PIPE CATALYSIS CONTROL<6MZ> (B) M12	0-91110-512-0	04	1	0610-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0610-	●	●
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0610-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-	●	●

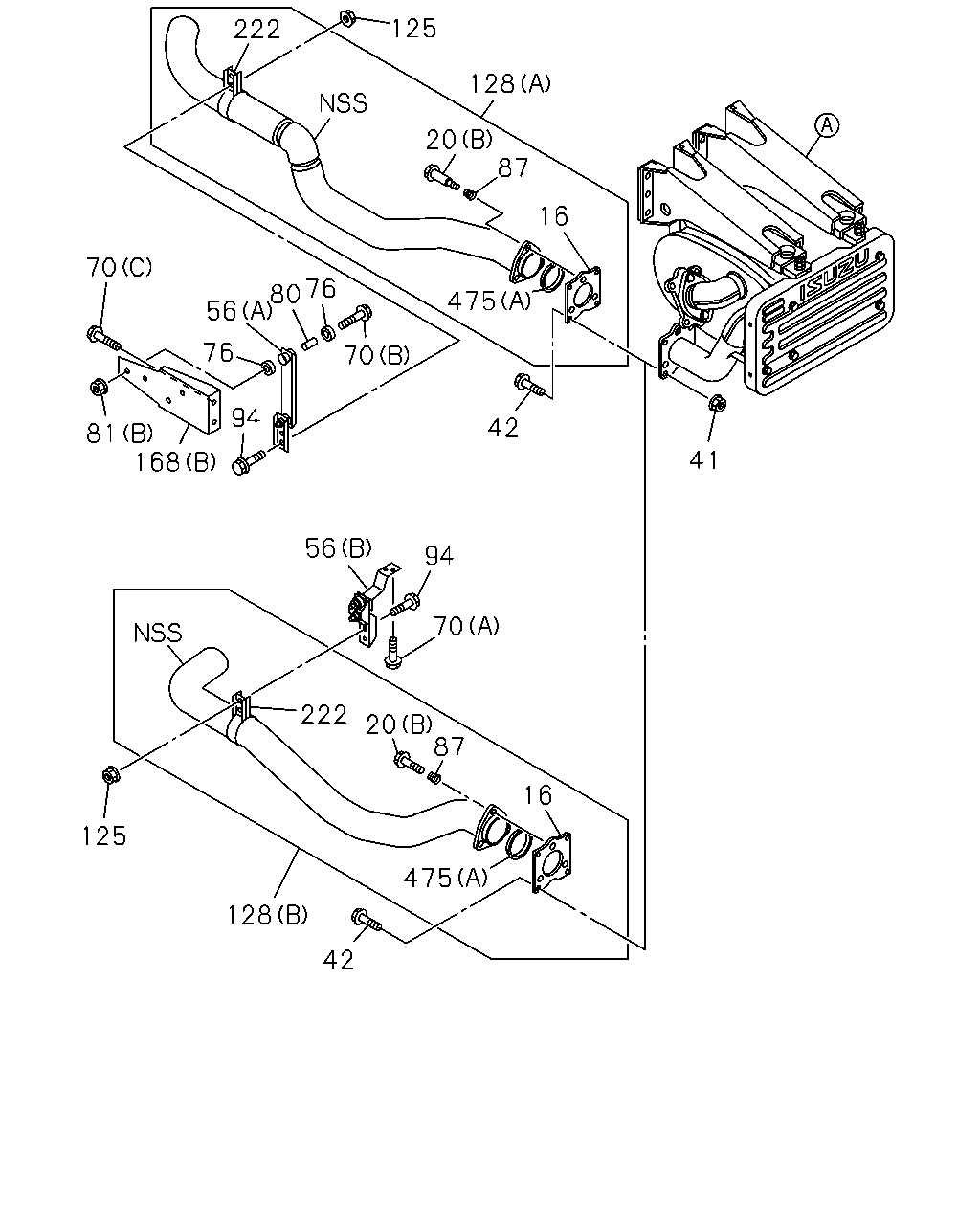

125 222 128 20 87 16 70 475 76 80 56 76 70 94 42 81 168 41 56 94 70 222 20 87 16 125 475 128 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ>	1-22115-229-0	01	1	0610-		●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	03	1	0610-0701	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701		●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	02	1	0702-	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	8-94436-943-0	02	1	0702-		●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-		●
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0610-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-	●	●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	1-22151-976-2	01	1	0610-	●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22151-976-2	01	1	0610-		●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22152-074-1	01	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	01	1	0610-		●
76	SUPPORT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	0610-		●
80	COLLAR; DIST,SUPPORT RUBBER CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	01	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M12 FLANGE	0-91180-212-0	12	1	0610-	●	●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C) M10	0-91110-510-0	01	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0610-		●
87	SPRING; PRE SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ>	8-94141-851-0	03	1	0610-	●	●
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-	●	●
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-		●
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-		●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> (B)	1-22126-557-1	01	1	0610-	●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22126-565-1	01	1	0610-		●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22126-542-1	01	1	0610-		●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22134-150-0	01	1	0610-		●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97618-794-0	01	1	0610-		●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-126-0	01	1	0610-		●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22133-276-0	01	1	0610-	●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-22133-276-0	01	1	0610-		●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ>	1-22133-276-0	02	1	0610-		●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-	●	●

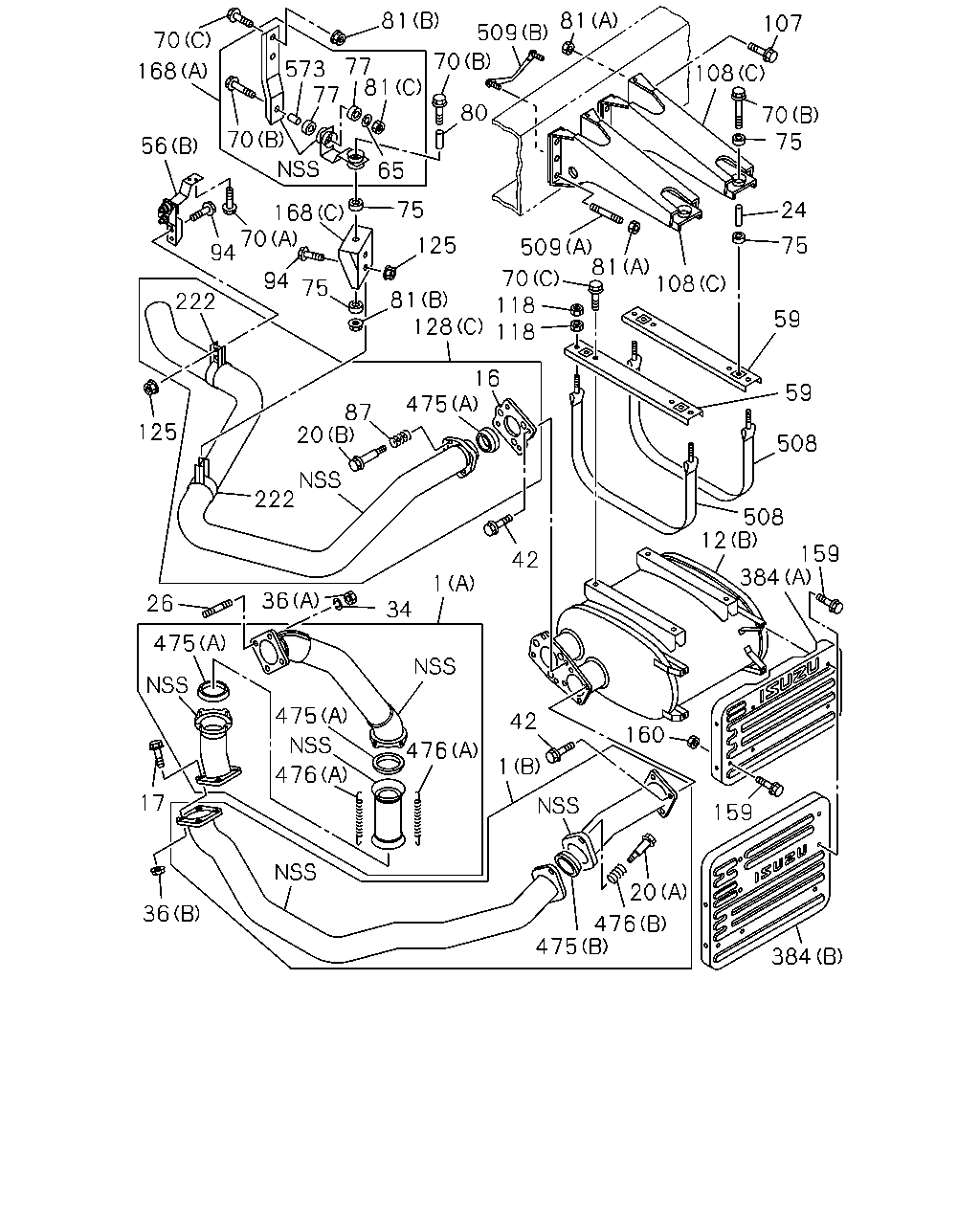

81 81 107 509 70 70 573 77 108 77 81 168 80 70 75 70 56 65 75 24 168 70 94 125 75 509 81 108 70 118 118 94 75 222 81 128 59 16 59 475 87 20 125 508 222 508 12 159 42 384 1 36 26 34 475 475 42 160 476 1 476 17 159 20 36 476 475 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (A)	1-22124-034-0	01	1	0610-	●	●
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (C)	1-22123-762-1	01	1	0610-	●
1	PIPE; EXH CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22123-762-1	01	1	0610-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	1-22123-768-0	01	1	0610-		●
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ> (A)	8-97611-398-0	01	1	0610-	●
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97611-398-0	01	1	0610-		●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	8-97611-399-0	01	1	0610-		●
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ>	1-22115-229-0	01	1	0610-		●
17	BOLT; EXH PIPE CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	04	1	0610-	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	03	1	0610-0701	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	1-09009-167-0	02	1	0610-0701		●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	02	1	0702-	●
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X51.4	8-94436-943-0	02	1	0702-		●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-		●
24	COLLAR; DIST,CLAMP CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	04	1	0610-	●	●
26	STUD; EXH MANIF CATALYSIS CONTROL<6MZ> M12X140 L=160	1-09302-163-0	04	1	0610-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0610-	●	●
36	NUT; EXH PIPE CATALYSIS CONTROL<6MZ> (B) M12	0-91110-512-0	04	1	0610-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0610-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-	●	●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	1-22151-976-2	01	1	0610-	●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22151-976-2	01	1	0610-		●
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22152-074-1	01	1	0610-		●
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	1-22134-147-1	02	1	0610-	●	●
65	WASHER; PL CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> ID=10.5 OD=32	0-91614-810-0	01	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	04	1	0610-	●	●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X35 FLANGE	0-28651-035-0	02	1	0610-		●
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X50 FLANGE	0-28051-050-0	01	1	0610-		●
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	08	1	0610-	●	●
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	0610-		●
77	RUBBER; CUSHION,BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	0610-		●
80	COLLAR; DIST,SUPPORT RUBBER CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	01	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M12 FLANGE	0-91180-212-0	12	1	0610-	●	●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C) M10	0-91110-510-0	01	1	0610-		●
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0610-		●
87	SPRING; PRE SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ>	8-94141-851-0	03	1	0610-	●	●
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-	●	●
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-		●
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> M12X40 FLANGE	0-28051-240-0	06	1	0610-	●
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	06	1	0610-		●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> M12X45 FLANGE	0-28051-245-0	04	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (A)	1-22134-145-0	01	1	0610-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-145-0	01	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (B)	1-22134-146-0	01	1	0610-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-146-0	01	1	0610-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (C)	1-22134-148-3	02	1	0610-		●
118	NUT; SILENCER MTG BRKT CATALYSIS CONTROL<6MZ> M10	0-91110-510-0	08	1	0610-	●	●
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-		●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> (B)	1-22126-557-1	01	1	0610-	●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22126-565-1	01	1	0610-		●
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22126-542-1	01	1	0610-		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0610-	●	●
160	NUT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (C)	1-22134-150-0	01	1	0610-		●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97618-794-0	01	1	0610-		●
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-126-0	01	1	0610-		●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22133-276-0	01	1	0610-	●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-22133-276-0	01	1	0610-		●
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ>	1-22133-276-0	02	1	0610-		●
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (B)	1-22119-557-1	01	1	0610-	●
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (A)	1-22119-556-0	01	1	0610-		●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0610-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	02	1	0610-	●	●
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-	●	●
508	BAND; EXHAUST SILENCER CATALYSIS CONTROL<6MZ>	1-22159-384-0	02	1	0610-	●	●
509	STUD; BRKT CATALYSIS CONTROL<6MZ> (A) M12X40 L=56	1-09300-123-0	06	1	0610-	●
509	STUD; BRKT CATALYSIS CONTROL<6MZ> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M12X40 L=56	1-09300-123-0	06	1	0610-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (A) M12X40 L=56	1-09300-123-0	04	1	0610-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> CATALYSIS CONTROL<6MZ> (B)	1-22152-082-1	02	1	0610-		●
573	TUBE; DIST CATALYSIS CONTROL<6MZ> SILENCER LAYOUT REAR VAR1<JAZ> L=25	1-14234-083-0	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
