Sayfa 1-41 - Isuzu EPC

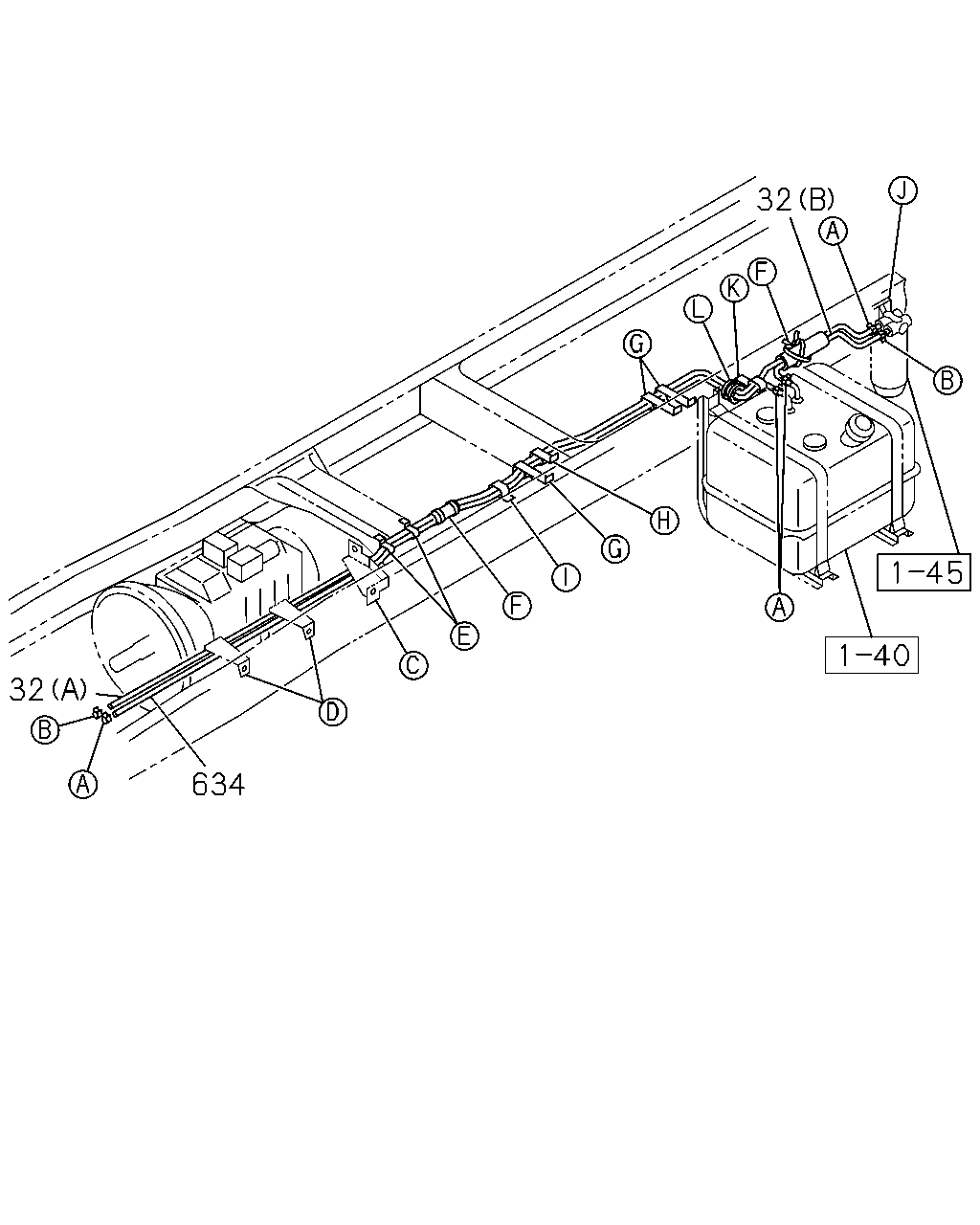

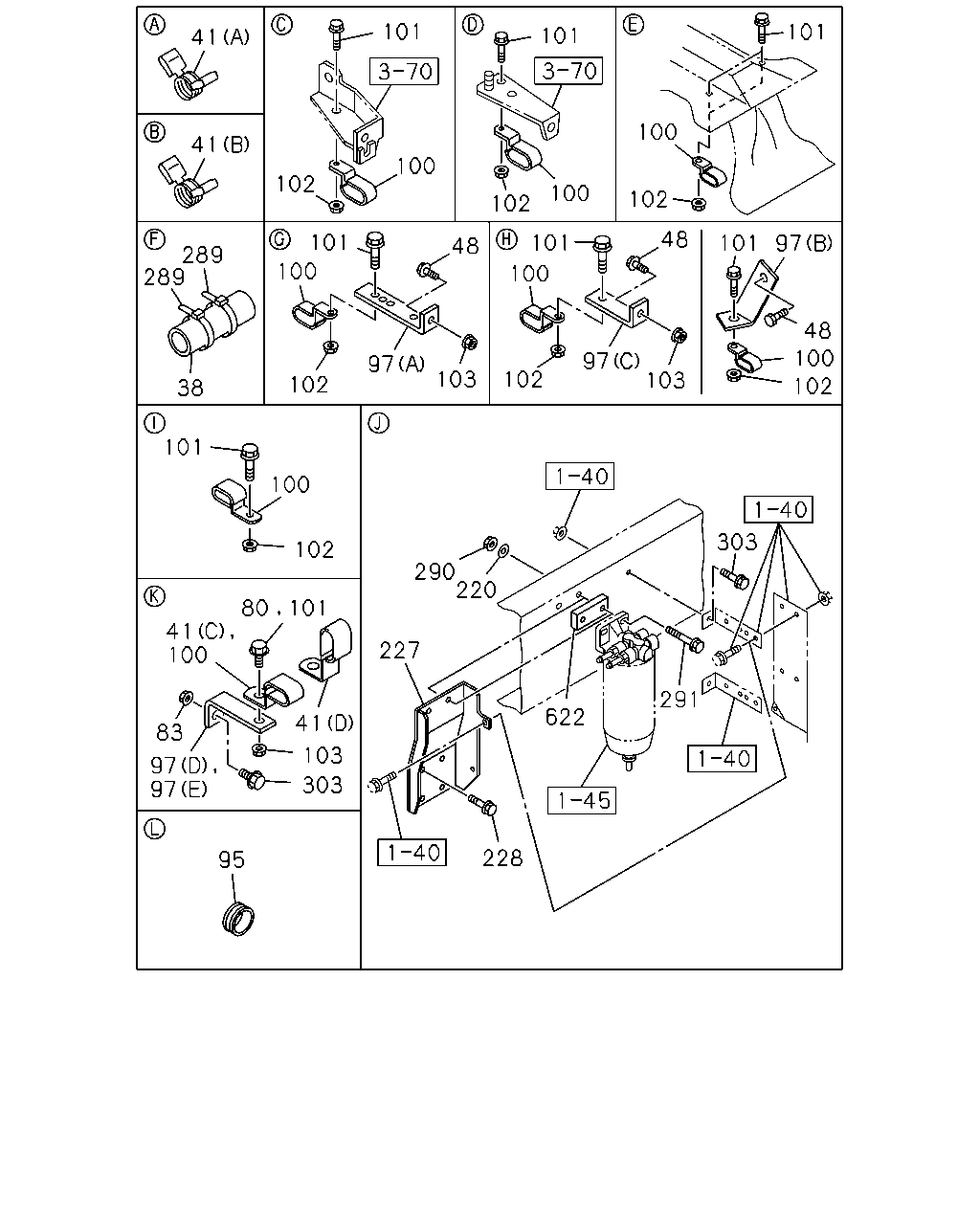

1-41 — FUEL PIPING; CHASSIS (#27461) — 150 parça

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0908-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (A) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	0908-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	0610-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0610-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0610-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L<RF5> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0610-0907	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L<RF5> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0908-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0908-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L<RF5> (A) L=2600 SERVICED BY L=3000	0-01262-300-0	01	1	0610-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L<RF5> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0610-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> (A) L=3200 SERVICED BY L=5050	0-01262-505-0	01	1	0610-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L<RF5> (A) L=3200 SERVICED BY L=5050	0-01262-505-0	01	1	0610-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	0610-0907		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	0908-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	0908-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0908-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0908-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0610-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) FUEL TANK 300L<RF5> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0610-	●
634	HOSE; RUBBER RETURN WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0610-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) FUEL TANK 300L<RF5> L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0610-		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0610-		●

101 101 101 41 100 41 100 102 100 102 102 48 101 101 101 97 48 289 289 100 100 48 100 102 97 103 97 103 102 102 38 101 100 303 102 290 220 80 101 41 100 227 622 291 41 83 103 97 97 303 228 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) EXC. FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0908-		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0610-0907	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6300MM(63W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0610-0907		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0908-	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0908-		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6300MM(63W) EXC. FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0908-		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0610-0907		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0908-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0908-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0908-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0703-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0610-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0610-	●	●
48	BOLT; BRKT WHEEL BASE 5300MM(53W) M8X35 FLANGE	0-28650-835-0	01	1	0610-0907		●
48	BOLT; BRKT WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8X35 FLANGE	0-28650-835-0	02	1	0908-		●
48	BOLT; BRKT WHEEL BASE 6100MM(61W) M8X35 FLANGE	0-28650-835-0	02	1	0908-		●
48	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8X25 FLANGE	0-28650-825-0	01	1	0610-		●
48	BOLT; BRKT WHEEL BASE 6100MM(61W) M8X35 FLANGE	0-28650-835-0	02	1	0610-0907		●
48	BOLT; BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M8X35 FLANGE	0-28650-835-0	01	1	0908-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	01	1	0703-0907		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8X20 FLANGE	0-28650-820-0	01	1	0908-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	01	1	0908-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8X20 FLANGE	0-28650-820-0	01	1	0908-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	0703-0907		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	01	1	0908-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	0908-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	01	1	0908-		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0610-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (E) L=68	1-47475-525-0	01	1	0908-1010	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (E) L=68	1-47475-525-0	01	1	0908-1010		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (E) L=68	1-47475-525-0	01	1	1011-	●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (E) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47475-304-0	01	1	0610-		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A)	1-82698-358-0	01	1	0610-0907		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (A)	1-82698-358-0	02	1	0908-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	0908-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	0610-0907		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> (A)	1-82698-358-0	01	1	0908-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (B)	1-82698-511-0	01	1	0610-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (D)	1-47475-927-0	01	1	0610-1010		●
100	CLIP; FUEL PIPE WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0908-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0610-	●
100	CLIP; FUEL PIPE WHEEL BASE 5300MM(53W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0610-0907		●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0908-	●
100	CLIP; FUEL PIPE WHEEL BASE 6100MM(61W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	0610-0702		●
100	CLIP; FUEL PIPE WHEEL BASE 6100MM(61W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0703-0907		●
100	CLIP; FUEL PIPE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0908-		●
100	CLIP; FUEL PIPE WHEEL BASE 6100MM(61W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0908-		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	06	1	0610-0702		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	0703-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8X20 FLANGE	0-28650-820-0	06	1	0703-0907		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M8X20 FLANGE	0-28650-820-0	05	1	0908-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0610-0702	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0703-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	03	1	0703-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0610-0702	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0703-0907	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0610-0702		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	05	1	0703-0907		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8X20 FLANGE	0-28650-820-0	06	1	0908-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8X20 FLANGE	0-28650-820-0	06	1	0908-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0610-0702		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0703-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	07	1	0908-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	08	1	0703-0907		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	08	1	0908-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	08	1	0908-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	05	1	0703-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0610-0702	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0703-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0610-0702		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	07	1	0703-0907		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	01	1	0908-	●
103	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	0610-0907		●
103	NUT; BRKT WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	03	1	0908-		●
103	NUT; BRKT WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	03	1	0908-		●
103	NUT; BRKT WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	03	1	0610-0907		●
103	NUT; BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	02	1	0908-		●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0610-	●	●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W)	1-82698-661-0	01	1	0610-0908		●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF>	1-82698-661-0	01	1	0909-		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF>	1-82698-661-0	01	1	0909-		●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) M10X35 FLANGE	0-28051-035-0	04	1	0610-0908		●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M10X35 FLANGE	0-28051-035-0	04	1	0909-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M10X35 FLANGE	0-28051-035-0	04	1	0909-		●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) EXC. FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	06	1	0908-		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0610-0907	●
289	CLIP; BAND,HOSE WHEEL BASE 6300MM(63W) L=250	5-09707-030-1	04	1	0610-0907		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	04	1	0908-	●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	04	1	0908-		●
289	CLIP; BAND,HOSE WHEEL BASE 6300MM(63W) EXC. FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	04	1	0908-		●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) L=250	5-09707-030-1	06	1	0610-0907		●
289	CLIP; BAND,HOSE WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	02	1	0908-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0610-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0610-0908	●
291	BOLT; FILER TO BRKT WHEEL BASE 5300MM(53W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M10X60 FLANGE	0-28051-060-0	02	1	0610-0908		●
291	BOLT; FILER TO BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M10X60 FLANGE	0-28051-060-0	02	1	0610-0908		●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0909-0909	●
291	BOLT; FILER TO BRKT WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M10X60 FLANGE	0-28051-060-0	02	1	0909-0909	●
291	BOLT; FILER TO BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF>,SILENCER LAYOUT REAR VAR1<JAZ> M10X60 FLANGE	0-28051-060-0	02	1	0909-0909		●
291	BOLT; FILER TO BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M10X60 FLANGE	0-28051-060-0	02	1	0909-0909		●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0910-	●
291	BOLT; FILER TO BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF>,SILENCER LAYOUT REAR VAR1<JAZ> M10X60 FLANGE	0-28051-060-0	02	1	0910-		●
291	BOLT; FILER TO BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M10X60 FLANGE	0-28051-060-0	02	1	0910-		●
291	BOLT; FILER TO BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) M10X35 FLANGE	0-28051-035-0	02	1	0610-0908		●
291	BOLT; FILER TO BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> M10X35 FLANGE	0-28051-035-0	02	1	0909-		●
291	BOLT; FILER TO BRKT WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M10X35 FLANGE	0-28051-035-0	02	1	0909-		●
303	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	02	1	0610-0908	●
303	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	02	1	0909-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8X30 FLANGE	0-28650-830-0	02	1	0909-	●
303	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	0610-0907		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> M8X30 FLANGE	0-28650-830-0	01	1	0908-	●
303	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
622	SPACER; BRKT	1-53168-492-0	01	1	0610-0908	●
622	SPACER; BRKT WHEEL BASE 5300MM(53W) EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53168-492-0	01	1	0610-0908		●
622	SPACER; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)	1-53168-492-0	01	1	0610-0908		●
622	SPACER; BRKT	8-98124-944-0	01	1	0909-0909	●
622	SPACER; BRKT WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF>	8-98124-944-0	01	1	0909-0909	●
622	SPACER; BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF>,SILENCER LAYOUT REAR VAR1<JAZ>	8-98124-944-0	01	1	0909-0909		●
622	SPACER; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)	8-98124-944-0	01	1	0909-0909		●
622	SPACER; BRKT	8-98124-944-0	01	1	0910-	●
622	SPACER; BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF>,SILENCER LAYOUT REAR VAR1<JAZ>	8-98124-944-0	01	1	0910-		●
622	SPACER; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)	8-98124-944-0	01	1	0910-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
