Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28B - VENTILATION SYSTEM
▶

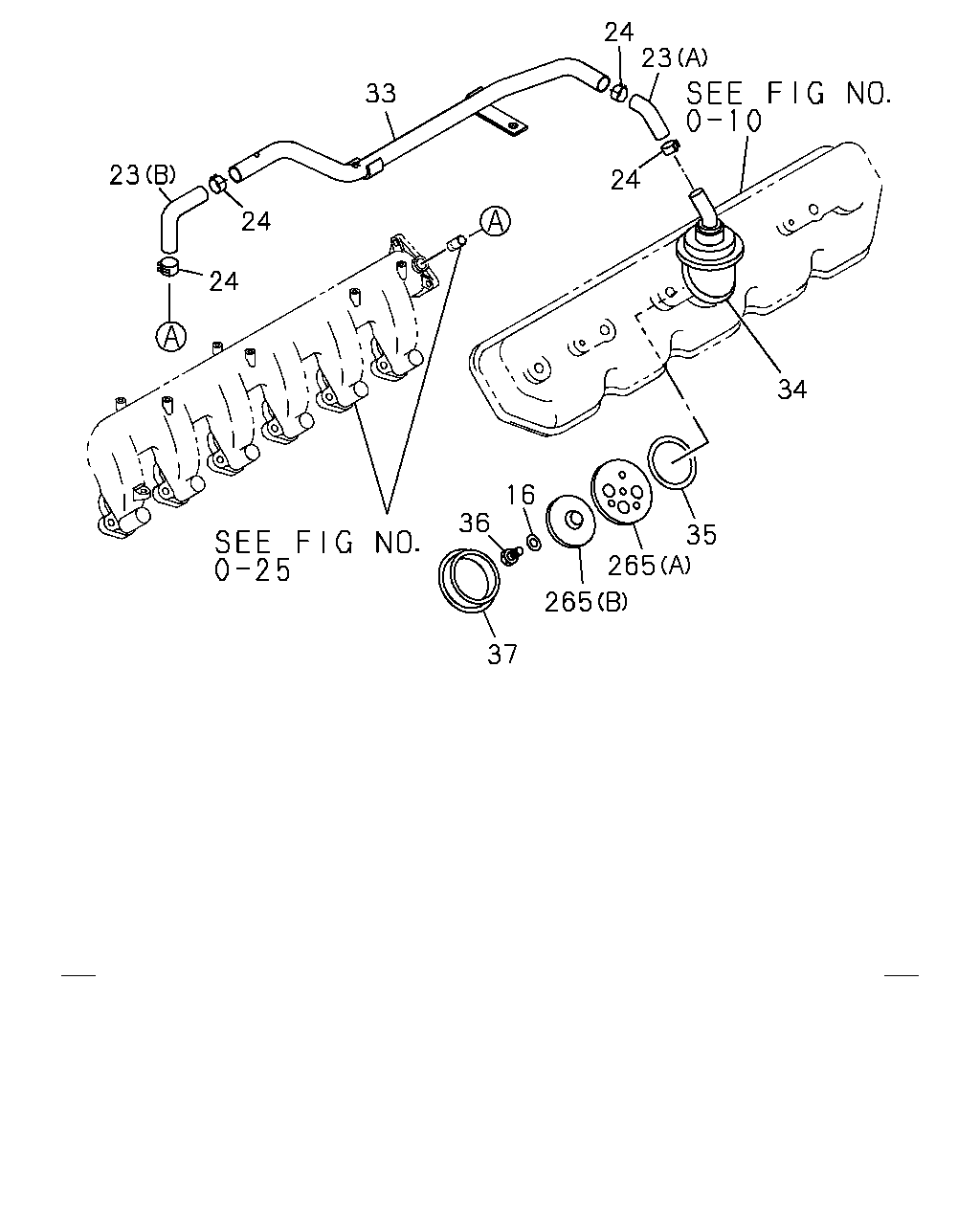

0-28B — VENTILATION SYSTEM
(#2746) — 22 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
24
33
24
23
24
37
36
16
265
265
35
34
24
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
WASHER; LK,BREATHER
TAIWAN EQUIPMENT(WW5) ID=6.1
9-09150-506-0
04
1
9002-9504
●
16
WASHER; LK,BREATHER
ID=6.1
9-09150-506-0
04
1
9002-9504
●
23
HOSE; RUBBER,VENTILATOR PIPE
(A)
1-09360-775-1
01
1
9002-
●
●
23
HOSE; RUBBER,VENTILATOR PIPE
(B)
1-09360-831-0
01
1
9002-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
ID=20
1-09707-084-1
04
1
9002-
●
24
CLIP; RUBBER HOSE,VENTILATOR
ID=26
1-09707-091-0
04
1
9307-
●
33
PIPE; VENTILATOR
1-14236-084-4
01
1
9002-
●
33
PIPE; VENTILATOR
1-14236-080-4
01
1
9307-
●
34
VENTILATOR
1-14360-043-2
01
1
9002-9602
●
●
34
VENTILATOR
1-14360-052-0
01
1
9603-
●
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-418-0
01
1
9002-
●
●
36
BOLT; VENTILATOR
M6X12
9-02050-612-0
04
1
9002-9005
●
36
BOLT; VENTILATOR
M6X12
0-20800-612-0
04
1
9006-9504
●
●
36
BOLT; VENTILATOR
EXC. TAIWAN EQUIPMENT(WW5) M6X12
0-20800-612-0
04
1
9505-
●
36
BOLT; VENTILATOR
TAIWAN EQUIPMENT(WW5) M6X12 FLANGE
0-28080-612-0
04
1
9505-
●
36
BOLT; VENTILATOR
M6X12 FLANGE
0-28080-612-0
04
1
9505-
●
37
GROMMET; BREATHER,HD COVER
TAIWAN EQUIPMENT(WW5)
1-09333-132-0
01
1
9002-9504
●
37
GROMMET; BREATHER,HD COVER
TAIWAN EQUIPMENT(WW5)
1-09333-132-0
01
1
9505-
●
37
GROMMET; BREATHER,HD COVER
1-09333-132-0
01
1
9505-
●
37
GROMMET; BREATHER,HD COVER
1-09333-043-1
01
1
9307-9504
●
265
PLATE; BAFFLE HD COVER
(A) OD=75
1-14369-051-0
01
1
9002-
●
●
265
PLATE; BAFFLE HD COVER
(B) OD=92
1-14369-052-0
01
1
9002-
●
●
