Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28A - VENTILATION SYSTEM
▶

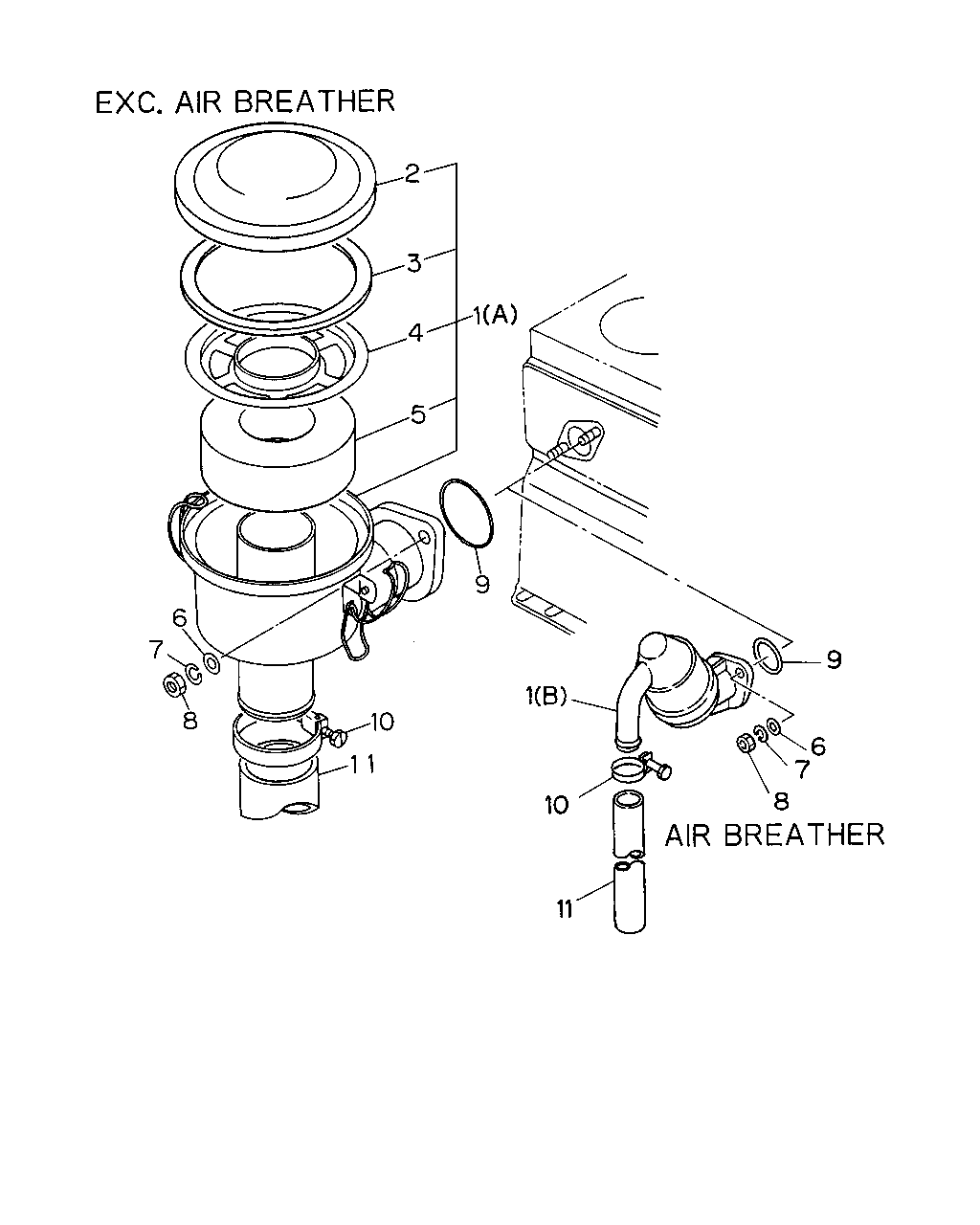

0-28A — VENTILATION SYSTEM
(#2745) — 17 parça
2
3
5
4
9
10
11
8
7
6
1
10
11
8
7
6
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
AIR BREATHER<E2C> (B)
9-11740-298-3
01
1
9002-
1
BREATHER; AIR
EXC. AIR BREATHER<E2C> (A)
1-11740-154-0
01
1
9002-
2
CAP; AIR BREATHER BODY
EXC. AIR BREATHER<E2C>
9-11746-025-0
01
1
9002-
3
GASKET; BODY TO CAP
EXC. AIR BREATHER<E2C>
1-09630-100-0
01
1
9002-
4
RETAINER; ELEMENT
EXC. AIR BREATHER<E2C>
9-11746-028-0
01
1
9002-
5
ELEMENT; BRASS WOOL
EXC. AIR BREATHER<E2C>
9-11745-061-0
01
1
9002-
6
WASHER; BREATHER
ID=8.4
9-09160-508-0
02
1
9002-
7
WASHER; LK,BREATHER
ID=8.2
9-09150-508-0
02
1
9002-
8
NUT; BREATHER
M8
9-09110-408-0
02
1
9002-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). AIR BREATHER<E2C> ID=38.7
1-09623-299-0
01
1
9002-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR BREATHER<E2C> ID=48
9-09920-647-0
01
1
9002-9003
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR BREATHER<E2C> ID=47.7
1-09623-465-0
01
1
9004-
10
CLIP; AIR BREATHER
AIR BREATHER<E2C> ID=32
9-09915-005-1
01
1
9002-
10
CLIP; AIR BREATHER
EXC. AIR BREATHER<E2C> D=50 BAND
1-09707-046-0
01
1
9002-
11
HOSE; RUBBER,AIR
AIR BREATHER<E2C> ID=25 L=660
0-02825-660-0
01
1
9002-
11
HOSE; RUBBER,AIR
EXC. AIR BREATHER<E2C> L=520
1-09360-454-1
01
1
9002-9409
11
HOSE; RUBBER,AIR
EXC. AIR BREATHER<E2C>
0-02840-520-0
01
1
9410-
