◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#27442) — 40 parça

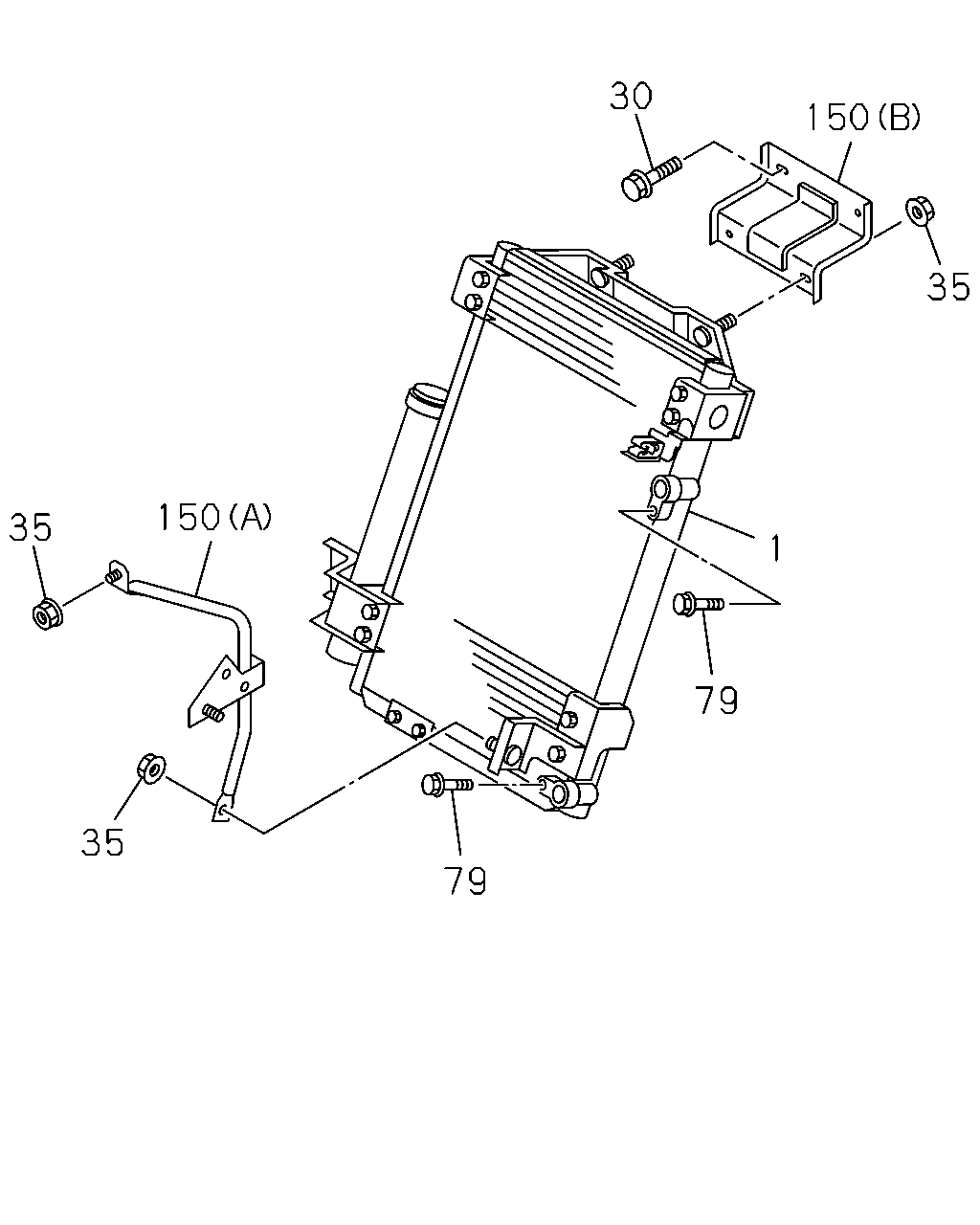

çizim 26195
30 150 35 1 79 79 35 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-237-2 01 1 0612-0703
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-090-0 01 1 0704-1201
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-672-0 01 1 1202-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0612-0904
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 0612-
79 BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0612-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-898-0 01 1 0612-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-986-0 01 1 0612-

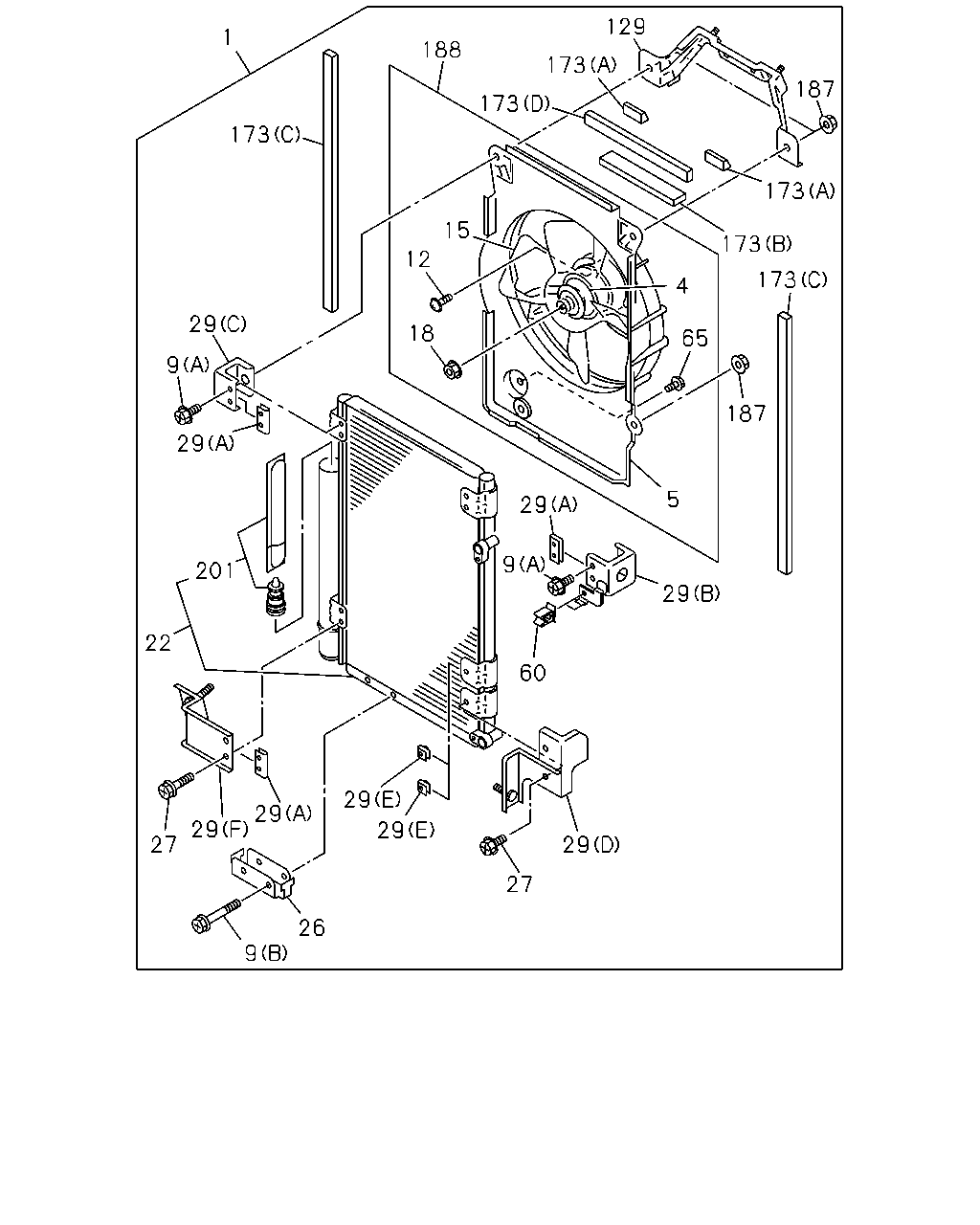

çizim 86882
129 188 173 187 173 173 173 15 173 12 173 4 29 18 65 9 187 29 5 29 9 201 29 22 60 29 29 29 29 27 29 27 26 9
BalonParca AdiParca NoAdetTipApplied Date
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-139-3 01 1 0612-0703
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98078-763-0 01 1 0704-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-362-1 01 1 0612-0703
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 0704-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		8-97096-525-0 04 1 0612-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 0612-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 0612-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-140-0 01 1 0612-0703
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 0704-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 0612-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-245-1 01 1 0612-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-205-0 01 1 0612-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 04 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-010-0 03 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-125-0 01 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-126-0 01 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83573-204-0 01 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83573-213-0 01 1 0612-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97180-263-0 02 1 0612-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 0612-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 0612-
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-0 01 1 0612-1201
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-673-0 01 1 1202-
173 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98213-043-0 02 1 1202-
173 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98213-044-0 01 1 1202-
173 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98213-045-0 02 1 1202-
173 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98213-046-0 01 1 1202-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 0612-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-162-1 01 1 0612-0703
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98078-760-1 01 1 0704-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-098-0 01 1 0612-
