Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#27437) — 30 parça
◀

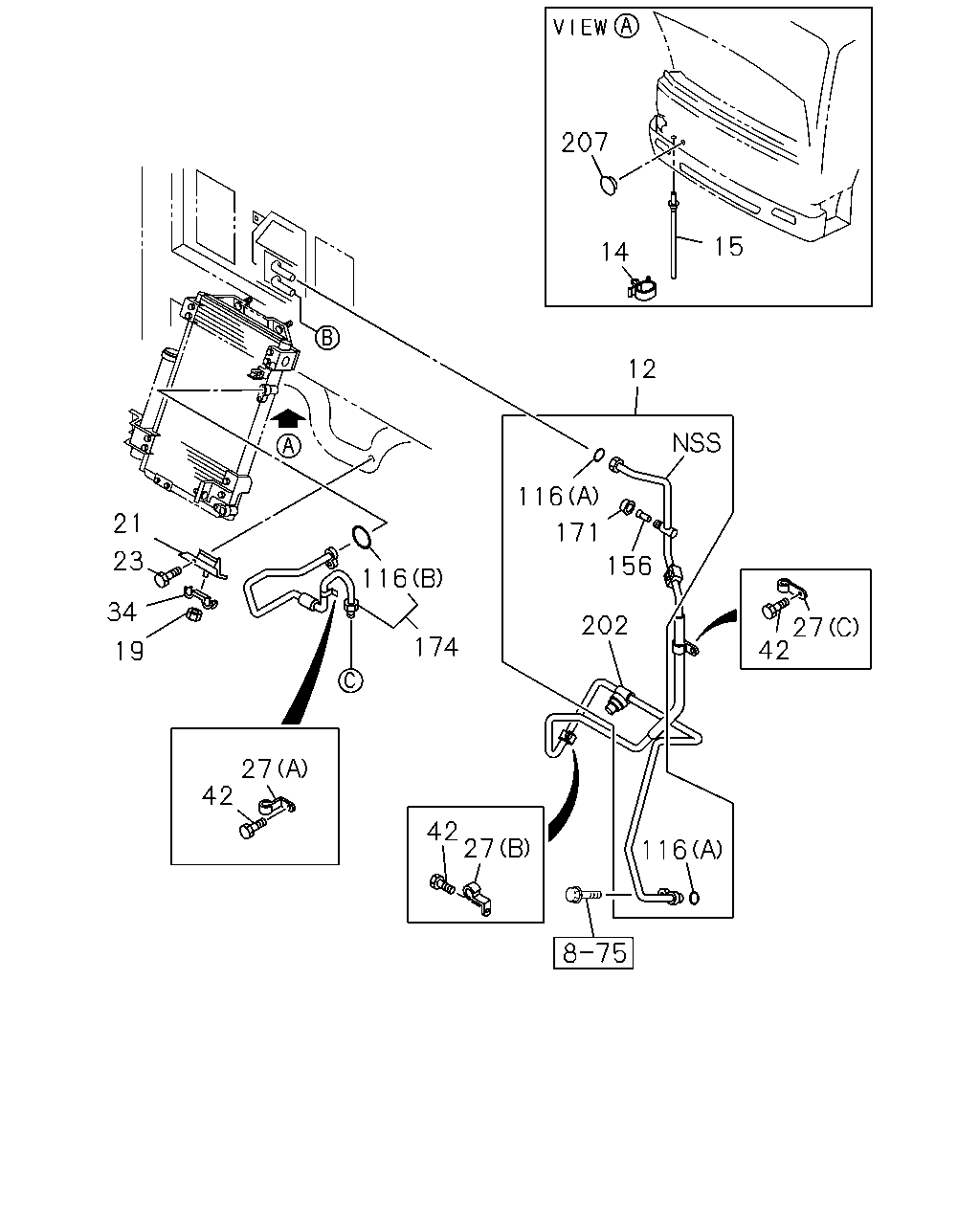

[852A] NO.1 (21 parça)
[852A] NO.2 (9 parça)
▶
207
15
14
12
116
21
171
23
156
116
34
202
27
42
174
19
27
42
42
27
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-875-1
01
1
0612-
14
CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20
8-94410-200-0
01
1
0612-
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-635-0
01
1
0612-
15
HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-83572-412-0
01
1
0612-
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0612-
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-928-2
01
1
0612-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
01
1
0612-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20
0-95235-235-0
01
1
0612-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20
1-09700-813-0
01
1
0612-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20
5-09700-351-0
01
1
0612-0707
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20
8-98033-780-0
01
1
0708-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2
1-83574-190-0
01
1
0612-
42
SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0612-0904
42
SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
0612-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
0612-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
0612-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
0612-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-876-2
01
1
0612-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
0612-
207
SEAL; FLEX HOSE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
0612-
122
17
150
151
122
122
150
149
121
121
122
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-024-0
01
1
0612-
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83577-052-0
01
1
0612-
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83577-053-0
01
1
0612-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
02
1
0612-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
02
1
0612-
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-013-0
01
1
0612-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-289-0
01
1
0612-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-290-0
01
1
0612-
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-328-0
01
1
0612-
