◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#27428) — 298 parça

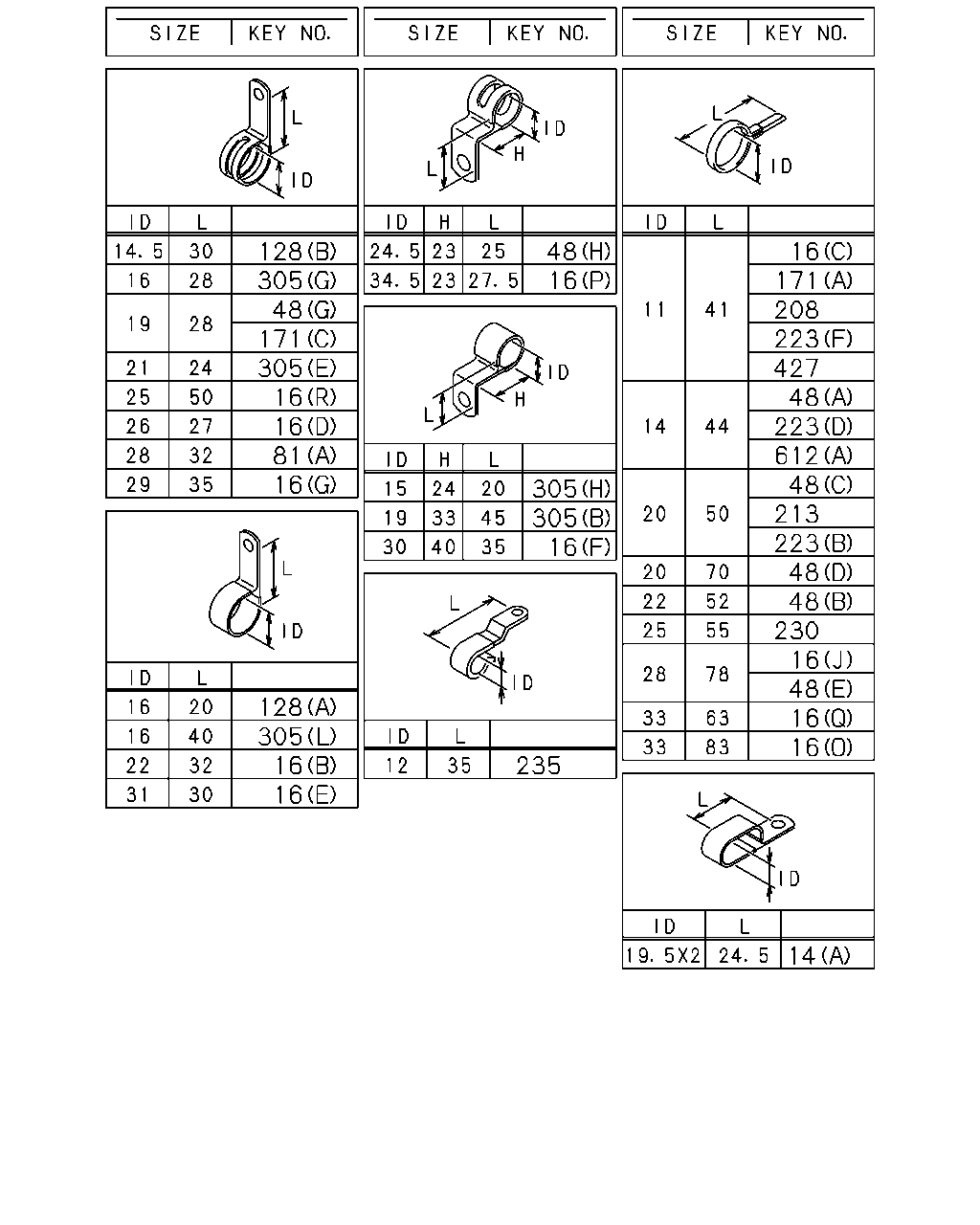

çizim 26320
128 305 48 171 305 16 16 81 16 48 16 16 171 208 223 427 48 223 612 48 213 223 48 48 230 16 48 16 16 305 305 16 128 305 16 16 235 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0612-0612
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205
14 CLIP; BAND,HARNESS
(D) L=250 		8-98216-430-0 08 1 1206-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0612-1205
14 CLIP; BAND,HARNESS
(E) L=140 		8-98216-431-0 06 1 1206-
14 CLIP; BAND,HARNESS
(A) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0612-
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 09 1 0612-0612
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 12 1 0612-1205
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (D) L=250 		8-98216-430-0 12 1 1206-
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0612-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0612-
16 CLIP; HARNESS
(Q) ID=33 L=63 		1-09700-807-0 01 1 0612-0701
16 CLIP; HARNESS
(O) ID=33 L=83 		1-09701-291-0 01 1 0702-
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0612-
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0612-0612
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0612-
16 CLIP; HARNESS
(R) ID=25 L=50 		1-09701-019-0 01 1 0612-
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0612-0612
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701-
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0612-0612
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0612-0612
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0612-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0612-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0612-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0612-0701
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 02 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 14 1 0612-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0612-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0612-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0612-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 09 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 0612-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0612-
48 CLIP; FRAME HARNESS
(H) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0612-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0612-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0612-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0612-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0612-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0612-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0612-
171 CLIP; STARTER HARNESS
ENGINE REAR PTO(SV1) (D) L=140 		5-09707-031-1 01 1 0612-
208 CLIP; HARNESS,MAG VLV
ID=11 L=41 		1-09700-403-0 01 1 0612-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0612-
223 CLIP; AIR TANK HARNESS
(F) ID=11 L=41 		1-09700-403-0 01 1 0612-
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0612-
230 CLIP; C/MBR HARNESS
ID=25 L=55 		9-09917-573-0 02 1 0612-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0612-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0612-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0612-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0612-
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0612-0701
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0612-0612
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0612
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0612-0702
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (H) ID=15 H=24 L=20 		1-09700-606-0 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (I) L=36 		8-94224-891-1 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-94225-185-0 01 1 0612-0801
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-97367-985-1 01 1 0802-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (K) 		8-97101-436-0 01 1 0612-
427 CLIP; HARNESS,FULL ELEC
ID=11 L=41 		1-09700-403-0 01 1 0612-
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0612-
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0612-

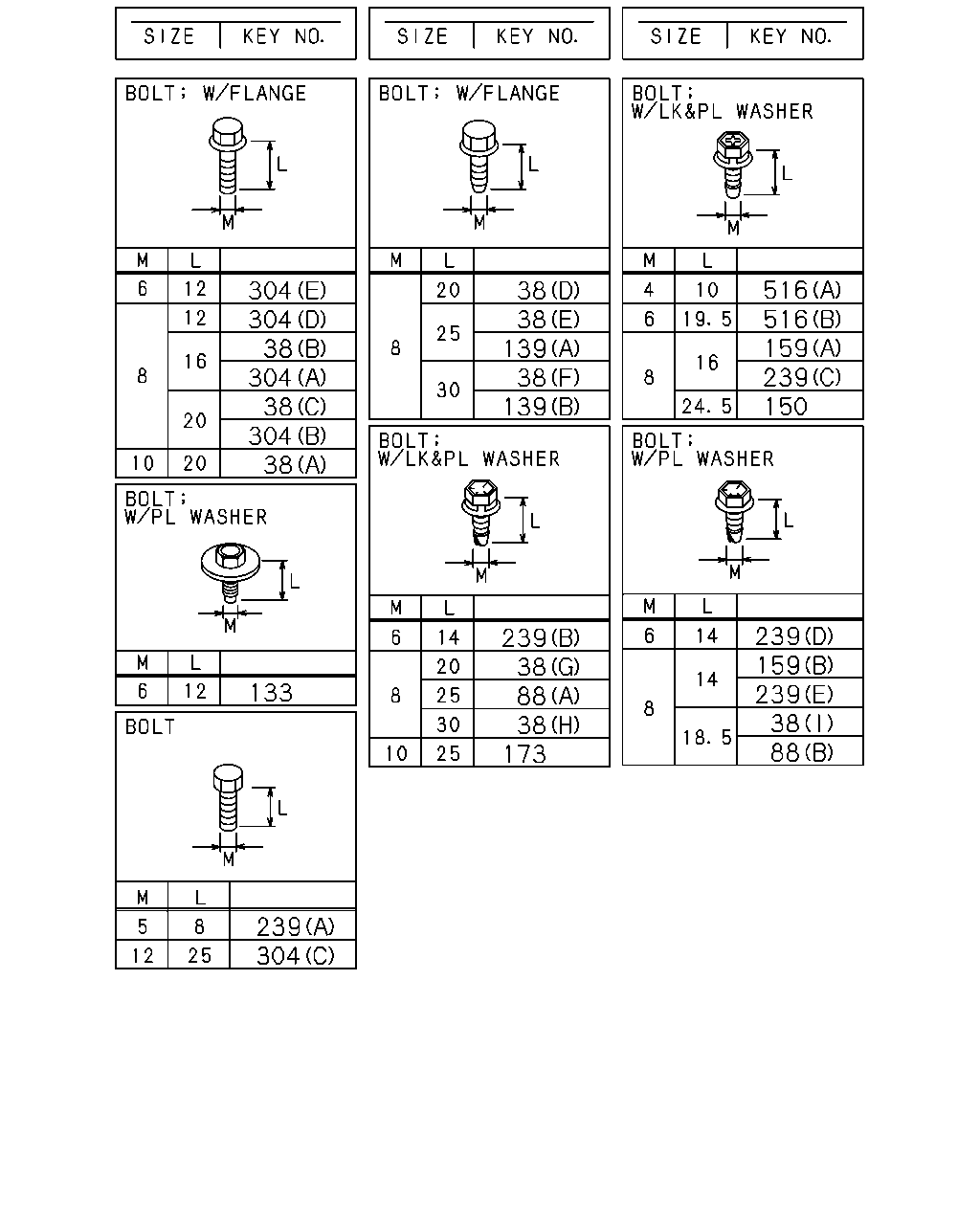

çizim 85313
516 516 159 239 150 304 304 38 304 38 304 38 38 38 139 38 139 239 159 239 38 88 239 38 88 38 173 133 239 304
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0612-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 03 1 0612-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0612-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 0612-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0612-1201
38 BOLT; CLIP,HARNESS
(I) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0612-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0612-1007
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0612-1007
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0612-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0612-
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0612-0904
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
159 BOLT; GRAND ENG ELEC
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0612-1201
159 BOLT; GRAND ENG ELEC
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0612-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0612-0701
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0612-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0612-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0612-
304 BOLT; ENG HARNESS CLIP
(D) M8X12 FLANGE 		0-28050-812-0 03 1 0612-
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0612-
304 BOLT; ENG HARNESS CLIP
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0612-
304 BOLT; ENG HARNESS CLIP
(C) M12X25 		5-09000-227-0 01 1 0612-
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0612-
516 BOLT; HARNESS
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0612-
çizim 85563
1 1 224 1 510 513 530 178 178 178 178 503 514
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0612-0612
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 04 1 0612-
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0612-
1 SLEEVE; RUBBER
ENGINE REAR PTO(SV1) (C) ID=6 L=30 		5-09360-352-0 01 1 0612-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0612-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0612-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0612-
178 GROMMET; HARNESS
LOW ROOF<6XQ> (D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0612-
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0612-0701
503 CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, GENERATOR NIKKO 24V-60A 1.5KW(SC8),ENGINE REAR PTO(SV1) 		1-82690-668-0 01 1 0612-
503 CONNECTOR
HEATER & DEFROSTER(C41) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> GENERATOR NIKKO 24V-60A 1.5KW(SC8) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-82690-668-0 01 1 0612-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0612-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 03 1 0612-0701
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0702-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0612-
çizim 85954
119 64 524 219 294 515 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0612-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0612-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0612-
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0612-0701
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0612-
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 0612-
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0612-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0612-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0612-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0612-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0612-
çizim 87915
14 16 81 171 206 223 418 612 14 16 217 305 14 14 16 228 223 194 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0612-0612
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205
14 CLIP; BAND,HARNESS
(D) L=250 		8-98216-430-0 08 1 1206-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0612-1205
14 CLIP; BAND,HARNESS
(E) L=140 		8-98216-431-0 06 1 1206-
14 CLIP; BAND,HARNESS
(A) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0612-
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 09 1 0612-0612
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 12 1 0612-1205
14 CLIP; BAND,HARNESS
ENGINE REAR PTO(SV1) (D) L=250 		8-98216-430-0 12 1 1206-
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0612-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0612-
16 CLIP; HARNESS
(Q) ID=33 L=63 		1-09700-807-0 01 1 0612-0701
16 CLIP; HARNESS
(O) ID=33 L=83 		1-09701-291-0 01 1 0702-
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0612-
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0612-0612
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0612-
16 CLIP; HARNESS
(R) ID=25 L=50 		1-09701-019-0 01 1 0612-
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0612-0612
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701-
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0612-0612
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0612-0612
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0612-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0612-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0612-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0612-0701
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 02 1 0612-
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0612-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0612-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0612-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0612-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0612-
171 CLIP; STARTER HARNESS
ENGINE REAR PTO(SV1) (D) L=140 		5-09707-031-1 01 1 0612-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0612-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0612-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0612-
223 CLIP; AIR TANK HARNESS
(F) ID=11 L=41 		1-09700-403-0 01 1 0612-
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0612-
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0612-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0612-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0612-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0612-
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0612-0701
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0612-0612
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0612
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0612-0702
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (H) ID=15 H=24 L=20 		1-09700-606-0 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (I) L=36 		8-94224-891-1 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-94225-185-0 01 1 0612-0801
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-97367-985-1 01 1 0802-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (K) 		8-97101-436-0 01 1 0612-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0612-
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0612-
çizim 88741
53 53 59 308 308 308 308 308 334 335
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=55 		1-47475-304-0 01 1 0612-
53 BRACKET; HARNESS
(A) 		1-82698-656-1 02 1 0612-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 02 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(E) 		8-98021-694-1 01 1 0612-
334 BRACKET 1-82698-494-3 01 1 0612-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0612-
çizim 89034
48 16 148 171 305 470 223 16 116 148 168 305 305 305 305 16 305 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0612-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0612-
16 CLIP; HARNESS
(Q) ID=33 L=63 		1-09700-807-0 01 1 0612-0701
16 CLIP; HARNESS
(O) ID=33 L=83 		1-09701-291-0 01 1 0702-
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0612-
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0612-0612
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0612-
16 CLIP; HARNESS
(R) ID=25 L=50 		1-09701-019-0 01 1 0612-
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0612-0612
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701-
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0612-0612
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0612-0612
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0701-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0612-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0612-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0612-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0612-0701
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (M) L=55 		8-94432-655-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 06 1 0612-
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (N) L=175 		8-97110-167-0 02 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 14 1 0612-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0612-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0612-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0612-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 09 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 0612-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0612-
48 CLIP; FRAME HARNESS
(H) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0612-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410-
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0612-1409
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0612-1409
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 0612-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0612-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0612-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0612-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0612-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0612-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0612-
171 CLIP; STARTER HARNESS
ENGINE REAR PTO(SV1) (D) L=140 		5-09707-031-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(F) ID=11 L=41 		1-09700-403-0 01 1 0612-
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0612-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0612-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0612-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0612-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0612-
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0612-0701
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0612-0612
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0612
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0612-0702
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (H) ID=15 H=24 L=20 		1-09700-606-0 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (I) L=36 		8-94224-891-1 01 1 0612-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-94225-185-0 01 1 0612-0801
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (J) ID=18 L=44 		8-97367-985-1 01 1 0802-
305 CLIP; ENG HARNESS
ENGINE REAR PTO(SV1) (K) 		8-97101-436-0 01 1 0612-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
