◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#27427) — 84 parça

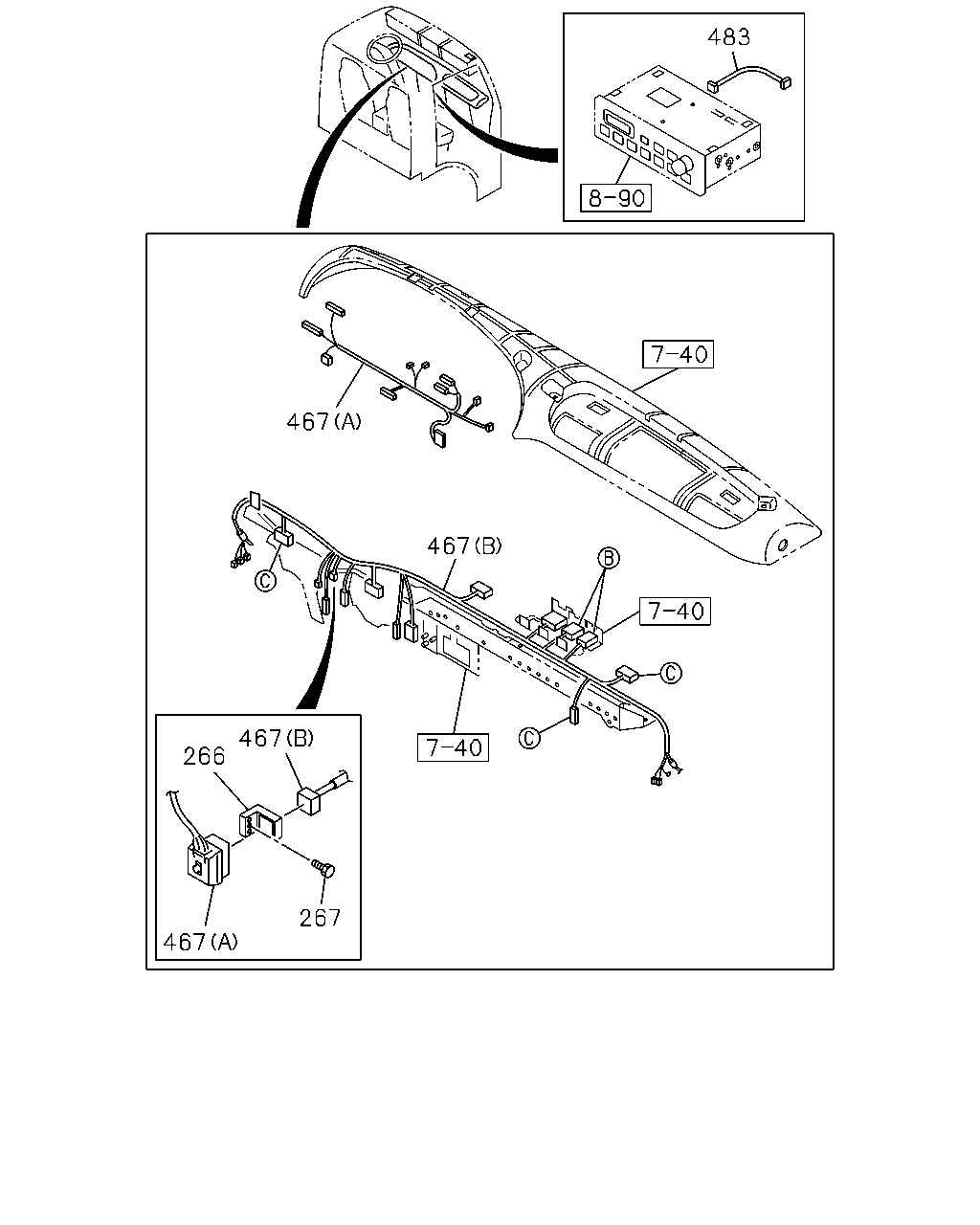

çizim 26318
483 467 467 467 266 267 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0612-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0612-
467 HARNESS; FACIA
(A) 		1-82662-797-1 01 1 0612-
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30> (B) 		1-82662-818-5 01 1 0612-
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-798-5 01 1 0612-
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-823-5 01 1 0612-
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703-

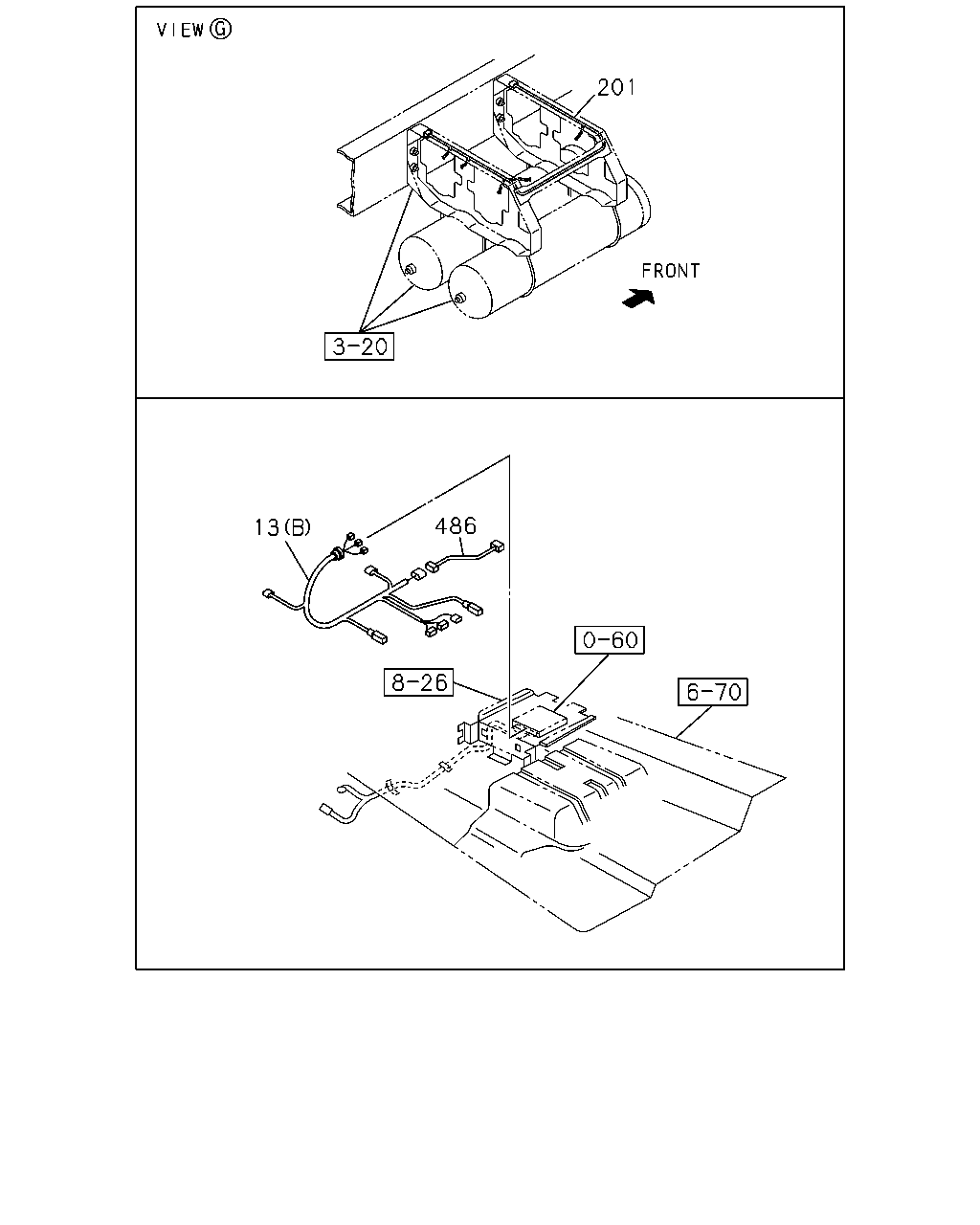

çizim 26321
201 486 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		1-82662-799-4 01 1 0612-
13 HARNESS; ENG
ENGINE REAR PTO(SV1) (A) 		8-97617-165-1 01 1 0612-
13 HARNESS; ENG
EXC. ENGINE REAR PTO(SV1) (A) 		8-97605-001-6 01 1 0612-
201 HARNESS; AIR TANK 1-82678-039-1 01 1 0612-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL<SV6> 		1-82675-898-0 01 1 0612-

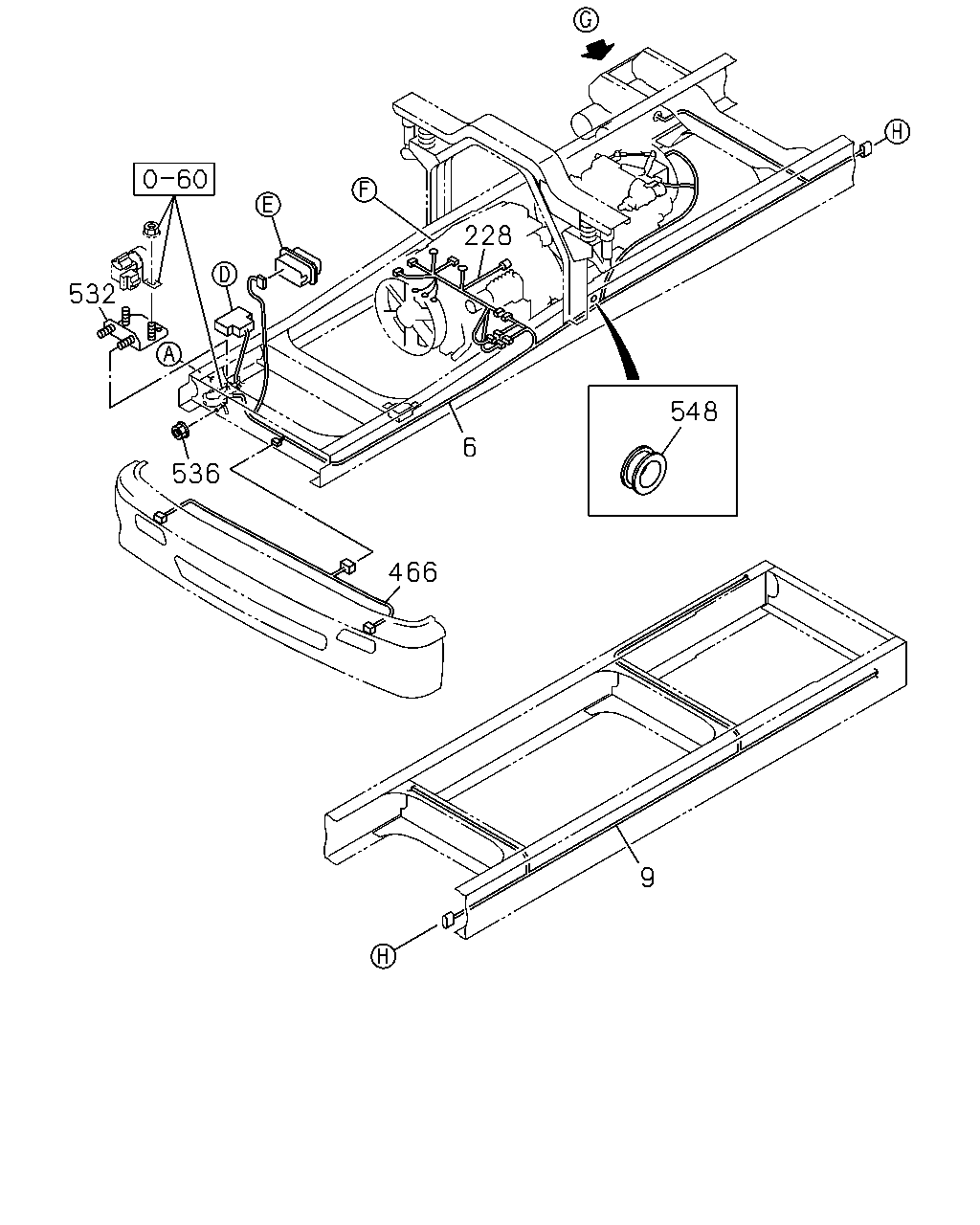

çizim 26636
228 532 548 6 536 466 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FIRE TRUCK(RA9) 		1-82678-262-1 01 1 0612-
6 HARNESS; FRAME
EXC. FIRE TRUCK(RA9) 		1-82678-213-3 01 1 0612-
9 HARNESS; FRAME,RR 1-82678-247-0 01 1 0612-
228 HARNESS; GEN
ENGINE REAR PTO(SV1) 		8-97617-167-1 01 1 0612-
228 HARNESS; GEN
EXC. ENGINE REAR PTO(SV1) 		8-98019-892-5 01 1 0612-
466 HARNESS; BUMPER 1-82638-758-1 01 1 0612-
532 BRACKET; RELAY 8-98049-149-0 01 1 0612-
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0612-
548 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0612-

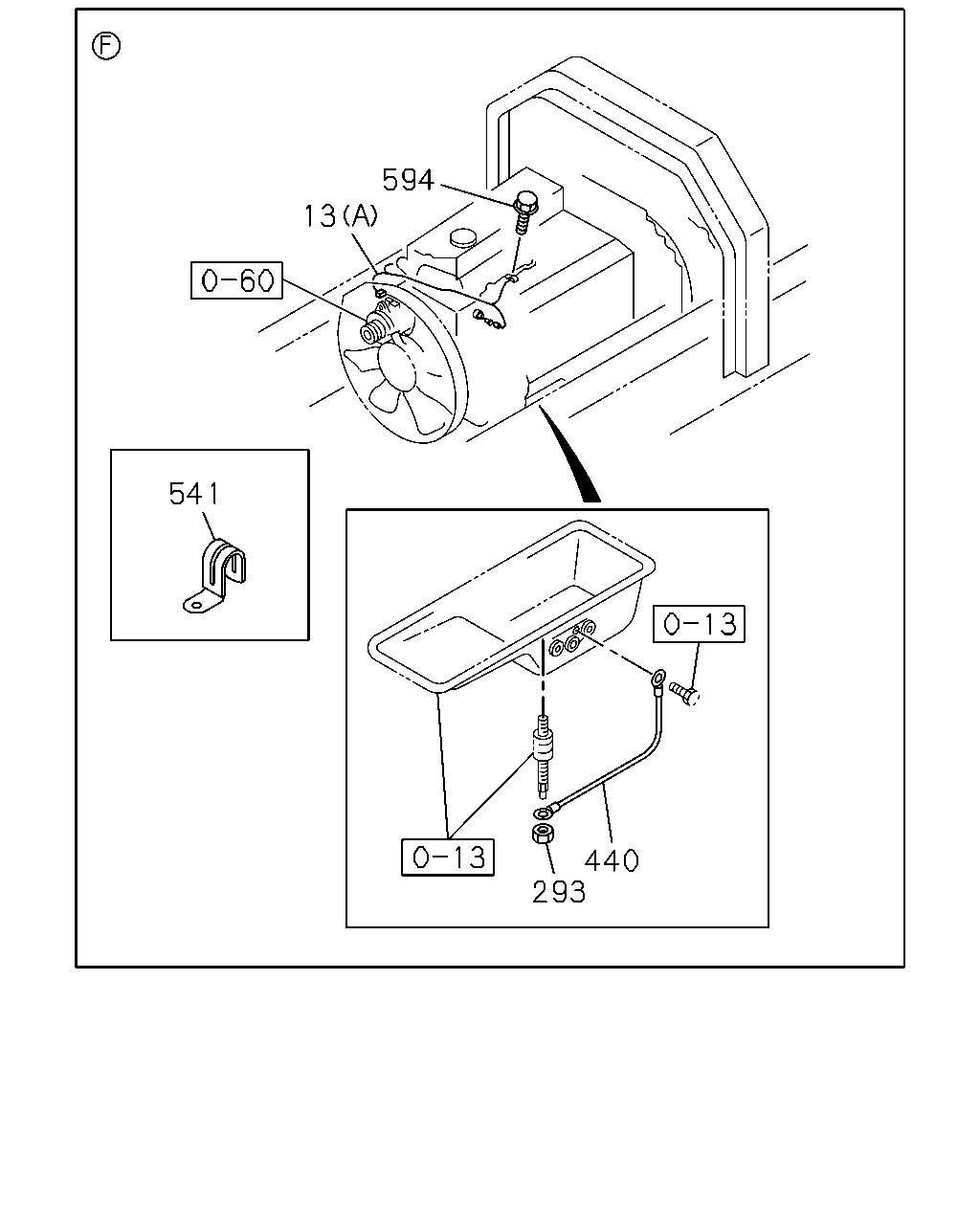

çizim 26899
594 13 541 440 293
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		1-82662-799-4 01 1 0612-
13 HARNESS; ENG
ENGINE REAR PTO(SV1) (A) 		8-97617-165-1 01 1 0612-
13 HARNESS; ENG
EXC. ENGINE REAR PTO(SV1) (A) 		8-97605-001-6 01 1 0612-
293 NUT
ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 01 1 0612-
440 CABLE; EARTH
ENGINE REAR PTO(SV1) 		8-97606-639-0 01 1 0612-
541 CLIP
ENGINE REAR PTO(SV1) 		5-09709-095-0 01 1 0701-
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0612-0701

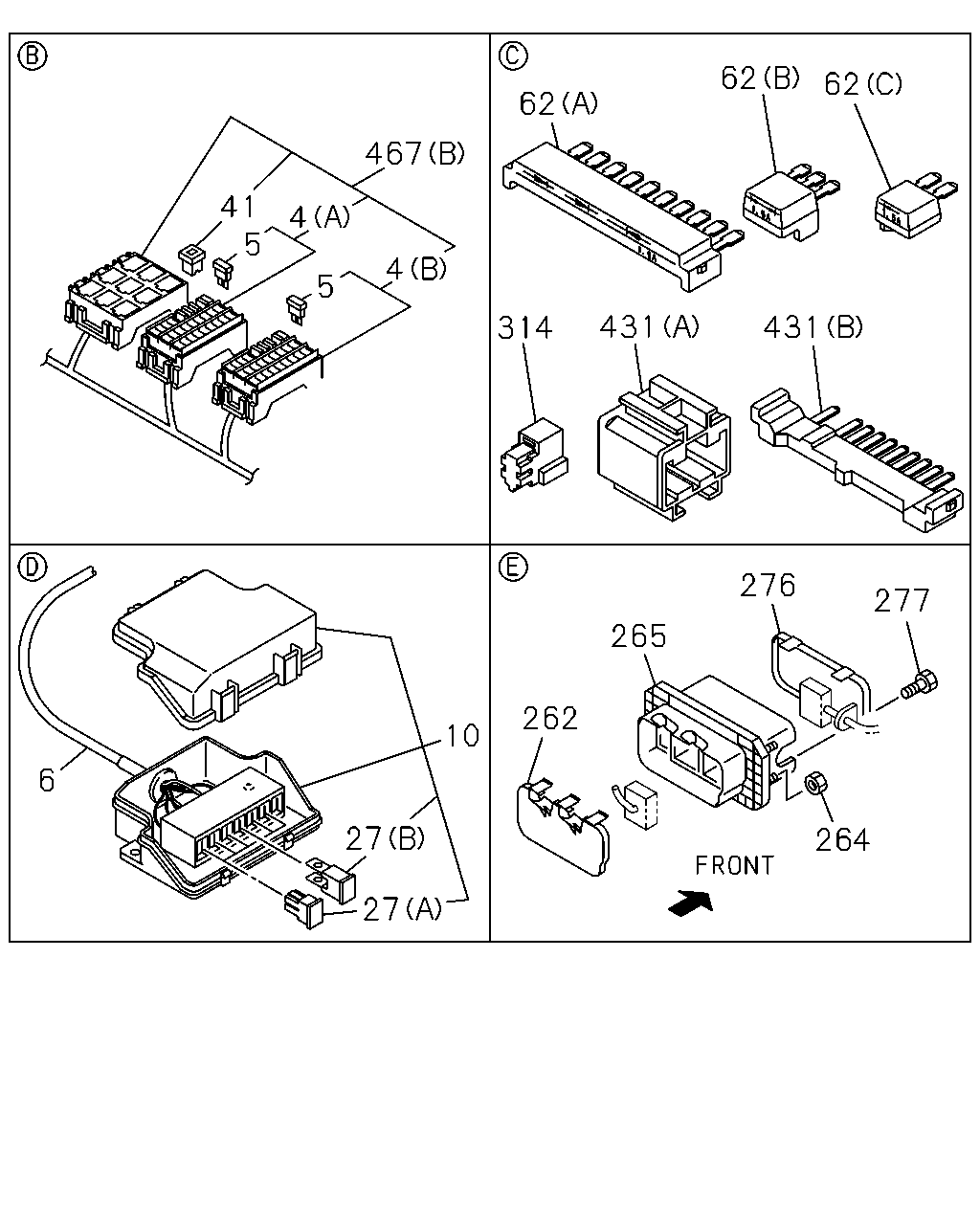

çizim 90372
62 62 62 467 41 5 4 4 5 431 431 314 276 277 265 262 10 6 27 264 27
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 7.5AX12 		1-82510-480-0 01 1 0612-
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 7.5AX12 		1-82510-480-0 01 1 0612-
4 BOX ASM; FUSE,HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 15AX15 		1-82510-521-0 01 1 0612-
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 15AX15 		1-82510-521-0 01 1 0612-
5 FUSE; FACIA HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 15A BLUE 		5-82516-003-0 15 1 0612-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 15A BLUE 		5-82516-003-0 15 1 0612-
5 FUSE; FACIA HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 7.5A BROWN 		8-94159-007-0 12 1 0612-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 7.5A BROWN 		8-94159-007-0 12 1 0612-
6 HARNESS; FRAME
FIRE TRUCK(RA9) 		1-82678-262-1 01 1 0612-
6 HARNESS; FRAME
EXC. FIRE TRUCK(RA9) 		1-82678-213-3 01 1 0612-
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0612-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0612-
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0612-
41 PULLER; FUSE
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=25.3 B=11.5 		8-94121-482-0 01 1 0612-
41 PULLER; FUSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=25.3 B=11.5 		8-94121-482-0 01 1 0612-
62 DIODE; HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 10P 		1-82699-703-0 02 1 0612-
62 DIODE; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 10P 		1-82699-703-0 02 1 0612-
62 DIODE; HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) BLACK 3P-1.5A 		8-94416-438-1 02 1 0612-
62 DIODE; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) BLACK 3P-1.5A 		8-94416-438-1 02 1 0612-
62 DIODE; HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) BLACK 2P-1.5A 		8-94422-639-1 02 1 0612-
62 DIODE; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) BLACK 2P-1.5A 		8-94422-639-1 02 1 0612-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0612-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0612-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0612-
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0612-
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0612-
314 RESISTOR; HARNESS
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLUE 		1-82691-204-0 02 1 0612-
314 RESISTOR; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLUE 		1-82691-204-0 02 1 0612-
431 CONNECTOR; JOINT
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 3P & 3P 		1-82698-170-0 01 1 0612-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 3P & 3P 		1-82698-170-0 01 1 0612-
431 CONNECTOR; JOINT
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 10P BROWN 		1-82699-601-0 06 1 0612-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 10P BROWN 		1-82699-601-0 06 1 0612-
467 HARNESS; FACIA
(A) 		1-82662-797-1 01 1 0612-
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30> (B) 		1-82662-818-5 01 1 0612-
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-798-5 01 1 0612-
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-823-5 01 1 0612-

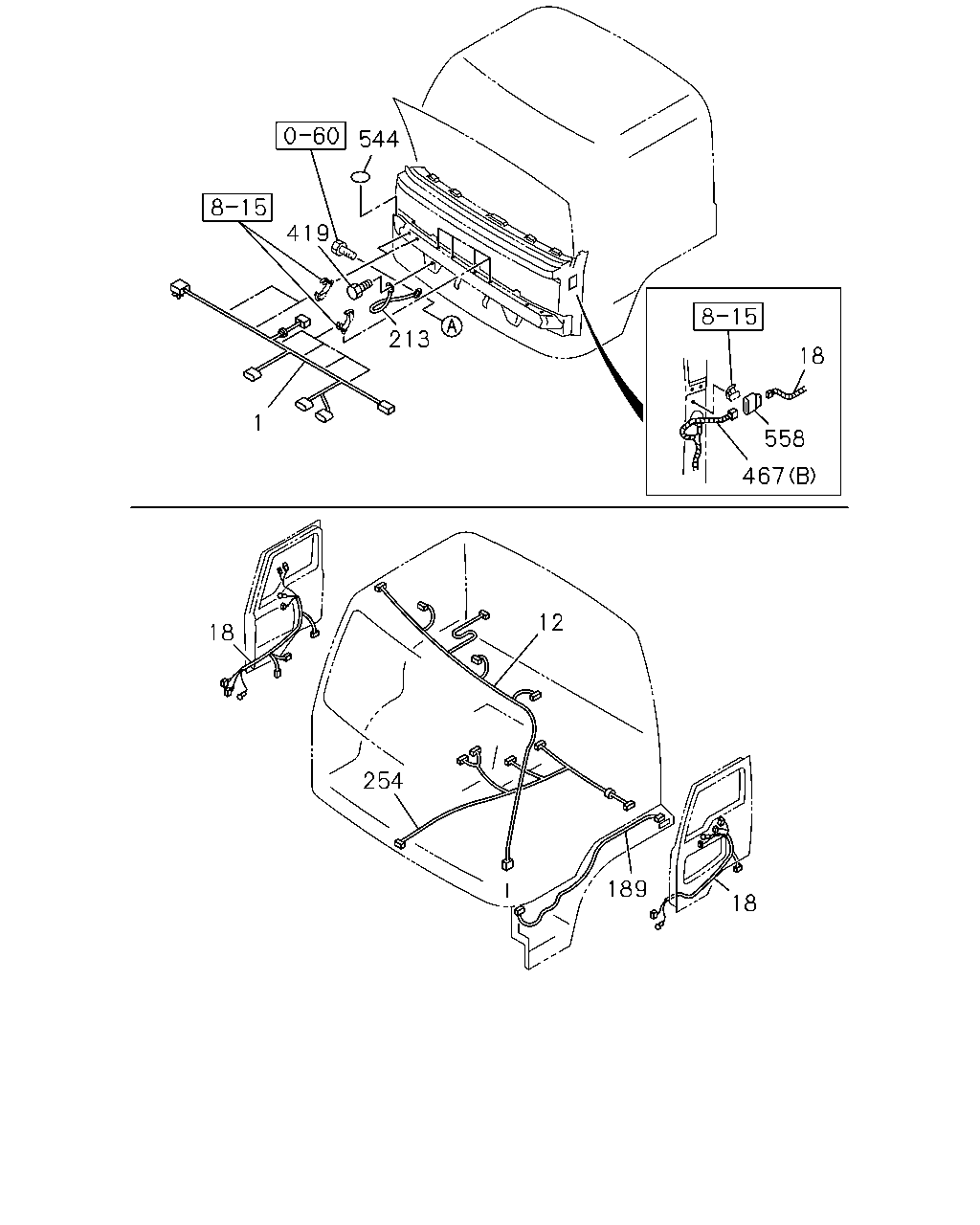

çizim 90479
544 419 213 18 1 558 467 12 18 254 189 18
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82662-688-0 01 1 0612-
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82662-816-0 01 1 0612-
12 HARNESS; ROOF
HIGH ROOF<S2F> 		1-82625-714-6 01 1 0612-
12 HARNESS; ROOF
LOW ROOF<6XQ> 		1-82625-713-4 01 1 0612-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 0612-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-585-0 01 1 0612-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82628-582-0 01 1 0612-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> 		1-82628-584-0 01 1 0612-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> 		1-82628-581-0 02 1 0612-
189 HARNESS; EXT
FRONT FENDER WIDE<SA4> 		1-82625-673-2 02 1 0612-
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0612-
254 HARNESS; CAB FLOOR 1-82628-388-1 01 1 0612-
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0612-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
467 HARNESS; FACIA
(A) 		1-82662-797-1 01 1 0612-
467 HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. POWER WINDOW<A30> (B) 		1-82662-818-5 01 1 0612-
467 HARNESS; FACIA
POWER WINDOW<A30> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-798-5 01 1 0612-
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82662-823-5 01 1 0612-
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0612-
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0612-
