Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

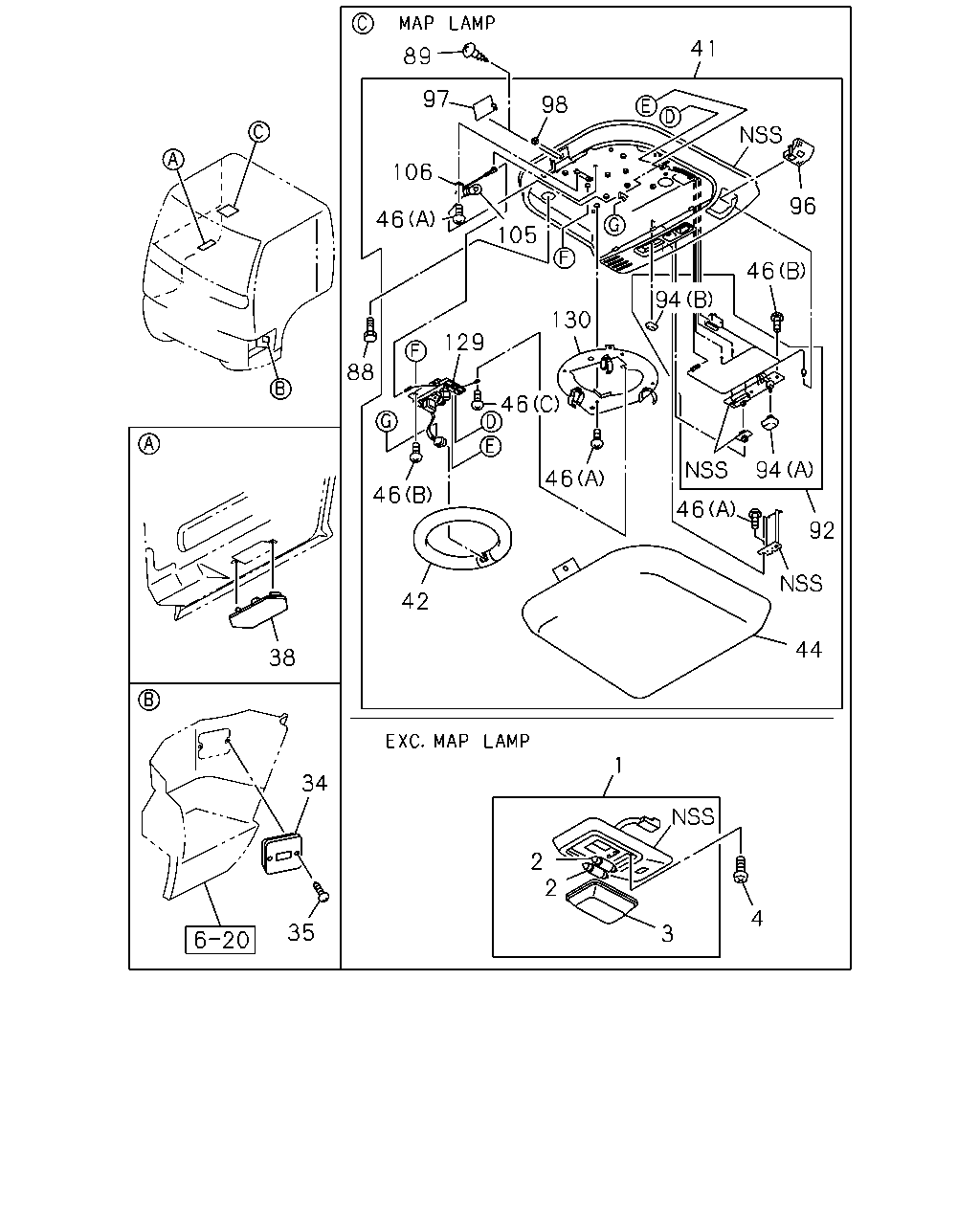

8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#27426) — 25 parça
41
89
97
98
106
96
46
105
46
94
130
129
88
46
94
46
46
46
92
42
44
38
1
34
2
2
4
35
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
EXC. MAP LAMP<C85>
1-82140-050-1
01
1
0612-
2
BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W
1-82195-001-0
02
1
0612-
3
LENS; ROOM LAMP
EXC. MAP LAMP<C85>
1-82145-020-0
01
1
0612-
4
SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING
0-71040-520-0
03
1
0612-
34
COVER; STEP LAMP
1-79998-925-0
02
1
0612-
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0612-
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
0612-
41
LAMP ASM; FLUORESCENT
MAP LAMP<C85>
1-86830-315-2
01
1
0612-
42
LAMP; FLUORESCENT
MAP LAMP<C85>
1-86830-094-1
01
1
0612-
44
LENS; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-092-0
01
1
0612-
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING
1-86830-095-0
08
1
0612-
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12
1-86830-202-0
07
1
0612-
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING
1-86830-336-0
01
1
0612-
88
BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0612-
89
SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING
0-71240-510-0
01
1
0612-
92
SWITCH ASM; FLUORESCENT
MAP LAMP<C85>
1-86830-306-0
01
1
0612-
94
KNOB; ROOM LAMP SW
MAP LAMP<C85> (A)
1-86830-312-0
01
1
0612-
94
KNOB; ROOM LAMP SW
MAP LAMP<C85> (B)
1-86830-313-0
01
1
0612-
96
CAP; SPOT LAMP
MAP LAMP<C85>
1-86830-385-0
01
1
0612-
97
CAP; LENS FIX
MAP LAMP<C85>
1-86830-311-0
01
1
0612-
98
GROMMET; SCREW,LENS FIX
MAP LAMP<C85>
1-86830-102-0
01
1
0612-
105
BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W
1-86830-200-0
01
1
0612-
106
SOCKET; BULB
MAP LAMP<C85>
1-86830-201-0
01
1
0612-
129
INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-338-0
01
1
0612-
130
PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-339-0
01
1
0612-
