Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

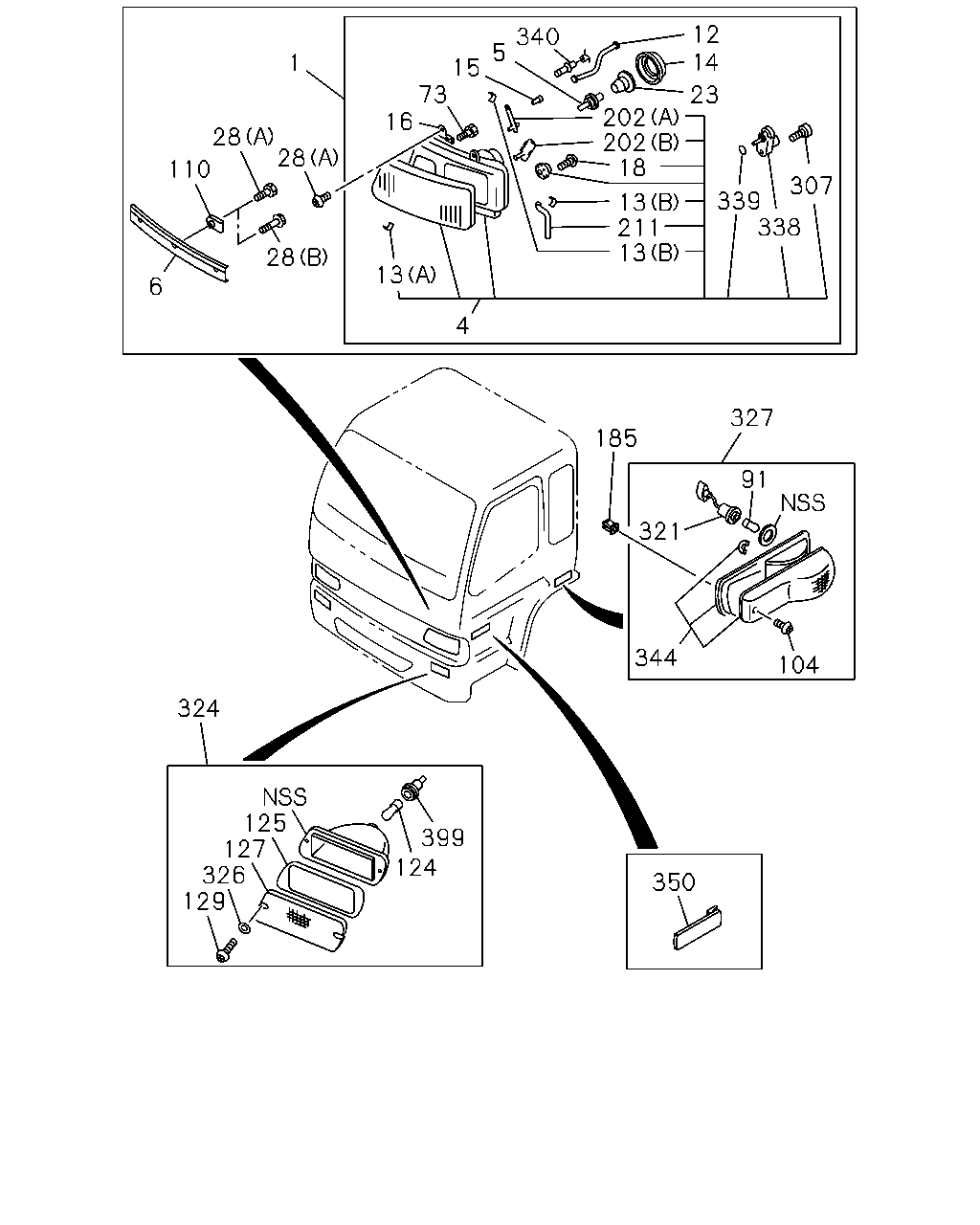

8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#27424) — 48 parça
12
14
340
5
1
15
73
16
23
202
202
18
28
28
110
307
339
338
13
211
13
28
13
6
4
327
185
91
321
344
104
324
125
127
326
129
399
124
350
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-82110-439-0
01
1
0612-
1
LAMP ASM; HEAD
1-82110-440-0
01
1
0612-
4
HEADLAMP UNIT
1-82119-204-0
01
1
0612-
4
HEADLAMP UNIT
1-82119-205-0
01
1
0612-
5
BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0612-
6
RIM; HEADLAMP
1-86830-006-5
01
1
0612-
6
RIM; HEADLAMP
1-86830-005-5
01
1
0612-
12
HARNESS; HEADLAMP
1-86830-145-0
02
1
0612-
13
CLIP; HEADLAMP
(B)
1-82119-084-0
04
1
0612-
13
CLIP; HEADLAMP
(A)
8-94381-588-0
14
1
0612-
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0612-
15
BULB; FOG LAMP
24V 55W
1-82194-079-0
02
1
0612-
16
BRACKET; HEADLAMP
1-86830-075-0
01
1
0612-
16
BRACKET; HEADLAMP
1-86830-076-0
01
1
0612-
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0612-
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0612-
28
BOLT; HEADLAMP
(B) M6X16 FLANGE
0-28650-616-0
04
1
0709-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
14
1
0612-0708
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
0709-
73
BOLT; BRKT,HEADLAMP
8-94332-050-0
04
1
0612-
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0612-
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0612-
110
CLIP; RIM,HEADLAMP
1-86830-213-1
04
1
0612-
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0612-
125
GASKET; FRT TURN SIGNAL
1-82216-033-0
02
1
0612-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-065-0
01
1
0612-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-064-0
01
1
0612-
129
SCREW; FRT TURN SIGNAL
1-82219-026-0
04
1
0612-
185
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0612-
202
GEAR UNIT; HEADLAMP
(A)
1-86830-139-0
02
1
0612-
202
GEAR UNIT; HEADLAMP
(B)
1-86830-140-0
02
1
0612-
211
TUBE; HEADLAMP
1-86830-330-0
01
1
0612-
211
TUBE; HEADLAMP
1-86830-331-0
01
1
0612-
307
SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING
1-82119-067-0
02
1
0612-
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0612-
324
LAMP; FRT FLASHER
1-82210-203-1
01
1
0612-
324
LAMP; FRT FLASHER
1-82210-202-1
01
1
0612-
326
WASHER; PL,FRT TURN SIGNAL
1-82216-032-0
04
1
0612-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0612-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0612-
338
LEVELING; HEADLAMP
1-86830-138-0
02
1
0612-
339
GASKET; LEVELING
1-86830-158-0
02
1
0612-
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0612-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0612-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0612-
350
COVER; SIDE TURN HOLE
1-79996-607-0
01
1
0612-
350
COVER; SIDE TURN HOLE
1-79996-606-0
01
1
0612-
399
SOCKET; TURN SIGNAL
1-82219-034-0
02
1
0612-
