7-70 — SEPARATER AND BED (#27423) — 106 parça

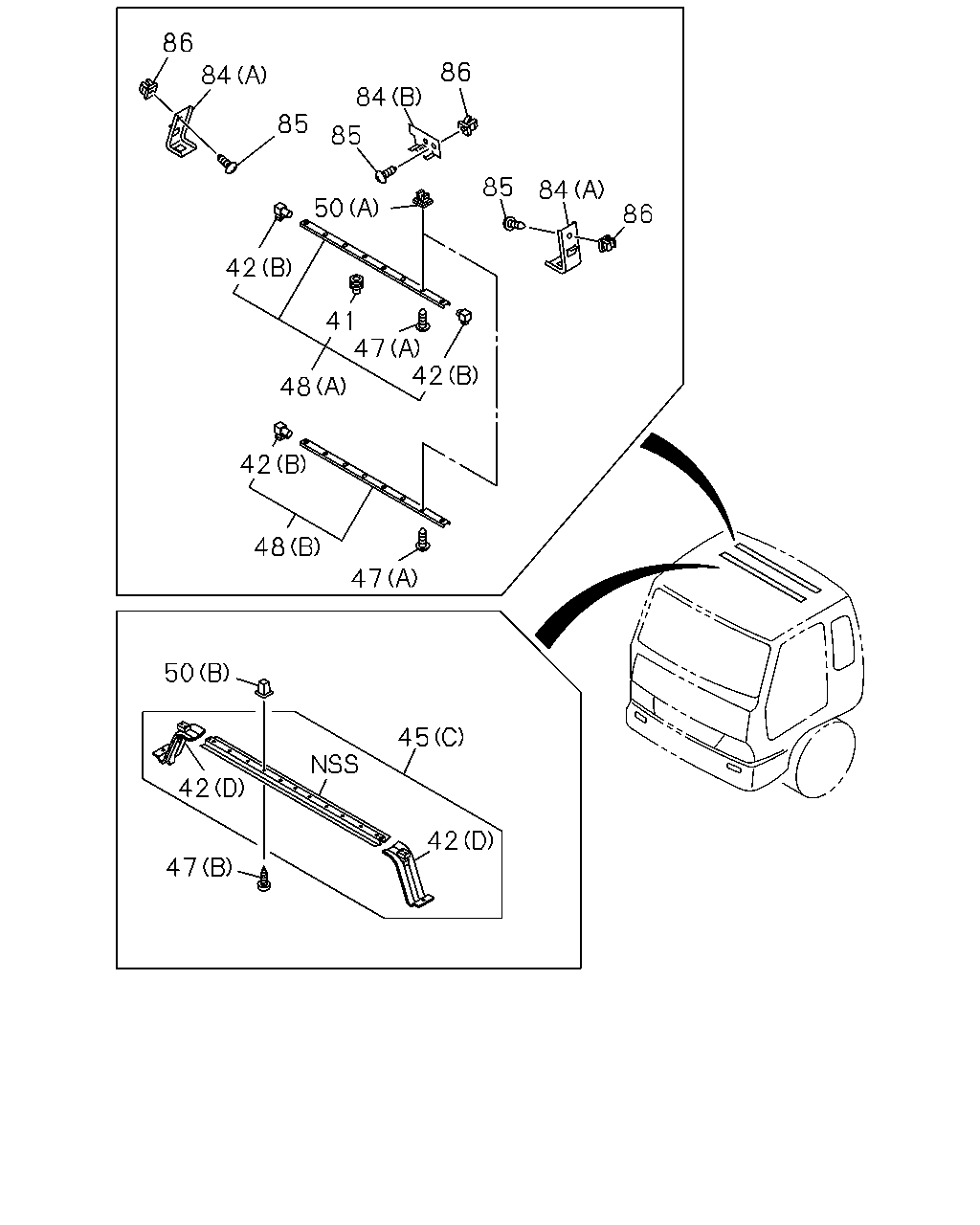

84 85 86 86 50 84 85 42 50 84 48 42 85 86 47 50 41 45 101 42 50 42 47 47 50 42 47 45 101 42 40 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0612-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (B)	1-73996-380-1	01	1	0612-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (B)	1-73996-379-0	01	1	0612-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0612-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0612-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0612-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0612-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0612-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0612-
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0612-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0612-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0612-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0612-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	0612-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	0612-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0612-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0612-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0612-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0612-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0612-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0612-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0612-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0612-
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	0612-

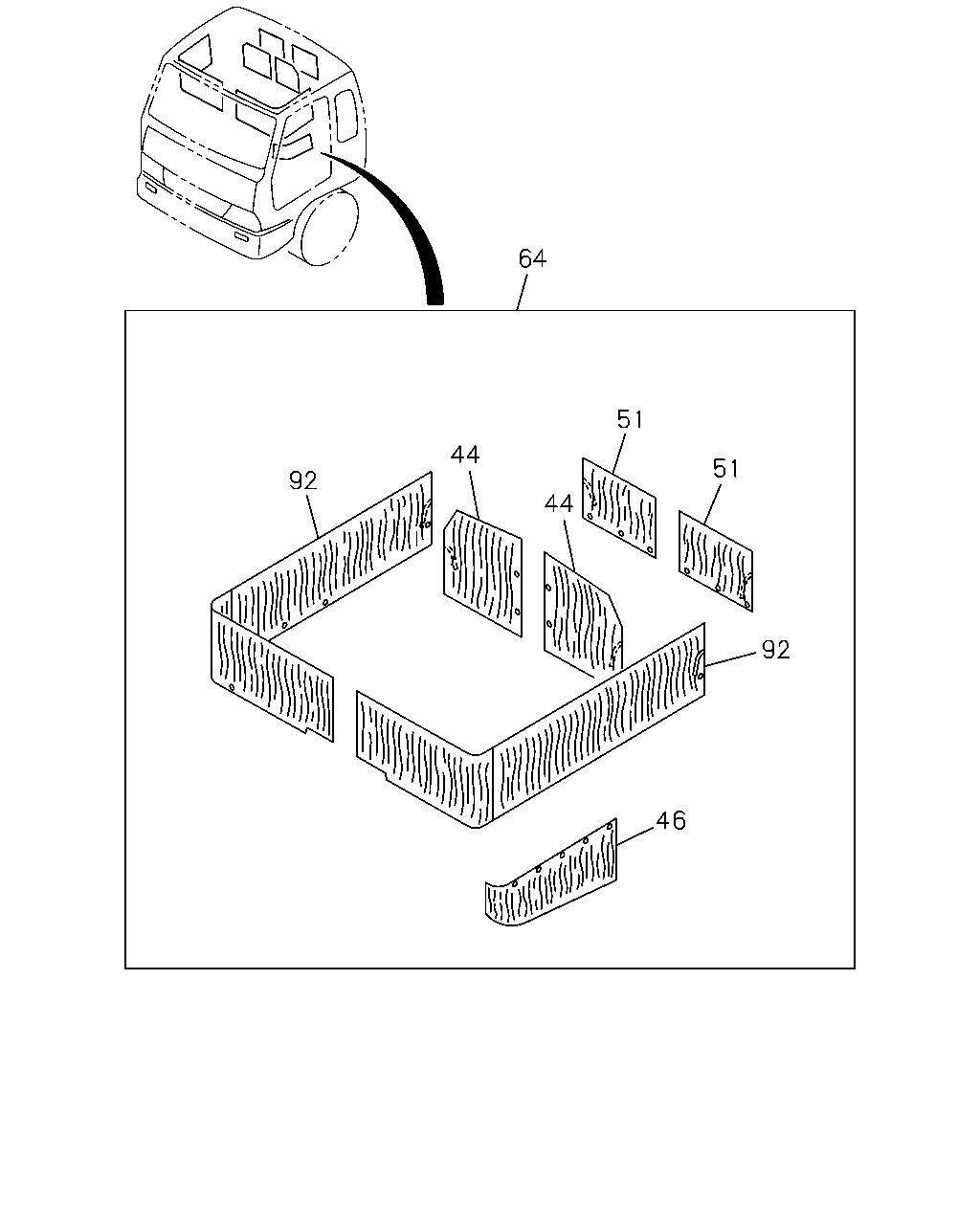

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73908-207-1	01	1	0612-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73908-208-1	01	1	0612-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-303-0	01	1	0612-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73908-211-1	01	1	0612-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73908-212-1	01	1	0612-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73908-205-1	01	1	0612-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73908-215-1	01	1	0612-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73908-216-1	01	1	0612-

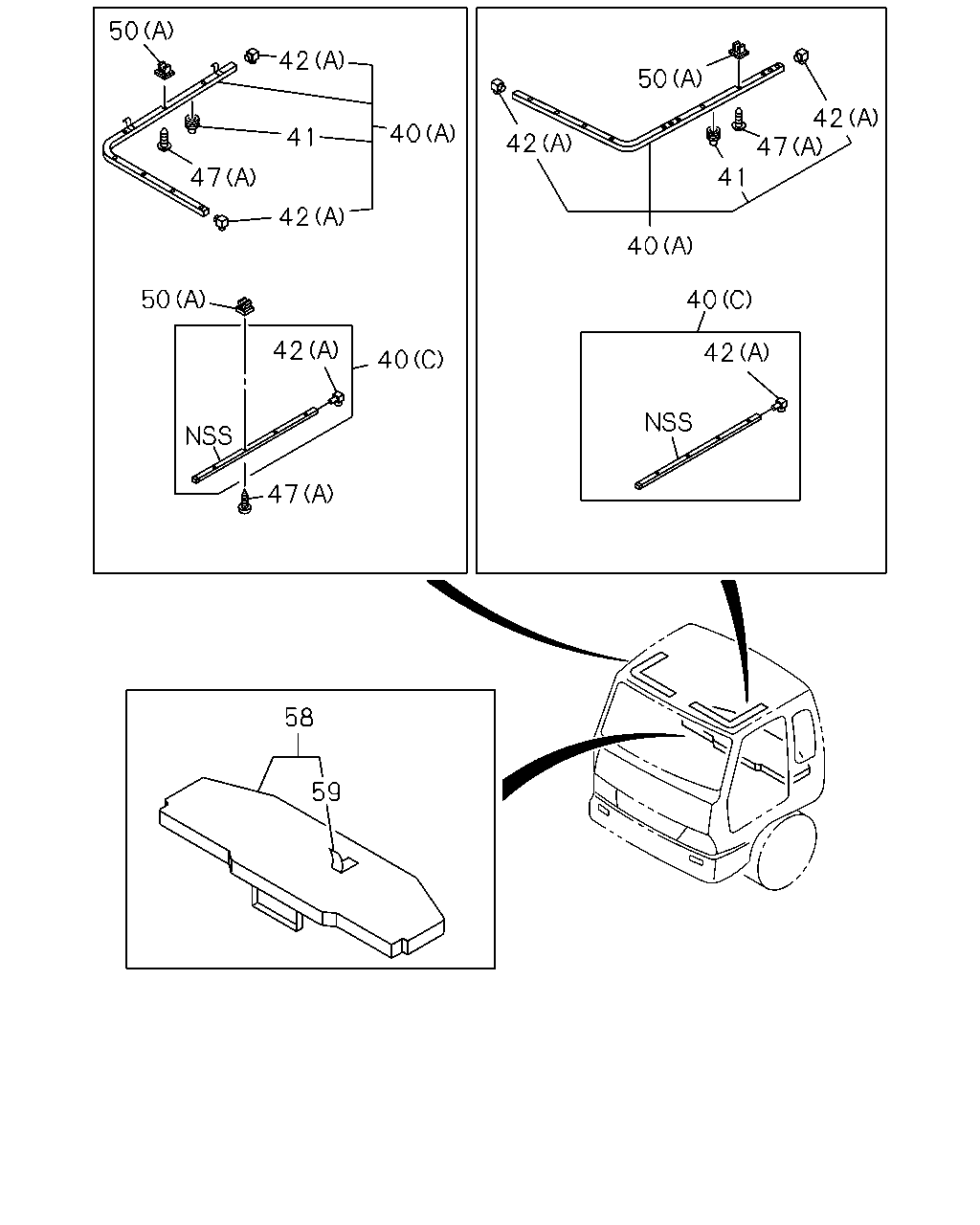

50 42 50 42 40 41 42 47 47 41 42 40 50 40 42 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0612-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (B)	1-73996-380-1	01	1	0612-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (B)	1-73996-379-0	01	1	0612-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0612-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0612-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0612-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0612-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0612-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0612-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	0612-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0612-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0612-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0612-

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 45 42 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0612-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0612-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0612-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0612-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0612-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0612-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0612-
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0612-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0612-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0612-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0612-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	0612-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	0612-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0612-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0612-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0612-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0612-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0612-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0612-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0612-
