Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#27421) — 267 parça

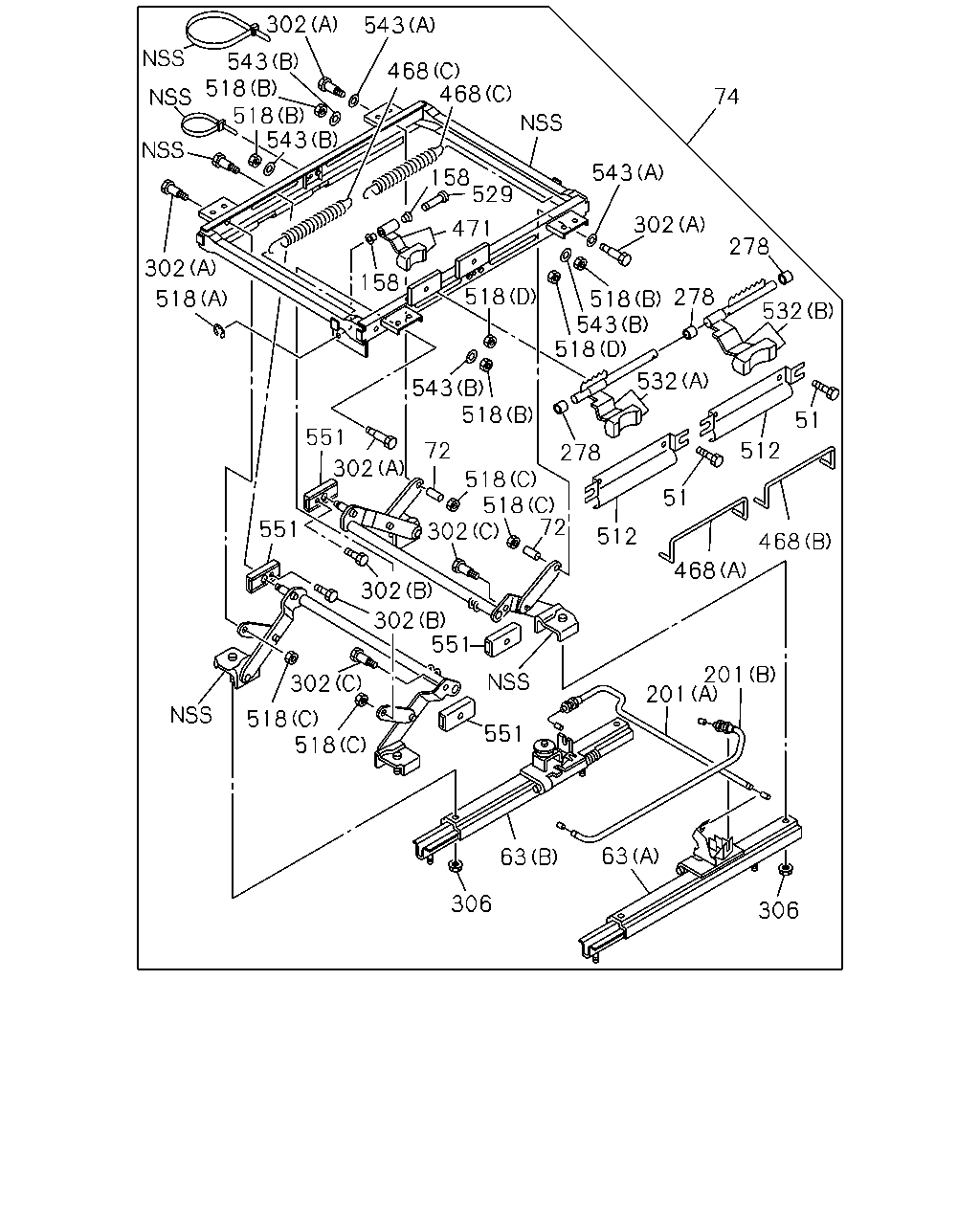

543 302 543 518 468 518 468 543 302 518 158 543 529 471 158 302 518 278 278 543 518 543 518 518 72 551 518 302 551 302 302 518 512 278 532 51 512 51 468 532 468 201 201 63 306 63 306 518 518 551 551 302 72 302 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-325-1	04	1	0612-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-324-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) (A)	1-75518-295-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (A)	1-75518-295-1	01	1	0612-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-334-1	02	1	0612-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-331-3	01	1	0612-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-646-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0612-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0612-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0612-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-244-0	03	1	0612-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-266-2	02	1	0612-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-270-1	04	1	0612-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-336-1	02	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	14	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	12	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE	1-75538-207-0	12	1	0612-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-206-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-207-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-208-0	02	1	0612-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0612-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-245-1	02	1	0612-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-264-0	04	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 FLANGE	8-94152-886-0	04	1	0612-
529	PIN; LINK	1-75518-262-0	01	1	0612-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-221-0	01	1	0612-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-222-1	01	1	0612-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=8.4	9-09160-508-0	04	1	0612-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-335-0	02	1	0612-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	8-98291-669-0	02	1	1503-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-265-0	04	1	0612-

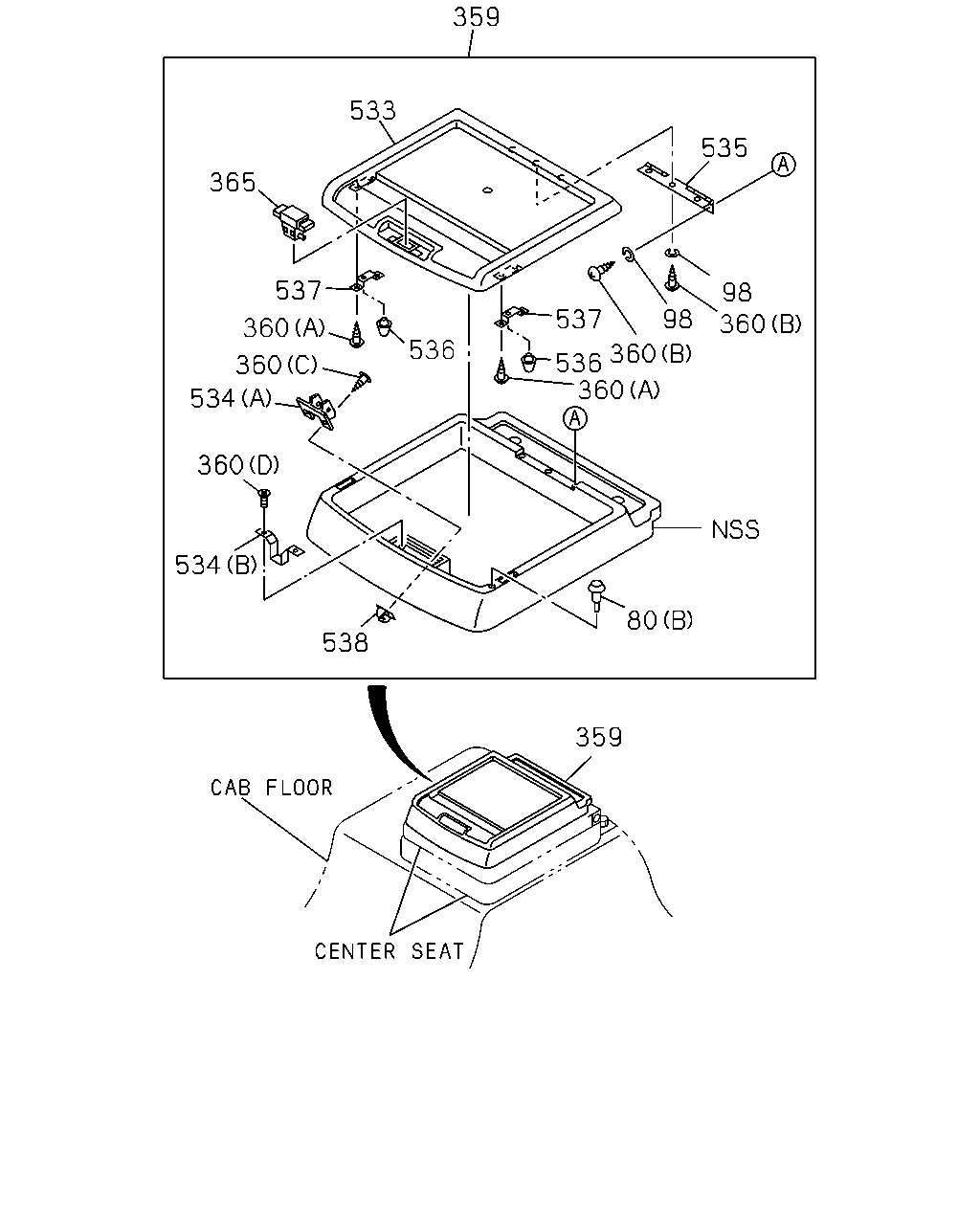

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0612-
98	WASHER; HINGE CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0612-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0612-1006
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0612-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0612-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0612-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
365	LOCK ASM; SEAT CENTER SEAT 3 CREWS<SA1>	1-72538-180-0	01	1	0612-
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72538-277-1	01	1	0612-1006
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (A)	1-72538-181-0	01	1	0612-1006
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72447-391-1	01	1	0612-
536	RUBBER; CUSHION CENTER SEAT 3 CREWS<SA1>	5-09983-002-1	02	1	0612-1006
537	BRACKET; RUBBER CENTER SEAT 3 CREWS<SA1>	1-72548-057-1	02	1	0612-1006
538	GROMMET; SCREW CENTER SEAT 3 CREWS<SA1>	1-09983-165-0	02	1	0612-1006

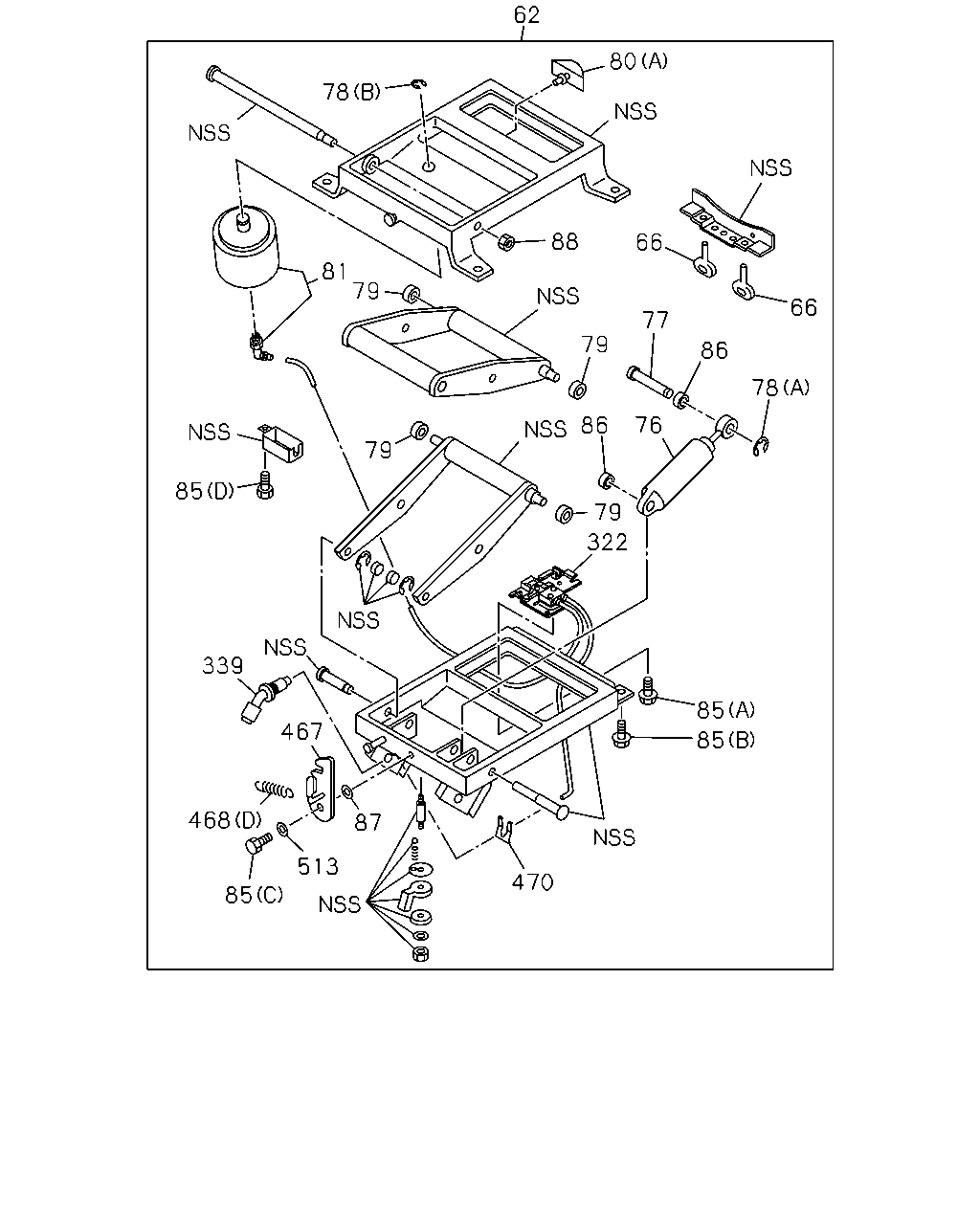

62 80 78 81 79 88 66 66 77 86 78 76 79 79 86 79 322 85 85 470 87 85 468 513 467 339 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0612-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0612-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0612-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0612-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0612-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0612-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0612-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0612-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0612-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0612-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A)	1-75538-208-1	02	1	0612-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0612-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0612-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0612-0710
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75537-273-1	01	1	0612-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	0612-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	0612-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-206-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-207-0	01	1	0612-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C)	1-75518-208-0	02	1	0612-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0612-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0612-

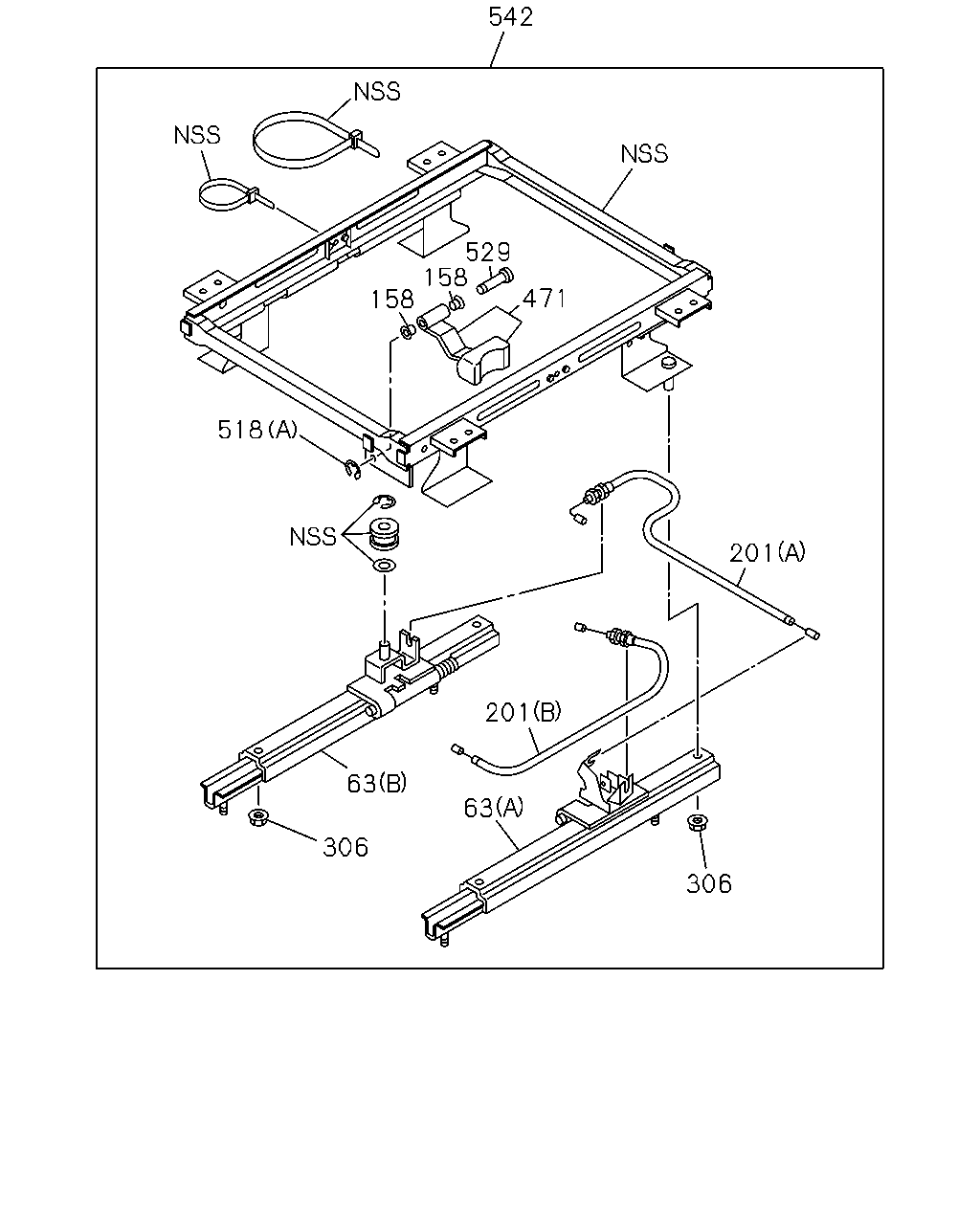

542 529 158 158 518 201 201 63 306 63 306 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A)	1-75518-324-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) (A)	1-75518-295-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (A)	1-75518-295-1	01	1	0612-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0612-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0612-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	14	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE	1-75538-207-0	12	1	0612-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE	1-75538-207-0	12	1	0612-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0612-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0612-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B)	1-75518-264-0	04	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	0612-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 FLANGE	8-94152-886-0	04	1	0612-
529	PIN; LINK	1-75518-262-0	01	1	0612-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	8-98291-656-0	01	1	1503-

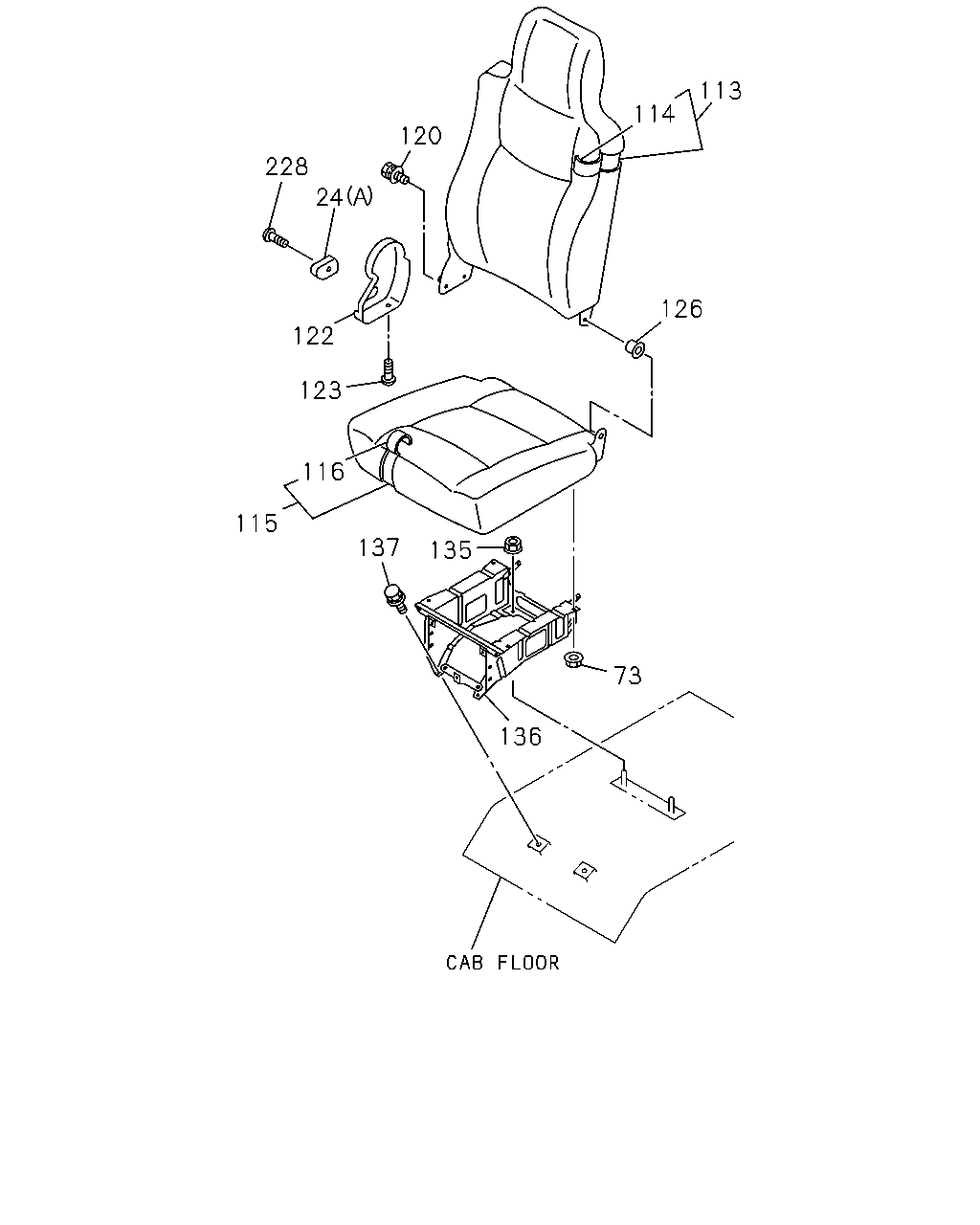

113 114 120 228 24 126 122 123 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0612-0710
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) DARK GRAY	8-97867-021-0	01	1	0612-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0612-
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0612-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0612-
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0612-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0612-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0612-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0612-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0612-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0612-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0612-
120	BOLT; RECLINING ADJ VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8X20	8-97255-906-0	02	1	0612-
122	COVER; ADJ,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> DARK GRAY	8-97867-020-0	01	1	0612-
123	SCREW; COVER,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0612-
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	8-97854-087-0	01	1	0612-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0612-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	1-75558-550-7	01	1	0612-1305
136	STAND; PASSENGER SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ>	8-98242-292-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0612-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB DRIVER SIDE M4	8-98062-662-0	01	1	0711-
228	SCREW; KNOB PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0711-

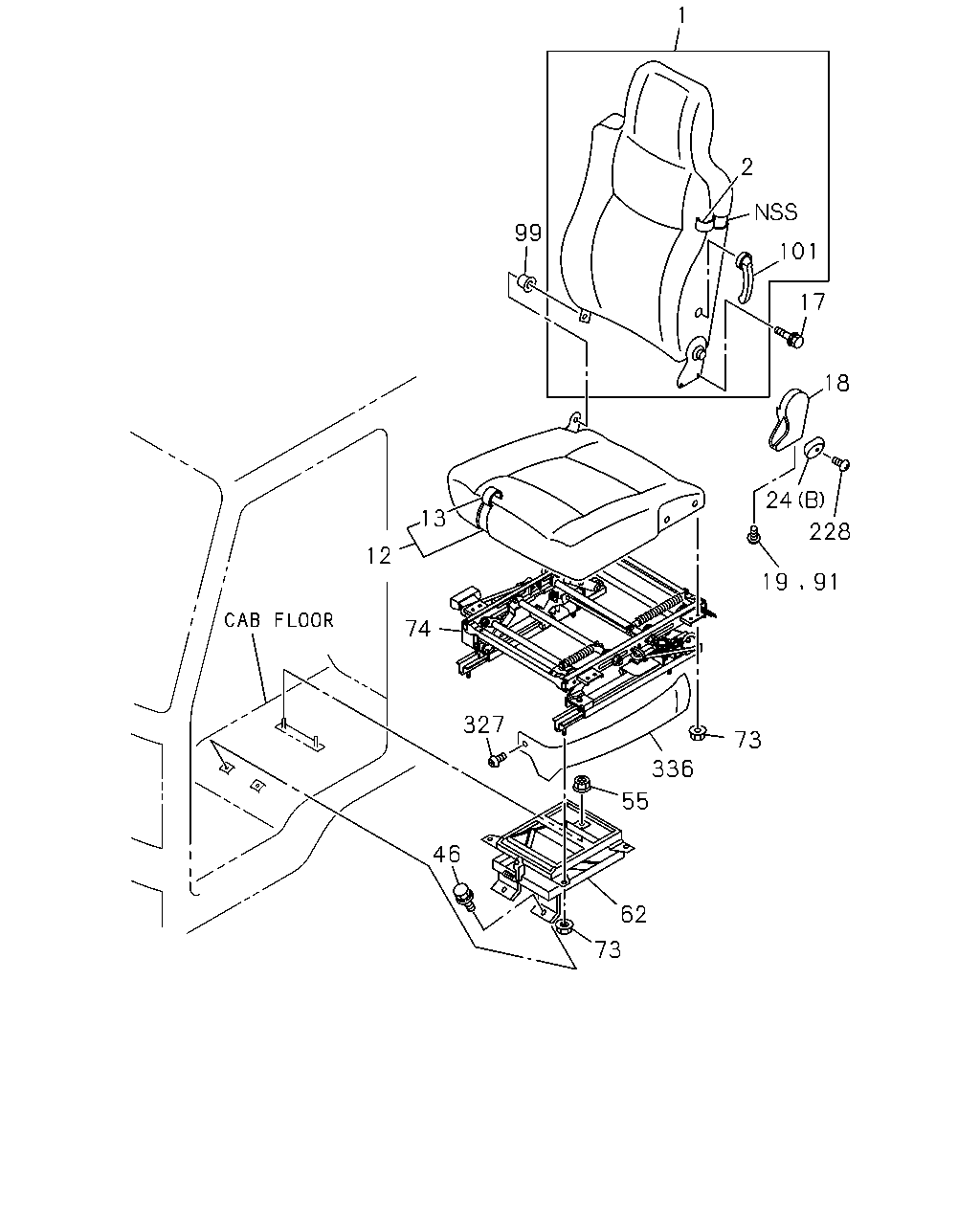

1 2 101 18 24 19 91 99 13 12 74 327 336 73 55 62 73 46 228 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75208-073-2	01	1	0612-0901
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98135-614-0	01	1	0902-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75208-070-2	01	1	0612-0901
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98135-613-0	01	1	0902-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75208-072-3	01	1	0612-
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75208-071-2	01	1	0612-0901
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	8-98135-617-0	01	1	0902-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-708-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-705-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-707-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-706-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75026-697-3	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75026-697-3	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-700-1	01	1	0612-
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-699-3	01	1	0612-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-685-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-685-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-688-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-687-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0612-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0612-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0612-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0612-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0612-0710
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) DARK GRAY	8-97867-021-0	01	1	0612-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0612-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0612-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0612-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0612-
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0612-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-331-3	01	1	0612-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98291-646-0	01	1	1503-
91	SCREW; SEAT ADJ COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0612-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0612-
101	LEVER ASM; LUMBAR AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	5-75190-138-0	01	1	0612-
228	SCREW; KNOB DRIVER SIDE M4	8-98062-662-0	01	1	0711-
228	SCREW; KNOB PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0711-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-09987-273-0	01	1	0612-
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75518-313-0	01	1	0612-

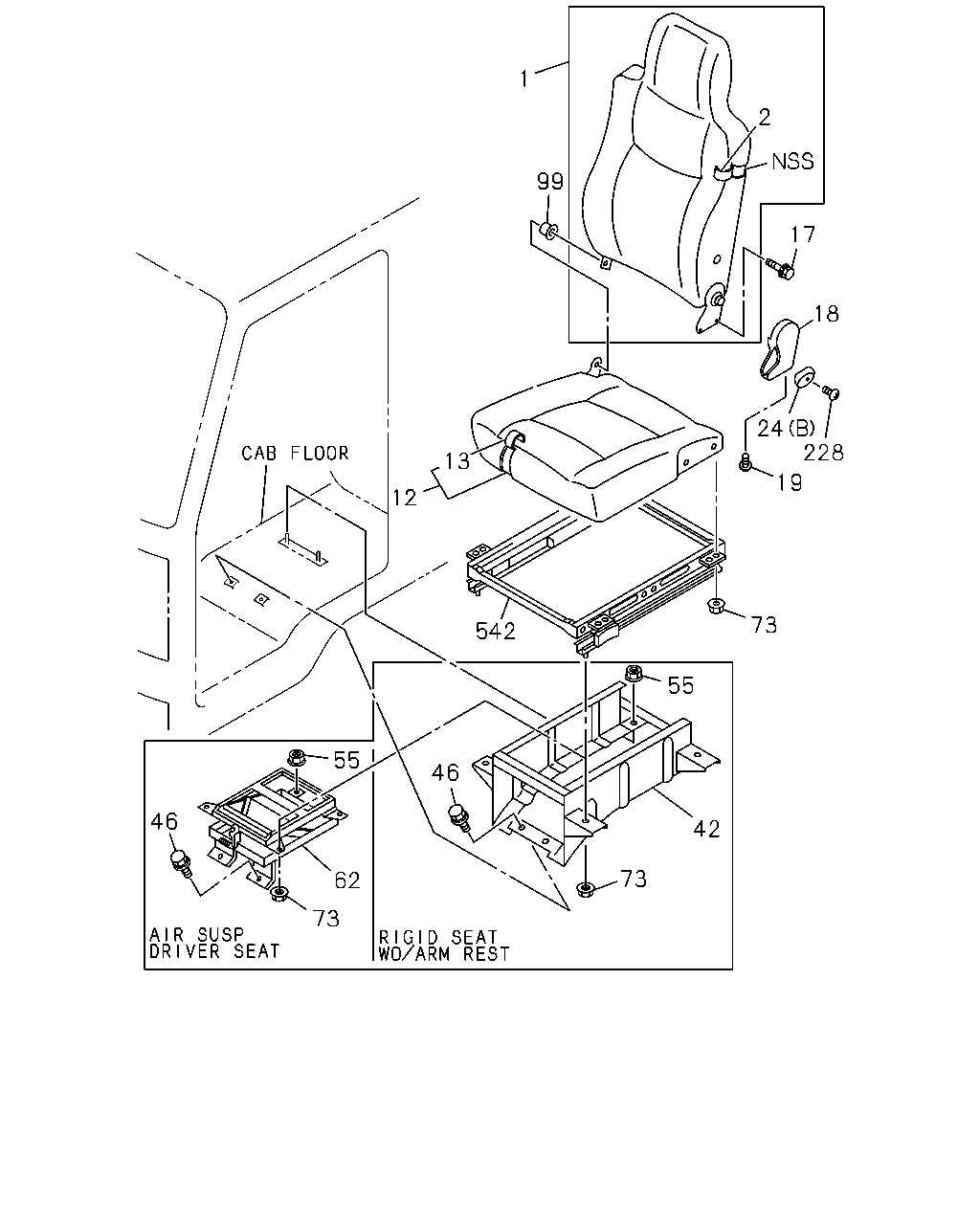

1 2 99 17 18 24 228 13 19 12 73 542 55 55 46 46 42 73 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75208-073-2	01	1	0612-0901
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	8-98135-614-0	01	1	0902-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75208-070-2	01	1	0612-0901
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98135-613-0	01	1	0902-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75208-072-3	01	1	0612-
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75208-071-2	01	1	0612-0901
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	8-98135-617-0	01	1	0902-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-708-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-705-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-707-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-706-1	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75026-697-3	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75026-697-3	01	1	0612-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75026-700-1	01	1	0612-
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75026-699-3	01	1	0612-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14)	1-75116-685-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75116-685-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75116-688-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-687-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0612-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0612-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0612-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0612-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0612-0710
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) DARK GRAY	8-97867-021-0	01	1	0612-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0612-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0612-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0612-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0612-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0612-
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE	1-75538-207-0	04	1	0612-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0612-
228	SCREW; KNOB DRIVER SIDE M4	8-98062-662-0	01	1	0711-
228	SCREW; KNOB PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0612-0710
228	SCREW; KNOB VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER SIDE M4X6	8-97042-273-0	01	1	0711-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	1-75518-283-3	01	1	0612-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14)	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ>	8-98291-656-0	01	1	1503-

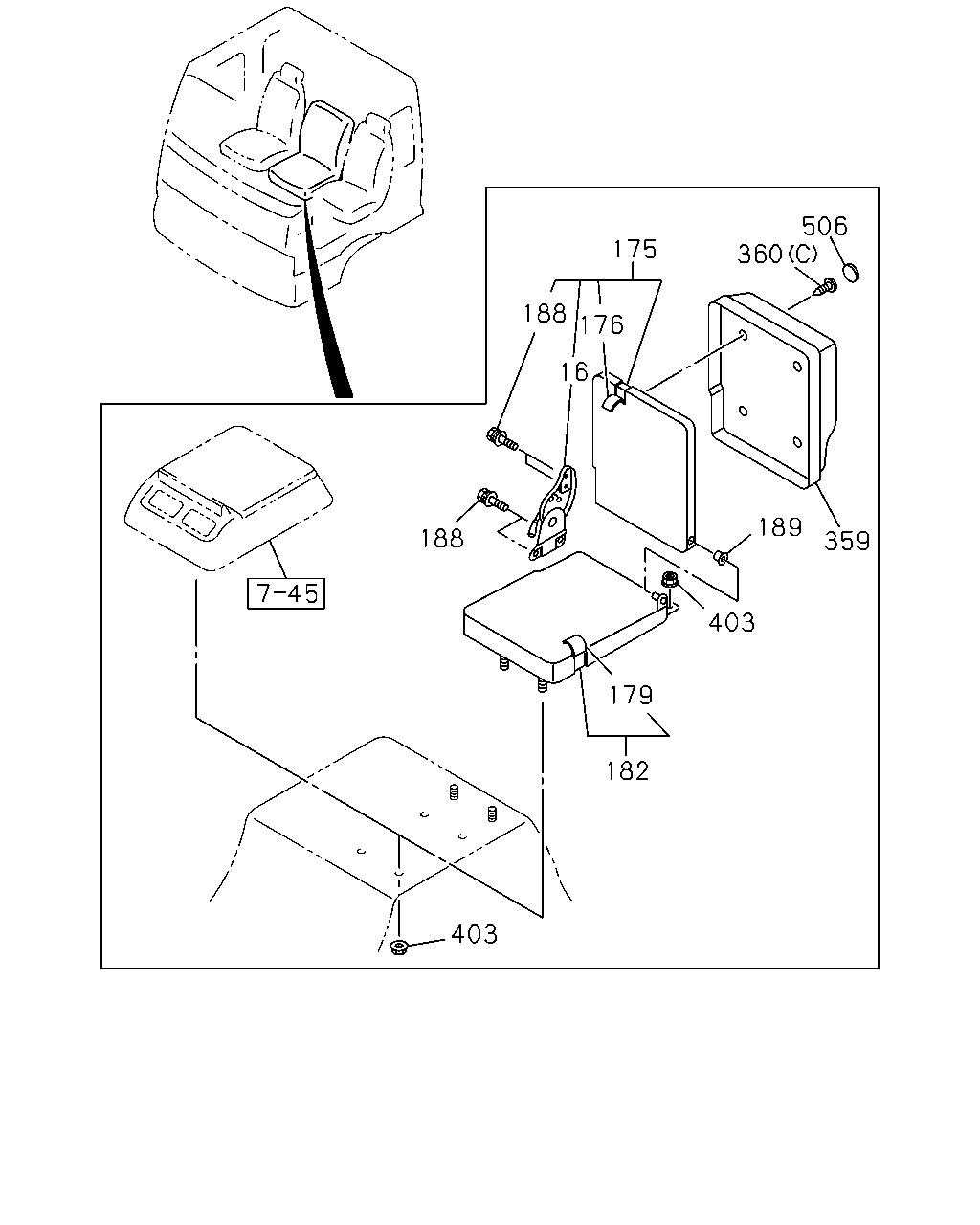

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1>	1-75418-062-1	01	1	0612-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-3	01	1	0612-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-856-3	01	1	0612-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-1	01	1	0612-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-710-1	01	1	0612-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-1	01	1	0612-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-692-1	01	1	0612-
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-4	01	1	0612-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-841-4	01	1	0612-
188	BOLT; BACK TO CUSHION CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE	1-75198-053-0	04	1	0612-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT 3 CREWS<SA1>	8-97854-900-0	01	1	0612-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0612-1006
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0612-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0612-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0612-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
403	NUT; CENTER SEAT CENTER SEAT 3 CREWS<SA1> M8 FLANGE	1-75538-207-0	04	1	0612-0703
403	NUT; CENTER SEAT CENTER SEAT 3 CREWS<SA1> M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	04	1	0612-1006
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	02	1	1007-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
