0-25B — INLET MANIFOLD (#2742) — 116 parça

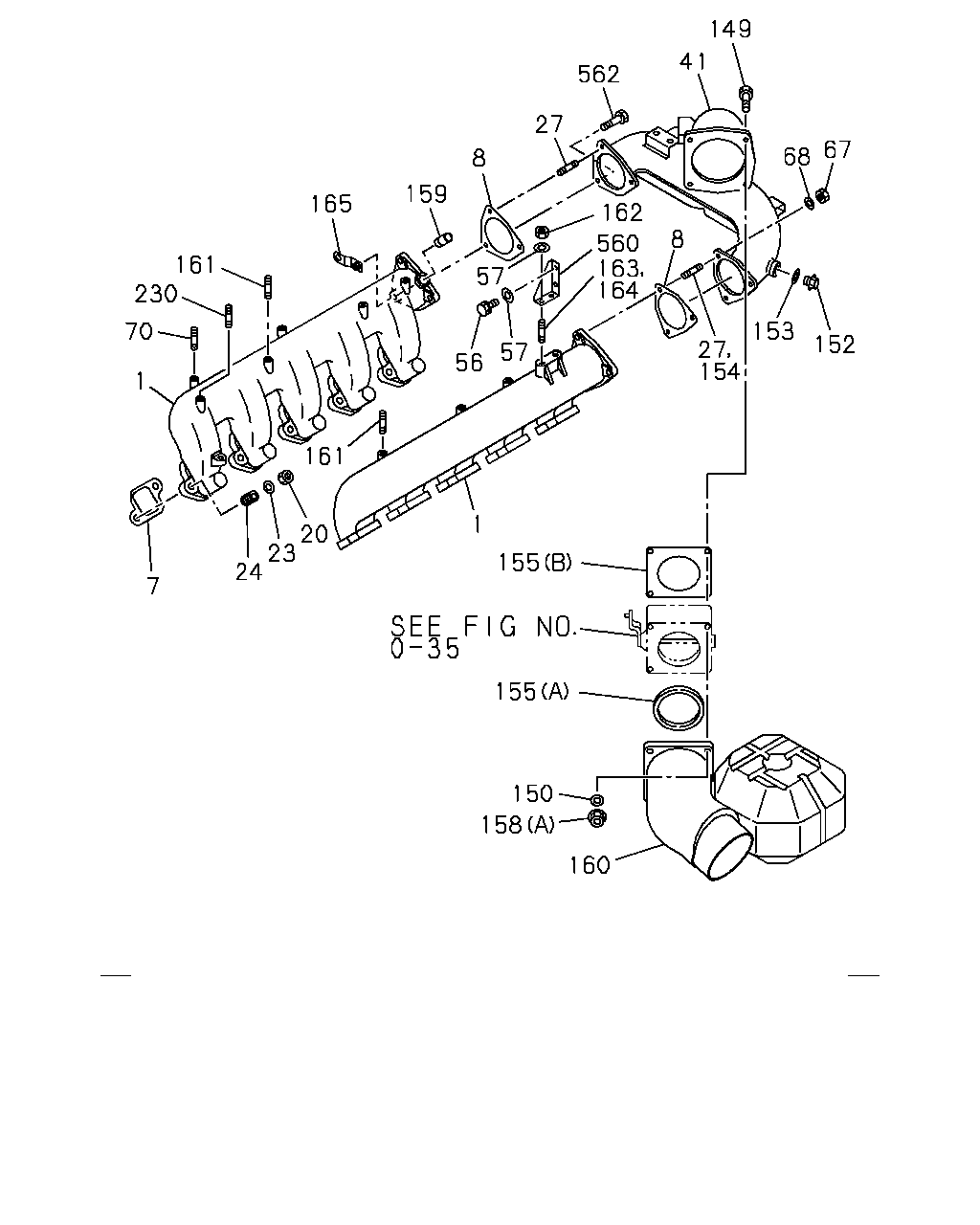

160 158 150 155 155 154 27 153 152 67 68 149 8 41 562 162 27 8 159 165 161 230 70 1 7 24 23 20 161 56 57 57 560 163 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL LH BANK	1-14112-284-2	01	1	9002-9306	●
1	MANIFOLD; INL FIRE TRUCK<RA9> RH BANK	1-14112-357-0	01	1	9002-9306	●
1	MANIFOLD; INL FIRE TRUCK<RA9> RH BANK	1-14112-525-0	01	1	9307-	●
1	MANIFOLD; INL EXC. FIRE TRUCK<RA9> RH BANK	1-14112-281-0	01	1	9002-9306	●
1	MANIFOLD; INL EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) RH BANK	1-14112-281-1	01	1	9307-	●
1	MANIFOLD; INL TAIWAN EQUIPMENT(WW5) LH BANK	1-14112-344-2	01	1	9307-	●
1	MANIFOLD; INL TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> RH BANK	1-14112-342-1	01	1	9307-	●
1	MANIFOLD; INL EXC. TAIWAN EQUIPMENT(WW5) LH BANK	1-14112-284-3	01	1	9307-	●
1	MANIFOLD; INL RH BANK	1-14112-348-1	01	1	9307-		●
1	MANIFOLD; INL LH BANK	1-14112-350-2	01	1	9307-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-048-0	10	1	9002-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-048-0	12	1	9307-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-044-0	02	1	9002-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	20	1	9002-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	24	1	9307-		●
23	WASHER; PL,INL MANIF	1-09503-067-1	20	1	9002-9110	●
24	SPRING; INL MANIF	1-09580-156-0	20	1	9002-	●
24	SPRING; INL MANIF	1-09580-156-0	24	1	9307-		●
27	STUD; INL MANIF AIR COMPRESSOR HEAVY DUTY(E1Q) M10X35 L=55	9-04311-035-0	01	1	9002-9005	●
27	STUD; INL MANIF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X35 L=55	9-04311-035-0	03	1	9002-9005	●
27	STUD; INL MANIF M10X30 L=45	9-04411-030-0	03	1	9002-	●	●
27	STUD; INL MANIF M10X35 L=55	9-04311-035-0	03	1	9006-	●	●
41	DUCT; INT COVER	1-14114-818-4	01	1	9002-	●	●
56	BOLT; STAY AIR DUCT	0-28081-022-0	01	1	9002-9306	●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9307-	●	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	01	1	9002-9306	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	9307-	●	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	06	1	9002-	●
67	NUT; INL DUCT M10	9-09110-410-0	06	1	9307-		●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●
70	STUD; WATER PIPE FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	03	1	9309-	●
70	STUD; WATER PIPE EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	02	1	9002-	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	02	1	9002-		●
149	BOLT; INT SHUTTER M10X80	9-01056-080-0	04	1	9002-9004	●
149	BOLT; INT SHUTTER M10X80	0-10806-080-0	04	1	9005-	●
150	WASHER; PL,INT SHUTTER ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9002-	●
152	PLUG; INT DUCT M22X12	1-09604-035-0	02	1	9002-		●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5	9-09571-422-0	02	1	9002-	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5	9-09571-422-0	02	1	9002-		●
154	STUD; INL SHUTTER,MANIF FIRE TRUCK<RA9> M10X55 L=70	9-04411-055-0	03	1	9002-9306	●
154	STUD; INL SHUTTER,MANIF FIRE TRUCK<RA9> M10X40 L=55	9-04411-040-0	03	1	9307-	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9002-	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=120	1-14317-027-0	01	1	9002-	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=120	1-14317-027-0	02	1	9307-		●
158	NUT; INT SHUTTER (B) M10	9-09110-410-0	04	1	9002-	●
158	NUT; INT SHUTTER (A) M10 FLANGE	0-91150-110-0	04	1	9002-	●	●
159	PIPE; VENTILATOR	9-14119-228-1	01	1	9002-	●	●
160	DUCT; AIR	1-14114-872-2	01	1	9002-	●
160	DUCT; AIR	1-14114-885-0	01	1	9307-		●
161	STUD; BRKT,INJ PUMP M8X16 L=28	9-04110-816-0	03	1	9002-9306	●
161	STUD; BRKT,INJ PUMP TAIWAN EQUIPMENT(WW5) M8X16 L=28	9-04110-816-0	03	1	9307-	●
161	STUD; BRKT,INJ PUMP EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X16 L=28	9-04110-816-0	06	1	9307-	●
161	STUD; BRKT,INJ PUMP TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	04	1	9307-	●
161	STUD; BRKT,INJ PUMP M8X16 L=28	9-04110-816-0	08	1	9307-		●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9002-	●	●
163	STUD; BRKT,ENG SPD CONT M10X20 L=35	9-04411-020-0	02	1	9002-	●	●
164	STUD; BRKT,ENG CONT FIRE TRUCK<RA9> M10X22 L=37	9-04411-022-0	02	1	9002-	●
165	BRACKET; CLIP,EXH BRK PIPE	1-22196-219-0	01	1	9002-	●	●
230	STUD; INL MANIF,PIPE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	01	1	9307-	●	●
560	BRACKET; AIR PIPE	1-14119-336-0	01	1	9002-	●	●
562	BOLT; INL DUCT AIR COMPRESSOR HEAVY DUTY(E1Q) M10X45 W/LK&PL WASHER	0-50151-045-0	02	1	9002-	●

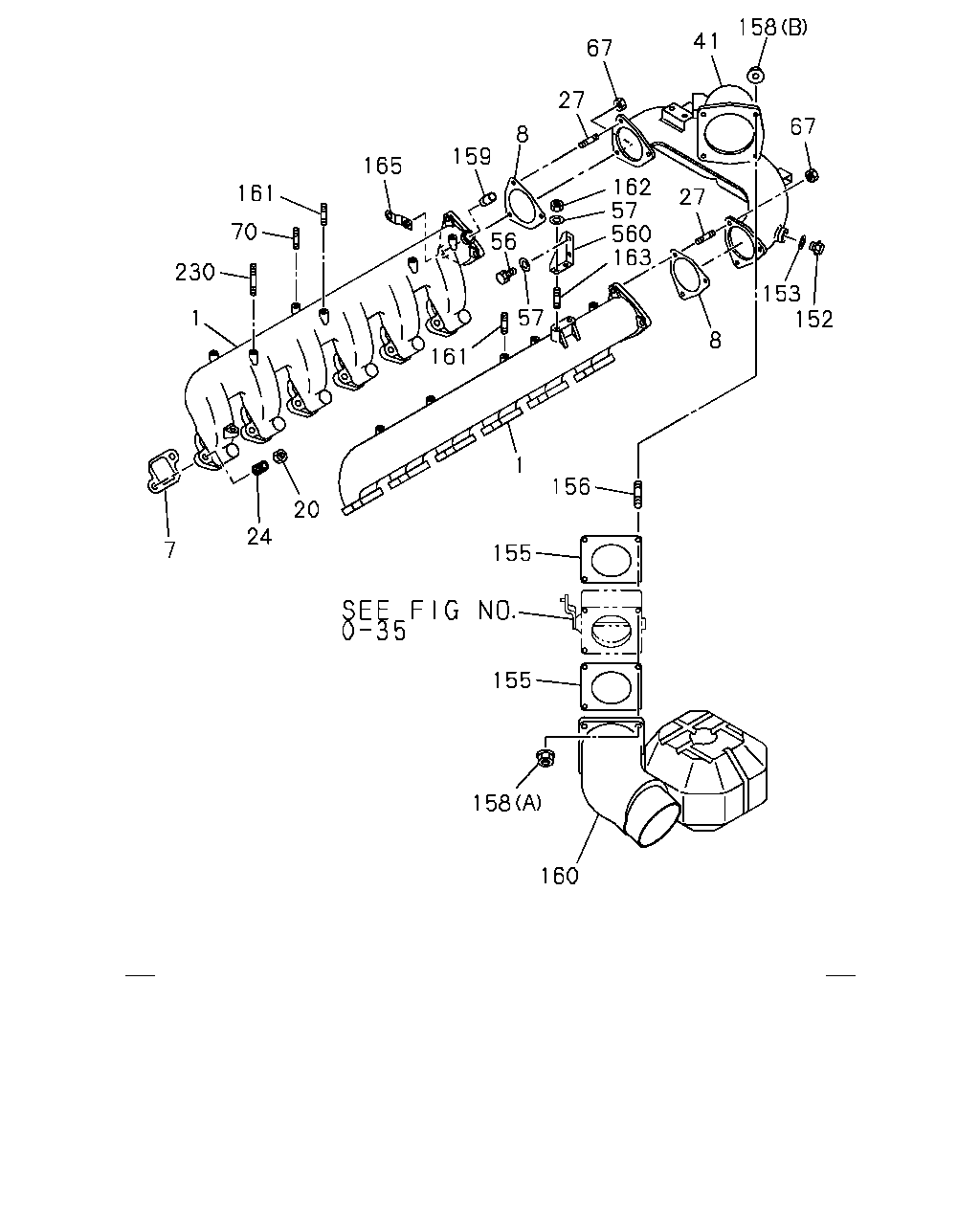

158 41 67 67 153 152 27 162 57 560 163 8 57 56 161 20 24 7 1 230 70 161 165 159 8 27 156 155 155 158 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL LH BANK	1-14112-284-2	01	1	9002-9306	●
1	MANIFOLD; INL FIRE TRUCK<RA9> RH BANK	1-14112-357-0	01	1	9002-9306	●
1	MANIFOLD; INL FIRE TRUCK<RA9> RH BANK	1-14112-525-0	01	1	9307-	●
1	MANIFOLD; INL EXC. FIRE TRUCK<RA9> RH BANK	1-14112-281-0	01	1	9002-9306	●
1	MANIFOLD; INL EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) RH BANK	1-14112-281-1	01	1	9307-	●
1	MANIFOLD; INL TAIWAN EQUIPMENT(WW5) LH BANK	1-14112-344-2	01	1	9307-	●
1	MANIFOLD; INL TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> RH BANK	1-14112-342-1	01	1	9307-	●
1	MANIFOLD; INL EXC. TAIWAN EQUIPMENT(WW5) LH BANK	1-14112-284-3	01	1	9307-	●
1	MANIFOLD; INL RH BANK	1-14112-348-1	01	1	9307-		●
1	MANIFOLD; INL LH BANK	1-14112-350-2	01	1	9307-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-048-0	10	1	9002-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-048-0	12	1	9307-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-044-0	02	1	9002-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	20	1	9002-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	24	1	9307-		●
24	SPRING; INL MANIF	1-09580-156-0	20	1	9002-	●
24	SPRING; INL MANIF	1-09580-156-0	24	1	9307-		●
27	STUD; INL MANIF AIR COMPRESSOR HEAVY DUTY(E1Q) M10X35 L=55	9-04311-035-0	01	1	9002-9005	●
27	STUD; INL MANIF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X35 L=55	9-04311-035-0	03	1	9002-9005	●
27	STUD; INL MANIF M10X30 L=45	9-04411-030-0	03	1	9002-	●	●
27	STUD; INL MANIF M10X35 L=55	9-04311-035-0	03	1	9006-	●	●
41	DUCT; INT COVER	1-14114-818-4	01	1	9002-	●	●
56	BOLT; STAY AIR DUCT	0-28081-022-0	01	1	9002-9306	●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9307-	●	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	01	1	9002-9306	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	9307-	●	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	06	1	9002-	●
67	NUT; INL DUCT M10	9-09110-410-0	06	1	9307-		●
70	STUD; WATER PIPE FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	03	1	9309-	●
70	STUD; WATER PIPE EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	02	1	9002-	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	02	1	9002-		●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9002-	●
152	PLUG; INT DUCT M22X12	1-09604-035-0	02	1	9002-		●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5	9-09571-422-0	02	1	9002-	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5	9-09571-422-0	02	1	9002-		●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9002-	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=120	1-14317-027-0	01	1	9002-	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=120	1-14317-027-0	02	1	9307-		●
156	STUD; AIR DUCT,INT SHUTTER FIX	1-09302-089-0	04	1	9307-		●
158	NUT; INT SHUTTER (B) M10	9-09110-410-0	04	1	9002-	●
158	NUT; INT SHUTTER (A) M10 FLANGE	0-91150-110-0	04	1	9002-	●	●
159	PIPE; VENTILATOR	9-14119-228-1	01	1	9002-	●	●
160	DUCT; AIR	1-14114-872-2	01	1	9002-	●
160	DUCT; AIR	1-14114-885-0	01	1	9307-		●
161	STUD; BRKT,INJ PUMP M8X16 L=28	9-04110-816-0	03	1	9002-9306	●
161	STUD; BRKT,INJ PUMP TAIWAN EQUIPMENT(WW5) M8X16 L=28	9-04110-816-0	03	1	9307-	●
161	STUD; BRKT,INJ PUMP EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X16 L=28	9-04110-816-0	06	1	9307-	●
161	STUD; BRKT,INJ PUMP TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	04	1	9307-	●
161	STUD; BRKT,INJ PUMP M8X16 L=28	9-04110-816-0	08	1	9307-		●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9002-	●	●
163	STUD; BRKT,ENG SPD CONT M10X20 L=35	9-04411-020-0	02	1	9002-	●	●
165	BRACKET; CLIP,EXH BRK PIPE	1-22196-219-0	01	1	9002-	●	●
230	STUD; INL MANIF,PIPE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> M8X16 L=28	9-04110-816-0	01	1	9307-	●	●
560	BRACKET; AIR PIPE	1-14119-336-0	01	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
