◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#27418) — 79 parça

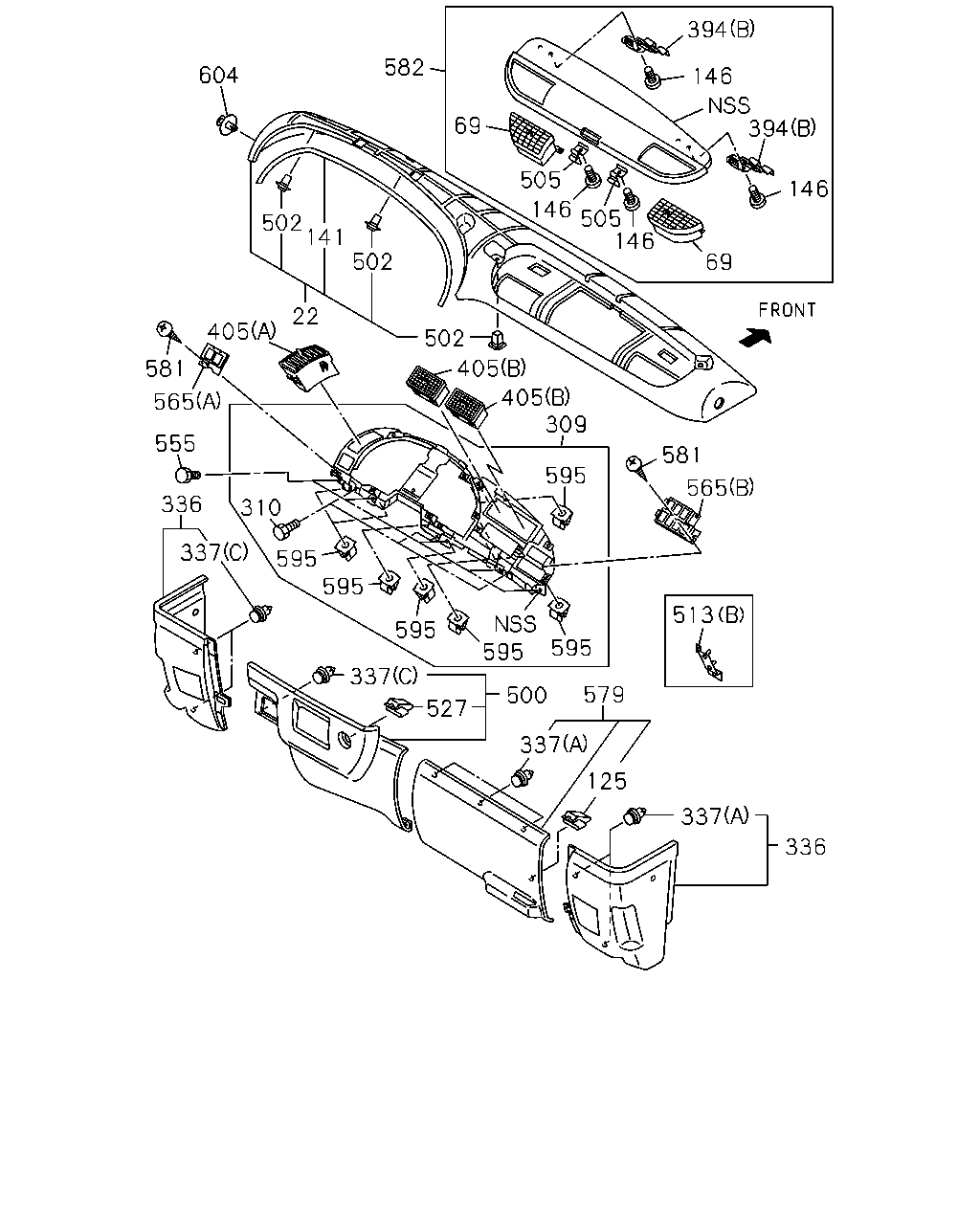

çizim 26349
394 582 604 146 394 69 505 146 146 505 146 502 141 502 69 22 405 502 405 581 405 309 565 555 581 595 565 336 310 337 595 595 513 595 595 595 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date
22 PAD; INST 1-72318-435-3 01 1 0612-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0612-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0612-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0612-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0612-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0612-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0612-
309 PANEL; SW,INST 1-72418-018-3 01 1 0612-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0612-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0612-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0612-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0612-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0612-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0612-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0612-
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0612-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0612-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0612-
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0612-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0612-
505 LOCK; LID 1-72558-024-2 02 1 0612-
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0612-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0612-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0612-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0612-
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0612-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0612-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0612-
579 COVER; INST PNL 1-72438-195-1 01 1 0612-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0612-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0612-
595 NUT; HOOK 1-72418-013-0 10 1 0612-
604 CLIP; INST PAD 1-09983-123-0 01 1 0612-

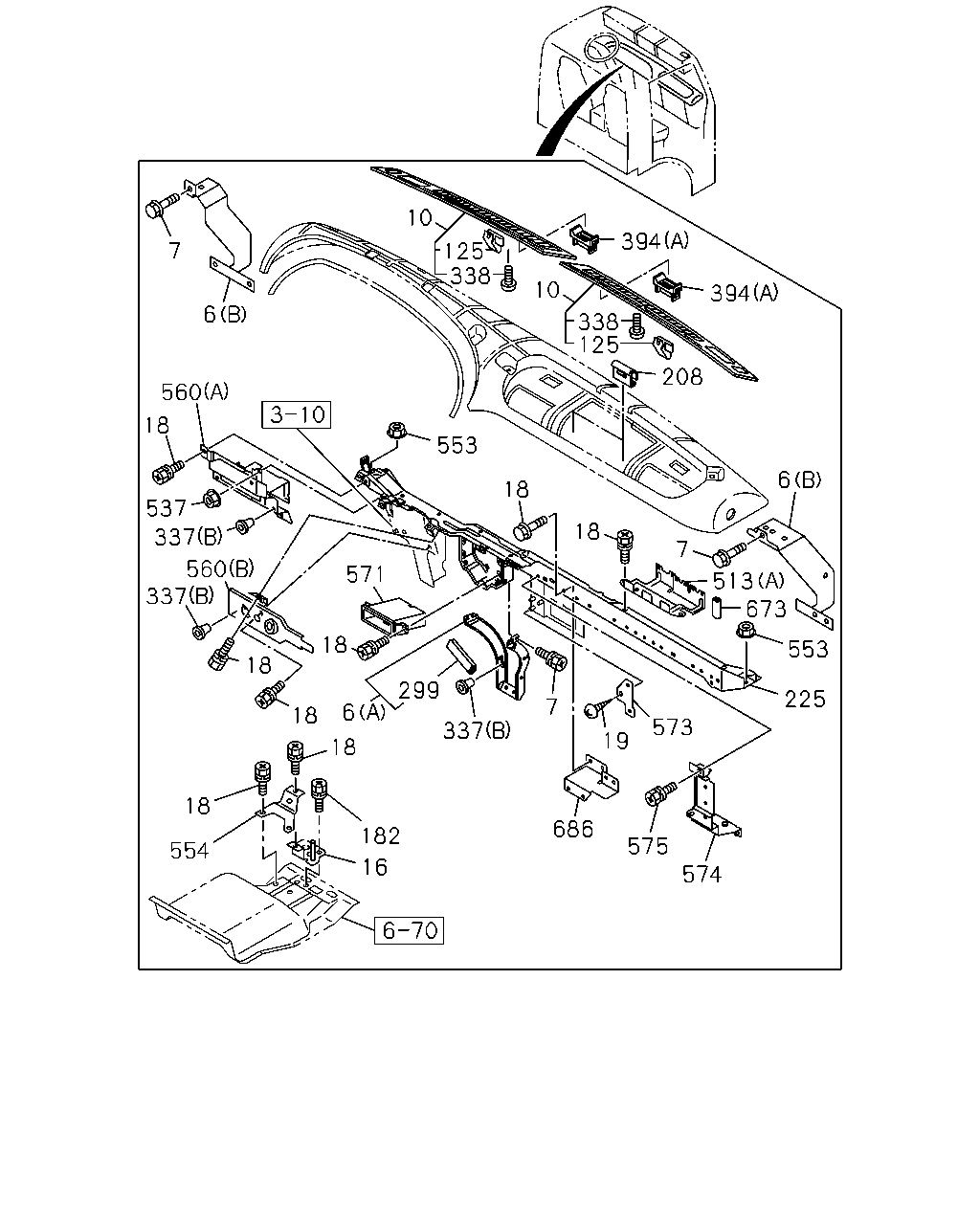

çizim 26585
10 394 7 125 338 10 394 6 338 125 208 560 18 553 6 18 537 18 337 7 560 337 571 513 673 18 553 18 299 225 7 6 18 573 337 19 18 18 686 182 575 554 16 574
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 0612-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-064-2 01 1 0612-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0612-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0612-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0612-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0612-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0612-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0612-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0612-
16 BRACKET; INST PNL 1-79738-802-1 01 1 0612-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0612-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0612-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0612-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0612-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0612-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0612-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0612-
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0612-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0612-
225 FRAME; FACIA 1-65681-028-8 01 1 0612-1002
225 FRAME; FACIA 8-98142-104-0 01 1 1003-
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0612-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0612-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0612-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0612-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0612-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 15 1 0802-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0612-
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0612-
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0612-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0612-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0612-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0612-
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 0612-
560 BRACKET
(A) 		1-65681-216-0 01 1 0612-
560 BRACKET
(B) 		1-65681-224-3 01 1 0612-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0612-
571 BEZEL; POCKET 1-72438-151-3 01 1 0612-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0612-
574 PANEL; RELAY BOX 1-73908-058-7 01 1 0612-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0612-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0612-
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 0612-
çizim 89800
598 22 597
BalonParca AdiParca NoAdetTipApplied Date
22 PAD; INST 1-72318-435-3 01 1 0612-
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0612-
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 0612-
