7-20 — MIRROR AND MIRROR STAY (#27416) — 89 parça

13 133 132 134 13 133 134 132 30 135 134 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0612-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-917-3	01	1	0612-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-591-1	01	1	0612-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71798-592-1	01	1	0612-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0612-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-933-0	01	1	0612-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-935-0	01	1	0612-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0612-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-926-0	01	1	0612-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0612-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	02	1	0612-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-71737-929-0	01	1	0612-

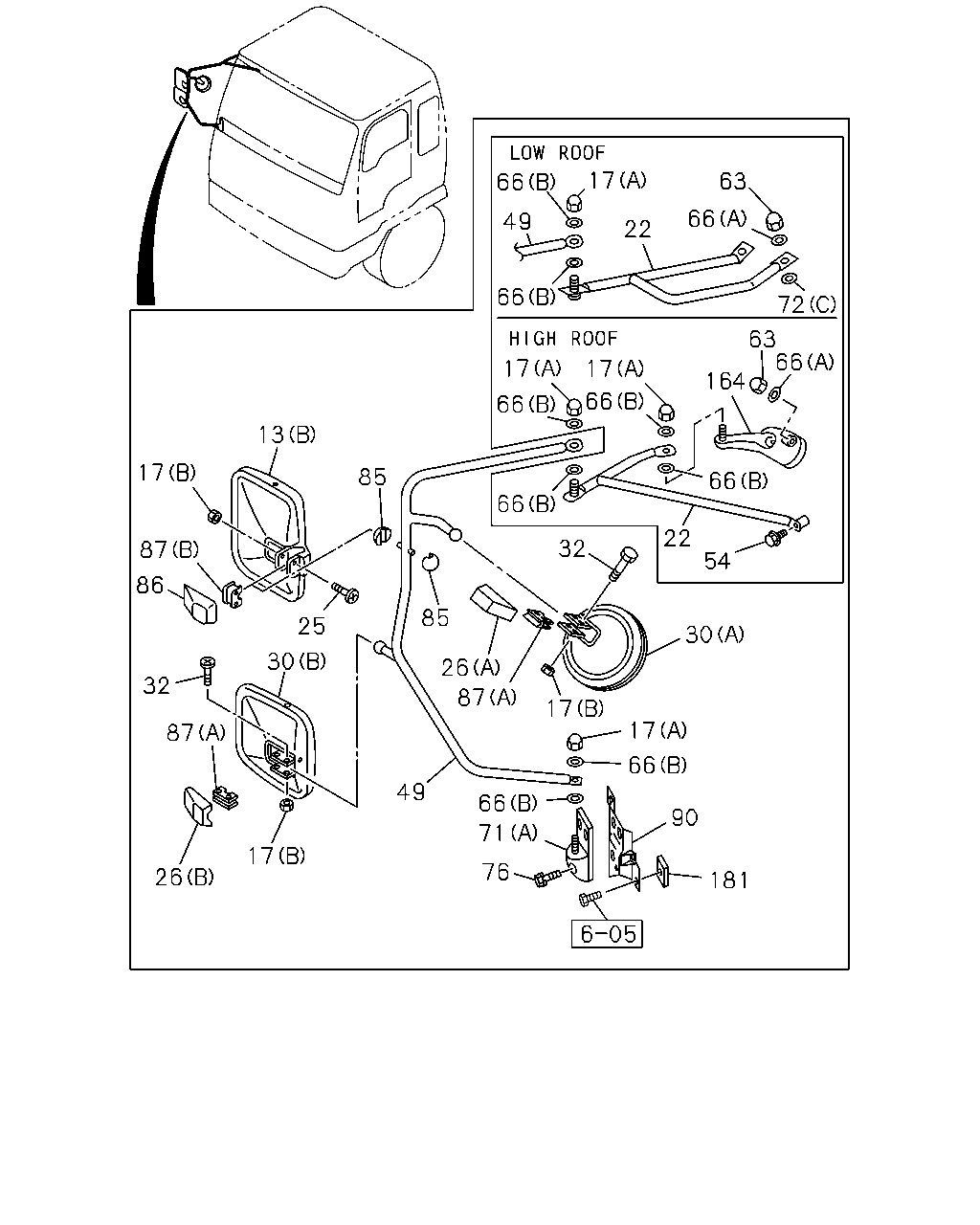

17 63 66 66 49 22 66 72 63 66 17 17 164 66 66 13 17 85 66 66 22 32 87 54 86 85 25 30 30 26 32 87 17 17 87 66 49 66 90 71 17 76 26 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0612-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-917-3	01	1	0612-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0612-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0612-
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> (A) M10 CAP NUT	1-09984-134-0	01	1	0612-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	06	1	0612-
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F>	1-71798-582-4	01	1	0612-
22	STAY; OUTSIDE MIRROR LOW ROOF<6XQ>	1-71798-627-1	01	1	0612-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0612-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0612-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A) BLACK	1-71737-649-1	01	1	0612-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B) BLACK	1-71737-652-1	01	1	0612-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-591-1	01	1	0612-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71798-592-1	01	1	0612-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> M5X40 W/PL WASHER	1-71737-797-0	04	1	0612-
49	STAY; MIRROR SIDE	1-71798-491-3	01	1	0612-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-71798-762-2	01	1	0612-
54	BOLT; STAY HIGH ROOF<S2F> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0612-
63	NUT; STAY M8	1-09984-187-0	02	1	0612-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0612-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0612-
66	WASHER; PL HIGH ROOF<S2F> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0612-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0612-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	01	1	0612-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	0612-
72	SHEET (A)	1-71798-487-3	01	1	0612-
72	SHEET (B)	1-71798-488-1	01	1	0612-
72	SHEET LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0612-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0612-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	0612-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> ID=22.2	1-71736-489-2	02	1	0612-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0612-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0612-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-704-0	01	1	0612-
87	SPACER (A)	1-71737-704-0	01	1	0612-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-646-2	02	1	0612-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0612-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0612-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
164	STAY; ROOF HIGH ROOF<S2F>	1-71798-300-5	01	1	0612-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0612-

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0612-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0612-

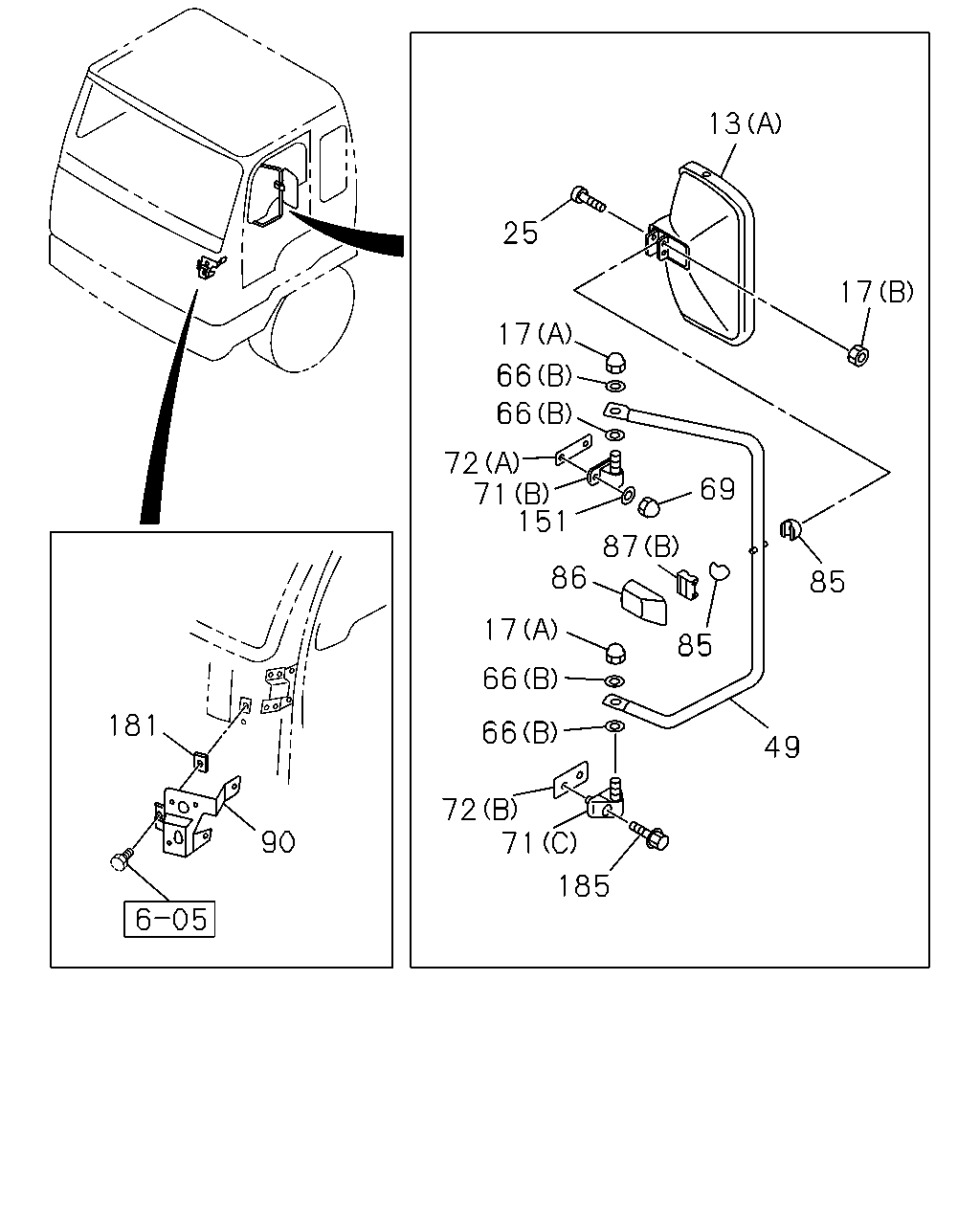

13 25 17 17 66 66 72 71 151 69 87 86 85 17 85 66 181 66 49 72 71 90 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0612-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-917-3	01	1	0612-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0612-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0612-
17	NUT; CAP,MIRROR STAY HIGH ROOF<S2F> (A) M10 CAP NUT	1-09984-134-0	01	1	0612-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	06	1	0612-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0612-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0612-
49	STAY; MIRROR SIDE	1-71798-491-3	01	1	0612-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4>	1-71798-762-2	01	1	0612-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0612-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0612-
66	WASHER; PL HIGH ROOF<S2F> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0612-
69	NUT; CAP M8	1-09984-187-0	02	1	0612-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0612-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	01	1	0612-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	0612-
72	SHEET (A)	1-71798-487-3	01	1	0612-
72	SHEET (B)	1-71798-488-1	01	1	0612-
72	SHEET LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	0612-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	0612-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> ID=22.2	1-71736-489-2	02	1	0612-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0612-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0612-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-704-0	01	1	0612-
87	SPACER (A)	1-71737-704-0	01	1	0612-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-646-2	02	1	0612-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0612-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0612-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0612-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0612-
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0612-
