Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

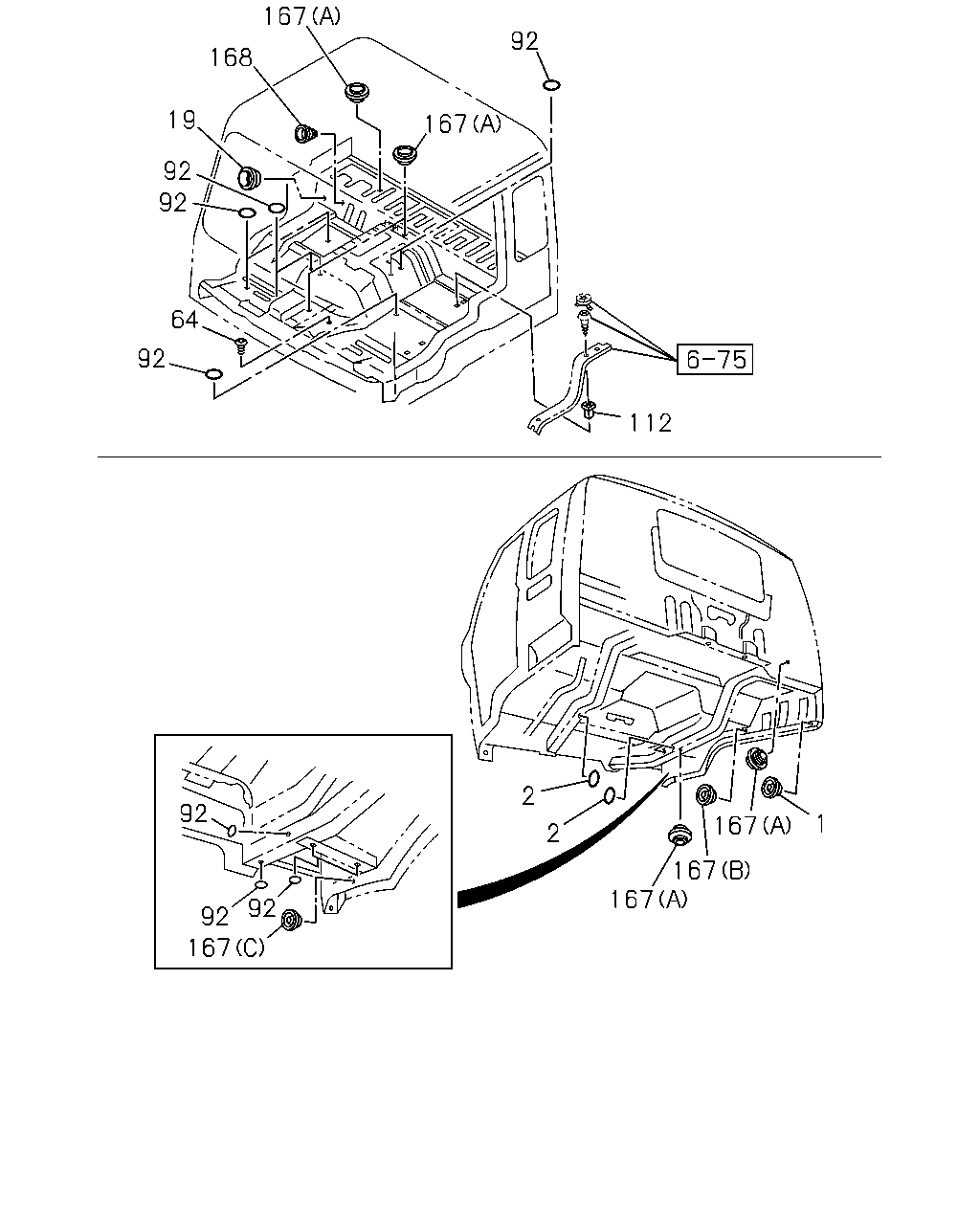

6-78 — FLOOR HOLE PLUG
(#27409) — 16 parça
167
92
168
19
167
92
92
64
92
112
2
92
1
167
2
167
167
92
92
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GROMMET
OD=40
1-09600-083-0
02
1
0612-
2
GROMMET
OD=25 BLACK
1-76798-019-0
02
1
0612-
19
GROMMET; FLOOR FRT
OD=28
8-94279-720-0
02
1
0612-
64
PLUG; ENG HOOD
D7.8X20
8-94353-238-0
01
1
0612-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0612-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0612-
92
SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
0612-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
23
1
0612-
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0612-
92
SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
04
1
0612-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0612-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
03
1
0612-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
0612-
167
GROMMET; LOCATION HOLE
(C) OD=35
8-94122-971-0
04
1
0612-
167
GROMMET; LOCATION HOLE
(B) OD=15.0
8-94279-040-0
02
1
0612-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0612-
